1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF 10' x 20' Permanent Hardtop Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This gazebo is designed to provide a durable and comfortable outdoor living space.

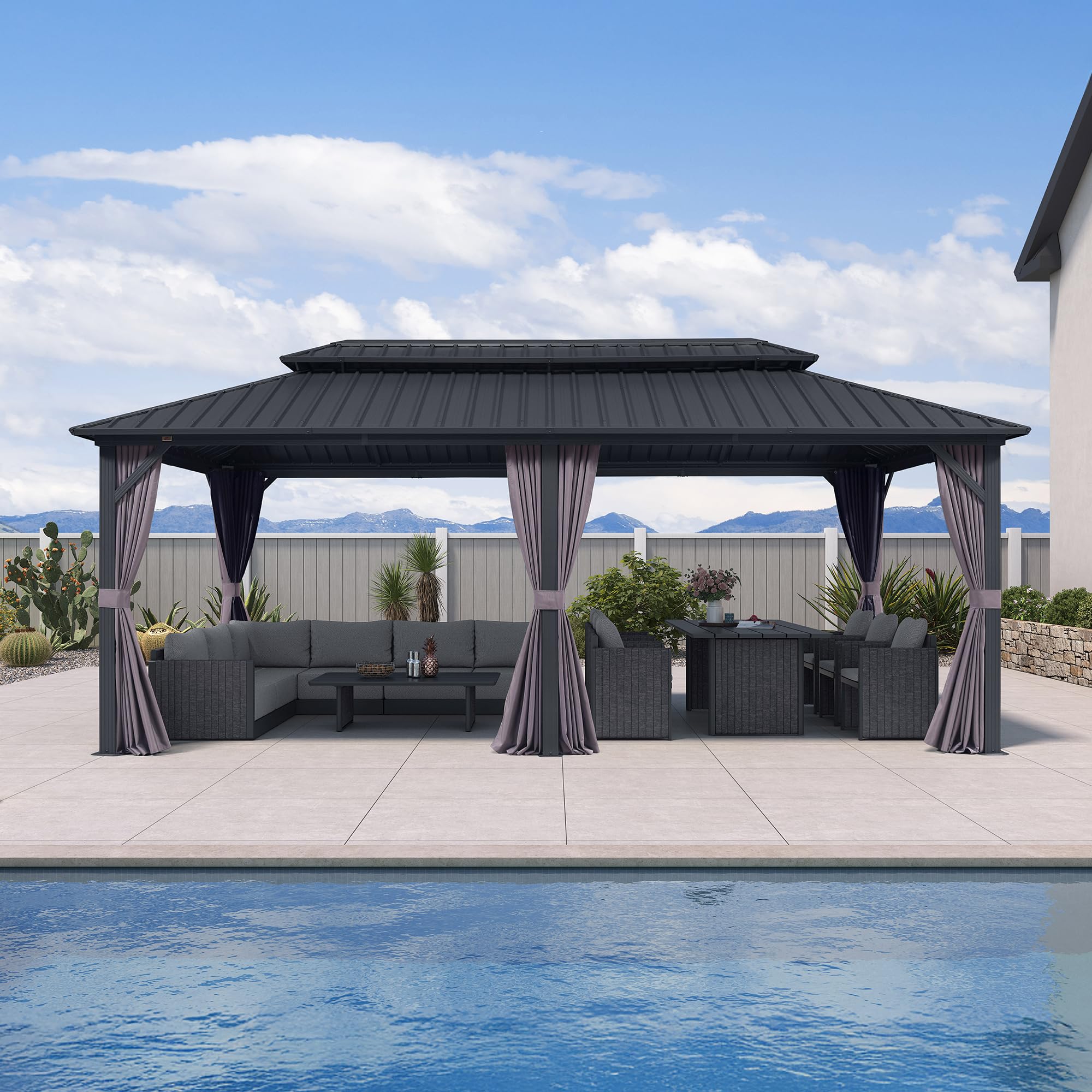

Image 1.1: The PURPLE LEAF 10' x 20' Permanent Hardtop Gazebo in an outdoor setting.
2. Key Features
- 3.9" x 3.9" Thickened Post: Engineered with thicker-than-standard posts for superior structural integrity and enhanced resilience against various weather conditions, ensuring long-term stability.
- Galvanized Steel Double Vented Roof: The roof features a dual-layer ventilation design that ensures optimal airflow and enhances outdoor comfort. The galvanized steel panels offer UV resistance for long-lasting durability.
- Removable Netting and Curtains: The polyester-coated blackout curtains effectively block sunlight while providing privacy. The netting is equipped with dual zippers for easy access.
- Powder-Coated Aluminum Frame: The hardtop gazebo is built with a sturdy yet lightweight aluminum alloy frame, combining excellent strength and durability for long-term outdoor use.
- Ceiling Hooks: High-quality built-in hooks allow for easy installation of pendant lights or decorative items, transforming the gazebo into a warm and well-lit gathering space.
Image 2.1: Illustration of the thickened posts for enhanced stability.
Image 2.2: Detail of the galvanized steel double vented roof for airflow and durability.
Image 2.3: Removable mesh netting and privacy curtains for comfort and privacy.
Image 2.4: Ceiling hooks for hanging lights or other decorative elements.
3. Setup and Assembly
Assembly of the PURPLE LEAF Hardtop Gazebo requires careful attention to detail. It is highly recommended that at least two adults participate in the assembly process to ensure safety and efficiency. Please refer to the included assembly manual for step-by-step instructions, diagrams, and a complete list of parts.
Key Assembly Considerations:
- Site Preparation: Choose a level surface for installation. Ensure adequate clearance around the gazebo for assembly and future use.
- Part Identification: Before starting, lay out all parts and verify against the parts list in your manual.
- Tool Requirements: Gather all necessary tools as specified in the assembly manual.
- Roof Assembly: The roof panels require precise alignment. It is often easier to partially secure panels before fully tightening to allow for minor adjustments.
- Anchoring: Securely anchor the gazebo to your patio or deck using appropriate hardware to prevent movement in windy conditions.
Video 3.1: An overview of the PURPLE LEAF Patio Hardtop Gazebo, demonstrating its structure and features relevant to assembly.
Video 3.2: A closer look at the PURPLE LEAF Outdoor Aluminum Gazebo, highlighting its heavy-duty construction and components during setup.
4. Operating Instructions
Your gazebo is designed for versatile use and comfort. Follow these guidelines for optimal operation:
- Curtains and Netting: The removable polyester curtains provide privacy and sun protection. The netting, equipped with dual zippers, helps keep insects out while maintaining airflow. Both can be easily opened, semi-opened, or fully closed as needed.
- Ceiling Hooks: Utilize the integrated ceiling hooks to hang outdoor lighting, decorative elements, or a lightweight fan for added comfort. Ensure any hung items do not exceed the weight limit specified in your full assembly manual.
- Vented Roof: The double-tiered roof design promotes air circulation, which is particularly beneficial when using a grill or other heat-generating appliances underneath, helping to dissipate heat and smoke.
5. Maintenance
Regular maintenance will extend the lifespan and preserve the appearance of your gazebo.
- Cleaning the Frame: Wipe the aluminum frame with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
- Roof Care: Periodically inspect the galvanized steel roof panels for debris accumulation. Clean with water and a soft brush if necessary. Ensure drainage channels are clear.
- Curtains and Netting: Remove and clean the curtains and netting according to their care labels. Store them in a dry, protected area during harsh weather or off-season to prolong their life.
- Fasteners: Periodically check all bolts and screws to ensure they are tight. Tighten any loose fasteners to maintain structural integrity.
6. Troubleshooting
Here are solutions to common issues you might encounter:
- Water Leaks from Roof: Ensure all roof panels are correctly installed and all screws are tightened. For persistent leaks, apply a weather-resistant sealant to the seams of the roof panels.
- Bent or Damaged Parts: For minor bends in metal components, pliers may be used to gently reshape the part. For significant damage, contact PURPLE LEAF customer support for replacement parts.
- Difficulty with Assembly: Review the assembly manual carefully. Ensure all parts are correctly oriented before tightening fasteners. Having an additional person assist can greatly simplify the process.
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model Number | ZY04JJG1020 |
| Material | Aluminum Frame, Galvanized Steel Roof |
| Style | Grey Basic |
| Product Dimensions | 222.44"L x 106.3"W x 113.03"H (10' x 20') |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | Yes |
| Assembly Required | Yes |
| Color | Gray |
| Manufacturer | PURPLE LEAF |
