1. Important Safety Information
Read this manual thoroughly before operating the HillMiles Mile 1 electric bicycle. Failure to follow instructions and safety warnings may result in serious injury or damage to the product.
- Always wear a helmet and appropriate safety gear when riding.
- Ensure all components are securely fastened before each ride.
- Do not ride under the influence of alcohol or drugs.
- Observe all local traffic laws and regulations.
- Avoid riding in adverse weather conditions, such as heavy rain or snow.
- Do not exceed the maximum weight capacity of the bicycle.
- Regularly check tire pressure, brakes, and battery charge.
2. Product Overview
The HillMiles Mile 1 is a compact and portable electric bicycle designed for urban commuting and light trail use. It features a powerful motor, long-range battery, and a foldable design for easy transport and storage.
Figure 2.1: HillMiles Mile 1 Electric Bicycle in both folded and unfolded configurations. This image illustrates the compact design for storage and the full operational setup.
3. Setup and Assembly
The HillMiles Mile 1 electric bicycle comes partially assembled. Follow these steps to complete the setup.
3.1 Unfolding the Bicycle
- Carefully remove the bicycle from its packaging.
- Locate the main frame hinge and release the safety latch.
- Unfold the frame until it locks into place. Secure the safety latch.
- Unfold the handlebars and secure the stem latch.
- Adjust the seat post to your desired height and tighten the quick-release clamp.
- Unfold the pedals.
3.2 Initial Battery Charge
Before first use, fully charge the battery. The battery is integrated into the frame.
- Connect the charger to the charging port on the bicycle frame.
- Plug the charger into a standard wall outlet.
- The indicator light on the charger will show charging status (e.g., red for charging, green for fully charged).
- A full charge typically takes 5 hours.
Figure 3.1: Illustration of the 36V 10.4Ah hidden battery and estimated 60 KM pedal assist range. This image highlights the battery capacity and its integrated design within the bicycle frame.
3.3 Tire Inflation
Ensure tires are inflated to the recommended pressure before riding. Refer to the tire sidewall for specific pressure ranges.

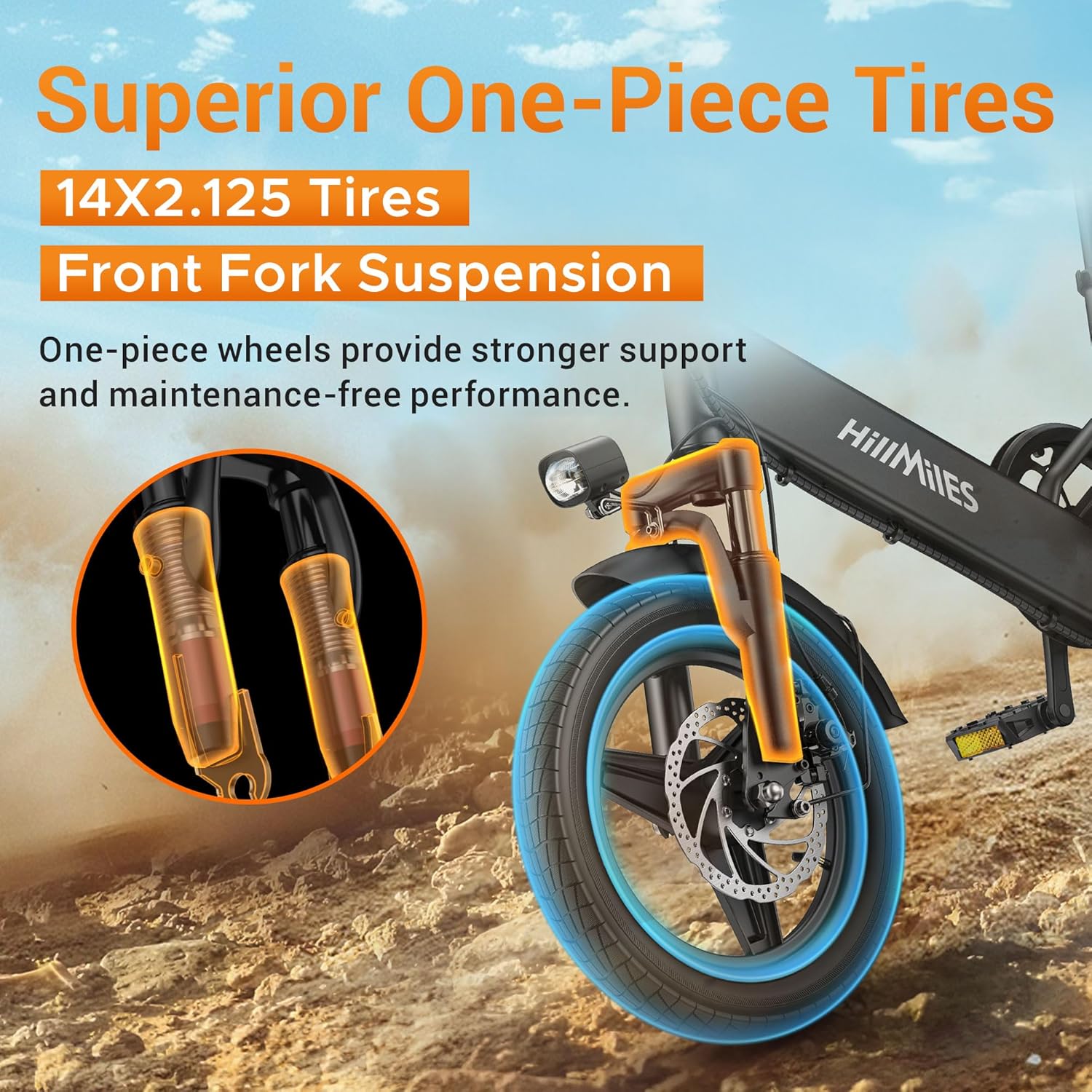

Figure 3.2: Close-up of the 14x2.125 inch one-piece tires and front fork suspension system. This image demonstrates the robust tire construction and the comfort-enhancing suspension.
4. Operating Instructions
4.1 Powering On/Off
- To power on, press and hold the power button on the LCD display for a few seconds.
- To power off, press and hold the power button again until the display turns off.
4.2 LCD Display Functions
The intelligent LCD display provides real-time information:
- Power Level: Indicates remaining battery charge.
- Speed: Displays current riding speed.
- Mileage: Shows trip distance or total odometer reading.
- Error Codes: Displays error messages if a problem is detected.
- Fixed Speed Setting: Allows setting a fixed speed when pedaling on flat terrain.
4.3 Pedal Assist System (PAS)
The Mile 1 features a pedal assist system. The motor provides assistance as you pedal. You can typically adjust the level of assistance using buttons on the display or handlebars.
4.4 Gear Shifting
The bicycle is equipped with a 7-speed gear shifter (trigger control). Use the shifter to adjust your pedaling effort according to terrain and desired speed.
Figure 4.1: Detailed view of the 250W powerful motor, 7-speed gear shifter, and mechanical disc brake components. This image illustrates the core mechanical and electrical systems of the bicycle.
4.5 Braking
The Mile 1 uses mechanical disc brakes on both front and rear wheels. Apply both brakes simultaneously for effective and controlled stopping. Avoid sudden, hard braking, especially at high speeds.
4.6 Transporting the Bicycle
The foldable design allows for easy transport. Ensure the bicycle is securely folded and latched before placing it in a vehicle.
Figure 4.2: The HillMiles Mile 1 Electric Bicycle in its compact, folded state, easily fitting into a car trunk. This demonstrates its portability and convenience for transport.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your HillMiles Mile 1 electric bicycle.
5.1 Cleaning
- Wipe the frame with a damp cloth. Avoid using high-pressure washers directly on electrical components.
- Clean the chain and gears regularly with a suitable bicycle degreaser and lubricate afterward.
5.2 Battery Care
- Charge the battery regularly, even if not in use, to maintain its health.
- Store the bicycle and battery in a cool, dry place, away from direct sunlight and extreme temperatures.
- Do not attempt to open or repair the battery pack.
5.3 Brake Adjustment
Check brake pads for wear and adjust brake cables as needed to ensure responsive braking. If you are unsure, consult a professional bicycle mechanic.
5.4 Tire Inspection
Regularly inspect tires for wear, punctures, or damage. Maintain correct tire pressure for optimal performance and safety.
6. Troubleshooting
This section addresses common issues you might encounter with your HillMiles Mile 1 electric bicycle.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bicycle does not power on | Low battery charge, loose battery connection, power button issue. | Charge the battery fully. Check battery connections. Ensure power button is pressed correctly. |
| Motor not assisting | Low battery, PAS level set to zero, sensor issue. | Check battery level. Increase PAS level on display. If issue persists, contact support. |
| Brakes feel weak | Worn brake pads, loose brake cable, air in hydraulic system (if applicable). | Inspect and replace brake pads if worn. Adjust brake cable tension. Consult a professional for hydraulic brake issues. |
| LCD display shows an error code | System malfunction. | Note the error code and refer to the full service manual (if available) or contact HillMiles support with the code. |
7. Specifications
Detailed technical specifications for the HillMiles Mile 1 Electric Bicycle.
| Feature | Detail |
|---|---|
| Model Name | Mile 1 |
| Brand | HillMiles MTB |
| Bike Type | Electric Bicycle |
| Motor | 250W High-Speed Brushless Motor, 40 Nm Torque |
| Max Speed | 25 km/h (15.5 mph) |
| Battery | 36V 10.4Ah Lithium Battery (Hidden) |
| Range | 40-65 km (25-40 miles) per charge (Pedal Assist) |
| Wheel Size | 14 Inches (14 x 2.0 inch tires) |
| Tire Type | One-piece alloy aluminum tires |
| Suspension | Front Fork Suspension, Rear Suspension |
| Brakes | Mechanical Disc Brakes (Front & Rear) |
| Gears | 7-Speed (Trigger Control Shifter, Rear Derailleur, Cassette Gear Type) |
| Power Assist Type | Pedal Assist |
| Intended Terrain | Unpaved Trails, Urban Terrain |
| Included Components | Tool Kit |
| Age Range | Adult |
| Color | Blue |
| ASIN | B0GCJ7ZNTJ |
| UPC/GTIN | 607605817325 |
8. Warranty Information
The HillMiles Mile 1 Electric Bicycle comes with a Limited Warranty. Specific terms and conditions apply. Please retain your proof of purchase for warranty claims.
For detailed warranty information, please refer to the warranty card included with your product or contact HillMiles customer support.
9. Customer Support
If you have any questions, require assistance, or need to report an issue with your HillMiles Mile 1 electric bicycle, please contact our customer support team.
- Online Support: Visit the official HillMiles website for FAQs and support resources.
- Email Support: Refer to your product packaging or warranty card for contact email.
- Returns: If you need to return the e-bike, please contact the HillMiles service team for assistance instead of returning it yourself to avoid package loss.
