Important Safety Information
Read all instructions carefully before assembly and use. Keep this manual for future reference.
Anti-Tipping Device
To prevent serious injury or death from furniture tip-over, this dresser must be permanently attached to the wall using the provided anti-tipping device.
- Always install the anti-tipping device as instructed.
- Do not allow children to climb on or hang from drawers or the dresser.
- Place heaviest items in the lowest drawers.
- Do not open more than one drawer at a time.
This video demonstrates the features of the AOGLLATI LED Tall Dresser, including the anti-tipping mechanism shown from 0:17 to 0:20. Ensure the anti-tipping device is properly installed to secure the dresser to the wall, preventing accidental tip-overs.
Package Contents
Verify all components are present before beginning assembly. If any parts are missing or damaged, contact customer service.
- All wooden panels (numbered)
- Drawer slides
- Handles
- LED light strip
- Power adapter for LED lights
- Anti-tipping hardware
- Assembly hardware (screws, dowels, cam locks, etc.)
- Instruction manual
- Tools (basic wrench, screwdriver)
Product Overview

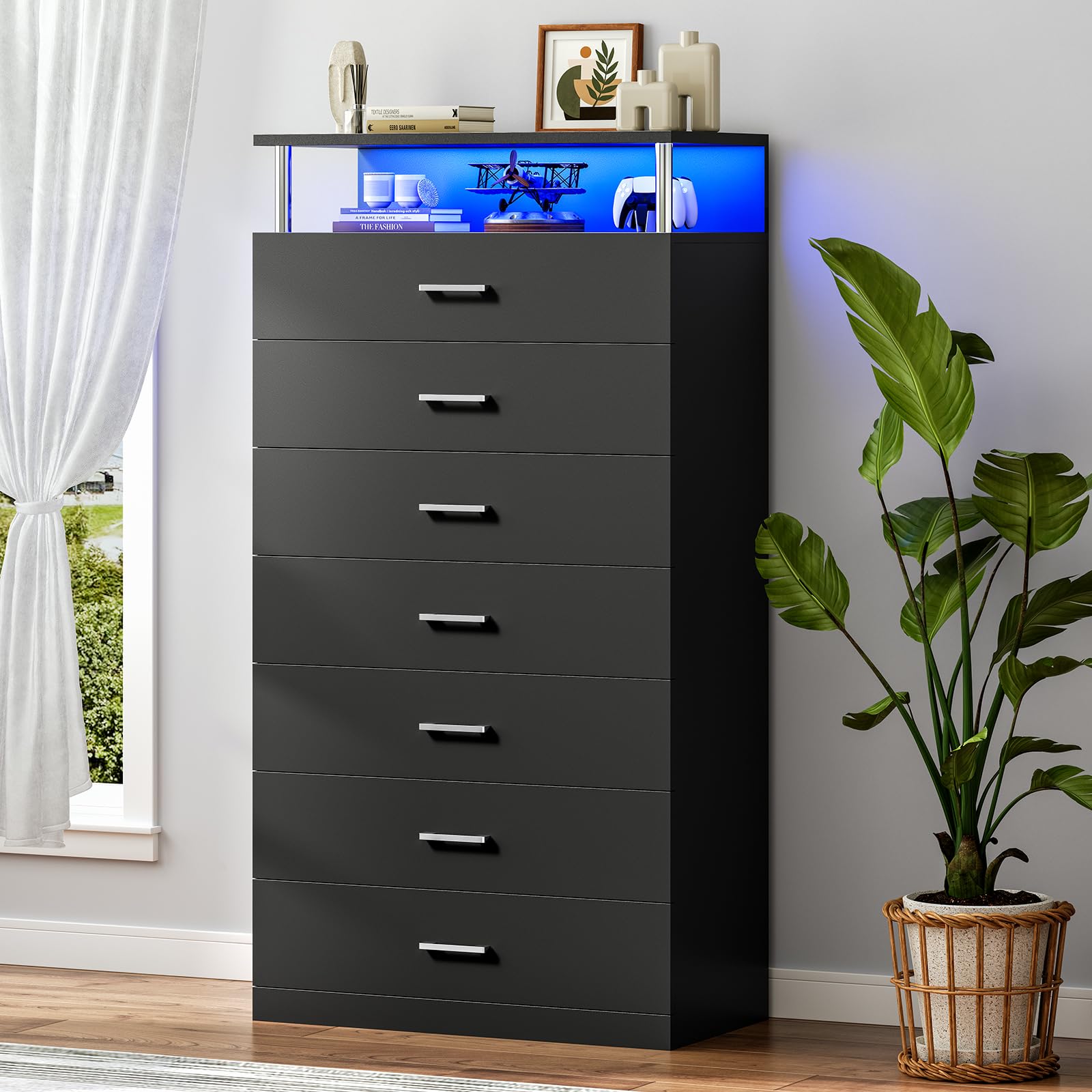

The AOGLLATI AG-LZ-T7 is a modern 7-drawer tall dresser designed for bedroom use, featuring integrated RGB LED lighting and a stylish column design.
Key Features
- Modern Column Design: Clean, streamlined aesthetic with metal columns.
- Multi-Variable RGB LED Lights: Built-in LED strip with adjustable colors, brightness, and various lighting modes, including music rhythm synchronization via an app.
- Ample Storage: Seven spacious drawers and an open top storage area.
- Durable Construction: Made from eco-friendly particle board and metal materials with a water-resistant finish.
- Stable Base: Designed for stability and includes an anti-tilting device.
Dimensions
Overall dimensions: 15.7"D x 29.5"W x 57"H.
This image shows the overall dimensions of the dresser: 15.7 inches deep, 29.5 inches wide, and 57 inches high. It also details the drawer dimensions.
Assembly Instructions
Assembly is required. It is recommended to have two people for assembly. A power screwdriver can expedite the process. Follow the numbered steps carefully.
- Unpack and Identify Parts: Lay out all boards and hardware, matching them to the numbered labels in the instruction manual.
- Assemble the Frame: Begin by connecting the main frame components. Pay close attention to the orientation of each panel.
- Install Drawer Slides: Attach the drawer slides to the dresser frame according to the instructions. Ensure they are level and securely fastened.
- Construct Drawers: Assemble each of the seven drawers. Ensure all connections are tight.
- Install Handles: Attach the handles to the front of each drawer.
- Insert Drawers: Carefully slide the assembled drawers into their respective slots on the dresser frame.
- Install LED Lighting: Adhere the LED light strip to the designated area, typically the open top storage section. Connect the power adapter.
- Attach Anti-Tipping Device: Securely fasten the anti-tipping device to the back of the dresser and to a wall stud.
Tip: For hardware parts like cam locks (often labeled A and B), ensure part B is locked with a solid clockwise turn of a flathead screwdriver after inserting part A. This is crucial for stability.

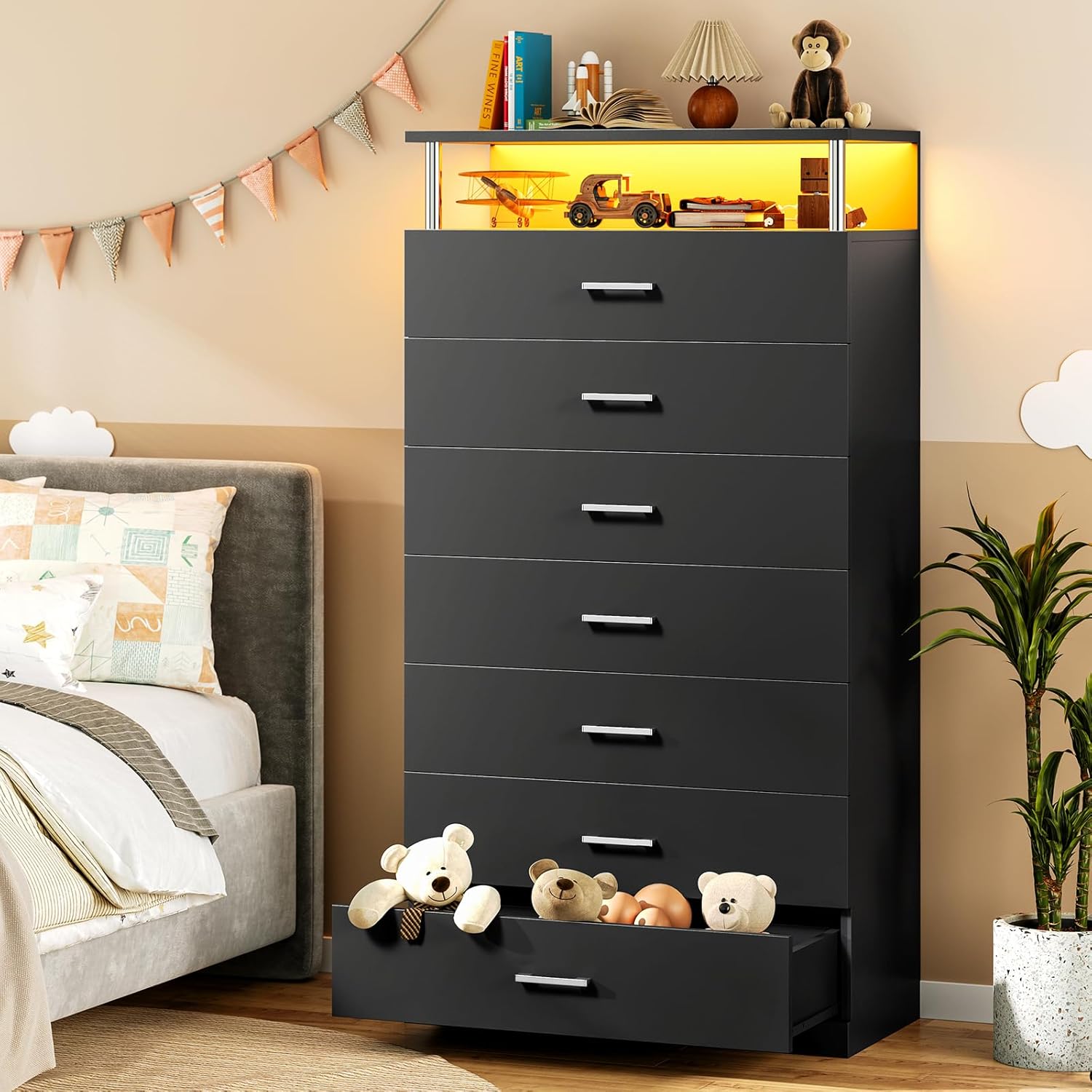

This image illustrates the dresser with several drawers open, demonstrating the spacious interior for storing various items.
This image provides a close-up view of the dresser's column design and the integrated LED lighting in the open top section.
Operating Instructions
LED Lights Operation
The dresser features a built-in RGB LED light strip with multiple modes and adjustable brightness.
- Power On/Off: Use the included key control or the dedicated smartphone application to turn the LED lights on or off.
- Color and Mode Selection: Cycle through millions of colors and 30 light modes using the key control or the app.
- Brightness Adjustment: Adjust the brightness level to your preference via the key control or app.
- Music Mode: The LED lights can change color in rhythm with music when activated through the smartphone application.
- Timing Function: Set a timer for the lights to turn off automatically using the app.

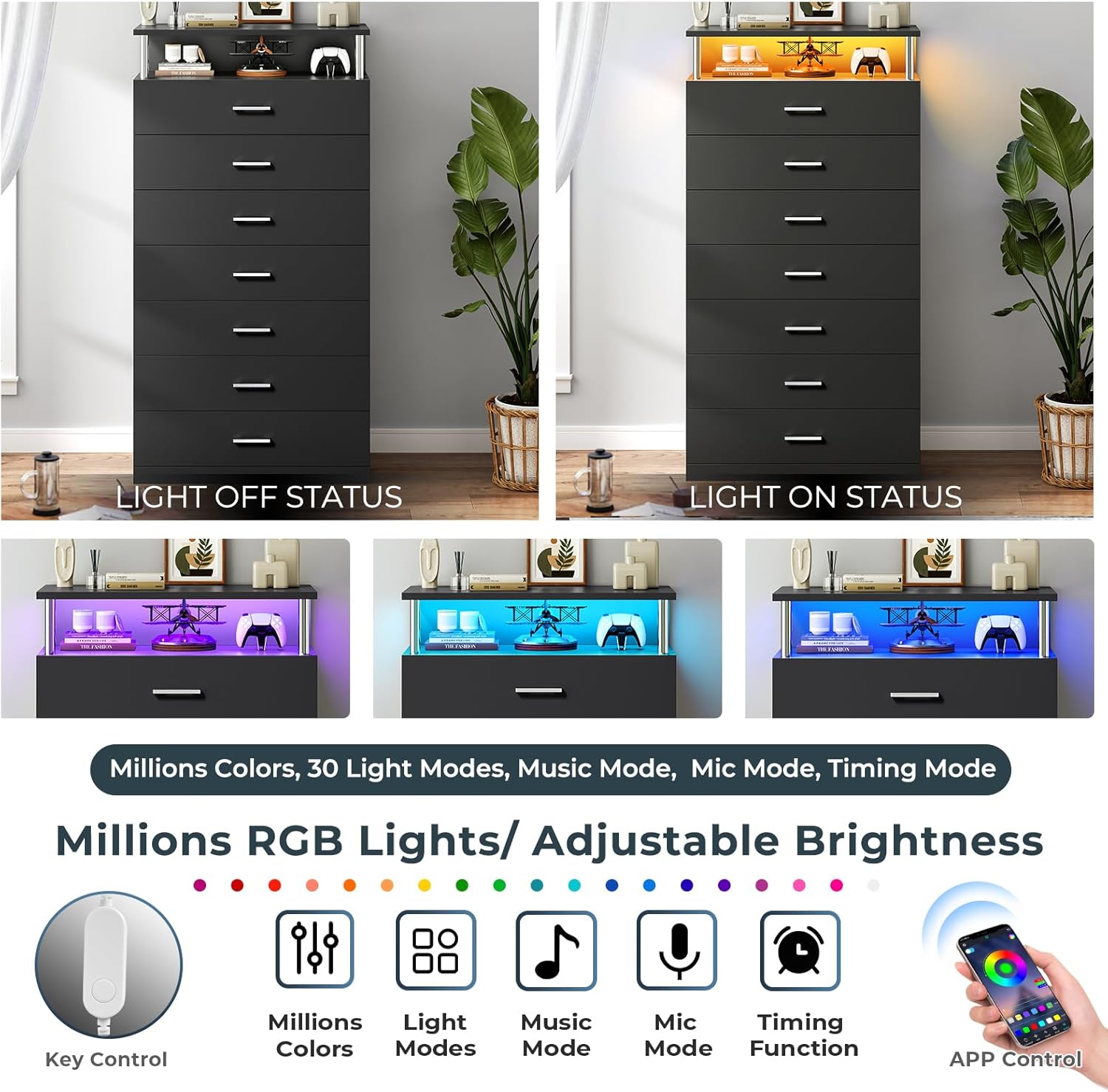

This image displays the dresser with the LED lights in both off and various colored 'on' states, highlighting the customizable lighting options.
This diagram illustrates the different control methods and features of the LED lights, including key control, smartphone app, music mode, and timing function.
Drawer Usage
The drawers are equipped with smooth ball-bearing slides for easy opening and closing.
- To open a drawer, gently pull the handle.
- To close a drawer, push it firmly until it is fully seated.
- Avoid overloading drawers to ensure smooth operation and prevent damage.
Maintenance
- Cleaning: Wipe the dresser surfaces with a damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Dusting: Regularly dust the dresser to maintain its appearance.
- Hardware Check: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
- LED Lights: If the LED lights malfunction, check the power connection. If issues persist, contact customer service.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not slide smoothly | Overloaded drawer; misaligned drawer slides; loose screws on slides | Reduce weight in drawer; check alignment of slides; tighten all screws on drawer slides. |
| LED lights not working | Power adapter unplugged; loose connection; faulty LED strip | Ensure power adapter is securely plugged in; check all connections; contact customer service if problem persists. |
| Dresser feels unstable | Loose assembly hardware; anti-tipping device not installed or improperly secured | Retighten all assembly screws; ensure anti-tipping device is correctly installed and anchored to the wall. |
| Cam lock connectors (parts A/B) are loose | Part B not fully tightened | After inserting part A, turn part B clockwise with a flathead screwdriver until it is fully locked. |
Specifications
| Feature | Detail |
|---|---|
| Brand | AOGLLATI |
| Model Name | Tall 7 Drawer Dresser (AG-LZ-T7) |
| Product Dimensions | 15.7"D x 29.5"W x 57"H |
| Color | Black |
| Material | Engineered Wood, Metal |
| Finish Type | Water Resistant |
| Number of Drawers | 7 |
| Drawer Type | Ball Bearing Slide |
| Item Weight | 91.5 Pounds |
| Assembly Required | Yes |
Warranty and Support
This product comes with a Limited Warranty. For specific details regarding warranty coverage, please refer to the warranty card included in your package or contact AOGLLATI customer service.
If you have any questions about the dresser, assembly, or operation, please contact AOGLLATI customer service. They are available to assist you within 24 hours.
Contact Information: Refer to the contact details provided in your product packaging or on the official AOGLLATI website.
