1. Product Overview
The YITAMOTOR 43-inch Clamp-on Pallet Forks are designed to convert your tractor or skid steer bucket into a versatile material handling tool. With a robust 2000 LBS capacity, these heavy-duty forks are suitable for various tasks on farms, construction sites, and warehouses.
Key Features:
- 2000 LBS Heavy-Duty Capacity: Engineered with reinforced structural integrity for reliable handling of heavy loads.
- Enhanced Strength & Durability: Features increased tube wall thickness and upgraded bolts for improved structural strength and resistance to deformation.
- Effortless Clamp-On Bucket Mounting: Designed for quick and secure attachment to most tractor and skid steer buckets.
- Versatile Material Handling: Ideal for moving logs, timber, hay bales, fence posts, construction materials, and clearing debris.
- Universal Compatibility: Suitable for most tractors, including popular brands like John Deere and Kubota.
2. Safety Information
Always prioritize safety when operating heavy machinery and attachments. Failure to follow safety guidelines can result in serious injury or property damage.
General Safety Precautions:
- Read and understand this entire manual before installation or operation.
- Ensure the pallet forks are securely attached to the bucket before lifting any load.
- Never exceed the rated load capacity of 2000 LBS.
- Always position the load as deeply as possible on the forks to maintain stability and prevent tipping.
- Operate the tractor/skid steer at a slow and controlled speed, especially when carrying a load.
- Be aware of your surroundings and keep bystanders clear of the work area.
- Wear appropriate personal protective equipment (PPE), such as safety glasses, gloves, and steel-toed boots.
- Inspect the forks and all attachment points for wear, damage, or loose fasteners before each use.
- Avoid sudden movements, sharp turns, or operating on uneven terrain with a raised load.
- Lower the forks to the ground when the equipment is unattended or parked.
3. Setup & Installation
Follow these steps to properly install the YITAMOTOR Clamp-on Pallet Forks onto your tractor or skid steer bucket.
Installation Steps:
- Prepare the Bucket: Ensure your tractor or skid steer bucket is clean and free of debris. Position the bucket on a flat, stable surface.
- Position the Forks: Slide the clamp-on pallet forks over the front edge of your bucket. Ensure they are evenly spaced and centered for balanced load distribution.
Image 3.1: Pallet forks being positioned onto the tractor bucket.
- Secure the Clamping Mechanism: Tighten the precision clamping mechanism (screw rods and nuts) to firmly lock the forks in place. Ensure there is no movement or slippage.

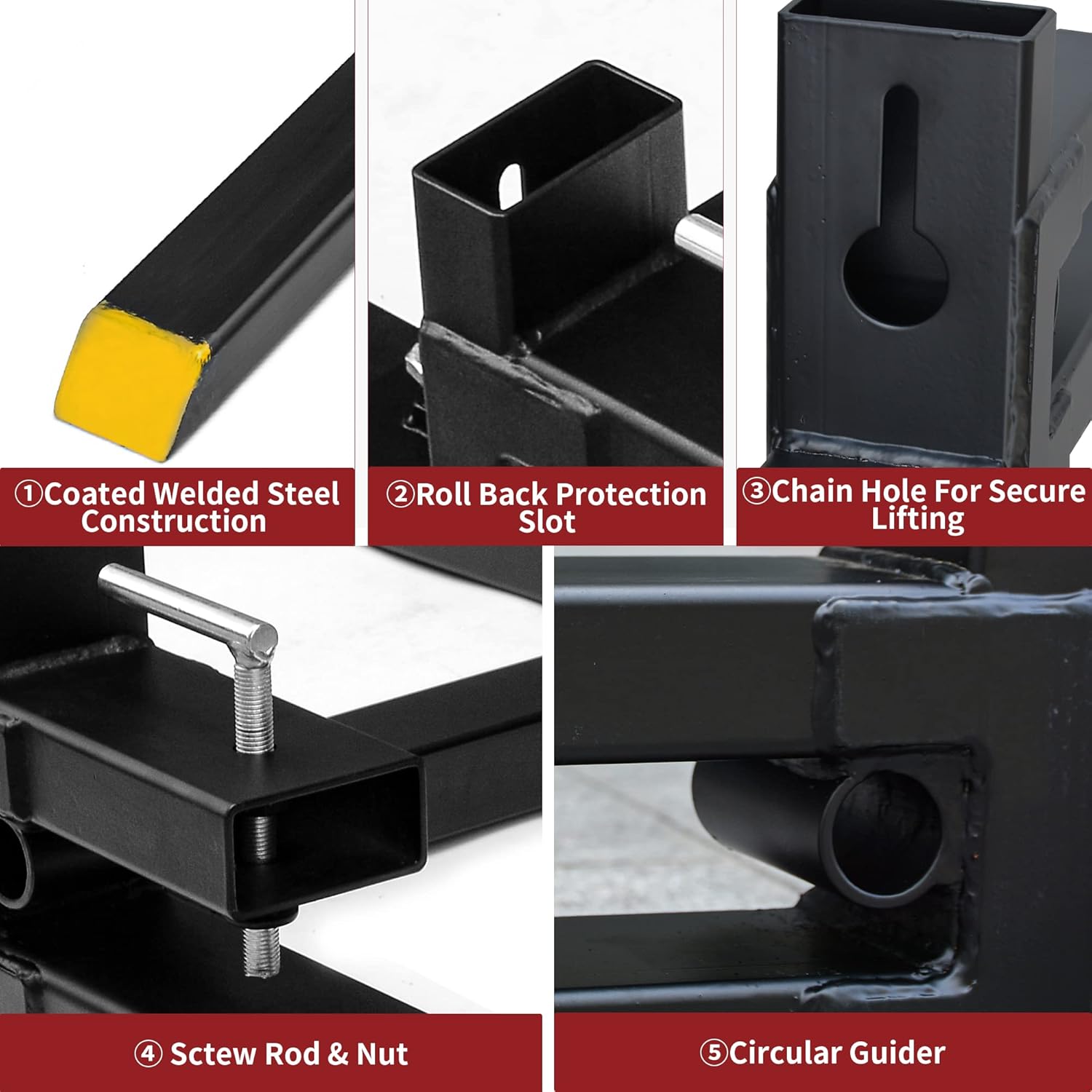

Image 3.2: Detail of the upgraded bolt and thickened tube wall, highlighting the secure clamping mechanism.
- Attach Safety Chains (Optional but Recommended): For added security, attach safety chains through the designated chain holes on the forks and secure them to the bucket or tractor frame.
Video 3.1: Demonstrates the installation process of the YITAMOTOR Clamp-on Pallet Forks, including securing them to the bucket and attaching safety chains.
- Final Check: Before operation, double-check all connections to ensure they are tight and secure.
4. Operation
Proper operation of the pallet forks ensures efficiency and safety. Always adhere to the following guidelines.
Operating Procedures:
- Load Placement: Always place the load as far back as possible on the forks, close to the bucket. This maximizes stability and reduces stress on the forks and tractor.
Image 4.1: Illustration demonstrating the correct (load close to bucket) and incorrect (load at fork tips) placement of items on the pallet forks.
- Lifting Loads: Approach the load slowly and carefully. Insert the forks fully under the load. Lift the load only high enough to clear obstacles and transport it.
Image 4.2: A tractor equipped with YITAMOTOR Pallet Forks lifting a substantial pile of branches, demonstrating its 2000 LBS capacity.
- Transporting Loads: Keep the load as low as possible during transport to maintain a low center of gravity and improve stability. Drive slowly and avoid sudden stops or turns.
Image 4.3: Pallet forks attached to a tractor bucket, transporting multiple rolls of sod across a grassy area.
- Unloading: Position the load carefully at the desired location. Slowly lower the forks until the load is resting securely, then back away.
Image 4.4: A telehandler utilizing YITAMOTOR Pallet Forks to lift a large bulk bag in an agricultural setting, showcasing heavy-duty lifting.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your pallet forks.
- Daily Inspection: Before each use, inspect the forks for any signs of damage, cracks, bends, or excessive wear. Check all welds and attachment points.
- Fastener Check: Ensure all bolts, nuts, and clamping mechanisms are tight and secure. Re-tighten as necessary.
- Cleaning: Keep the forks clean from dirt, mud, and debris. This prevents corrosion and allows for easier inspection.
- Storage: When not in use, store the pallet forks in a dry, protected area to prevent rust and damage.
- Lubrication: Periodically apply a light coat of grease or rust preventative to moving parts (if any) and exposed metal surfaces to prevent corrosion.
6. Troubleshooting
This section addresses common issues you might encounter with your pallet forks.
| Problem | Possible Cause | Solution |
|---|---|---|
| Forks feel unstable or shift during operation. | Clamping mechanism not sufficiently tightened; load improperly placed; forks not fully seated on bucket. | Ensure clamping bolts are fully tightened. Reposition load closer to the bucket. Verify forks are fully slid onto the bucket edge. |
| Reduced lifting capacity or bending. | Exceeding rated load capacity; load placed too far out on forks; damaged forks. | Do not exceed 2000 LBS capacity. Always place load as close to the bucket as possible. Inspect forks for damage; replace if compromised. |
| Difficulty attaching or detaching forks. | Debris in bucket lip; clamping bolts overtightened or seized. | Clean bucket lip. Loosen clamping bolts completely. Apply lubricant to threads if seized. |
7. Specifications
Detailed technical specifications for the YITAMOTOR Clamp-on Pallet Forks.
Image 7.1: Detailed product dimensions for the YITAMOTOR 43-inch Clamp-on Pallet Forks.
| Feature | Detail |
|---|---|
| Manufacturer | YITAMOTOR |
| Model Number | Clamp on Pallet Forks |
| Item Weight | 45 pounds |
| Package Dimensions | 44.68 x 13.18 x 3.93 inches |
| Size | 43 Inch 2000LBS |
| Color | Black |
| Power Source | Hand Powered (Refers to attachment, not the tractor) |
| Item Package Quantity | 1 |
