OKYUK PCX5R-18MD Portable Air Conditioner User Manual

1. Introduction and Overview

This manual provides essential information for the safe and efficient operation of your OKYUK PCX5R-18MD Portable Air Conditioner. This unit is designed to offer 3-in-1 functionality: cooling, ventilation, and dehumidification, along with a night mode. It features energy-efficient operation and uses eco-friendly R290 refrigerant.

2. Safety Information

Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or injury.

• Ensure the appliance is placed on a stable, level surface.
• Do not block air inlets or outlets. Maintain adequate clearance around the unit for proper airflow.
• Do not operate the unit with a damaged power cord or plug.
• Keep the unit away from water and other liquids. Do not immerse the unit in water.
• This appliance is for indoor use only.
• Always unplug the unit before cleaning or performing any maintenance.
• The unit contains R290 refrigerant. Do not attempt to service or repair the unit yourself. Contact qualified service personnel.
• In very small and enclosed spaces (e.g., rooms less than 5 m² or tents), ensure good ventilation. If necessary, install the included exhaust hose for optimal performance and to prevent increased humidity.

3. What's in the Box

Verify that all components are present upon unpacking:

• OKYUK PCX5R-18MD Portable Air Conditioner Unit
• Exhaust Hose
• Remote Control
• User Manual

4. Product Features

• 4-in-1 Functionality: Offers Cooling, Dehumidification, Fan, and Night modes.
• Adjustable Fan Speeds: Three wind speeds (Low, Medium, High) for customized comfort.
• Compact and Portable Design: Dimensions of 55.0 × 21.5 × 33.5 cm and a weight of 12.5 kg make it easy to move and fit in various spaces. Equipped with wheels for transport.
• Energy Efficient: Operates at only 200 W, offering significant energy savings compared to traditional models.
• Quiet Operation: Features a night mode that operates at a low noise level of 40 dB, ensuring minimal disturbance.
• Removable Filter: Easy to clean for maintaining air quality and unit efficiency.
• Integrated Water Tank: Includes a 3.5-liter water storage tank.
• Advanced Cooling Technology: Utilizes an efficient compressor, dual DC motor, and copper evaporator/condenser for effective and stable cooling performance.

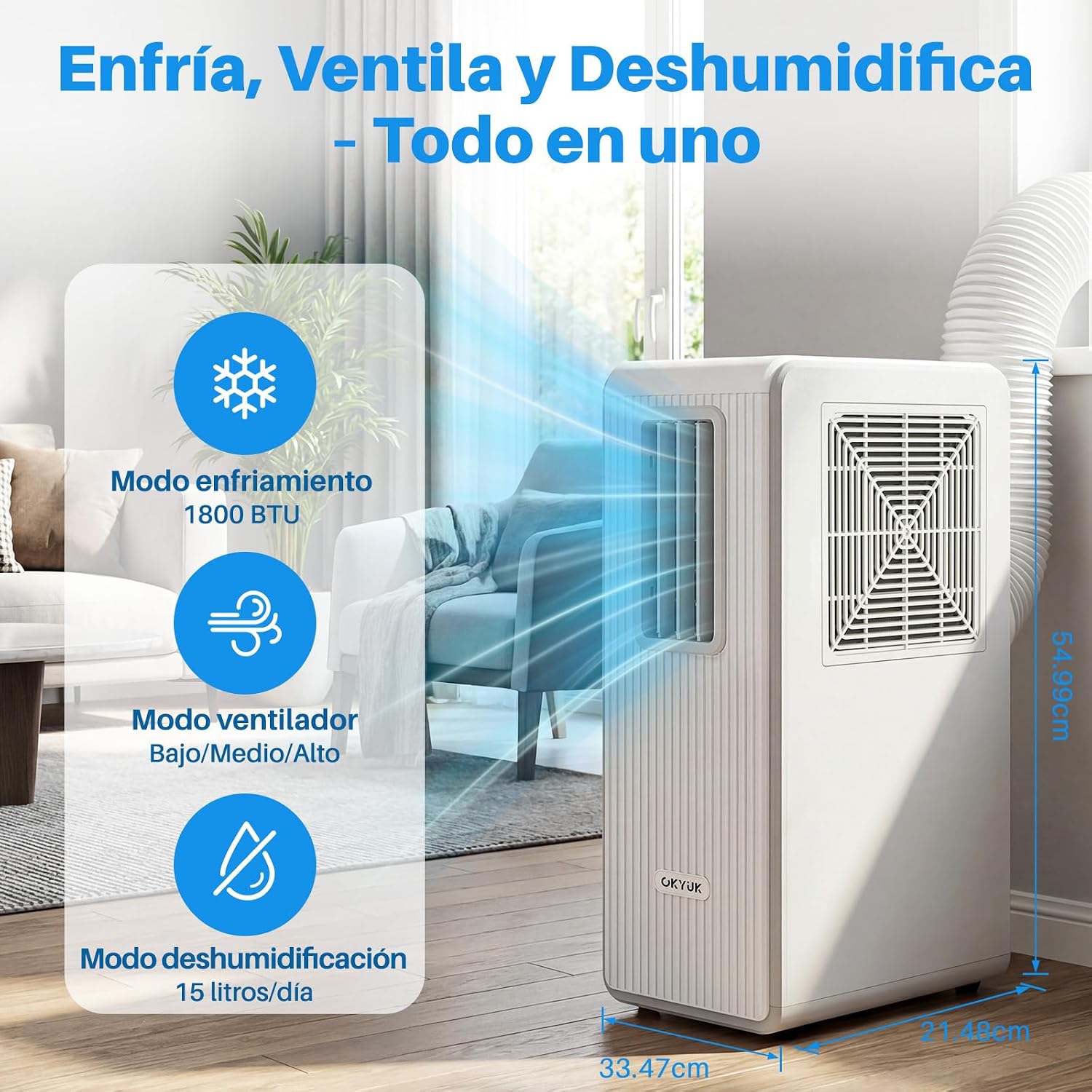

Image: The portable air conditioner highlighting its 4-in-1 functions: Cooling (1800 BTU), Fan (Low/Medium/High), and Dehumidification (15 liters/day).

Image: A portable air conditioner with text indicating 'Portable air conditioner with integrated dual cooling system' and icons representing various functions like fan speed, automatic defrost, 24-hour timer, energy-saving sleep mode, and independent dehumidification.

Image: The portable air conditioner operating quietly in a bedroom where a mother and child are sleeping, emphasizing its silent operation (less than 40 dB) and night mode features including remote control, 24-hour timer, and pre-programmed stop.

Image: The portable air conditioner with text stating 'Never before so energy efficient', indicating 150-200W consumption, saving 80% compared to a 9000 BTU air conditioner, and consuming only 1.5 kWh per night (based on 10 hours of operation).

5. Setup

The OKYUK PCX5R-18MD is designed for easy setup without complex installation.

1. Initial Water Tank Filling: Before the first use, fill the water tank up to 2/3 of its capacity. This is crucial for the unit's cooling and dehumidifying functions.
2. Placement: Place the unit in the desired location. Its compact size allows for flexible placement in living rooms, bedrooms, kitchens, or offices.
3. Ventilation and Exhaust Hose: While the unit can be used without an exhaust hose in some environments, installing the included exhaust hose is recommended for optimal cooling performance, especially in smaller, enclosed spaces (e.g., less than 5 m²) or areas requiring better humidity control. Ensure adequate air circulation.
4. Power Connection: Plug the unit into a suitable electrical outlet.

Image: The portable air conditioner with its pull-out water tank, indicating a 3.5-liter storage capacity.

Image: A collage showing the portable air conditioner in different settings: an office, a living room, a bedroom, and a kitchen, demonstrating its versatility for various spaces.

Image: The portable air conditioner next to a warning note stating that it is a local cooling unit and cannot cool an entire room. It recommends use in well-ventilated areas like living rooms, offices, kitchens, or shops. For bedrooms, it advises opening a window or installing the exhaust hose to expel humidity.

6. Operating Instructions

The unit can be controlled via the touch control panel on top of the unit or the included remote control.

• Power On/Off: Press the power button to turn the unit on or off.
• Mode Selection: Use the 'Mode' button to cycle through Cooling, Fan, Dehumidification, and Night modes.
• Fan Speed Adjustment: In Fan or Cooling mode, use the 'Speed' button to select between Low, Medium, and High fan speeds.
• Timer Function: Set a timer for automatic shut-off or delayed start using the 'Timer' button. The unit supports a 24-hour timer.
• Night Mode: Activate Night mode for quieter operation and reduced light output, ideal for sleeping.

Image: The portable air conditioner next to a graphic representation of its smart control panel, showing various touch buttons for functions like Silent, Timer, Speed, Mode, and Power.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your air conditioner.

• Cleaning the Air Filter: The removable air filter should be cleaned regularly (e.g., every two weeks or as needed) to prevent dust buildup and maintain airflow efficiency. Refer to the diagram for filter removal and reinstallation.
• Water Tank Management: Periodically check and empty the water tank, especially during dehumidification mode. The unit may have an indicator to signal when the tank is full.
• Exterior Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.

Image: An aerial view of a home layout with the portable air conditioner, alongside a close-up of the unit showing its removable filter being accessed for cleaning.

8. Troubleshooting

If you encounter issues with your air conditioner, refer to these common troubleshooting steps:

• Unit does not turn on: Check if the power cord is securely plugged into a working outlet. Ensure the unit's power button is pressed.
• Insufficient cooling:
  • Verify the water tank is filled to the recommended level.
  • Clean the air filter if it is dirty or clogged.
  • Ensure the exhaust hose is properly installed and venting hot air outside, especially in enclosed spaces.
  • Check for any obstructions blocking the air inlets or outlets.
  • Confirm the room size is within the recommended coverage area (up to 25 m²).
• Unit is noisy: Ensure the unit is on a flat, stable surface. Check for any loose parts. If operating in night mode, noise levels should be minimal.
• Water leakage: Check if the water tank is correctly inserted and not overfilled. Inspect for any cracks or damage to the tank.

If the problem persists after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

The OKYUK PCX5R-18MD Portable Air Conditioner comes with an extended warranty. For specific warranty terms, conditions, or technical support, please refer to the warranty card included with your product or contact OKYUK customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
