1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Orbek 14kW 240V Electric Tankless Water Heater. Please read this manual thoroughly before installation and keep it for future reference.
The Orbek 14kW electric tankless water heater is designed to provide instant, on-demand hot water, delivering up to 3.38 GPM for 2-3 points of use simultaneously. It features an LED digital display and precise temperature control, maintaining water temperature within ±1°F.

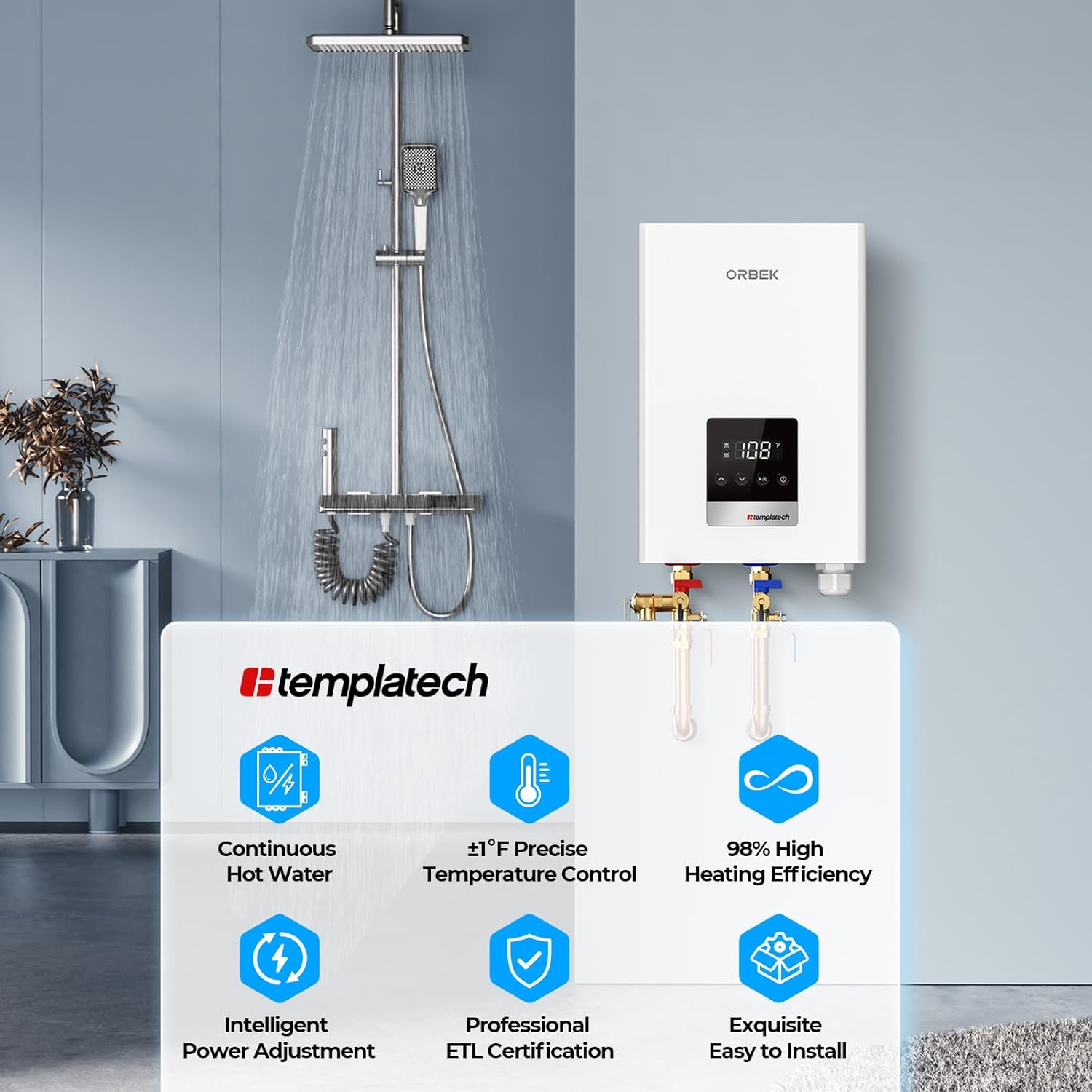

Image: Orbek 14kW Tankless Water Heater in a bathroom setting, highlighting continuous hot water, precise temperature control, high heating efficiency, intelligent power adjustment, ETL certification, and easy installation.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read this manual thoroughly before installing or servicing this appliance.
- This appliance must be installed by a qualified electrician and plumber in accordance with all local, state, and national electrical and plumbing codes.
- Ensure the main electrical supply is disconnected before performing any work on the unit.
- The unit requires a dedicated 240V/60AMP two-pole breaker and 6 AWG wires. The total current of the household circuit breaker panel must be 150 amps or greater to ensure proper operation, especially when other high-power appliances are in use.
- Do not operate the water heater if it is damaged or malfunctioning.
- This product is ETL Certified, indicating compliance with North American safety standards.
Image: Comprehensive security protection features including anti-leakage, ETL certification, anti-scald, anti-parched, anti-high-pressure, and anti-scaling, alongside an ETL authorization certificate.
3. Setup and Installation
3.1 Pre-Installation Requirements
- Electrical: Dedicated 240V/60AMP two-pole breaker, 6 AWG copper wiring. Ensure household circuit panel capacity is ≥150 amps.
- Plumbing: 1/2" NPT water connections.
- Location: Wall-mounted. Choose a location protected from freezing temperatures and easily accessible for maintenance. The unit has a compact size of 14.2"H x 9.5"L x 3.1"W.
3.2 Installation Steps
- Mount the water heater securely to a wall using appropriate fasteners.
- Connect the 1/2" NPT water inlet and outlet lines. Ensure all connections are watertight.
- Connect the electrical wiring (L1, L2, Ground) to the designated terminals within the unit. Refer to the wiring diagram provided on the unit and in this manual.
- Before restoring power, open a hot water faucet to purge air from the system. Once water flows steadily, close the faucet.
- Restore electrical power to the unit.
Image: Installation diagram showing 6 AWG wire requirement, 60A breaker requirement (240V/60A two-pole), and connections for water inlet/outlet, L1, L2, and Ground.
Image: Dimensions of the Orbek tankless water heater, showing its compact size of 14.2"H x 9.5"L x 3.1"W, compared to a file folder.
4. Operating Instructions
The Orbek tankless water heater features an intuitive LED digital display for easy temperature control and monitoring.
4.1 Power On/Off
- Press the power button on the display to turn the unit on or off.
4.2 Temperature Adjustment
- Use the up (↑) and down (↓) arrow buttons on the display to adjust the desired water temperature.
- The temperature range is typically 86°F to 140°F (30°C to 60°C).
- The unit's intelligent control chip ensures stable temperature output, minimizing fluctuations.
4.3 Temperature Unit Selection
- Press the °F/°C button to switch between Fahrenheit and Celsius temperature displays.
Image: Close-up of the Orbek water heater's LED digital display, showing temperature, up/down arrows, °F/°C button, and power button, indicating sensitive touch controls and soft lighting.
Image: Illustration of the components contributing to precise temperature control, including a temperature sensor, water inlet flow rate sensor, and an AI temperature control chip, ensuring ±1°F stability.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your tankless water heater.
- Filter Cleaning: The unit includes a water filter. Periodically inspect and clean the filter to prevent sediment buildup and maintain optimal water flow.
- Descaling: Although the spiral heating element is designed to prevent scaling, in areas with hard water, periodic descaling may be necessary. Consult a qualified professional for descaling procedures.
- Inspect Connections: Annually check all water and electrical connections for any signs of leaks or corrosion. Tighten as necessary.
- Exterior Cleaning: Clean the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.

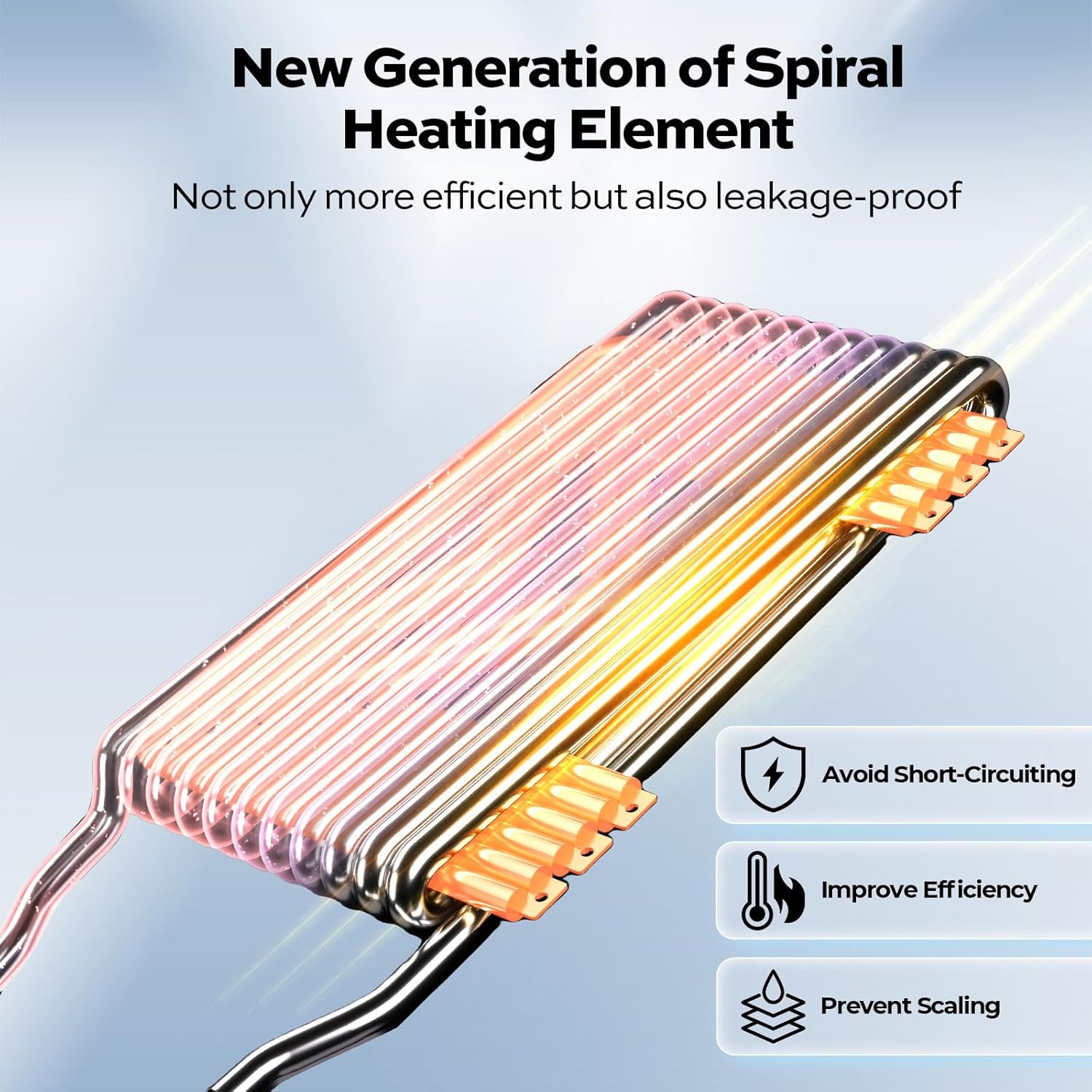

Image: Depiction of the new generation spiral heating element, highlighting its efficiency, leakage-proof design, ability to avoid short-circuiting, and prevention of scaling.
6. Troubleshooting
If you experience issues with your Orbek tankless water heater, refer to the following common troubleshooting steps. For problems not listed or if issues persist, contact customer support.
- No Hot Water: Check if the unit is powered on and the circuit breaker has not tripped. Ensure water flow is sufficient to activate the heater.
- Inconsistent Temperature: Verify that the inlet water temperature is within the unit's operating range. Check for proper water flow and ensure the filter is clean.
- Low Water Pressure: Inspect the water inlet filter for clogs. Ensure all shut-off valves are fully open.
- Error Codes: If an error code appears on the LED display, consult the full product manual (if available) or contact customer support with the specific code.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Orbek |
| Model Number | ET-14kW |
| Wattage | 14 KW |
| Voltage | 240 Volts |
| Breaker Requirement | 60 AMP (Two-pole) |
| Wire Requirement | 6 AWG |
| Water Connections | 1/2" NPT |
| Product Dimensions (H x W x D) | 14.2" x 9.5" x 3.1" |
| Item Weight | 14.3 pounds |
| Mounting Type | Wall |
| Temperature Range | 86°F - 140°F |
| Flow Rate | Up to 3.38 GPM |
| Certifications | ETL Certified |
8. Warranty and Support
Orbek provides a warranty for this product and offers technical support to assist with any inquiries or issues.
- Warranty: At least one year warranty for the entire machine. Please retain your proof of purchase for warranty claims.
- Customer Support: For professional technical consulting support, return & exchange services, or any other assistance, please contact Orbek customer service. Refer to the contact information provided with your product packaging or visit the official Orbek website.
For more information about Orbek products, visit the Orbek Store.
