Dvsripa Heavy Duty Mobility Scooter User Manual

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and care of your Dvsripa Heavy Duty Mobility Scooter. Please read this manual thoroughly before using the scooter to ensure proper usage and to prevent injury or damage.

2. Safety Information

Your safety is paramount. Always adhere to the following safety guidelines:

• Always wear appropriate safety gear, including a helmet, when operating the scooter.
• Familiarize yourself with all controls before riding.
• Do not operate the scooter under the influence of alcohol or drugs.
• Observe all local traffic laws and regulations.
• Ensure the battery is fully charged before long trips.
• Avoid sudden stops or turns, especially at high speeds.
• Do not exceed the maximum weight capacity of 500 lbs.
• Be aware of your surroundings and potential hazards.
• Use the horn and lights to alert others when necessary.

3. Product Overview and Features

The Dvsripa Heavy Duty Mobility Scooter is designed for robust performance and comfort across various terrains. Key features include:

• Powerful 1000W Motor: Provides strong performance and efficient power delivery.
• High-Capacity 48V/40Ah Battery: Offers an extended range of up to 33 miles on a single charge.
• All-Terrain Capability: Equipped with thickened tires and a robust frame for reliable performance on grass, gravel, and rough terrain.

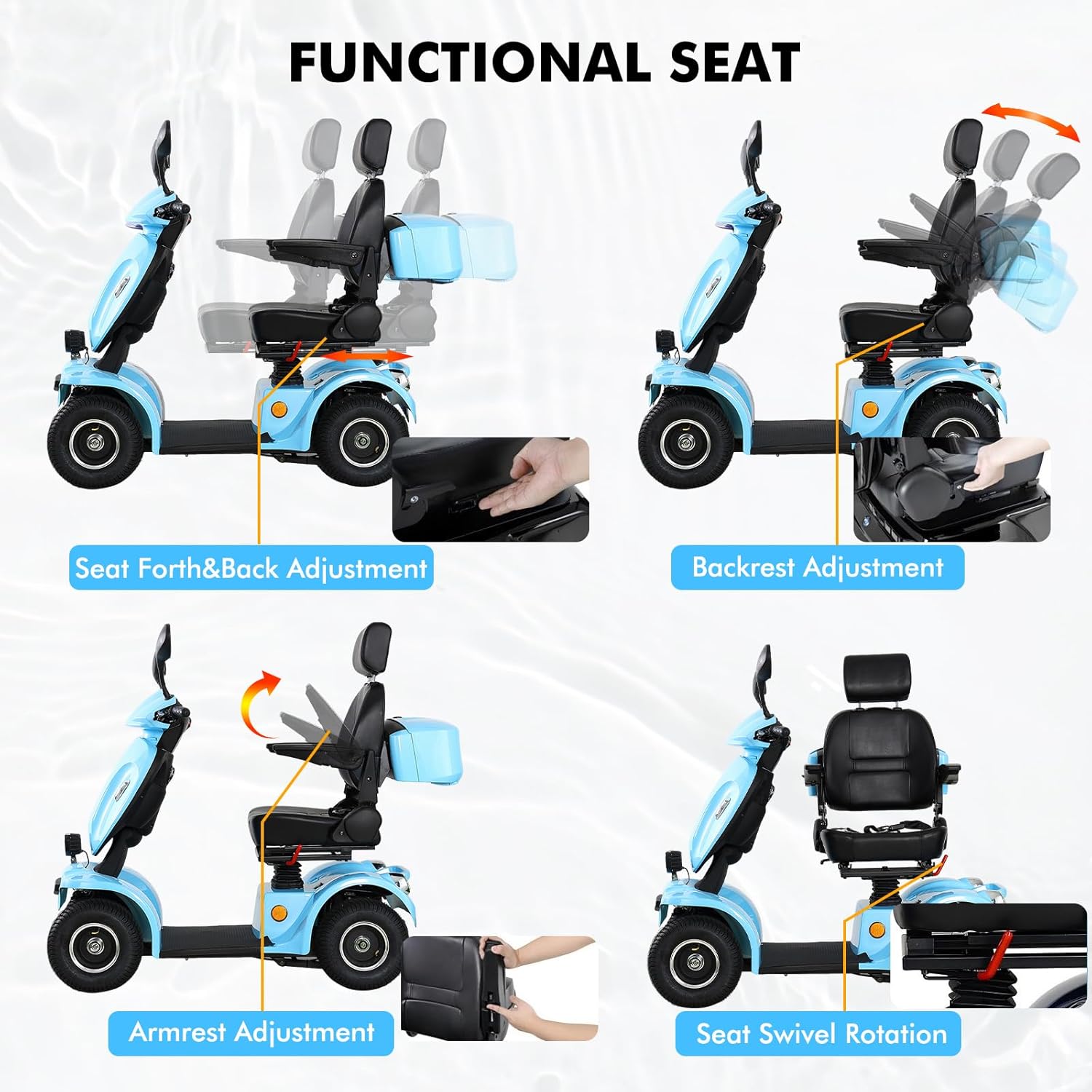

• Adjustable Comfort: Features an adjustable neck support, handlebars, and a rotatable, angle-adjustable seat with high-density foam for comfort.
• Comprehensive Safety System: Includes bright front and rear LED lights, side mirrors, integrated turn signals, a taillight, full suspension, seat belts, and rollover protection wheels.
• Intuitive Digital Instrument Panel: Monitors speed, mileage, and battery information for easy operation.

4. Setup

The Dvsripa Heavy Duty Mobility Scooter is delivered 100% pre-assembled. No tools or complex setup are required. To begin using your scooter:

1. Carefully remove the scooter from its packaging.
2. Insert the provided key into the ignition.
3. Turn the key to the 'ON' position.
4. Ensure the battery is adequately charged before your first ride. Refer to the 'Battery Charging' section for details.

5. Operating Instructions

5.1 Power On/Off

• To Power On: Insert the key and turn it clockwise to the 'ON' position. The digital display will illuminate.
• To Power Off: Turn the key counter-clockwise to the 'OFF' position and remove it.

5.2 Speed Control

• The scooter features a 3-speed setting. Use the 'Three Speed Setting' switch on the handlebar to select your desired speed mode (1, 2, or 3).
• To accelerate, gently twist the 'Twist Throttle' on the right handlebar.
• Release the throttle to decelerate.

5.3 Steering and Braking

• Steer by turning the handlebars in the desired direction.
• To brake, use the 'Hand brake' levers on the handlebars. The 'Electronic Brake Switch' also provides additional braking control.
• For reverse, press the 'Reverse Button' and gently apply the throttle.

5.4 Lights and Signals

• Use the 'LED Light Switch' to turn on the headlights and taillights.
• The 'High-low Beam' switch adjusts the headlight intensity.
• Activate the 'Turn Signal Switch' for left or right turns.
• Press the 'Horn' button to alert pedestrians or other vehicles.

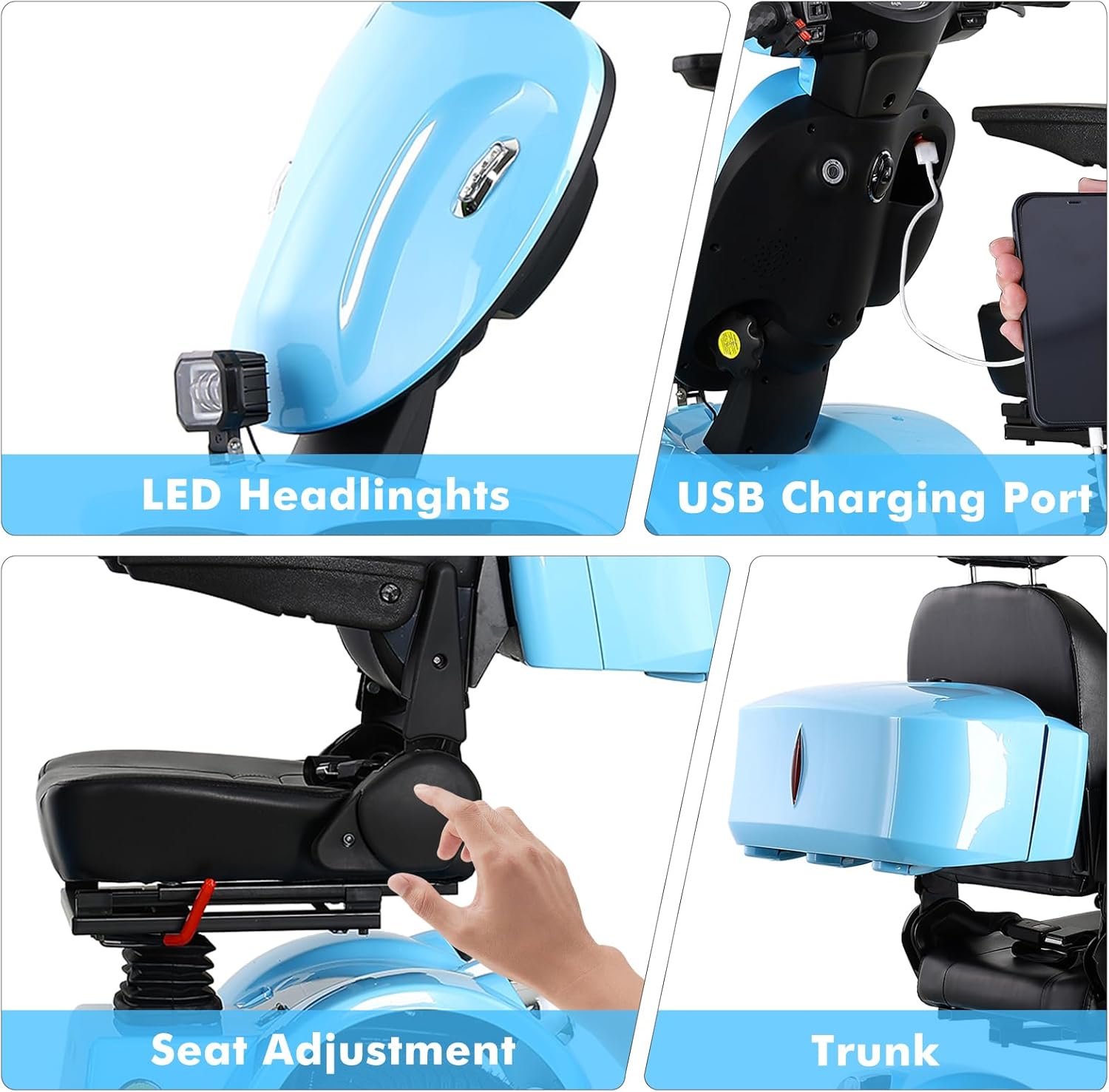

5.5 USB Charging Port

A USB charging port is available on the control panel for charging mobile devices. Simply connect your device's USB cable to the port.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

6.1 Battery Care

• Charge the battery fully after each use.
• Avoid completely draining the battery.
• Store the scooter in a cool, dry place when not in use, and charge the battery periodically if stored for extended periods.

6.2 Tire Maintenance

• Regularly check tire pressure and inflate to the recommended PSI (refer to tire sidewall for specifications).
• Inspect tires for wear, punctures, or damage.

6.3 Cleaning

• Wipe down the scooter with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Do not use high-pressure water jets directly on electrical components.

6.4 General Inspection

• Periodically check all bolts and fasteners for tightness.
• Ensure all lights and signals are functioning correctly.
• Test the brakes regularly to ensure they are responsive.

7. Troubleshooting

If you encounter issues with your scooter, refer to the following common problems and solutions:

For issues not listed here or if problems persist, please contact Dvsripa customer support.

8. Specifications

9. Warranty and Support

Dvsripa offers a 30-day easy return policy for this product. For any questions, technical assistance, or warranty claims, please contact Dvsripa Customer Support. Refer to your purchase documentation for specific contact details.
