Amana Refrigerator Door Gasket Seal Instruction Manual

1. Overview

This instruction manual provides guidance for the replacement of your Amana refrigerator door gasket seal. A properly functioning door gasket is essential for maintaining the internal temperature of your refrigerator, preventing cold air leakage, and ensuring energy efficiency. Replacing a worn or damaged gasket can resolve issues such as temperature fluctuations, excessive frost buildup, and increased energy consumption.

This replacement gasket is manufactured from durable, flexible rubber, designed for a secure and reliable seal and easy installation.

2. Compatible Models

This refrigerator door gasket seal is compatible with the following Amana refrigerator models:

• TSI18A3-P1182106W
• TSI22TE-P1306601WE, TSI22TL-P1306601WL, TSI22TW-P1306601WW
• TSI22VL-P1306602WL, TSI22VW-P1306602WW
• TSI25TL-P1308101WL
• TX21A3L-P1181504WL, TX21A3-P1181504W, TX21A3W-P1181504WW
• TX21R2E-P1157609WE, TX21R2L-P1157609WL, TX21R2-P1157609W, TX21R2W-P1157609WW
• TX21RE-P1157603WE, TX21RE-P1157605WE
• TX21RL-P1157603WL, TX21RL-P1157605WL
• TX21R-P1157603W, TX21R-P1157605W
• TX21RW-P1157603WW

3. Safety Information

Before beginning any repair or maintenance on your refrigerator, always follow these safety precautions:

• Disconnect Power: Always unplug the refrigerator from the electrical outlet or turn off the circuit breaker before starting work to prevent electrical shock.
• Wear Protective Gear: Consider wearing gloves to protect your hands during the removal and installation process.
• Handle with Care: The gasket material can be stiff. Handle it carefully to avoid damage during installation.
• Keep Area Clear: Ensure your work area is clean and free of obstructions to prevent accidents.

4. What's Included

Your package should contain the following item:

• One (1) Refrigerator Door Gasket Seal

Note: Additional tools required for installation (e.g., screwdriver, heat source) are not included.

5. Installation Instructions

Follow these steps to replace your refrigerator door gasket seal:

1. Preparation:
   • Unplug the refrigerator from the power source.
   • Empty the refrigerator door shelves to make the door lighter and easier to work with.
2. Remove the Old Gasket:
   • Carefully pull the old gasket out of its channel or groove around the perimeter of the refrigerator door. It may be held in place by screws, clips, or simply friction. If screws are present, remove them.
   • Clean the gasket channel thoroughly to remove any dirt, debris, or old adhesive.
3. Prepare the New Gasket:
   • The new gasket may be folded for shipping. To make it more pliable and easier to install, you can warm it up. This can be done by soaking it in warm water for 10-15 minutes or by gently using a hairdryer on a low setting.
   • Ensure the gasket is at room temperature or slightly warm before installation.
4. Install the New Gasket:

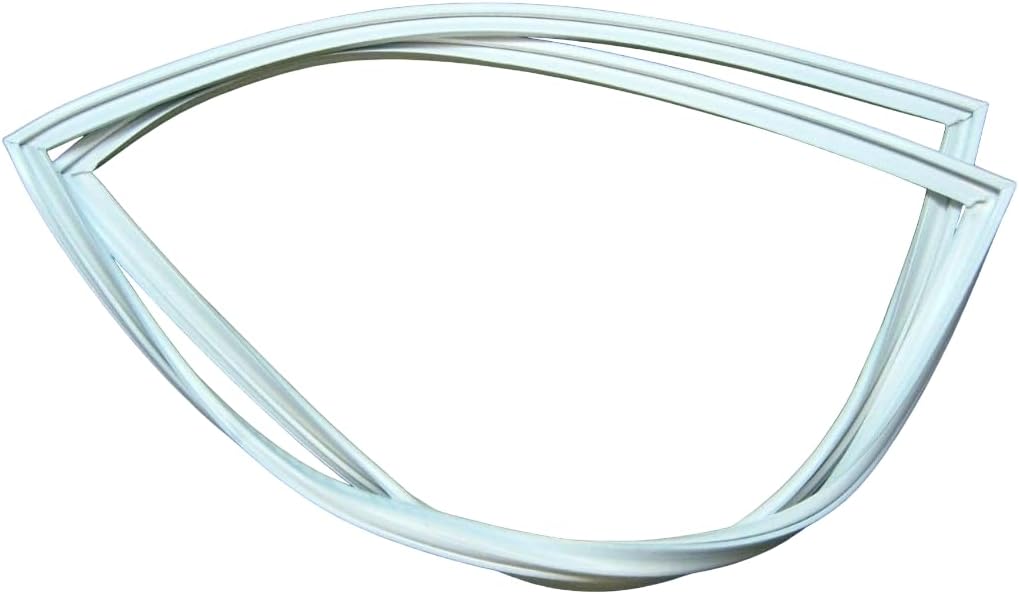

   Image: The new refrigerator door gasket seal. Ensure it matches the shape and size of your old gasket before installation.

   • Starting from a corner, carefully press the new gasket into the channel around the door. Work your way around the entire perimeter, ensuring the gasket is fully seated and flush.
   • If your old gasket was screwed in, align the new gasket's holes with the screw holes and reinsert the screws, tightening them gently.
   • Pay close attention to the corners, ensuring they are properly sealed.
5. Check the Seal:
   • Once installed, close the refrigerator door. Check for any gaps or areas where the gasket is not sealing properly.
   • You can perform a "paper test": close the door on a piece of paper. If you can easily pull the paper out, the seal in that area is weak and may need adjustment. Repeat this around the entire door.
6. Restore Power:
   • Plug the refrigerator back into the electrical outlet or turn on the circuit breaker.

6. Operating Principles

The refrigerator door gasket seal functions by creating an airtight barrier between the refrigerator cabinet and the door. This barrier prevents warm ambient air from entering the refrigerated compartment and cold air from escaping. A proper seal is crucial for the refrigerator's compressor to operate efficiently, maintaining consistent internal temperatures necessary for food preservation and reducing energy consumption.

7. Maintenance

Regular maintenance of your refrigerator door gasket can extend its lifespan and ensure optimal performance:

• Regular Cleaning: Clean the gasket regularly with a mild soap and water solution. Wipe away any food spills or debris that can accumulate and compromise the seal. Rinse with clean water and dry thoroughly.
• Inspection: Periodically inspect the gasket for cracks, tears, hardening, or signs of mold and mildew. A damaged gasket should be replaced promptly.
• Avoid Harsh Cleaners: Do not use abrasive cleaners, solvents, or petroleum-based products on the gasket, as these can damage the rubber material.

8. Troubleshooting

If you experience issues after replacing the gasket, consider the following:

• Cold Air Leakage / Warm Spots: If you feel cold air escaping or notice warm spots inside the refrigerator, the gasket may not be fully seated or there might be a gap. Re-examine the installation, pressing firmly along the entire perimeter. The "paper test" (described in Installation) can help identify weak spots.
• Excessive Frost Buildup: This often indicates warm, moist air is entering the refrigerator. Check the gasket for any areas that are not sealing correctly. Ensure the refrigerator door is closing completely and not obstructed.
• Door Not Closing Properly: If the door does not close tightly, the gasket might be twisted or improperly installed. Open the door and carefully adjust the gasket, ensuring it lies flat and is fully inserted into its channel.
• Gasket Stiffness: If the gasket feels too stiff and prevents a good seal, it may need more time to relax or could benefit from being warmed again to become more pliable.

9. Specifications

10. Warranty and Support

Warranty information for this product is typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the seller directly for details regarding warranty coverage and support services.

For technical assistance or further inquiries, please reach out to the retailer or manufacturer's customer service department.
