1. Product Overview
The Paoweric 36V 166Ah Lithium LiFePO4 Battery is a high-performance, deep-cycle rechargeable battery designed for various applications including golf carts, RVs, trolling motors, off-grid power systems, and solar energy storage. This battery features Grade A cells and an advanced 200A Battery Management System (BMS) for enhanced safety and longevity.
- High Energy Density: Offers over 300% more energy density compared to traditional lead-acid batteries, resulting in a lighter and more compact design.
- Advanced BMS Protection: The integrated 200A BMS provides comprehensive protection against overcharge, over-voltage, over-discharge, over-current, and short circuits, ensuring stable and safe operation.
- Extended Cycle Life: Engineered for over 10,000 deep charge/discharge cycles, significantly reducing energy consumption and promoting environmental sustainability through recyclability.
- Scalable Configuration: Supports up to 6 series connections, making it suitable for a wide range of power requirements. Note: Do not connect with batteries from other brands in series or parallel.
Image 1.1: Paoweric 36V 166Ah LiFePO4 Battery showing product dimensions. The battery measures approximately 626mm (24.62in) in length, 380mm (15in) in width, and 150mm (6in) in height, weighing 111.5 lbs.
Image 1.2: Internal view illustrating the Grade A cells and the Smart BMS within the Paoweric LiFePO4 battery, highlighting overcharge, overcurrent, cell voltage, over-discharge, and short circuit protections.
2. Safety Information
Read all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always wear appropriate personal protective equipment (PPE) including safety glasses and insulated gloves when handling batteries.
- Ensure all connections are secure and properly insulated to prevent short circuits.
- Do not disassemble, puncture, or modify the battery.
- Keep the battery away from heat sources, open flames, and flammable materials.
- Store the battery in a cool, dry, and well-ventilated area.
- In case of fire, use a Class D fire extinguisher. Water may exacerbate lithium battery fires.
- Consult a qualified professional for installation if you are unsure about any steps.
3. Setup and Installation
Proper installation is crucial for the battery's performance and safety. Follow these general guidelines:
- Unpacking: Carefully remove the battery from its packaging. Inspect for any visible damage.
- Placement: Install the battery in a stable, dry, and well-ventilated location. Ensure it is secured to prevent movement during operation.
- Wiring: Connect the battery terminals (P+ and P-) to your system using appropriate gauge cables. Ensure correct polarity. For series connections, follow the manufacturer's guidelines for wiring multiple batteries.
- Charger Connection: If using a dedicated charger, connect it to the battery according to the charger's instructions.
- Monitoring System: Connect the Smart Battery LCD monitor and/or pair with the smartphone app for real-time status monitoring.

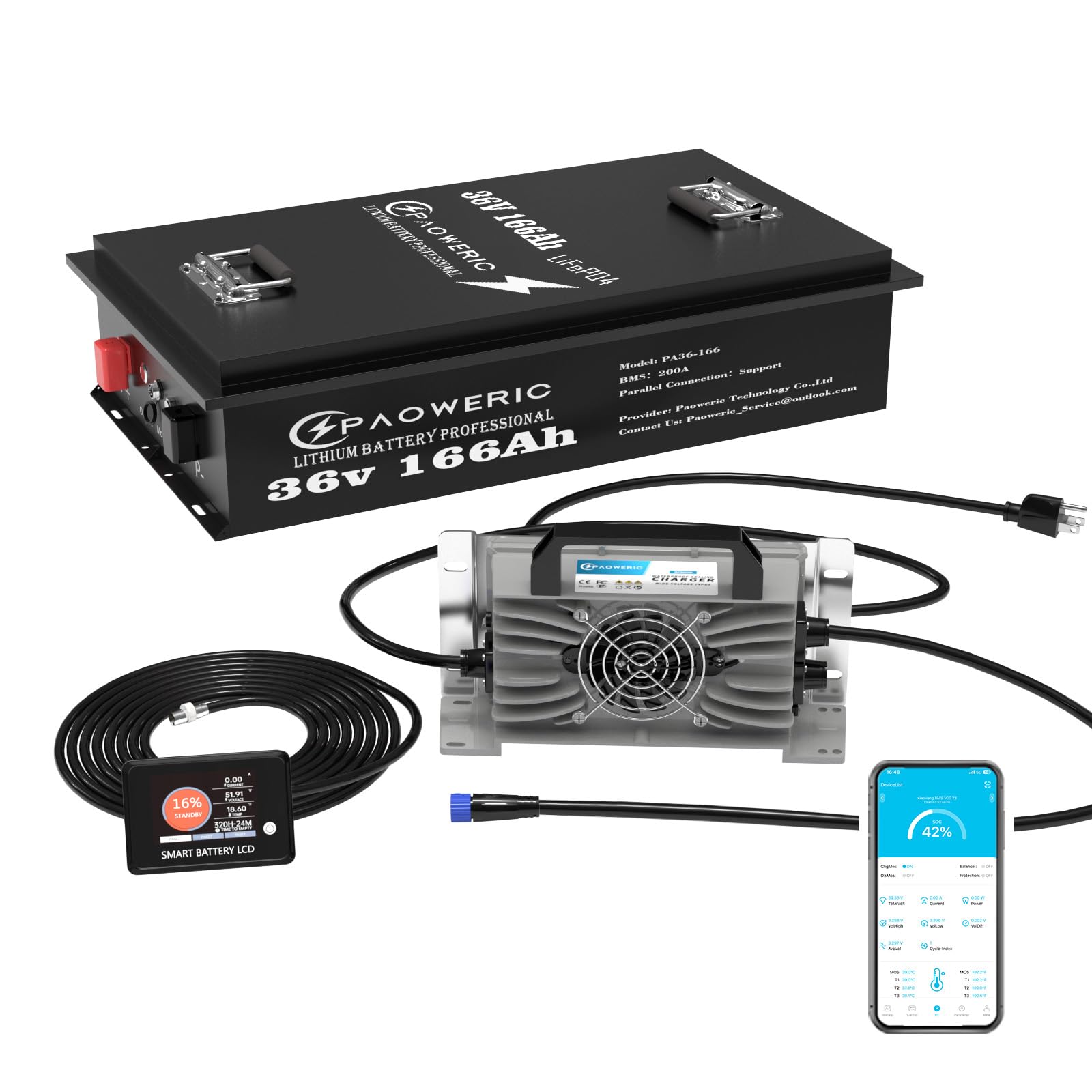

Image 3.1: The Paoweric 36V 166Ah LiFePO4 Battery shown with its dedicated charger and Smart Battery LCD monitor, illustrating the complete system components.
Image 3.2: A diagram demonstrating the easy installation of the Paoweric LiFePO4 battery into a golf cart, including connections for the LCD monitor and smartphone app monitoring.
4. Operating Instructions
The Paoweric LiFePO4 battery is designed for user-friendly operation. Here are key operational aspects:
4.1 Charging
- Use only a LiFePO4 compatible charger. Using an incompatible charger can damage the battery and void the warranty.
- Connect the charger to the battery and then to the power outlet.
- Monitor the charging process via the Smart Battery LCD or the smartphone app.
- The BMS will automatically stop charging once the battery is full to prevent overcharge.
Image 4.1: A dedicated charger designed for fast charging the Paoweric LiFePO4 battery, ensuring efficient and safe power replenishment.
4.2 Discharging
- The battery can deliver a continuous current of 200A and a peak current of 600A. Ensure your application's power draw is within these limits.
- The BMS will protect the battery from over-discharge by disconnecting the load if the voltage drops too low.
- Avoid consistently discharging the battery to its minimum voltage to maximize cycle life.
4.3 Monitoring Battery Status
The battery status can be monitored in real-time using two methods:
- Smart Battery LCD Monitor: A physical LCD screen that displays current, voltage, temperature, state of charge (SOC), and cycle count.
- Smartphone App: Connect via Bluetooth to a dedicated app on your smartphone to view detailed battery information and control certain functions.
Image 4.2: The Smart Battery LCD monitor and a smartphone displaying the companion app, both providing real-time battery status information.
Video 4.1: An official video demonstrating the features and applications of the Paoweric Lithium LiFePO4 Battery, including its internal components and various uses.
Video 4.2: An official video showcasing the Paoweric LiFePO4 Battery specifically designed for golf cart applications, highlighting its benefits and integration.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Paoweric LiFePO4 battery.
- Regular Inspection: Periodically check the battery terminals for corrosion or loose connections. Clean terminals with a wire brush if necessary.
- Cleaning: Keep the battery casing clean and free of dust and debris. Use a dry cloth for cleaning. Do not use solvents or abrasive cleaners.
- Storage: If storing the battery for an extended period, ensure it is charged to approximately 50-70% state of charge. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Temperature Considerations: The battery features low-temperature cut-off protection. Charging stops below -20°C (32°F), recovery of charging occurs at or above -20°C (32°F), and discharging stops below -30°C (-22°F).
6. Troubleshooting
This section addresses common issues you might encounter with your Paoweric LiFePO4 battery.
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not connected, charger fault, battery BMS protection activated (e.g., low temperature, over-discharge) | Check charger connections and power supply. Verify charger functionality. Allow battery to warm up if ambient temperature is too low. If over-discharged, a specialized charger may be needed to reactivate. |
| No power output | Loose connections, BMS protection activated (e.g., over-discharge, over-current, short circuit), battery fault | Inspect all cable connections. Check battery status via LCD or app for BMS fault codes. Reduce load if over-current. Recharge battery if over-discharged. |
| Battery status not visible on app/LCD | Bluetooth not connected, LCD cable loose, monitor fault | Ensure Bluetooth is enabled on your device and paired with the battery. Check the physical connection of the LCD monitor cable. Restart the app or monitor. |
| Reduced run time | Battery not fully charged, aging battery, high power draw from application | Ensure battery is fully charged before use. Monitor power consumption of your application. While designed for 10,000+ cycles, all batteries eventually degrade. |
If you encounter issues not listed here or require further assistance, please contact Paoweric customer service.
7. Specifications
Detailed technical specifications for the Paoweric 36V 166Ah LiFePO4 Battery.
- Brand: Paoweric
- Model Name: 36-166
- Model Number: 36-166
- Voltage: 36 Volts
- Capacity: 166Ah
- Battery Cell Composition: Lithium Ion (LiFePO4)
- Continuous Discharge Current: 200A (via BMS)
- Peak Discharge Current: 600A (via BMS)
- Cycle Life: 10,000+ cycles
- Weight: 118 Pounds (approximately 53.5 kg)
- Dimensions: Refer to Image 1.1 for detailed dimensions.
- BMS Protection: Overcharge, Over-voltage, Over-discharge, Over-current, Short Circuit, Low Temperature Cut-off.
- Connectivity: Bluetooth for smartphone app monitoring.
- Included: Battery Body, Smart Battery LCD Monitor.
8. Warranty and Support
Paoweric is committed to providing high-quality products and customer satisfaction.
- Warranty: This product comes with a 5-year warranty. Please retain your proof of purchase for warranty claims.
- Customer Service: For any questions, technical support, or warranty inquiries, please contact Paoweric customer service. Our professional team is available to assist you.
- Online Resources: Visit the official Paoweric store on Amazon for additional product information and support resources: Paoweric Amazon Store.
