Generic 24V Starter Motor - Model Index-OE1G-2636 Instruction Manual

1. Product Overview

This document provides essential instructions for the installation, operation, and maintenance of your Generic 24V Starter Motor, Model Index-OE1G-2636. This starter motor is designed as a direct-fit aftermarket replacement part for various Hino Sawafuji applications, ensuring reliable engine starting performance.

What's in the Box

• 1 x Generic 24V Starter Motor (Replacement Part)

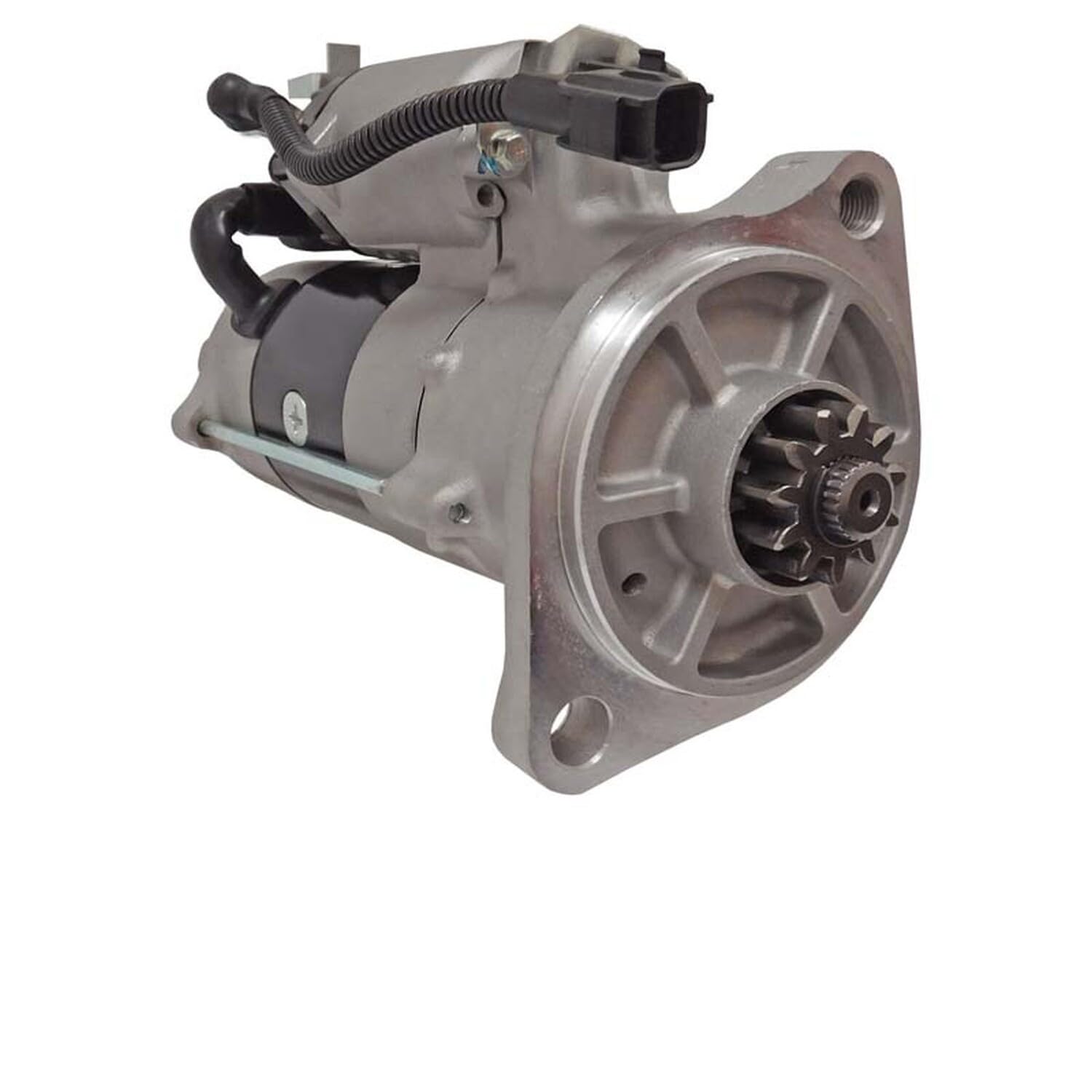

Figure 1.1: Generic 24V Starter Motor, Model Index-OE1G-2636. This image shows the complete starter motor unit, ready for installation.

2. Safety Information

Always prioritize safety when working with automotive electrical systems and heavy machinery. Failure to follow these safety guidelines may result in injury or damage to property.

• Disconnect Battery: Before beginning any work, always disconnect the vehicle's battery, starting with the negative (-) terminal, to prevent electrical shock or short circuits.
• Wear Protective Gear: Use appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
• Secure Vehicle: Ensure the vehicle is on a stable, level surface and properly supported with jack stands if lifting is required. Engage the parking brake.
• Consult Service Manual: Refer to the vehicle's specific service manual for detailed instructions and torque specifications relevant to your Hino Sawafuji model.
• Professional Installation: If you are unsure about any step of the installation process, seek assistance from a qualified mechanic or automotive technician.
• Hot Components: Engine components can be extremely hot. Allow the engine to cool down before working on it.

3. Setup and Installation

This starter motor is designed to match the original equipment (OE) layout for straightforward replacement using basic hand tools. Follow these general steps for installation:

1. Preparation: Ensure the vehicle is turned off, the ignition key is removed, and the battery is disconnected as per safety guidelines.
2. Locate Starter Motor: Identify the existing starter motor on your Hino Sawafuji vehicle.
3. Disconnect Wiring: Carefully disconnect all electrical connections from the old starter motor. Note the position of each wire for correct reinstallation.
4. Remove Mounting Bolts: Loosen and remove the mounting bolts that secure the old starter motor to the engine or transmission housing.
5. Remove Old Starter: Carefully extract the old starter motor from its position. It may be heavy.
6. Install New Starter: Position the new Generic 24V Starter Motor into place, ensuring it aligns correctly with the mounting holes and the flywheel.
7. Secure Mounting Bolts: Install and tighten the mounting bolts to the manufacturer's specified torque. Refer to your vehicle's service manual for exact specifications.
8. Reconnect Wiring: Reconnect all electrical wires to the new starter motor, ensuring secure and correct connections. Double-check all terminals.
9. Reconnect Battery: Reconnect the vehicle's battery, starting with the positive (+) terminal, then the negative (-) terminal.
10. Test Functionality: Attempt to start the engine to verify proper operation of the new starter motor.

The robust construction and precisely machined components of this starter motor are designed to reduce noise and wear, restoring smooth engine cranking.

4. Operating Instructions

The starter motor is an integral part of your vehicle's engine starting system. Its primary function is to convert electrical energy from the battery into mechanical energy to crank the engine until it starts on its own power.

• Starting the Engine: Insert the key into the ignition and turn it to the 'START' position. The starter motor will engage the engine's flywheel, causing the crankshaft to rotate.
• Release Key: Once the engine starts, immediately release the ignition key. Holding the key in the 'START' position after the engine has fired can damage the starter motor.
• Normal Operation: The starter motor is only active during the brief period of engine cranking. It is not involved in the engine's continuous operation.

5. Maintenance

While starter motors are generally low-maintenance components, periodic checks can help ensure longevity and reliable performance.

• Battery Condition: Ensure your vehicle's battery is in good condition and fully charged. A weak battery can strain the starter motor.
• Electrical Connections: Periodically inspect all electrical connections to the starter motor for corrosion or looseness. Clean and tighten as necessary (with the battery disconnected).
• Cleanliness: Keep the area around the starter motor free from excessive dirt, oil, and debris.
• Listen for Unusual Noises: Pay attention to any unusual grinding, whirring, or clicking noises during engine cranking, which could indicate a developing issue.

6. Troubleshooting

If you experience issues with your vehicle's starting system, consider the following common troubleshooting steps:

• Engine Does Not Crank or Cranks Slowly:
  • Check battery charge and terminals.
  • Inspect starter motor wiring for loose or corroded connections.
  • Listen for a single click, which might indicate a faulty starter solenoid or a seized engine.
• Starter Motor Spins but Engine Does Not Crank:
  • This often indicates a problem with the starter drive (bendix gear) not engaging the flywheel.
• Grinding Noise During Cranking:
  • Could be an issue with the starter gear or flywheel teeth.

For persistent issues, it is recommended to consult a professional mechanic for diagnosis and repair.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding your Generic 24V Starter Motor, please contact the seller or manufacturer directly. Keep your purchase receipt and product model number (Index-OE1G-2636) readily available when seeking assistance.
