DC HOUSE 12V 100AH Cold-Resistant Lithium Trolling Motor Battery

1. Introduction

This manual provides essential information for the safe and efficient operation of your DC HOUSE 12V 100AH Cold-Resistant Lithium Trolling Motor Battery. Please read this manual thoroughly before installation and use, and retain it for future reference.

Key Features:

• Cold-Resistant Technology: Stable discharge down to -22°F (-30°C) with ≥95% capacity retention in winter, thanks to upgraded cold-resistant cells.
• Integrated SOC Status Indicators: Visual LED display for real-time monitoring of remaining power, high/low temperature, short circuit, overvoltage, low voltage, BMS fault, and charging status.
• Smart Bluetooth 5.1 & LCD Monitor: Two-way monitoring via a Bluetooth LCD monitor and a dedicated mobile application for real-time battery status, voltage, capacity, and fault information.
• Enhanced Safety: Features a flame-retardant case that self-extinguishes in 30 seconds and a built-in Smart Temperature Protection system.
• Durable Metal Fixture: Innovative internal metal fixtures prevent cell swelling, extending battery life by 30% and ensuring stability.
• High Performance: 100A BMS, 120A/10s peak current, suitable for 36–65 lbs trolling motors, providing 1280Wh energy.
• Versatile Applications: Ideal for RVs, boats, trolling motors, fish finders, ice fishing, camping, solar systems, and home alarm systems.
• Expandable System: Supports battery expansion up to 4 in series or 4 in parallel (maximum 8 batteries total; 4P4S not allowed).

2. Safety Information

Always prioritize safety when handling batteries. Failure to follow these guidelines may result in injury, property damage, or reduced battery lifespan.

• Do not short-circuit the battery terminals.
• Do not expose the battery to fire or extreme heat.
• Do not immerse the battery in water or other liquids.
• Use only compatible chargers designed for LiFePO4 batteries.
• Ensure proper ventilation during charging and operation.
• Keep the battery away from children and pets.
• If the battery emits an unusual odor, heat, or changes shape, discontinue use immediately and contact support.
• In case of a BMS fault indicated by a beeping alarm, immediately deactivate the battery to prevent safety hazards.

3. Setup and Installation

Careful setup ensures optimal performance and safety.

3.1 Unboxing and Inspection

Upon receiving your battery, inspect the packaging and the battery for any signs of damage. The package should contain one 12V 100AH battery.

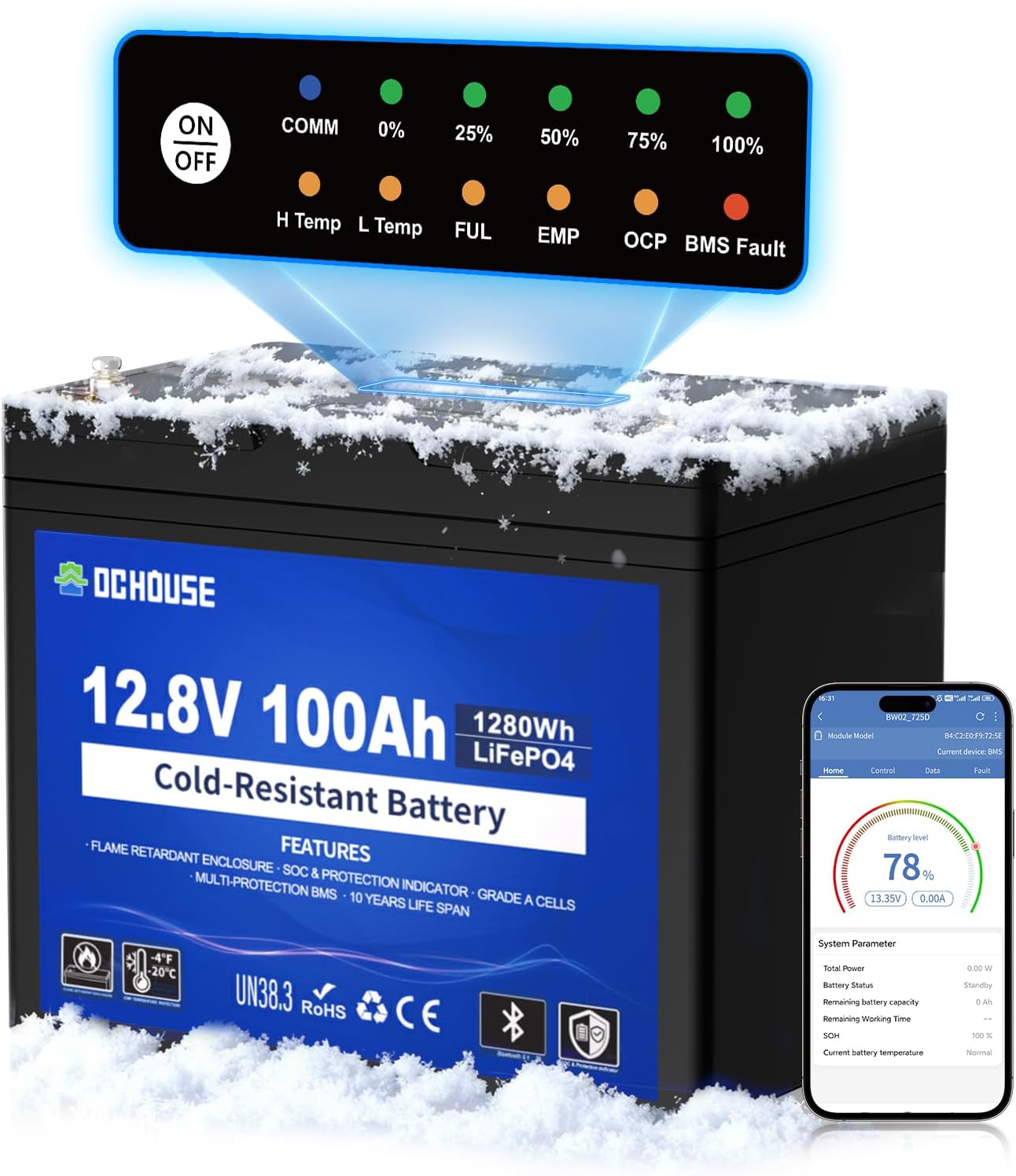

Figure 3.1: DC HOUSE 12V 100AH Lithium Trolling Motor Battery.

3.2 Connecting the Battery

Connect the battery to your system (e.g., trolling motor, RV system) using appropriate cables and connectors. Ensure all connections are secure and polarity is correct (positive to positive, negative to negative).

3.3 Bluetooth Connection (for Monitoring)

To monitor your battery status via the mobile app or LCD monitor, ensure Bluetooth is enabled on your device. The LCD monitor connects via Bluetooth, and the mobile app can also connect wirelessly. Note that only one device (either the app or the LCD monitor) can be online for monitoring at a time.

Figure 3.2: Smart Bluetooth 5.1 for fast and stable connection to monitor battery status in real-time via app or LCD.

4. Operating Instructions

4.1 SOC Status Indicators

The battery features a visual LED indicator (SOC Status Indicators) that provides real-time information:

• Remaining Power: Displays current State of Charge (SOC) from 0% to 100%.
• Temperature: Indicates high (H Temp) or low (L Temp) temperature warnings.
• Faults: Alerts for short circuit (OCP), overvoltage (OV), low voltage (LV), and BMS fault.
• Charging: Indicates when the battery is charging.

Figure 4.1: Visual LED indicators for SOC (State of Charge) and abnormal conditions, simplifying battery monitoring.

4.2 Cold-Resistant Operation

This battery is designed for stable performance in cold environments. It allows discharge down to -22°F (-30°C) and retains ≥95% capacity at this temperature. The built-in smart temperature protection automatically pauses charging at -4°F (-20°C) and resumes at 5°F (-15°C). Discharge halts at -22°F (-30°C) and resumes at -4°F (-20°C) to protect the battery cells.

Figure 4.2: Illustrates the battery's ability to retain 95% capacity at -22°F and its temperature protection thresholds.

Low-Temp Charge Tip: Below 32°F (0°C), use a ≤5A charger to better protect the battery cells.

4.3 Powering Trolling Motors and Other Applications

The DC HOUSE 12V 100AH battery provides 1280Wh energy, 100A continuous discharge, and 230A/10s peak burst, making it suitable for 36–65 lbs trolling motors. It is also compatible with various other applications such as RVs, camping setups, solar systems, and marine electronics.

Figure 4.3: The battery's versatility across various outdoor and off-grid applications.

5. Maintenance

• Regularly check battery terminals for corrosion and ensure they are clean and tight.
• Store the battery in a cool, dry place when not in use, ideally at a partial state of charge (around 50%).
• Avoid fully discharging the battery for extended periods.
• If leaving the battery unused for 5 days or longer, ensure the pack is shut down immediately due to over-current, under-voltage, and external temperature warnings.
• The internal metal fixtures are designed to reduce premature wear and extend battery life, requiring no user maintenance.

6. Troubleshooting

• No Power/Low Voltage: Check all connections for tightness and correct polarity. Ensure the battery is adequately charged.
• BMS Fault Alarm: If the SOC indicator shows a BMS fault (beeping alarm), immediately disconnect the battery from all loads and charging sources. Contact customer support for assistance.
• High/Low Temperature Warning: The battery's smart temperature protection will automatically pause charging/discharging. Allow the battery to return to its optimal operating temperature range (-22°F to 131°F / -30°C to 55°C).
• Bluetooth Connectivity Issues: Ensure only one device is attempting to connect via Bluetooth. Restart the mobile app or LCD monitor if necessary. Check your device's Bluetooth settings.

Figure 6.1: The battery's hazard alert system, which signals BMS faults to ensure immediate intervention.

7. Specifications

Figure 7.1: Detailed specifications and dimensions of the 12.8V 100AH Lithium Battery.

8. Warranty and Support

DC HOUSE offers a 3-year warranty for this product. For any issues or support needs, please contact DC HOUSE customer service. We are committed to providing the fastest possible solution.
