Generic Replacement Washer Clutch & Motor Coupler Kit

Introduction

This instruction manual provides detailed guidance for the installation and maintenance of the Generic Replacement Washer Clutch & Motor Coupler Kit. This kit is designed to restore proper agitation and spin functions in compatible washing machines by replacing worn or damaged clutch and motor coupler components. Please read all instructions carefully before beginning installation.

Important Safety Information

• Disconnect Power: Always unplug the washing machine from the electrical outlet before performing any service or maintenance. Failure to do so can result in electric shock or serious injury.
• Turn Off Water Supply: Close the water supply valves to the washer to prevent water leaks.
• Wear Protective Gear: Use appropriate personal protective equipment, such as work gloves, to prevent cuts or scrapes.
• Professional Assistance: If you are unsure about any step or uncomfortable performing the repair, consult a qualified appliance technician.
• Proper Disposal: Dispose of old parts responsibly according to local regulations.

Package Contents

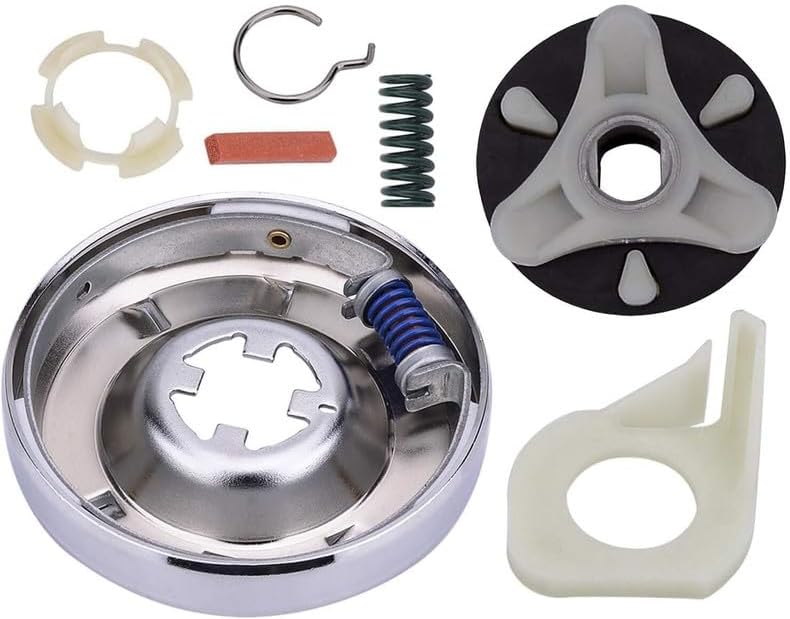

Image: Components of the replacement kit, including the clutch assembly, motor coupler, spring, and other small parts.

The kit includes the following components:

• Washer Clutch Assembly
• Motor Coupler (3-piece design: two plastic drive cams and one rubber isolator)
• Clutch Spring
• Other small associated parts (e.g., cam, brake lining)

Note: Please verify all components against the product image upon receipt.

Compatibility

This replacement part is designed for specific Whirlpool washer models, including:

• Whirlpool CAW2792EW0

Always confirm compatibility with your appliance's model number before installation. Refer to your washer's owner's manual or service guide for exact part numbers.

Installation Instructions

Tools Required: Screwdrivers (Phillips and flathead), socket wrench set, pliers, work gloves.

1. Prepare the Washer:
   • Unplug the washer from the electrical outlet.
   • Turn off the water supply to the washer.
   • Disconnect the water inlet hoses and drain hose.
   • Move the washer to an open area for easier access.
2. Access the Motor and Transmission:
   • Remove the control panel by lifting it or unscrewing retaining clips.
   • Unclip the washer cabinet from the base.
   • Tilt the cabinet back and prop it securely, or remove it completely.
   • Locate the motor and transmission assembly at the bottom of the washer.
3. Remove the Old Motor Coupler:
   • Disconnect the wire harness from the motor.
   • Remove the two clips holding the motor to the transmission.
   • Carefully separate the motor from the transmission. The old motor coupler will likely be broken or worn.
   • Remove any remaining pieces of the old coupler from both the motor shaft and the transmission input shaft.
4. Install the New Motor Coupler:
   • Place one half of the new motor coupler onto the motor shaft.
   • Place the rubber isolator in the center.
   • Place the other half of the new motor coupler onto the transmission input shaft.
   • Align the motor with the transmission and carefully push them together, ensuring the coupler halves engage with the rubber isolator.
   • Reattach the two clips to secure the motor to the transmission.
   • Reconnect the wire harness to the motor.
5. Remove the Old Clutch Assembly (if replacing):
   • If the clutch assembly is also being replaced, it is typically located on the transmission shaft, above the motor.
   • Remove the retaining clip or bolt that holds the clutch assembly in place.
   • Slide the old clutch assembly off the shaft. Note the orientation of all parts.
6. Install the New Clutch Assembly (if replacing):
   • Slide the new clutch assembly onto the transmission shaft in the correct orientation.
   • Secure it with the retaining clip or bolt.
   • Ensure the clutch spring is correctly seated.
7. Reassemble the Washer:
   • Lower the washer cabinet back into place and secure it with clips or screws.
   • Reattach the control panel.
   • Reconnect the water inlet hoses and drain hose.
   • Plug the washer back into the electrical outlet.
   • Turn on the water supply.
8. Test the Washer:
   • Run a short cycle to ensure proper operation and check for any leaks or unusual noises.

If you are unsure about any step, consult a qualified appliance technician.

Operation After Installation

Once the replacement clutch and motor coupler kit is correctly installed, your Whirlpool washer should resume normal operation, including proper agitation and spin cycles. The motor coupler connects the motor to the transmission, enabling the agitator and spin basket to move. The clutch assembly engages the spin basket during the spin cycle.

If the washer exhibits issues such as not agitating, not spinning, or making loud grinding noises, it may indicate a problem with the motor coupler or clutch assembly. This replacement kit is designed to resolve such issues when these components are faulty.

Maintenance

The clutch and motor coupler are wear-and-tear parts. While this replacement kit is designed for durability, regular maintenance of your washing machine can extend the life of all its components:

• Avoid Overloading: Overloading the washer can put excessive strain on the motor, transmission, and clutch assembly, leading to premature wear.
• Balance Loads: Unevenly distributed loads can cause the washer to vibrate excessively, potentially damaging internal components.
• Regular Cleaning: Keep the washer clean, including the tub and dispenser, to prevent buildup that could affect performance.
• Inspect Periodically: If you notice unusual noises or performance issues, inspect the washer for any visible signs of wear or damage.

Troubleshooting Common Issues

This replacement kit addresses specific issues related to the washer's drive system. If you experience the following symptoms after installation, re-check your work or consider other potential causes:

• Washer Not Agitating:
  • Possible Cause: Incorrect motor coupler installation, faulty motor, or transmission issue.
  • Action: Verify the motor coupler is correctly seated and secured. Check motor connections.
• Washer Not Spinning:
  • Possible Cause: Incorrect clutch assembly installation, worn clutch brake, or faulty lid switch.
  • Action: Ensure the clutch assembly is properly installed and the spring is correctly tensioned. Check the lid switch for continuity.
• Loud Grinding or Thumping Noise:
  • Possible Cause: Damaged motor coupler (if not fully replaced or if a new one failed), worn clutch, or transmission problem.
  • Action: Inspect the motor coupler and clutch for any signs of damage or improper seating.

For issues not resolved by this kit or its installation, consult a professional appliance repair technician.

Specifications

Warranty and Support

As a replacement part, warranty coverage may vary. Please refer to the seller's return policy or contact the seller directly for specific warranty information regarding this kit.

For technical support or further assistance with installation, it is recommended to consult a certified appliance technician or refer to official Whirlpool service manuals for your specific washer model.
