Generic Replacement Gasket for Tecumseh Engine 510257

Introduction

This manual provides essential information for the proper installation and maintenance of the Generic Replacement Gasket, part number 510257, designed for Tecumseh engines. This gasket (model lawnpart#1110326) is a critical component for ensuring a proper seal between engine parts, preventing leaks and maintaining optimal engine performance.

Safety Information

• Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when working with engine components.
• Ensure the engine is completely cool and disconnected from any power source before beginning installation or maintenance.
• Refer to your engine's specific service manual for detailed safety procedures and torque specifications.
• Keep children and pets away from the work area.

Compatibility Check

Before installation, it is crucial to verify that this replacement gasket is compatible with your specific Tecumseh engine model. Please compare the provided part number (510257) and the physical appearance of this gasket with your original part and your engine's specifications. Incompatibility can lead to improper sealing and engine damage.

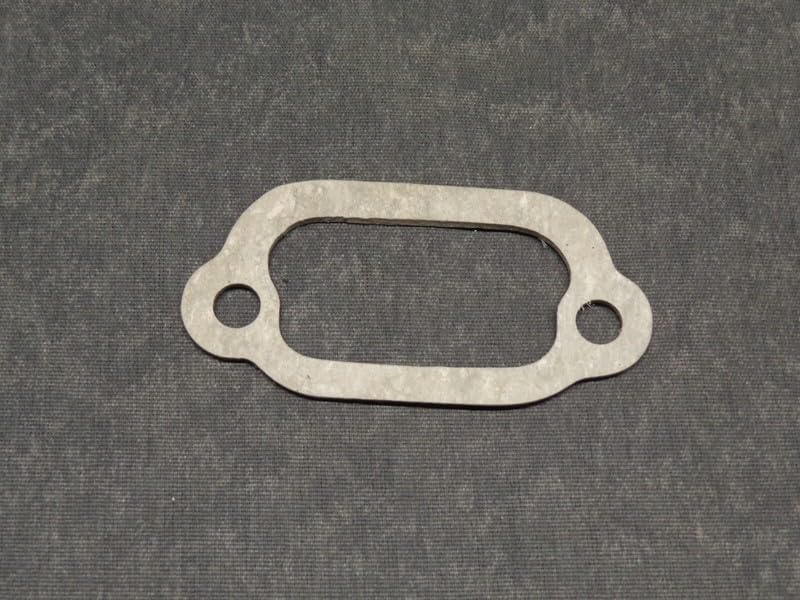

This image displays the replacement gasket, which is an oval-shaped component with two circular holes for bolts, designed to create a seal between engine parts.

Setup and Installation

1. Preparation: Ensure the engine surface where the gasket will be placed is clean, dry, and free from old gasket material, dirt, or debris. Use a suitable gasket scraper if necessary, taking care not to scratch the mating surfaces.
2. Positioning: Carefully align the new gasket (part number 510257) with the bolt holes and the mating surfaces of the engine components (e.g., carburetor to engine block).
3. Securing: Install the bolts through the gasket and into the engine components. Hand-tighten all bolts initially.
4. Torquing: Refer to your Tecumseh engine's service manual for the correct torque specifications for the bolts. Tighten the bolts gradually and evenly in a cross-pattern to ensure uniform compression of the gasket. Over-tightening or uneven tightening can damage the gasket or engine components.
5. Final Check: After installation, visually inspect the area around the gasket for proper seating and alignment.

Operating Considerations

Once the gasket is correctly installed, it will provide a seal essential for the engine's proper operation. Monitor the engine during its first few uses after gasket replacement for any signs of leaks (fuel, oil, or air, depending on the gasket's location) or unusual performance. A properly sealed engine will run more efficiently and reliably.

Maintenance

Gaskets are wear items and should be inspected periodically, especially if you notice any fluid leaks or performance issues from the engine. While this specific gasket does not require routine maintenance, its integrity is vital for engine health. Replace the gasket if it shows signs of cracking, tearing, compression set, or any other damage.

Troubleshooting

• Leakage after installation: If leaks occur, re-check bolt torque according to the engine manual. If leaks persist, the gasket may be improperly seated, damaged, or the mating surfaces may not be clean or flat. Disassemble, inspect, clean, and re-install with a new gasket if necessary.
• Engine performance issues: A faulty or improperly installed gasket can lead to vacuum leaks (for carburetor gaskets) or compression loss, affecting engine performance. Ensure the correct gasket is used and properly installed.

Specifications

Warranty and Support

For information regarding warranty coverage or technical support for this replacement part, please refer to the retailer or manufacturer from whom the product was purchased. Keep your purchase receipt as proof of purchase.
