Product Overview
The WPW10005300 Washer Dispenser to Bellow Tube is a replacement component designed for washing machines. Its primary function is to transport the contents from the dispenser drawer, such as detergent or fabric softener, to the washer tub during the wash cycle. This ensures proper distribution of cleaning agents for effective washing.

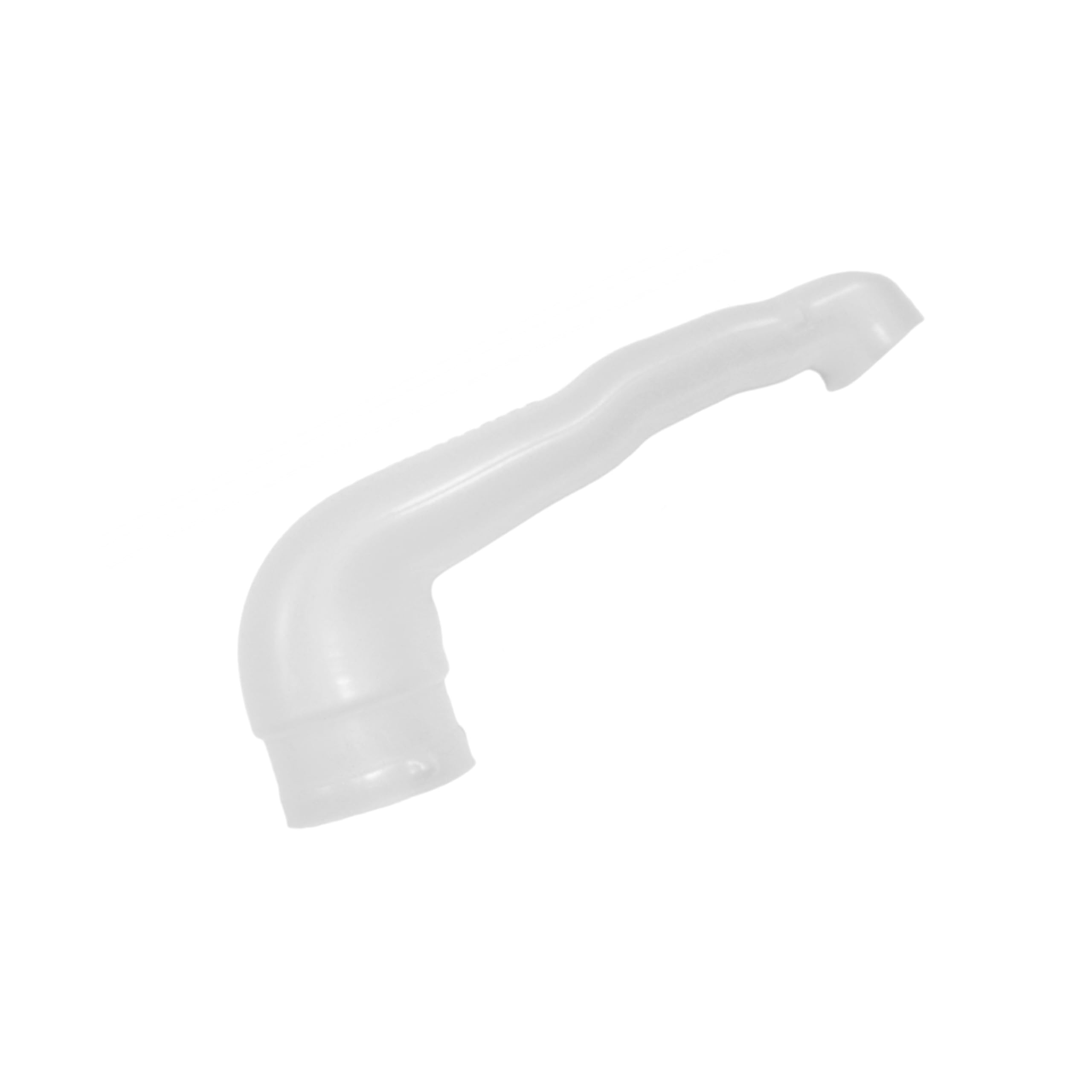

This image displays the WPW10005300 Washer Dispenser to Bellow Tube. It is a translucent, flexible tube with a slightly curved shape, designed to connect the dispenser to the washer's bellow.
Compatibility
This replacement part is compatible with Whirlpool brand washing machines.
It replaces the following part numbers: W10005300, 8181718, 1446431, AP4354912, PS1489516, EAP1489516.
Setup and Installation
Installation of the Washer Dispenser to Bellow Tube typically involves accessing the internal components of the washing machine. Due to the complexity and potential safety risks associated with appliance repair, it is recommended that installation be performed by a qualified technician. Always disconnect power to the appliance before attempting any repairs.
General Installation Steps (Consult a professional)
- Safety First: Ensure the washing machine is unplugged from the power outlet and the water supply is turned off.
- Access: Locate and access the existing dispenser tube, which may require removing the washer's top panel or front panel, depending on the model.
- Removal: Carefully disconnect the old tube from both the dispenser drawer assembly and the washer tub bellow. Note the orientation and connections.
- Installation: Attach the new WPW10005300 tube, ensuring secure connections at both ends to prevent leaks. Verify that the tube is not kinked or obstructed.
- Reassembly: Reassemble any panels removed during the process.
- Testing: Restore power and water supply, then run a short cycle to check for proper function and leaks.
Maintenance
The dispenser to bellow tube generally requires minimal maintenance. Periodically inspect the tube for any signs of wear, cracks, or blockages. If you notice any detergent residue buildup, it can be gently cleaned. Ensure the tube remains free of kinks or obstructions to allow for proper water flow.
Troubleshooting
If issues arise related to the dispenser tube, consider the following:
- Leaking: Check connections at both ends of the tube. Ensure clamps (if present) are secure. Inspect the tube for cracks or punctures.
- Detergent Not Dispensing: Verify that the tube is not clogged with detergent residue. Ensure the dispenser drawer itself is clean and functioning correctly.
- Water Not Reaching Tub: Confirm the tube is not kinked or obstructed internally. This could also indicate issues with the dispenser assembly or water inlet valve.
For persistent problems, professional diagnosis and repair are recommended.
Specifications
| Feature | Detail |
|---|---|
| Part Number | WPW10005300 |
| Replaces Part Numbers | W10005300, 8181718, 1446431, AP4354912, PS1489516, EAP1489516 |
| Compatible Brands | Whirlpool |
| Included Components | Dispenser to Bellow Tube |
| Specific Uses | Washing Machine Use |
| Unit Count | 1.0 Count |
Warranty Information
This product comes with a 1-year manufacturer's warranty. For warranty claims or details, please refer to the manufacturer's official documentation or contact your point of purchase.
Support
For further assistance or technical support regarding the WPW10005300 Washer Dispenser to Bellow Tube, please contact the retailer or a certified appliance repair professional.
