Generic 632443R Gas Furnace Air Pressure Switch User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Generic 632443R Gas Furnace Air Pressure Switch. This device is engineered to deliver precise control over pneumatic systems, ensuring seamless operation and enhanced safety in various applications, including HVAC systems and air compressors.

Please read this manual thoroughly before installation or operation and retain it for future reference.

2. Safety Information

• Disconnect Power: Always ensure the power supply to the furnace or air compressor system is disconnected before attempting any installation, maintenance, or inspection.
• Qualified Personnel: Installation and servicing should ideally be performed by a qualified technician familiar with HVAC systems and electrical wiring.
• Local Codes: All electrical connections must comply with local electrical codes and regulations.
• Pressure Release: Ensure the pneumatic system is fully depressurized before disconnecting any lines or components.
• Proper Sealing: Use appropriate sealants (e.g., PTFE tape) on threaded connections to prevent air leaks.
• No Disassembly: Do not attempt to disassemble the pressure switch. There are no user-serviceable parts inside.

3. Product Features

• Precision Pressure Control: Automatically regulates air compressor systems with accurate cut-in/cut-out settings, ensuring optimal performance and energy efficiency.
• Durable Heavy-Duty Construction: Built with corrosion-resistant materials and robust components to withstand high-pressure environments, delivering long-lasting reliability.
• Easy Installation & Adjustment: Compact design with universal fittings and intuitive adjustment dials for quick setup and seamless integration.
• Safety-First Operation: Features automatic shutoff to prevent over-pressurization, protecting equipment from damage and reducing risks of malfunctions or leaks.

4. Setup and Installation

The 632443R Gas Furnace Air Pressure Switch is designed for straightforward integration into existing pneumatic systems. Follow these general steps for installation:

1. Preparation: Ensure the power supply to the furnace or air compressor is completely disconnected. Depressurize the system.
2. Location: Identify the appropriate location for the pressure switch. This is typically near the furnace vent or air compressor, as specified by your equipment's manufacturer.
3. Mounting: Securely mount the pressure switch in the designated position.
4. Pneumatic Connection: Connect the pressure sensing line to the switch's universal threaded port (0.85" PF). Use appropriate thread sealant to ensure an airtight connection.
5. Electrical Wiring: Connect the electrical wiring to the switch terminals. Refer to your furnace or compressor manual for specific wiring diagrams and ensure connections comply with all safety standards and local codes.
6. Verification: Double-check all connections (pneumatic and electrical) for security and proper sealing.

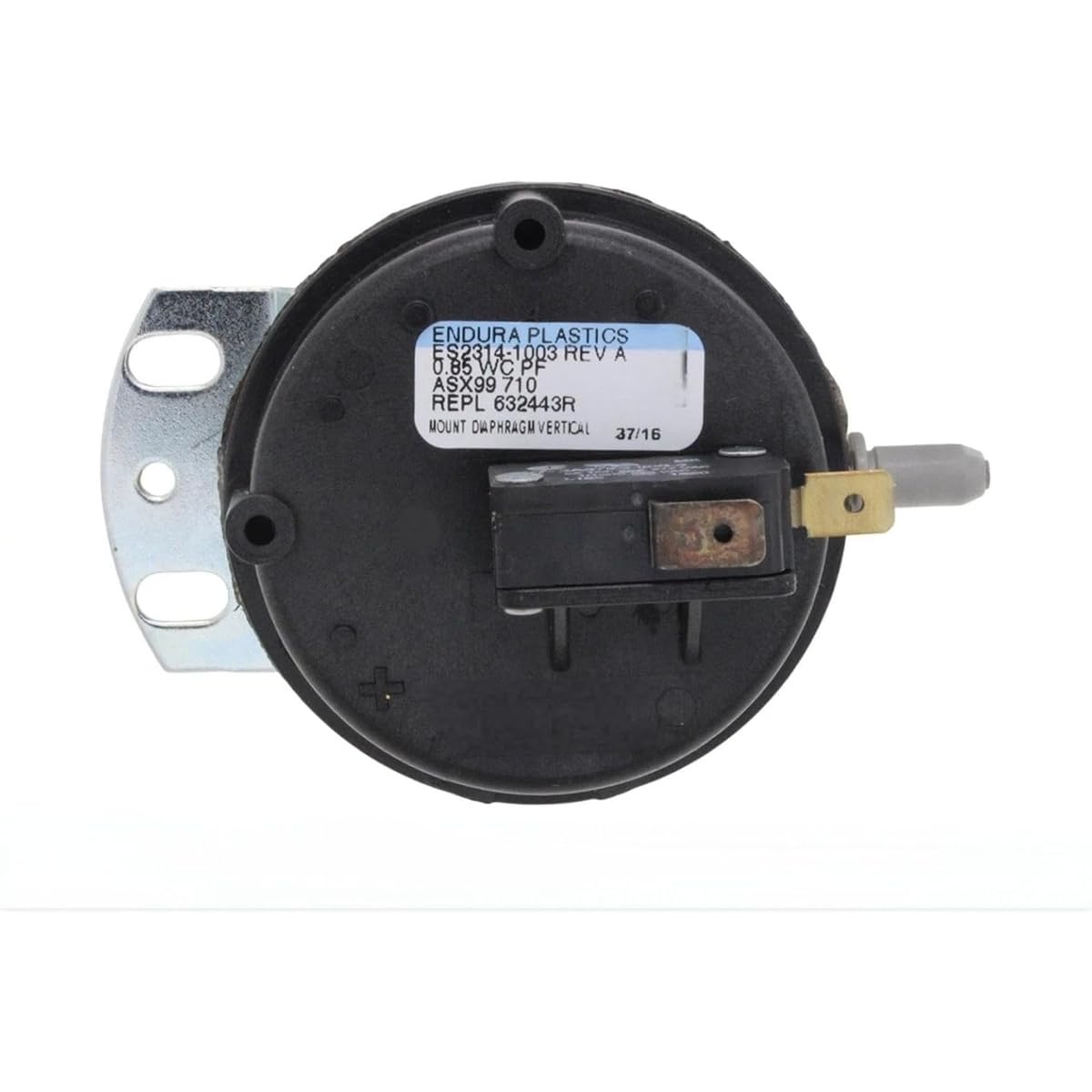

Image: The Generic 632443R Gas Furnace Air Pressure Switch, showing its compact design and connection ports.

Note: No official product videos were found for this item.

5. Operating Instructions

Once properly installed and the system is powered on, the 632443R Gas Furnace Air Pressure Switch operates automatically.

• Automatic Regulation: The switch will monitor the system pressure and activate or deactivate the connected equipment (e.g., furnace inducer motor, air compressor) based on its preset cut-in and cut-out pressure thresholds.
• Adjustment: If your specific application requires different pressure settings, use the intuitive adjustment dials on the switch to fine-tune the cut-in/cut-out points. Always refer to your equipment's specifications for recommended pressure ranges.
• Monitoring: Periodically monitor the system pressure to ensure the switch is operating within the desired parameters and maintaining optimal system efficiency.

6. Maintenance

The 632443R Gas Furnace Air Pressure Switch is designed for durability and minimal maintenance. However, regular checks can help ensure its longevity and reliable operation.

• Visual Inspection: Periodically inspect the switch and its connections for any signs of wear, corrosion, physical damage, or air leaks.
• Cleanliness: Keep the switch free from excessive dust, dirt, and debris, which could potentially interfere with its operation.
• Connection Integrity: Ensure all pneumatic and electrical connections remain secure and tight.
• No Internal Servicing: The internal components of the switch are not user-serviceable. Do not attempt to open or repair the unit yourself. If the switch malfunctions, replacement is typically required.

7. Troubleshooting

If you encounter issues with your pressure switch, consider the following troubleshooting steps:

• Switch Not Activating/Deactivating:
  • Check the power supply to the system and the switch.
  • Verify all electrical wiring connections are secure and correct.
  • Ensure the pressure settings on the switch are correctly adjusted for your application.
  • Inspect the pressure sensing line for blockages, kinks, or leaks.
• Inaccurate Pressure Readings:
  • Verify the accuracy of any external pressure gauges used for comparison.
  • Check for leaks in the pneumatic system or the pressure sensing line.
  • Ensure the switch port is clear of debris.
• Air Leaks Around Switch:
  • Tighten all threaded connections.
  • Reapply thread sealant (e.g., PTFE tape) if necessary.
  • Inspect for cracks or damage to the switch housing or ports.

If problems persist after attempting these steps, it may indicate a faulty switch requiring replacement, or a more complex issue with the overall system. Consult a qualified technician.

8. Specifications

9. Warranty and Support

No specific warranty information is provided with this product. For any support inquiries, technical assistance, or warranty claims, please contact your retailer or the manufacturer (HHMB) directly.
