Introduction
Thank you for choosing the ACMEASE 85-inch Chenille Reversible Sectional Sofa with Pull-Out Bed. This manual provides important information regarding the assembly, operation, maintenance, and troubleshooting of your new sofa. Please read these instructions carefully before assembly and retain them for future reference.
Safety Information
- Supervise children and pets to avoid entrapment risks, especially when operating the pull-out bed mechanism.
- Keep the sofa away from open flames or high heat sources to prevent fire hazards.
- Do not overload the electrical charging ports (USB and Type-C) to prevent electrical hazards. Ensure devices are compatible with the charging specifications.
- Do not exceed the maximum weight limit of 1500 pounds for the sofa.
- Ensure all components are securely fastened during assembly to prevent instability.
Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Sofa sections (main sofa, chaise)
- Back cushions
- Seat cushions
- Armrests with storage and cup holders
- Pull-out bed mechanism components
- Legs
- Hardware pack (bolts, washers, nuts, etc.)
- Throw pillows (2 included)
- Assembly instructions (this document)
Image: The complete ACMEASE 85-inch Chenille Reversible Sectional Sofa in blue, showcasing its L-shaped configuration and overall design.
Assembly Instructions
Assembly typically requires two people and approximately 2 hours. Ensure you have adequate space and the necessary tools (not included) before starting.
- Unpack Components: Carefully remove all parts from the packaging. Place them on a soft, clean surface to prevent scratches.
- Attach Legs: Securely attach the sofa legs to the bottom of each section using the provided hardware. Ensure they are tightened firmly.
- Assemble Main Sofa Section: Connect the backrest and armrests to the main sofa base. Follow the specific diagrams in the included assembly guide for correct orientation and hardware usage.
- Assemble Chaise Section: Connect the backrest and armrest to the chaise base.
- Connect Sofa Sections: Align the main sofa section with the chaise section. Use the provided connectors to securely join the two parts, forming the L-shape. The sofa is reversible, allowing you to configure the chaise on either the left or right side.
- Install Pull-Out Bed Mechanism: The pull-out bed mechanism is typically pre-assembled within the main sofa section. Ensure it moves smoothly and is properly aligned.
- Place Cushions: Arrange the seat and back cushions on the sofa. Allow vacuum-sealed cushions to expand for up to 72 hours for optimal comfort.
Image: Illustration showing the reversible design of the sectional sofa, allowing the chaise to be positioned on either side.
Operating Instructions
Pull-Out Bed Function
To convert the sectional sofa into a bed, gently pull the fabric loop or handle located on the front of the main sofa section. The hidden drawer part will smoothly extend forward, revealing the bed platform. To revert to a sofa, push the bed platform back into the sofa until it locks into place.

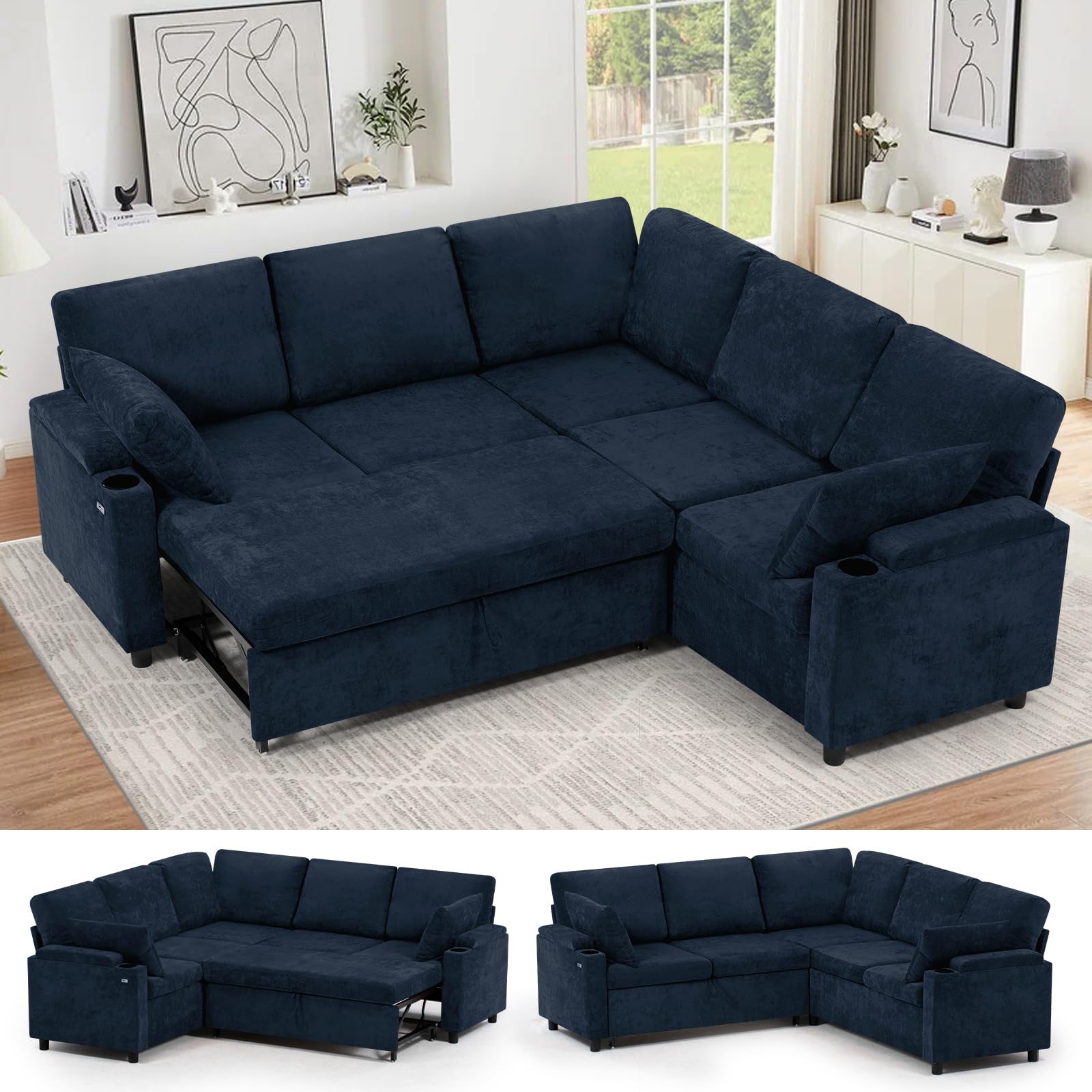

Image: The sectional sofa with its pull-out bed fully extended, demonstrating its dual functionality.
Storage Armrests
Both armrests feature hidden storage compartments. To access, lift the top padded section of the armrest. Close securely after use.
Cup Holders
The integrated cup holders are designed for convenience. Place beverages securely in the holders to prevent spills.
USB and Type-C Charging Ports
Located on the side of the sofa, these ports allow you to charge compatible electronic devices. Connect your device's charging cable to the appropriate port. Ensure the sofa is connected to a power source for the ports to function.
Image: Detailed view highlighting the hidden storage armrests, built-in cup holders, and USB/Type-C charging ports.
Care and Maintenance
- Cleaning: Wipe clean with a dry cloth. For spills, blot immediately with a clean, dry cloth. Avoid harsh chemicals or abrasive cleaners.
- Cushion Care: Periodically fluff and rotate cushions to maintain their shape and extend their lifespan.
- General Care: Avoid direct sunlight to prevent fading. Keep away from sharp objects to prevent tears in the fabric.
Troubleshooting
- Pull-Out Bed Sticking: Ensure no obstructions are present in the mechanism's path. Apply a silicone-based lubricant to moving parts if necessary, avoiding contact with fabric.
- Cushions Not Fully Expanded: Allow up to 72 hours for vacuum-sealed cushions to fully expand after unpacking. Gentle fluffing can assist the process.
- Charging Ports Not Working: Verify that the sofa is properly connected to a functional power outlet. Check the connection of the internal wiring if accessible and safe to do so. Ensure your device and cable are not faulty.
- Sofa Instability: Re-check all assembly bolts and connections to ensure they are tightened securely.
Specifications
| Feature | Detail |
|---|---|
| Brand | ACMEASE |
| Model Number | CO-BU-3 |
| Product Dimensions | 85"D x 85"W x 35"H |
| Item Weight | 197 Pounds |
| Seating Capacity | 5 |
| Weight Limit | 1500 Pounds |
| Material Type | Chenille (Upholstery), Wood (Frame), Foam (Fill) |
| Seat Depth | 23 inches |
| Seat Height | 18 Inches |
| Additional Features | Reversible configuration, Pull-Out Bed, Storage Armrests, Cup Holders, USB & Type-C Charging Ports, Throw Pillows |
| Assembly Required | Yes |
Image: Diagram illustrating the overall dimensions of the sofa: 85 inches (L) x 85 inches (W) x 35 inches (H).
Image: Cross-section view demonstrating the thickened sponge layer for enhanced comfort, covered with breathable chenille fabric.
Warranty Information
This ACMEASE sectional sofa is covered by a Manufacturer Warranty. For specific details regarding coverage, duration, and claims process, please refer to the warranty documentation included with your purchase or contact ACMEASE customer support.
