Introduction

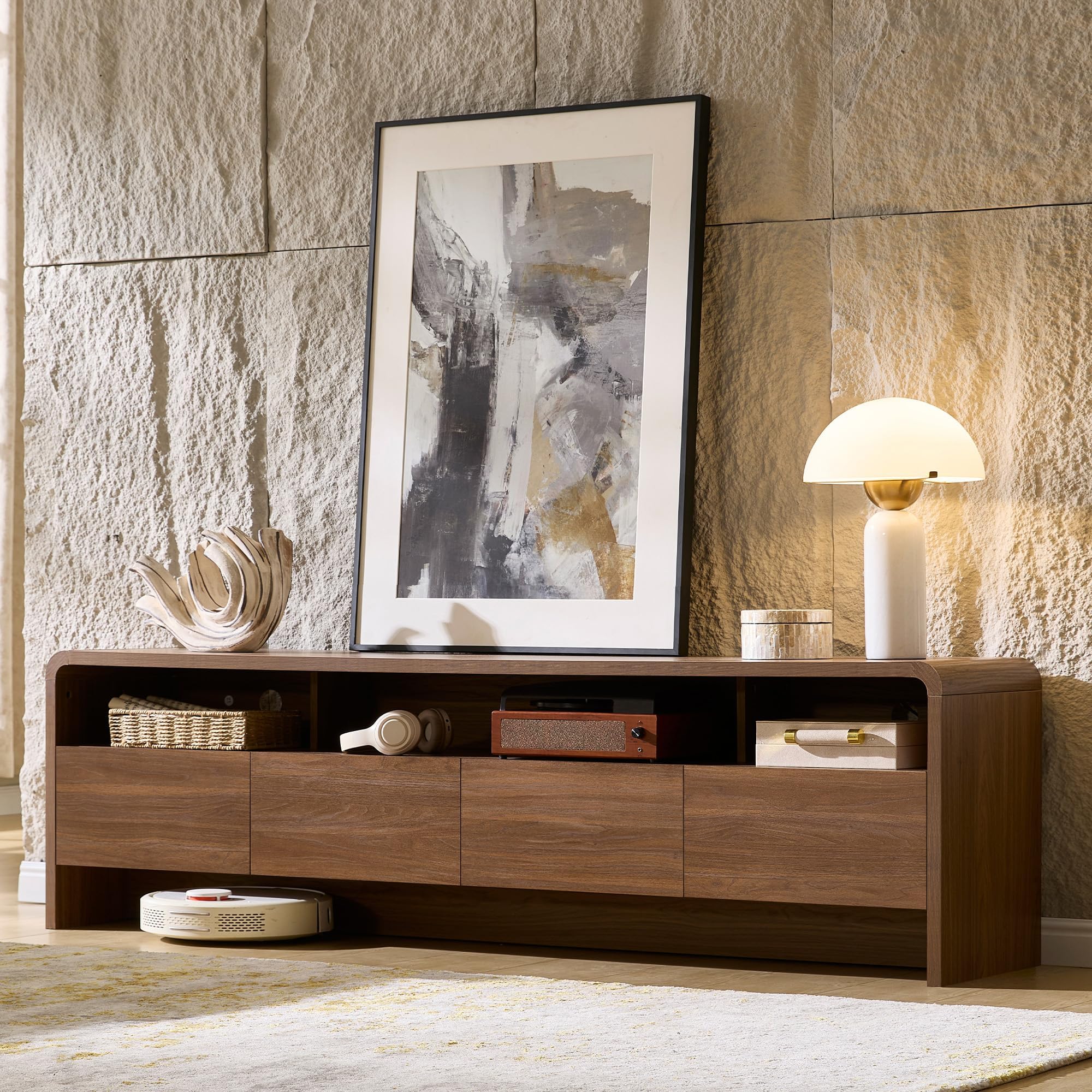

Thank you for choosing the AMERLIFE 70-inch Modern TV Stand (Model CTS111). This manual provides essential information for the safe assembly, operation, and maintenance of your new TV stand. Please read these instructions carefully before beginning assembly and retain them for future reference.
Safety Information
- Weight Capacity: Do not load more than 250 lbs (113 kg) on the TV stand.
- Anti-Tip Hardware: Anti-tip hardware is included to ensure secure and family-friendly use. It is highly recommended to install this hardware to prevent accidental tipping.
- Sharp Edges: Exercise caution around sharp edges during assembly and use.
- Hinges: Be cautious when operating hinges to prevent finger pinching.
- Cable Management: Properly manage cables to avoid tripping hazards and damage to electronics.
- Assembly: Two people are recommended for assembly to ensure safety and ease of installation.
Setup and Assembly
The AMERLIFE TV Stand is designed for multi-step self-assembly. Clear labels and step-by-step instructions are provided in the included manual. Assembly typically takes about 30 minutes with two people. A drill can expedite the process.
Assembly Steps Overview
- Unpack all components and verify against the parts list.
- Follow the step-by-step instructions provided in the assembly manual.
- Attach the anti-tip hardware to the TV stand and secure it to a wall as instructed.
- Ensure all screws and fasteners are tightened securely before use.
Image: Overview of assembly requirements and color disclaimer.
Image: Product dimensions and weight capacity (250 lbs).
Operating Instructions
Storage and Organization
The TV stand features a wide tabletop, three open cubbies, and four-door storage cabinets, providing versatile storage for your media devices, books, and decorative items. The design helps maintain a tidy living space.
- Open Cubbies: Ideal for frequently accessed items like soundbars, game consoles, or remote controls.
- Storage Cabinets: Use the four-door cabinets to conceal items and reduce clutter.
- Soft-Close Hinges: The cabinet doors are equipped with soft-close hinges for smooth and quiet operation, preventing slamming.
Image: Ample storage space with open shelves and closed cabinets.
Cable Management
Three pre-drilled cable management holes are located at the back of the open cubbies. These holes allow you to route and organize power cords and media cables, keeping them neat and hidden from view.
Image: Detailed view of cable management holes and soft-close hinges.
Product Overview Video
Video: An overview of the AMERLIFE 70" Modern TV Stand with Curved Profile Design, highlighting its features.
Maintenance and Care
- Cleaning: Wipe the surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
- Spills: Promptly clean any spills to prevent staining or damage to the wood.
- Robot Vacuum Access: The open bottom space is designed to allow easy access for robot vacuums, simplifying daily cleaning underneath the unit.
- Scratch Resistance: The reinforced MDF material offers scratch resistance, but it is advisable to use coasters or protective pads under heavy or sharp objects.
- Load Bearing: Ensure the TV stand is not overloaded beyond its 250 lbs (113 kg) capacity to maintain structural integrity.
Troubleshooting
Cabinet Door Alignment
If the cabinet doors appear misaligned or have uneven gaps, adjustments can be made using the hinges. Refer to the following steps:
- Adjusting Side-to-Side (Gap between doors): Locate screw C on the hinge. Turn screw C to micro-adjust the door horizontally, moving it closer or further from the adjacent door.
- Adjusting Depth (Door not flush): Locate screw B on the hinge arm. Loosen screw B to adjust the door's depth, moving it in or out to align with the frame.
- Adjusting Height (Doors not level): Locate screws A on the mounting plate. Loosen screws A to adjust the door vertically, moving it up or down to achieve a level alignment.
Image: Visual guide for adjusting cabinet door hinges.
Video: Instructions on how to align cabinet doors using hinge adjustments.
Specifications
| Feature | Detail |
|---|---|
| Brand | AMERLIFE |
| Model Number | CTS111 |
| Product Dimensions | 70 x 15.7 x 19.7 inches (L x W x H) |
| Item Weight | 77 pounds (34.9 kg) |
| Material | Flat Panel (Engineered Wood) |
| Color | Brown |
| Style | Modern Minimalist Style |
| Special Features | 3 Open Cubbies & 2 Storage Cabinets, Elegant Curved Edge Design, Modern Minimalist Style, Stable Lowboard Structure, Cable Management Holes, Soft-Close Hinges, Robot-Vacuum Access, Anti-tip Hardware Included |
| Max Load Capacity | 250 lbs (113 kg) |
| Assembly Required | Yes (Instructions Included) |
Warranty and Support
For any questions regarding assembly, missing parts, or product functionality, please contact AMERLIFE customer support. Refer to your purchase documentation for specific warranty details and contact information.
You can also visit the official AMERLIFE store for more information: AMERLIFE Store
