Emphsism AFTO-2307DT 23L Hot Air Fryer Mini Oven

1. Important Safety Information

Before using the Emphsism AFTO-2307DT air fryer mini oven, please read this instruction manual thoroughly and follow all guidelines. New users should pay particular attention to these instructions to prevent potential hazards.

• Ensure that the air outlet is not blocked during operation, as this may affect performance and safety.
• Do not place the air fryer in damp environments or areas with corrosive gases to prolong its service life.
• Always place the appliance on a stable, heat-resistant surface.
• Keep children and pets away from the appliance during operation.
• Unplug the appliance when not in use and before cleaning.
• Do not immerse the main unit in water or any other liquid.

2. Product Overview

The Emphsism AFTO-2307DT is a versatile 23-liter hot air fryer mini oven designed for efficient cooking. It features a flexible single/double zone capability, dual control options, and a durable stainless steel interior.

2.1 Large Capacity

With a 23-liter volume, this mini oven is suitable for preparing meals for families or parties, allowing you to cook multiple dishes simultaneously.

Image: The 23L interior of the Emphsism air fryer mini oven, filled with chicken drumsticks, french fries, onion rings, and roasted vegetables, demonstrating its large cooking capacity.

2.2 Flexible Single/Dual Zone

The oven can be used as a single large cooking zone or divided into two separate zones using the included divider. Each zone can be set to different temperatures and times, or synchronized for simultaneous completion.

Image: Illustration of the air fryer oven's flexible design, showing how it can operate as a single large zone or be divided into two independent cooking zones.

2.3 Dual Zone Heating and Dual Fans

The appliance features dual heating elements and dual fans, enabling independent temperature control for each zone or synchronized cooking for uniform results across both zones.

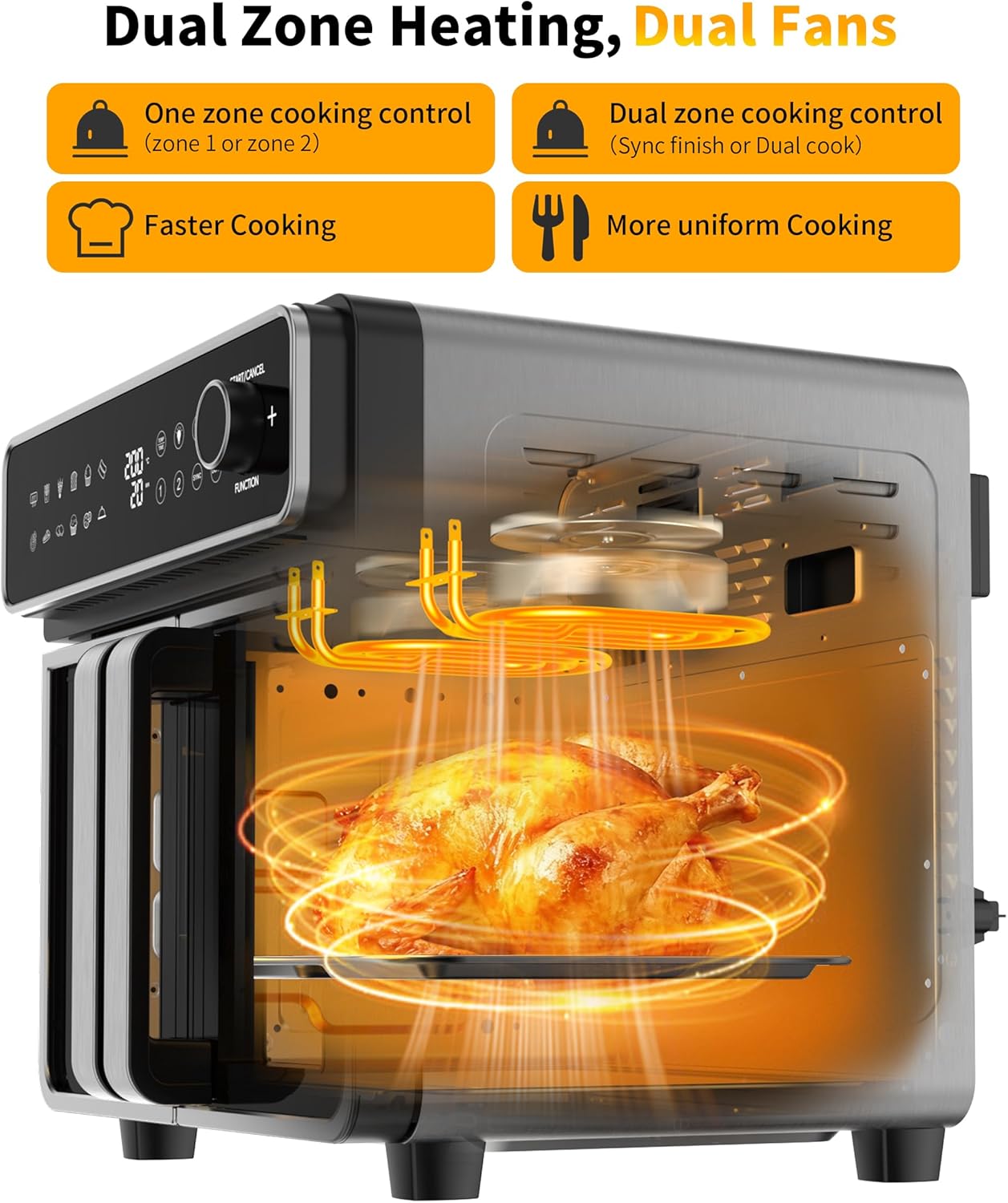

Image: Cutaway diagram showing the internal heating elements and dual fans, highlighting the independent and synchronized cooking capabilities for faster and more uniform cooking.

3. Components and Accessories

The Emphsism AFTO-2307DT comes with a comprehensive set of accessories to enhance your cooking experience.

Image: A visual representation of the 13 included accessories, including a rotisserie fork, rotisserie basket, mesh basket, oil tray, baking trays, and a divider.

Included Accessories:

• Grills/Racks: For various cooking levels.
• Plates/Baking Trays: For baking and catching drips.
• Rotisserie Baskets: For tumbling smaller items.
• Rotisserie Fork: For roasting whole chickens or larger cuts.
• Mesh Basket: Ideal for air frying smaller items like fries.
• Divider: To create two separate cooking zones.
• Oil Tray: To collect excess oil and crumbs.
• Take Baking Tray Tong: For safe handling of hot trays.
• Recipe Book: Provides creative ideas and cooking guidance.

4. Setup

Follow these steps for initial setup of your air fryer mini oven.

1. Unpacking: Carefully remove all packaging materials and accessories from the box.
2. Placement: Place the appliance on a stable, level, and heat-resistant surface, ensuring adequate clearance around all sides for proper ventilation. Do not place it near flammable materials.
3. Initial Cleaning: Before first use, wipe down the interior and exterior of the oven with a damp cloth. Wash all accessories (grills, trays, baskets, etc.) with warm, soapy water, rinse thoroughly, and dry completely.
4. Divider Installation (Optional): If you plan to use the dual zone feature, insert the divider into the designated slots inside the oven. Ensure it is securely in place.
5. Power Connection: Plug the power cord into a grounded electrical outlet.

5. Operating Instructions

The Emphsism AFTO-2307DT features a dual control system with a rotary knob and a touch screen for easy operation.

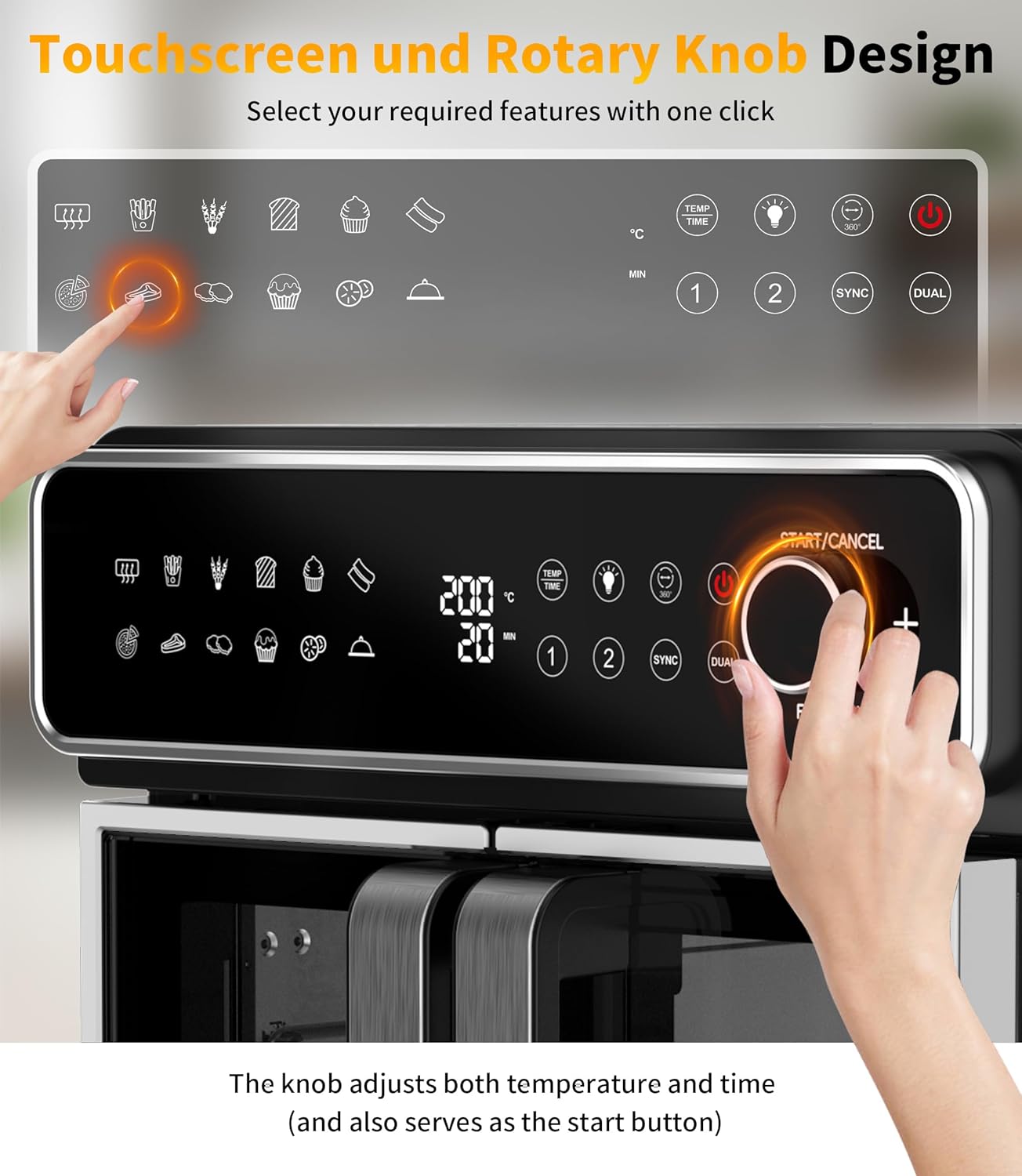

Image: The control panel featuring a touch screen with various preset icons and a central rotary knob for adjusting settings and initiating cooking.

5.1 Control Panel Overview

• Touch Screen: Used to select preset cooking programs (e.g., fries, chicken, fish, cake) and other functions.
• Rotary Knob: Adjusts temperature and time settings. Pressing the knob activates the Start/Pause function.
• TEMP/TIME Button: Toggles between temperature and time adjustment modes.
• SYNC Button: Synchronizes the finish time for dual zone cooking.
• DUAL Button: Activates or deactivates dual zone cooking mode.
• Power Button: Turns the appliance on/off.

5.2 Basic Operation

1. Power On: Press the Power button to turn on the appliance.
2. Select Program/Settings:
   • Using Presets: Touch the desired food icon on the touch screen to select a preset program. The default temperature and time will be displayed.
   • Manual Settings: If not using a preset, or to adjust a preset, press the TEMP/TIME button. Rotate the knob to adjust the temperature (50°C to 200°C). Press TEMP/TIME again, then rotate the knob to adjust the cooking time.
3. Start Cooking: Once settings are confirmed, press the rotary knob to start the cooking process.
4. Pause/Resume: Press the rotary knob during cooking to pause. Press again to resume.
5. Cancel: Press and hold the rotary knob for a few seconds to cancel the current cooking program.

5.3 Dual Zone Operation

1. Ensure the divider is correctly installed.
2. Press the DUAL button to activate dual zone mode.
3. Select settings for Zone 1 (left side) using the touch screen and rotary knob.
4. Select settings for Zone 2 (right side) similarly.
5. If desired, press the SYNC button to ensure both zones finish cooking at the same time. The oven will automatically adjust the cooking time for the zone with less time remaining.
6. Press the rotary knob to start cooking in both zones.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your Emphsism air fryer mini oven.

Image: A dishwasher containing several accessories from the air fryer oven, such as trays and baskets, illustrating their dishwasher-safe property.

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Exterior Cleaning: Wipe the exterior with a damp cloth. Do not use abrasive cleaners or scouring pads.
3. Interior Cleaning: Wipe the interior with a damp cloth and mild detergent. For stubborn food residue, a non-abrasive sponge can be used. Ensure the interior is dry before next use.
4. Accessory Cleaning: All included accessories (grills, trays, baskets, divider) are dishwasher safe. Alternatively, wash them by hand with warm, soapy water and a non-abrasive sponge. Rinse and dry thoroughly.
5. Storage: Store the appliance in a dry, clean place when not in use.

7. Troubleshooting

If you encounter any issues with your Emphsism air fryer mini oven, refer to the following common problems and solutions.

8. Technical Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Emphsism website. Keep your proof of purchase for warranty claims.
