1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your POOLPURE PFT-AF100 Cartridge Pool Filter Tank. Please read these instructions thoroughly before installation and use to ensure optimal performance and longevity of your filter system.
2. Safety Information
Always observe basic safety precautions when installing and operating this product to reduce the risk of injury, fire, or electric shock. Failure to follow these instructions can result in severe injury or property damage.
- Read all instructions: Before installing or using the filter, read and understand all safety warnings and instructions in this manual.
- Electrical Safety: Ensure all electrical connections are made by a qualified electrician and comply with local codes. Disconnect power before servicing.
- Pressure Safety: Do not operate the filter above the maximum recommended pressure. Never attempt to open the filter tank or service the system while it is under pressure.
- Chemical Safety: Handle pool chemicals with care and follow manufacturer's instructions. Avoid direct contact with filter components.
- Children: Keep children away from the filter system during operation and maintenance.
3. Package Contents
Verify that all components are present before beginning installation:
- POOLPURE PFT-AF100 Cartridge Filter Tank Housing
- Filter Element (100 sq.ft)
- Pressure Gauge
- Union Set Connections (2-inch joints)
- Drain Plug
- Instruction Manual
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | PFT-AF100 |
| Filter Area | 100 sq.ft |
| Flow Rate | 6,100 gallons per hour (GPH) |
| Product Dimensions (Diameter x Height) | 8.9" x 36.5" |
| Item Weight | 23.9 pounds |
| Pump Range Compatibility | 1,100-1,500 W |
| Maximum Pressure | 350 kPa |
| Material | Durable ABS Construction |
The filter is designed for superior resistance to corrosion, UV rays, and sun exposure, ensuring durability and leak resistance.
Image: POOLPURE PFT-AF100 Filter Tank Dimensions and Performance Specifications.
5. Setup and Installation
The POOLPURE PFT-AF100 filter system is designed for easy assembly and installation without special tools. Follow these steps for proper setup:
- Placement: Install the filter system on a flat, solid surface next to your pool. Ensure there is adequate space for maintenance and access.
- Secure the Base: Use the four mounting holes on the base to secure the filter for long-term stability.
- Connect Water Pump: Connect the outlet port of your water pump to the inlet port of the filter system. The filter is equipped with 2-inch joints for direct connection.
- Connect Return Line: Connect the outlet of the filter system to the return line leading back to the pool.
- Prevent Leaks (Optional but Recommended): For enhanced leak prevention, apply PVC glue to the Drain Plug threads, both Union Set connections to the housing, and the pipe ends going into each union. Be aware that using glue will make future disassembly difficult.
- Initial Check: Before starting, ensure all connections are secure and the filter element is correctly seated inside the tank.
Video: This video demonstrates the process of installing your POOLPURE pool filter cartridge and connecting the filter system to your pool's plumbing.

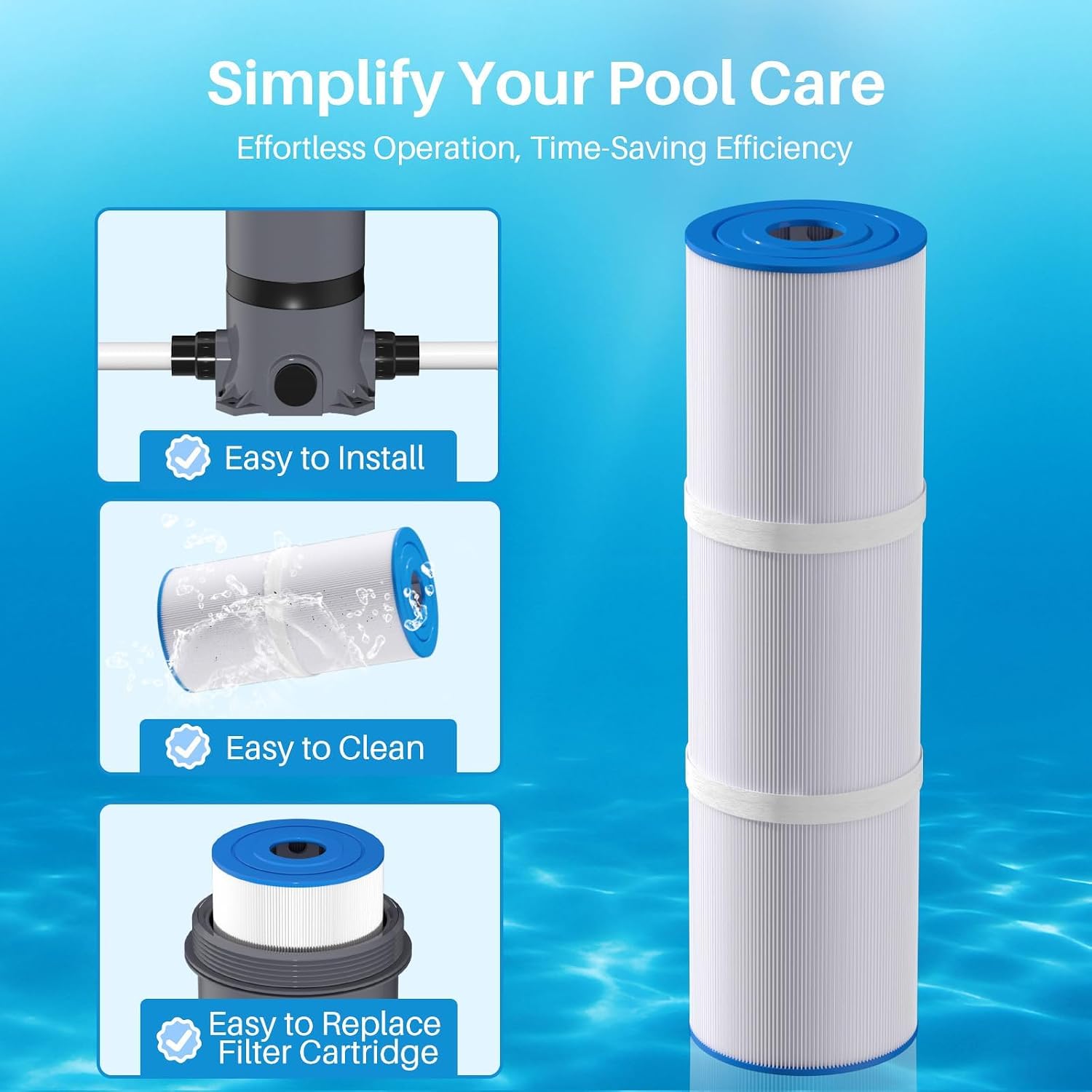

Image: Simplified Pool Filter Care steps including installation, cleaning, and cartridge replacement.
6. Operating Instructions
Once installed, operating your POOLPURE PFT-AF100 filter tank is straightforward. The filter efficiently removes particulate impurities from your pool water.
- Start Pump: Turn on your pool pump. Water will begin to flow through the filter system.
- Monitor Pressure Gauge: The integrated high-quality pressure gauge allows for easy monitoring of the working pressure. Note the initial clean filter pressure.
- Normal Operation: Allow the filter to run for the recommended duration based on your pool size and usage. The filter's 100 sq.ft area and 6,100 GPH capacity ensure efficient and rapid water purification.
- Check for Leaks: Periodically check all connections for any signs of leaks.
The filter media, made from environmentally friendly, lead-free materials, ensures both water quality and a healthier pool environment.
Image: POOLPURE PFT-AF100 Filter Tank with High-Quality Pressure Gauge for monitoring.
7. Maintenance
Regular maintenance of your POOLPURE PFT-AF100 filter tank is crucial for maintaining crystal-clear water and extending the life of your system. The filter is equipped with a 15um high-efficiency filter element and high-density pleated fiber, which requires periodic cleaning or replacement.
7.1. When to Clean or Replace the Filter Element
Monitor the pressure gauge. When the pressure rises 8-10 PSI above the initial clean filter pressure, or if you notice a decrease in water flow, it's time to clean or replace the filter element.
7.2. Cleaning the Filter Element
- Turn off Pump: Always turn off the pool pump and relieve any pressure in the system before opening the filter.
- Unscrew Lock Ring: Carefully unscrew the large lock ring at the top of the filter tank.
- Remove Lid: Remove the filter tank lid.
- Remove Filter Element: Gently lift and remove the dirty filter element from the tank.
- Rinse Element: Use a garden hose with a spray nozzle to thoroughly rinse the pleats of the filter element. Work from top to bottom, ensuring all debris is removed. For stubborn dirt or oils, a specialized filter cleaning solution may be used according to its instructions.
- Reinstall Element: Once clean, place the filter element back into the tank, ensuring the center pipe is properly installed and the element is seated correctly.
- Replace Lid and Lock Ring: Replace the lid and screw down the lock ring firmly. DO NOT OVERTIGHTEN.
- Restart Pump: Turn on the pool pump and check the pressure gauge. The pressure should return to near the initial clean filter reading.
Image: Step-by-step guide for filter element removal and replacement.
Image: Visual comparison of a dirty filter element before cleaning and a clean element after rinsing.
8. Troubleshooting
This section addresses common issues you might encounter with your POOLPURE PFT-AF100 filter tank.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow / Poor Filtration | Clogged filter element | Clean or replace the filter element (refer to Section 7.2). |
| Air in the system | Check all connections for leaks. Ensure pump is primed. | |
| High Pressure Gauge Reading | Dirty filter element | Clean or replace the filter element (refer to Section 7.2). |
| Water Leaks from Connections | Loose connections or worn O-rings | Tighten all union connections. Inspect and replace O-rings if damaged. Ensure PVC glue was applied correctly if used during installation. |
| Filter Tank Not Sealing Properly | Debris on O-ring or damaged O-ring | Clean the O-ring and its groove. Apply silicone lubricant to the O-ring. Replace O-ring if damaged. Ensure lock ring is tightened correctly (do not overtighten). |
9. Warranty and Support
9.1. Warranty Information
For detailed warranty information regarding your POOLPURE PFT-AF100 Cartridge Pool Filter Tank, please refer to the warranty card included with your product or visit the official POOLPURE website. The warranty typically covers manufacturing defects under normal use conditions.
9.2. Customer Support
If you have any questions, require technical assistance, or need to report an issue with your POOLPURE product, please contact POOLPURE customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (PFT-AF100) and purchase date available.
You can also visit the POOLPURE Store on Amazon for more information and product resources.
