G-Force MH-60 INCR 2.4GHz 4ch Helicopter User Manual

1. Product Overview

The G-Force MH-60 INCR is a 2.4GHz 4-channel electric radio-controlled helicopter designed with a tactical, special forces aesthetic. It incorporates advanced features such as optical flow technology for enhanced stability and precise hovering, making it suitable for both delicate maneuvers and aggressive flight. The helicopter boasts a realistic matte black finish with injection-molded details, a powerful brushless main motor, and a high-voltage LiPo battery for extended flight performance. Its 4-blade rotor design mimics a real aircraft, and the included 2.4GHz transmitter offers switchable operating modes. Weighing just 99g (including battery), it is exempt from certain aviation law regulations, allowing for versatile indoor flight. A dedicated display stand and landing pad are also included.

Image: Top-down view of the G-Force MH-60 INCR Helicopter, showcasing its tactical design and rotor blades.

2. Safety Warnings

Please read all safety warnings carefully before operating the helicopter to prevent injury or damage.

• This product is not a toy. Keep it out of reach of children.
• Indoor flight is recommended for optimal control and safety.
• The rotors rotate at high speed and are extremely dangerous. Exercise extreme caution during operation.
• During flight, ensure that the helicopter does not make contact with people's faces or hands.
• Direct contact with eyes can cause severe injury, including blindness.
• The flight characteristics of the product are not guaranteed under all conditions.
• Only use the specified charging device for the battery. Using an unspecified charger may lead to overheating, fire, or battery rupture, which is extremely dangerous.
• Always charge the battery in a visible area, away from any flammable materials or objects.
• Always handle lithium batteries strictly according to the instructions provided in this manual.
• This product does not use or contain fuel.
• This product does not contain paint, adhesives, oil, or grease.

3. Package Contents

Verify that all items listed below are included in your package:

• MH-60 INCR Main Unit
• 2.4GHz 4ch Transmitter
• Flight Li-Po Battery (3.8V 800mAh 20C)
• USB Charging Cable
• Spare Parts (Rotor Blades, Tail Blades, Main Gear)
• Tools (Phillips Screwdriver, Hex Wrench)
• Display Stand
• Landing Pad
• Instruction Manual

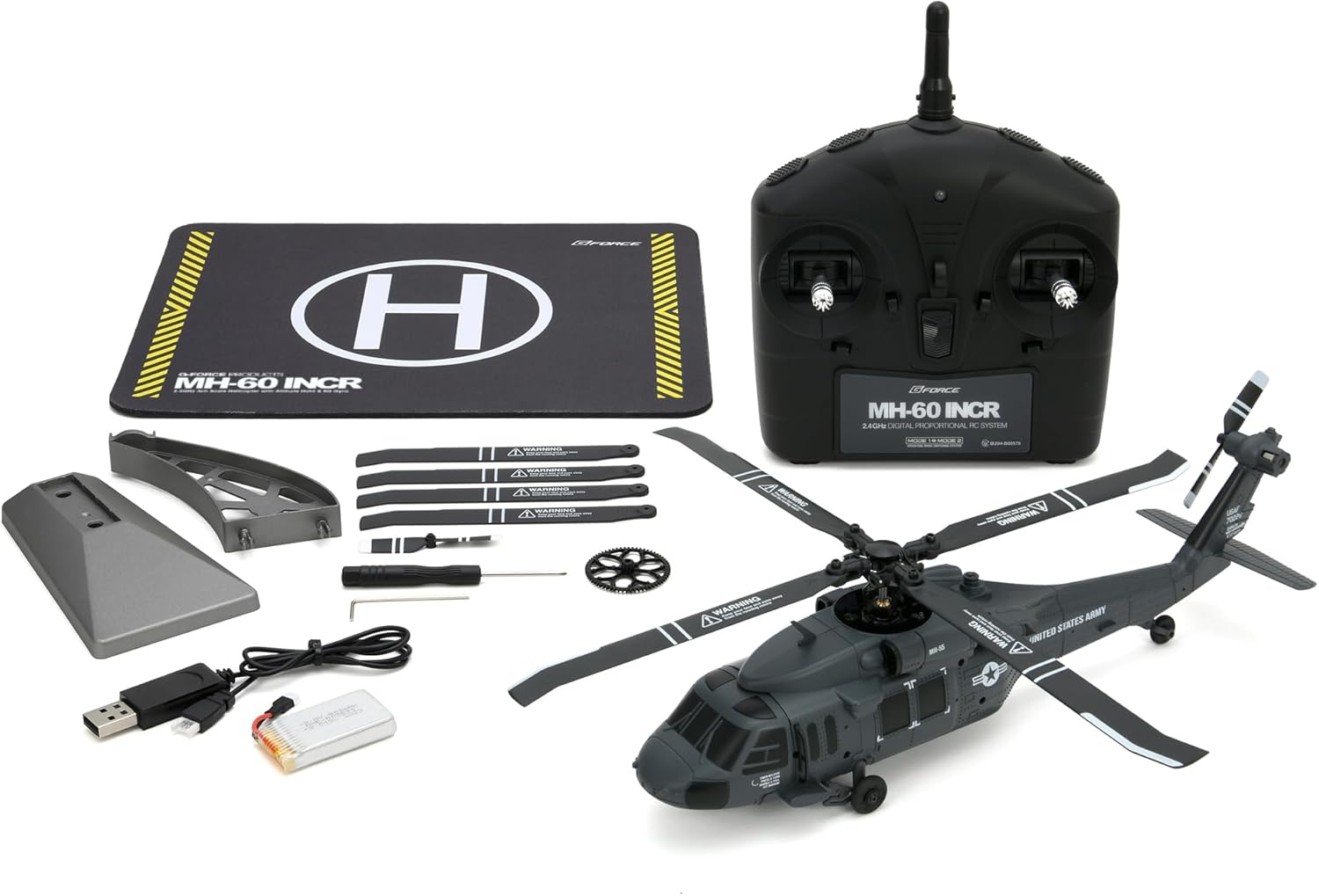

Image: All components included in the G-Force MH-60 INCR Helicopter package, laid out for inspection.

4. Product Specifications

5. Setup Guide

5.1. Charging the Flight Battery

1. Carefully remove the flight Li-Po battery from the helicopter.
2. Connect the provided USB charging cable to the battery.
3. Plug the USB cable into a compatible USB power source (e.g., computer, USB wall adapter).
4. The LED indicator on the battery will illuminate during charging. It will turn off once charging is complete.
5. Charging time is approximately 120 minutes. Do not overcharge.

5.2. Installing Transmitter Batteries

1. Open the battery compartment cover on the back of the 2.4GHz transmitter.
2. Insert 6 AAA alkaline batteries (not included) into the compartment, ensuring correct polarity.
3. Close the battery compartment cover securely.

5.3. Attaching Weapon Units (Optional)

The MH-60 INCR comes with detachable weapon units for enhanced realism. These can be easily attached to the sides of the fuselage.

1. Locate the attachment points on both sides of the helicopter fuselage.
2. Align the weapon units with these points and gently push until they click into place.

Image: Side view of the G-Force MH-60 INCR Helicopter, showing the detailed fuselage and potential attachment points for accessories.

6. Operating Instructions

6.1. Powering On and Binding

1. Place the helicopter on a flat, stable surface.
2. Press and hold the power switch on the helicopter until the LED indicator illuminates.
3. Turn on the transmitter by sliding the ON/OFF switch. The transmitter's LED will flash.
4. To bind the helicopter to the transmitter, push the throttle stick (left stick) all the way up, then all the way down.
5. Once bound, the LED on the helicopter will change from flashing to solid, indicating a successful connection.

6.2. Basic Flight Controls

The 2.4GHz 4ch transmitter allows for precise control over the helicopter's movements:

• Throttle (Left Stick Up/Down): Controls ascent and descent.
• Rudder (Left Stick Left/Right): Controls yaw (rotation around the vertical axis).
• Elevator (Right Stick Up/Down): Controls forward and backward movement.
• Aileron (Right Stick Left/Right): Controls left and right slide (sideways movement).

6.3. One-Key Takeoff and Landing

The MH-60 INCR features a one-key takeoff and landing function for ease of use:

• One-Key Takeoff: After binding, press the one-key takeoff button on the transmitter. The helicopter will automatically ascend to a stable hovering height.
• One-Key Landing: During flight, press the one-key landing button. The helicopter will automatically descend and land gently.

6.4. Gyro Calibration

If the helicopter exhibits unstable flight, perform a gyro calibration:

1. Place the helicopter on a flat, level surface.
2. Ensure the helicopter and transmitter are powered on and bound.
3. Refer to the specific instructions in the included manual for the exact button combination or stick movement to initiate gyro calibration. Typically, this involves holding both control sticks to a specific corner for a few seconds.
4. The helicopter's LEDs will flash during calibration and become solid once complete.

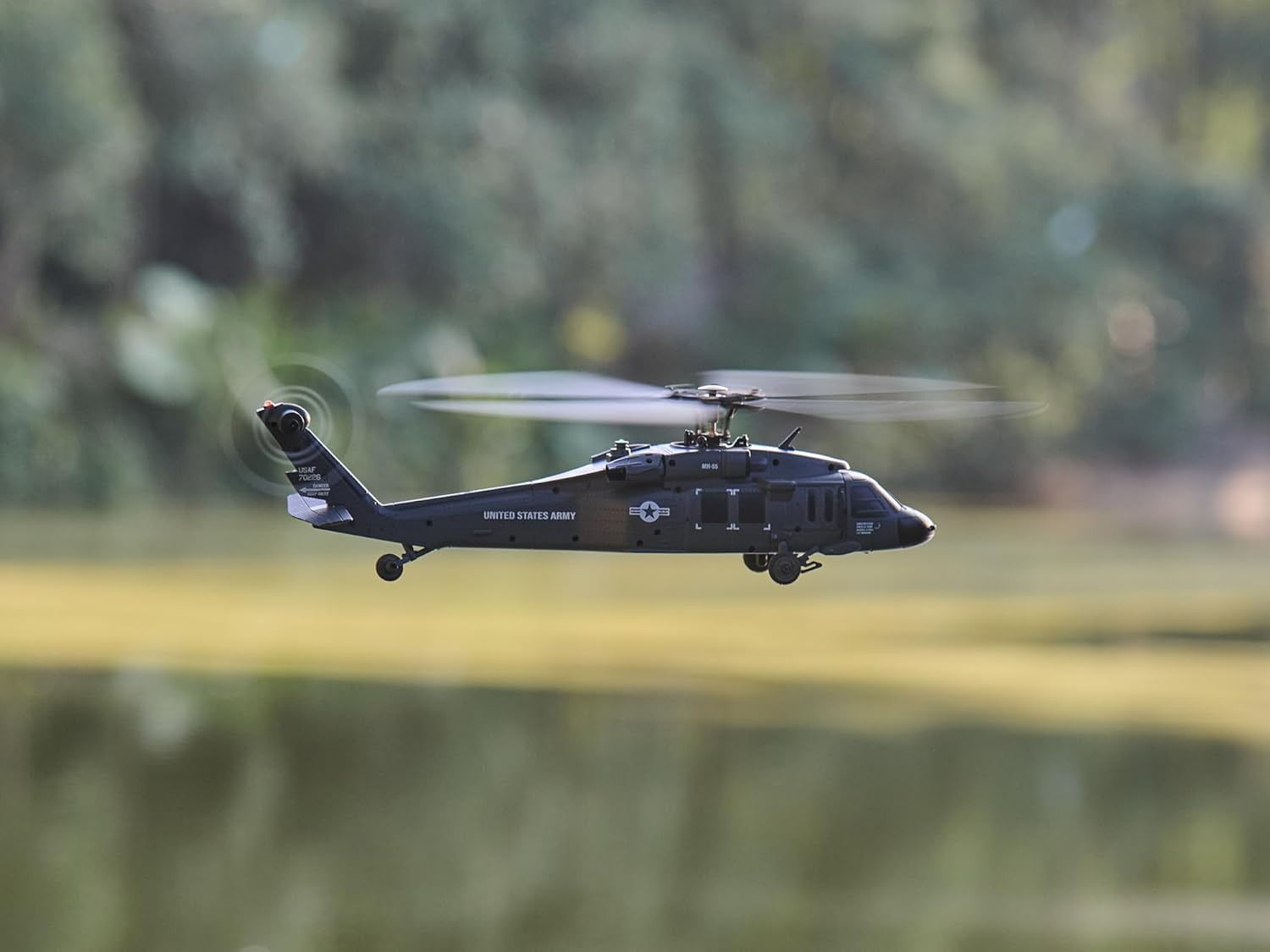

Image: The G-Force MH-60 INCR Helicopter in stable flight, demonstrating its capabilities.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your G-Force MH-60 INCR Helicopter:

• Cleaning: Use a soft, dry cloth to clean the helicopter and transmitter. Avoid using solvents or harsh chemicals.
• Rotor Blades: Inspect rotor blades for any damage (cracks, bends) before and after each flight. Replace damaged blades immediately using the provided spare parts.
• Battery Care: Always disconnect the flight battery from the helicopter after use. Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. Do not store fully charged or fully discharged for extended periods.
• Storage: When not in use, store the helicopter and its components in a safe, dry place, preferably in its original packaging or a protective case.

8. Troubleshooting

If you encounter issues with your helicopter, refer to the following common problems and solutions:

9. Warranty and Support

Information regarding product warranty and customer support is typically provided in the separate warranty card or on the manufacturer's official website. Please refer to those resources for details on warranty coverage, return policies, and technical assistance.

For further assistance, please contact G-Force customer support through their official channels.
