CollaredEagle Queen Size Upholstered Bed Frame Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your CollaredEagle Queen Size Upholstered Bed Frame. Please read all instructions carefully before assembly and use to ensure safe and proper functioning of the product.

Safety Information

• Do not load more than 1200 pounds (544 kg) on the bed frame. Exceeding this weight limit may cause damage to the product or personal injury.
• Exercise caution around sharp edges during assembly and use.
• Ensure all connections are securely fastened before use. Periodically check and tighten all bolts and screws.
• Keep small parts away from children during assembly.

Setup and Assembly

The CollaredEagle bed frame is designed for straightforward assembly with fewer screws and a quick lock-on installation system. Each part is labeled with corresponding numbers to simplify the process.

Required Tools

• Assembly tools are typically included in the packaging. Please check the hardware pack.

Assembly Steps

1. Unpack all components and verify against the parts list provided in your packaging.
2. Follow the detailed, step-by-step assembly instructions included with your product.
3. Assemble the main frame structure, ensuring all bolts are tightened securely.
4. Attach the headboard and footboard, paying attention to the alignment of the upholstered sections.
5. Install the bed slats and any support legs as indicated in the instructions.
6. Connect the wiring for the LED lights and charging station according to the diagram.

Image: Illustration of the bed frame's easy assembly system and baffle design for mattress stability.

Image: Components of the bed frame laid out for assembly, showing the metal structure and wooden slats.

Operating Instructions

LED Lighting System

The headboard features integrated RGB LED lights with various customization options:

• Control: Use the headboard-mounted controller or the included remote control.
• Modes: Choose from 12 scene modes to set the ambiance.
• Adjustments: Customize brightness, color, speed, and mode.
• Timer: Utilize the timer function for automatic shut-off.

Image: The bed frame with its RGB LED lights active, illustrating the various control methods including a remote and mobile app.

Image: A detailed view of the RGB LED lights and their associated control features, including color wheel, music sync, and timing function.

Charging Station

The headboard includes a built-in charging station for convenient power access:

• AC Outlets: 2 standard 125V/12A AC outlets.
• USB Ports: 1 USB-A port (5V/2A) and 1 USB-C (Type-C) port (2.5V/2.1A).
• Usage: Connect your phones, tablets, and other electronic devices for charging.

Image: A close-up view of the integrated charging station on the headboard, showing two AC outlets, one USB-C port, and one USB-A port.

Image: A detailed illustration of the charging station in use, with a smartphone connected to the USB-C port and other devices potentially using the AC outlets.

Maintenance

Cleaning the Upholstered Headboard

• For general cleaning, gently vacuum the upholstered fabric with a brush attachment to remove dust and debris.
• For spills, blot immediately with a clean, dry cloth. Do not rub, as this can spread the stain.
• For tougher stains, use a mild fabric cleaner specifically designed for upholstery. Test on an inconspicuous area first.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the fabric.

Cleaning the Metal Frame

• Wipe the metal surfaces with a soft, damp cloth.
• For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, dry cloth.
• Ensure all metal parts are dry to prevent rust.

General Care

• Periodically check all bolts and screws and tighten them as needed to maintain stability.
• Avoid exposing the bed frame to direct sunlight or extreme temperatures for prolonged periods, as this may affect the material's longevity.

Troubleshooting

LED Lights Not Working

• Check Power: Ensure the bed frame is properly plugged into a functional power outlet.
• Connections: Verify that all LED light strip connections are secure and correctly plugged into the controller.
• Remote Battery: If using the remote, check if the battery needs replacement.
• Controller: Ensure the headboard-mounted controller is not damaged and is receiving power.

Charging Station Not Functioning

• Power Supply: Confirm the bed frame is plugged into a live electrical outlet.
• Device Compatibility: Ensure your device and charging cable are compatible with the USB ports and AC outlets.
• Overload: Avoid overloading the outlets. If multiple high-power devices are connected, try unplugging some to see if power is restored.

Bed Frame Squeaks or Wobbles

• Tighten Bolts: Re-tighten all assembly bolts and screws. Loose connections are a common cause of squeaking.
• Level Surface: Ensure the bed frame is placed on a flat, level surface. Uneven flooring can cause instability.
• Slat Placement: Verify that all bed slats are correctly positioned and secured.

Specifications

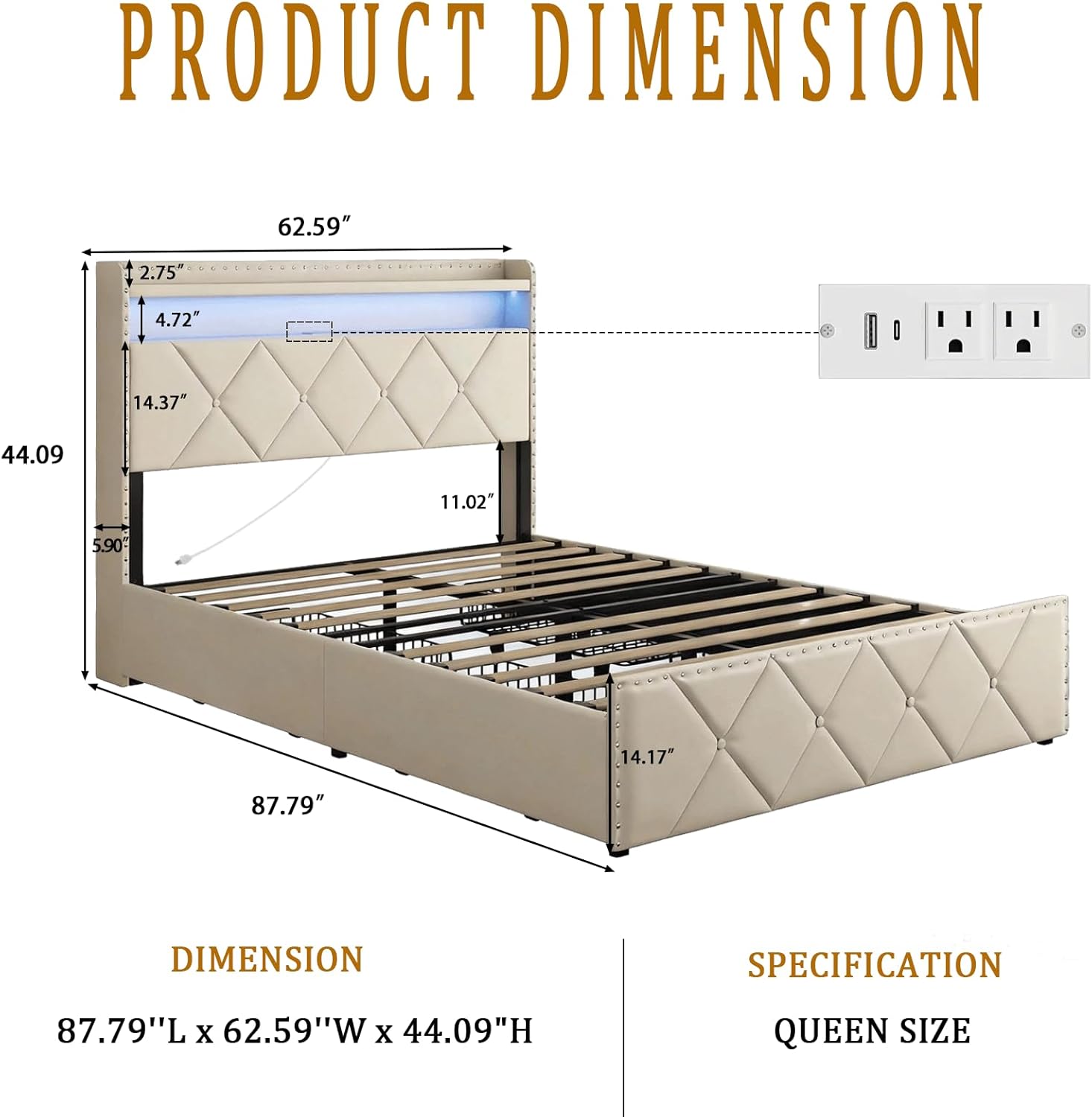

Image: Detailed product dimension diagram for the CollaredEagle Queen Size Bed Frame, showing length, width, and height measurements.

Warranty and Support

Returns

This product is eligible for a 30-day easy return policy. Please refer to your purchase documentation or retailer's website for specific return procedures.

Customer Support

For any questions, concerns, or assistance with your CollaredEagle bed frame, please contact CollaredEagle customer support. Contact information can typically be found on the retailer's website or within your product packaging.

Warranty Information

Specific warranty details for this product may vary. Please refer to the warranty card included with your purchase or contact CollaredEagle customer support for comprehensive warranty information.
