Klortecer IPL Hair Removal Device User Manual

1. Introduction

Thank you for choosing the Klortecer IPL Hair Removal Device. This device utilizes Intense Pulsed Light (IPL) technology to target hair follicles, aiming to inhibit hair growth and provide long-lasting smooth skin. Please read this manual thoroughly before first use to ensure safe and effective operation.

2. Safety Information and Warnings

Your safety is paramount. Adhere to all warnings and instructions to prevent injury or damage to the device.

• Read the Manual: Always read the entire instruction manual before using the device.
• Eye Protection: Always wear the provided protective eyewear during operation to shield your eyes from the intense pulsed light. Direct exposure to the light can cause eye damage.
• Skin Suitability: This device is designed for specific skin tones and hair colors. Consult the skin tone chart (if provided in the full manual) to ensure suitability. Do not use on very dark skin tones or on very light/red/grey hair, as it may not be effective or could cause adverse reactions.
• Medical Conditions: Do not use if you have certain medical conditions, skin diseases, or are pregnant/breastfeeding. Consult a doctor if unsure.
• Sensitive Areas: Avoid using on tattoos, moles, birthmarks, or areas with skin irritation, sunburn, or open wounds.
• Children and Pets: Keep the device out of reach of children and pets.
• Power Supply: Use only the provided power cable. Disconnect from power when not in use or during cleaning.
• Product Color Variation: The color of the product may vary slightly depending on screen settings and lighting.
• Measurement Variation: A small difference of 1 to 2 cm in measurements may exist due to manual measurement.

3. Product Overview

3.1 Package Contents

The Klortecer IPL Hair Removal Device package includes:

• 1 x Klortecer IPL Hair Removal Device
• 1 x Charging Cable
• 1 x Protective Eyewear
• 1 x Instruction Manual

3.2 Key Features

• Effective Hair Removal: Utilizes Intense Pulsed Light technology to target hair follicles, reducing hair growth and promoting smooth, rejuvenated skin.
• 6 Customizable Intensity Levels: Features an intuitive LCD screen with 6 energy levels, allowing for personalized treatment based on skin sensitivity and hair type.
• Safe and Hypoallergenic Materials: Suitable for sensitive areas including the face, arms, legs, and bikini line, ensuring gentle use without redness.
• Long-lasting Pulses: Provides up to 999,900 flashes, offering extensive use without the need for replacement cartridges.
• Two Operating Modes: Supports both Auto and Manual flash modes for convenience and precision.

3.3 Device Components

Image: The Klortecer IPL Hair Removal Device in purple, shown with its protective eyewear and packaging. The device features an LCD screen displaying intensity level and flash count.

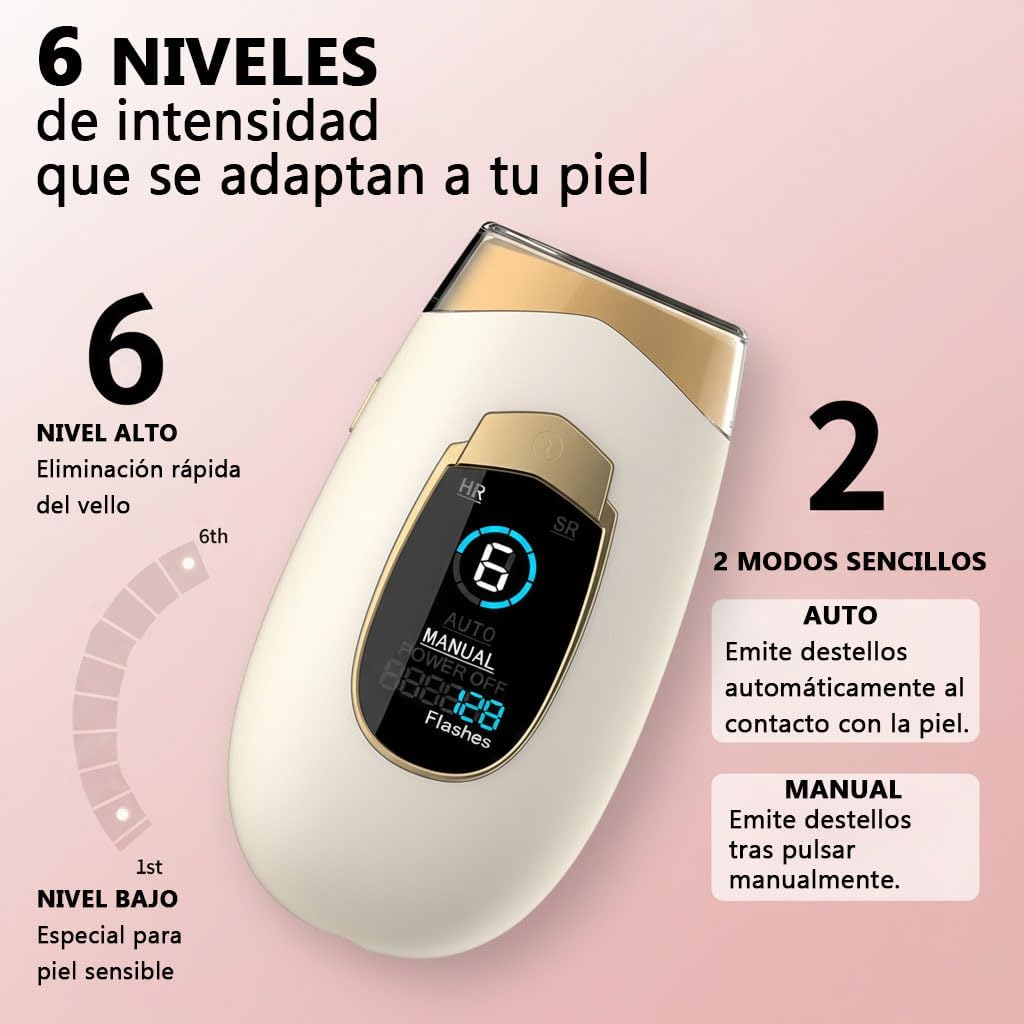

Image: A close-up of the device's display, illustrating the 6 intensity levels (from 1st low to 6th high) and the two operating modes: AUTO (automatic flash on skin contact) and MANUAL (manual flash button press).

4. Setup

1. Unpack: Carefully remove all components from the packaging.
2. Inspect: Check the device and accessories for any signs of damage. Do not use if damaged.
3. Connect Power: Plug the charging cable into the device and then into a suitable power outlet.
4. Prepare Skin: Ensure the skin area to be treated is clean, dry, and shaved. Avoid waxing or plucking, as IPL targets the hair root.
5. Wear Protective Eyewear: Always put on the provided protective glasses before turning on the device.

5. Operating Instructions

5.1 Powering On/Off

• To Power On: Press and hold the power button for a few seconds until the display lights up.
• To Power Off: Press and hold the power button again until the display turns off.

5.2 Selecting Intensity Levels

The device offers 6 intensity levels. Start with a lower level (1 or 2) and gradually increase as your skin tolerates it. The ideal level should feel warm but not painful.

• Press the power button briefly to cycle through the intensity levels (1 to 6). The selected level will be displayed on the LCD screen.

5.3 Selecting Operating Modes

The device has two modes: Auto and Manual.

• Manual Mode: Suitable for small or curved areas like the bikini line, underarms, or face. Press the flash button for each pulse.
• Auto Mode: Ideal for larger areas like legs or arms. Hold the flash button, and the device will automatically emit flashes when the treatment window is in full contact with the skin.
• To switch between modes, press and hold the flash button for a few seconds. The display will indicate the active mode.

5.4 Application Technique

1. Ensure your skin is clean, dry, and shaved.
2. Wear the protective eyewear.
3. Select the appropriate intensity level and operating mode.
4. Place the device's treatment window firmly against the skin, ensuring full contact.
5. For Manual Mode, press the flash button. For Auto Mode, glide the device slowly over the skin while maintaining full contact.
6. Treat each area once per session. Avoid overlapping flashes on the same spot during a single session.

Image: A diagram illustrating estimated treatment times for various body areas: Arm (1 minute), Bikini (1 minute), Lip (0.5 minute), Legs (4 minutes), Armpit (1.5 minutes), Face (2 minutes). This demonstrates the device's suitability for full body hair removal in approximately 10 minutes.

5.5 Treatment Schedule and Expected Results

For optimal results, follow a consistent treatment schedule:

• Initial Phase: 2-3 sessions per week, each lasting approximately 10 minutes. Visible results may be observed within 5 weeks.
• Maintenance Phase: After the initial phase, reduce frequency to once every 2-4 weeks as needed to maintain results.

Image: A visual timeline demonstrating the progression of skin smoothness over 8 weeks of IPL treatment. It shows hair reduction from initial growth (Week 0) to significantly smoother skin (Week 8), with recommended treatment frequencies decreasing over time.

Image: A series of three images showing hair reduction progress on an underarm area. The first image shows initial hair growth (1-2 weeks), the second shows significant reduction (3-5 weeks), and the third shows minimal to no hair (more than 8 weeks), illustrating the effectiveness of the IPL device.

6. Maintenance

6.1 Cleaning the Device

• Ensure the device is powered off and unplugged before cleaning.
• Use a soft, dry cloth to wipe the treatment window and the device body.
• Do not use abrasive cleaners, alcohol, or harsh chemicals.
• Do not immerse the device in water or any other liquid.

6.2 Storage

• Store the device in a cool, dry place, away from direct sunlight and moisture.
• Keep it in its original packaging or a protective case to prevent damage.

7. Troubleshooting

If you encounter any issues with your Klortecer IPL Hair Removal Device, please refer to the following common troubleshooting steps:

• Device Not Turning On: Ensure the device is properly connected to a power source and the power button is pressed and held for a few seconds.
• No Flashes Emitted: Check if the treatment window is in full contact with the skin. The device has a safety mechanism that prevents flashing if contact is not complete. Also, ensure the flash button is pressed (Manual Mode) or held (Auto Mode).
• Skin Irritation: If you experience redness or discomfort, reduce the intensity level. If irritation persists, discontinue use and consult a dermatologist.
• Inconsistent Results: Ensure you are following the recommended treatment schedule and application technique. Hair growth cycles vary, and consistent use is key.

For further assistance, please contact Klortecer customer support.

8. Specifications

Image: A diagram illustrating the physical dimensions of the Klortecer IPL Hair Removal Device, showing a height of 138mm, width of 75mm, and depth of 42mm.

9. Warranty and Support

For warranty information, product support, or any inquiries not covered in this manual, please refer to the warranty card included in your package or contact Klortecer customer service directly. Please have your purchase details and product model (lumina) ready when contacting support.
