XYohykai Radiator 16410-23430-71 Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your XYohykai Radiator, part number 16410-23430-71. This radiator is designed for specific forklift models, including 7FD20, 7FD23, and 7FD25, equipped with 1DZ or 2Z engines. Please read this manual thoroughly before proceeding with any procedures to ensure safe and effective use.

Package Contents:

• 1 x Radiator (Part Number: 16410-23430-71)

2. Safety Information

WARNING: Improper installation or handling of cooling system components can lead to serious injury or damage. Always follow safety precautions.

• Professional Installation Recommended: Installation of this radiator should ideally be performed by a qualified technician.
• Hot Surfaces and Fluids: The engine and cooling system components can become extremely hot during operation. Allow the engine to cool completely before attempting any work. Hot coolant is under pressure and can cause severe burns.
• Protective Gear: Always wear appropriate personal protective equipment, including safety glasses and gloves, when working on the cooling system.
• Coolant Disposal: Dispose of old coolant responsibly according to local environmental regulations. Coolant is toxic.
• Sharp Edges: Be aware of sharp edges on components during handling and installation.
• Vehicle Manual: Always refer to the forklift manufacturer's service manual for specific procedures and torque specifications relevant to your vehicle model.

3. Setup and Installation

This section outlines general steps for radiator replacement. Specific procedures may vary by forklift model. Consult your forklift's service manual for detailed instructions.

3.1 Preparation

1. Park the forklift on a level surface and engage the parking brake.
2. Ensure the engine is completely cool before starting work.
3. Gather necessary tools: wrenches, pliers, drain pan, new coolant, funnel, and protective gear.
4. Disconnect the battery's negative terminal to prevent accidental starting.

3.2 Removal of Old Radiator

1. Place a suitable drain pan beneath the radiator drain cock. Open the drain cock and allow the coolant to drain completely.
2. Disconnect the upper and lower radiator hoses from the radiator.
3. Disconnect any transmission cooler lines (if applicable) and cap them to prevent fluid loss and contamination.
4. Remove any fan shrouds or other components obstructing access to the radiator.
5. Unbolt the radiator from its mounting points. Carefully lift and remove the old radiator from the engine bay.

3.3 Installation of New Radiator

1. Carefully position the new XYohykai Radiator into the engine bay, ensuring it aligns with the mounting points.
2. Secure the radiator with its mounting bolts. Do not overtighten.
3. Reconnect the upper and lower radiator hoses, ensuring clamps are secure.
4. Reconnect any transmission cooler lines (if applicable).
5. Reinstall the fan shroud and any other components that were removed.
6. Refill the cooling system with the appropriate type and amount of coolant as specified by the forklift manufacturer.
7. Bleed any air from the cooling system by running the engine with the radiator cap off (or reservoir cap open) until the thermostat opens and coolant circulates. Top off coolant as needed.

3.4 Post-Installation Check

1. Inspect all connections for leaks.
2. Reconnect the battery's negative terminal.
3. Start the engine and monitor the temperature gauge. Ensure it operates within normal limits.
4. Check coolant level again after the engine has cooled down and top off if necessary.

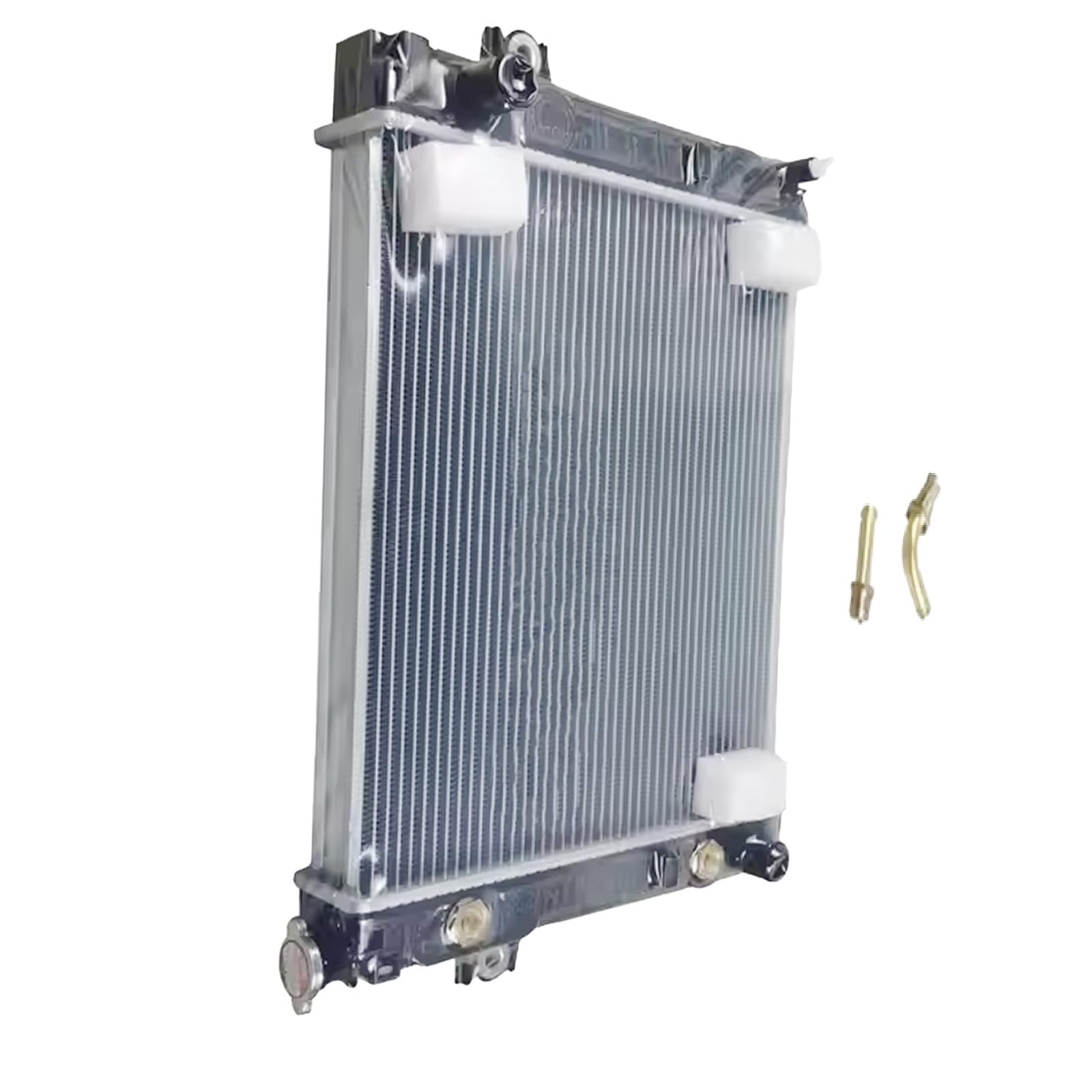

An image showing the XYohykai Radiator, part number 16410-23430-71, designed for specific forklift models.

4. Operating Principles

The radiator is a critical component of the engine's cooling system. Its primary function is to dissipate excess heat from the engine coolant into the ambient air. Hot coolant from the engine flows through the radiator's core, which consists of many small tubes and fins. As air passes over these fins, heat is transferred from the coolant to the air, cooling the coolant before it returns to the engine. Proper operation relies on adequate coolant levels, unobstructed airflow, and a functional cooling fan.

5. Maintenance

Regular maintenance of your cooling system, including the radiator, is crucial for engine longevity and performance.

• Coolant Level Check: Regularly check the coolant level in the reservoir when the engine is cold. Top up with the recommended coolant type if necessary.
• Coolant Condition: Periodically inspect the coolant for discoloration or debris. Follow the forklift manufacturer's recommended schedule for coolant flushes and replacements.
• Radiator Fin Cleaning: Keep the radiator fins free from dirt, leaves, and other debris. Use compressed air or a soft brush to gently clean the fins, taking care not to bend them.
• Hose Inspection: Inspect radiator hoses for cracks, bulges, or signs of wear. Replace any damaged hoses promptly. Ensure hose clamps are tight.
• Fan and Shroud Inspection: Check the cooling fan for proper operation and ensure the fan shroud is intact and securely mounted to direct airflow efficiently.

6. Troubleshooting

If you encounter issues with your cooling system, consider the following common problems and solutions:

• Engine Overheating:
  • Possible Causes: Low coolant level, clogged radiator fins, faulty thermostat, malfunctioning cooling fan, water pump failure, internal engine issues.
  • Solutions: Check coolant level and add if low. Clean radiator fins. Inspect thermostat and fan operation. Consult a technician for further diagnosis.
• Coolant Leaks:
  • Possible Causes: Loose hose clamps, damaged hoses, radiator core damage, faulty water pump seal, leaking reservoir.
  • Solutions: Tighten clamps, replace damaged hoses. Inspect radiator for visible damage. If the radiator itself is leaking, it may require replacement.
• Low Coolant Level (Frequent):
  • Possible Causes: External leak (see above), internal engine leak (e.g., head gasket), evaporation (less common with modern coolants).
  • Solutions: Thoroughly inspect the entire cooling system for leaks. If no external leaks are found, consult a professional for internal leak diagnosis.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding your XYohykai Radiator, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase. Specific warranty terms and conditions may apply.
