Ninja Foodi 10-in-1 Pressure Cooker & Air Fryer

Introduction

The Ninja Foodi 10-in-1 Pressure Cooker & Air Fryer (Model FD 101) is a versatile multi-cooker designed to simplify your cooking process. This appliance combines the functionalities of a pressure cooker and an air fryer, along with several other cooking methods, into a single unit. It features a 5.1-quart capacity, making it suitable for various meal preparations. This manual provides essential information for safe operation, maintenance, and optimal use of your Ninja Foodi.

Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, serious injury, and/or damage to property.

• Read all instructions before using the appliance.
• Do not use the appliance for anything other than its intended use.
• Ensure the appliance is placed on a stable, level, heat-resistant surface.
• Keep hands and face clear of the steam release valve when operating.
• Always ensure the pressure lid is properly sealed before pressure cooking.
• Do not immerse the main unit in water or other liquids.
• Supervise children closely when the appliance is in use.
• Unplug from outlet when not in use and before cleaning.

Product Overview

Components

• Main Unit with Control Panel
• Pressure Lid
• Crisping Lid (attached)
• 5.1-Quart Cooking Pot (nonstick)
• 4-Quart Cook & Crisp™ Plate
• Nesting Broil Rack

Control Panel

The control panel allows you to select cooking functions, adjust temperature/pressure, and set cooking time.

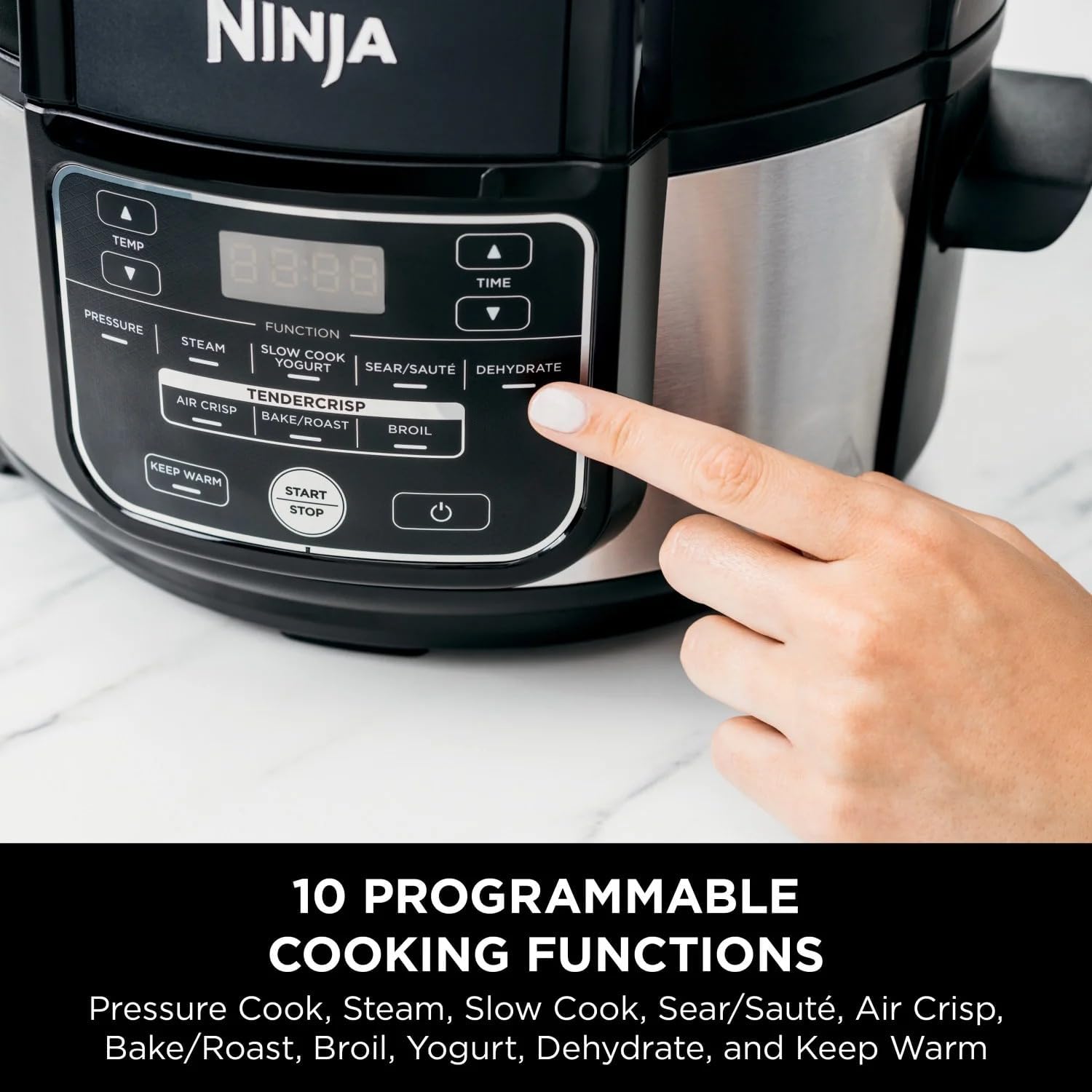

Image: Close-up of the Ninja Foodi FD 101 control panel, showing various function buttons and digital display.

Key Features

Image: Labeled diagram of the Ninja Foodi FD 101, highlighting the Pressure Release Valve, Pressure Lid, Broil Rack, Cook & Crisp™ Plate, Crisping Lid, Cooking Pot, and Safety Features.

The Ninja Foodi FD 101 features a unique TenderCrisp™ Technology, allowing you to pressure cook ingredients to lock in juices, then finish them with a crispy texture using the crisping lid. It includes a 5-quart cooking capacity, suitable for a 4-lb chicken or 2 lbs of French fries.

Image: A woman opening the crisping lid of the Ninja Foodi FD 101, revealing food inside the cooking pot, demonstrating the appliance's capacity.

Setup

1. Remove all packaging materials, promotional labels, and tape from the unit.
2. Wash the cooking pot, Cook & Crisp™ Plate, and any other accessories in warm, soapy water. Rinse thoroughly and dry completely.
3. Wipe the main unit with a clean, damp cloth.
4. Place the main unit on a clean, dry, level surface.
5. Ensure the condensation collector is properly installed at the back of the main unit.

Operating Modes

The Ninja Foodi FD 101 offers 10 programmable cooking functions:

• Pressure Cook: Use the pressure lid. Select PRESSURE, set pressure level (HIGH or LOW), and adjust time.
• Steam: Use the pressure lid. Select STEAM and adjust time.
• Slow Cook: Use the pressure lid. Select SLOW COOK, set temperature (HIGH or LOW), and adjust time.
• Sous Vide: Use the pressure lid. Select SOUS VIDE, set temperature, and adjust time.
• Yogurt: Use the pressure lid. Select YOGURT and adjust time.
• Air Fry/Air Crisp: Use the crisping lid. Select AIR CRISP, set temperature, and adjust time. This function is ideal for achieving crispy results.
• Bake/Roast: Use the crisping lid. Select BAKE/ROAST, set temperature, and adjust time.
• Broil: Use the crisping lid. Select BROIL and adjust time.
• Dehydrate: Use the crisping lid. Select DEHYDRATE, set temperature, and adjust time. This function is suitable for drying fruits, vegetables, and meats.


  Image: A woman using tongs to remove dehydrated apple slices from the Ninja Foodi FD 101, showcasing the dehydrate function.
• Sear/Sauté: Use the pressure lid (without sealing). Select SEAR/SAUTÉ and adjust temperature.
• Keep Warm: Automatically activates after some cooking functions or can be selected manually.

Cooking Tips

• Always add liquid when pressure cooking to generate steam.
• For best air frying results, do not overcrowd the Cook & Crisp™ Plate. Cook in batches if necessary.
• Shake or toss ingredients halfway through air frying for even crisping.
• Refer to the included recipe guide for specific cooking times and temperatures for various foods.

Cleaning and Maintenance

Proper cleaning ensures the longevity and performance of your Ninja Foodi.

• Before Cleaning: Always unplug the appliance and allow it to cool completely.
• Cooking Pot & Accessories: The 5.1-quart nonstick cooking pot and the 4-quart Cook & Crisp™ Plate are dishwasher safe. For manual cleaning, wash with warm, soapy water and a non-abrasive sponge.
• Pressure Lid: Hand wash the pressure lid and its components (silicone gasket, anti-clog cap, pressure release valve) with warm, soapy water. Ensure all parts are clean and free of food debris.
• Crisping Lid: Wipe the crisping lid with a damp cloth. Do not immerse in water.
• Main Unit: Wipe the main unit with a clean, damp cloth. Do not immerse in water.
• Condensation Collector: Empty and clean the condensation collector regularly.

Troubleshooting

If you encounter issues with your Ninja Foodi, refer to the following common solutions:

Specifications

• Model: FD 101
• Capacity: 5.1 Quarts
• Material: Stainless steel
• Color: Black/Stainless
• Product Dimensions: 13.35"D x 13.19"W x 13.15"H
• Wattage: 1460 watts
• Voltage: 120 Volts
• Control Method: Touch
• Operation Mode: Manual
• Dishwasher Safe Parts: Cooking Pot, Cook & Crisp™ Plate

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Ninja customer support website. Keep your purchase receipt as proof of purchase for any warranty claims.
