1. Important Safety Information
Please read and understand this entire instruction manual before attempting to assemble, operate, or install this electric fireplace insert. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- This electric fireplace insert is CSA/UL certified, ensuring compliance with safety standards for the U.S. and Canadian markets.
- The unit features a double safety protection device: an overheating protection device that automatically cuts off power when the temperature is too high, and an internal fuse.
- Always plug the fireplace directly into a wall outlet. Never use an extension cord or relocatable power tap (outlet/power strip).
- Do not operate any fireplace with a damaged cord or plug, or if the heater has malfunctioned, been dropped, or damaged in any manner.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and away from the sides and rear.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- Always unplug the fireplace when not in use.
2. Product Components and Dimensions
Familiarize yourself with the components and dimensions of your electric fireplace insert before installation.
Figure 2.1: Product dimensions and example installation within a media console. The insert measures approximately 23 inches wide, 20.2 inches high, and 8.2 inches deep.
Figure 2.2: Side view of the electric fireplace insert, illustrating its depth and the location of the power cord.
3. Setup and Installation
This electric fireplace insert offers versatile installation options:
- Recessed Installation: The unit can be recessed into a wall or furniture opening. Ensure the opening dimensions are compatible with the fireplace insert (approximately 22.9 inches wide and 19.7 inches high for a snug fit, as shown in Figure 2.1).
- Freestanding Use: The fireplace can also be used as a freestanding unit.
Installation Steps:
- Choose a suitable location that is dry, level, and away from direct sunlight or heat sources. Ensure the location has a grounded 120V AC outlet.
- If recessing, prepare the opening in your wall or furniture to match the fireplace dimensions. Ensure there is adequate clearance for ventilation around the unit.
- Carefully place the fireplace insert into the desired position.
- Plug the power cord into a grounded 120V AC outlet.
4. Operating Instructions
Your electric fireplace insert can be operated using the included infrared remote control or the touch control panel located on the unit.
Figure 4.1: Remote control and touch control panel layout, indicating functions such as Power ON/OFF, Heater ON/OFF, Flame Effect, Flame Speed, Timer ON/OFF, Flame Brightness, and Temperature/Timer adjustment.
Control Panel and Remote Functions:
- Power ON/OFF: Press the power button to turn the unit on or off.
- Heater ON/OFF: Activates or deactivates the heating function. The unit provides 1500W heat (5000 BTUs) and can heat up to 400 sq. ft.
- Temperature Settings: Adjust the temperature from 64°F to 82°F. An "ON" setting is available for continuous heating.
- Flame Colors: Choose from 4 distinct flame colors to match your ambiance.
- Flame Brightness: Select from 5 levels of flame brightness.
- Flame Speed: Adjust the flame animation speed with 3 available settings.
- Timer Function: Set the operating time from 1 to 9 hours. This feature prevents the unit from running indefinitely if you forget to turn it off.
Figure 4.2: Visual representation of the 4 flame color options and 5 flame brightness levels available on the fireplace insert.
The 3D flame effect can be enjoyed independently, with or without the heating function activated.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your electric fireplace insert.
- Before Cleaning: Always ensure the unit is turned off, unplugged from the power outlet, and completely cool before performing any maintenance or cleaning.
- Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners, sprays, or harsh chemicals, as these may damage the finish.
- Ventilation Openings: Periodically check and clean the air intake and exhaust vents to ensure they are free from dust and debris. Blocked vents can lead to overheating.
- Light Bulbs: The flame effect uses LED technology, which typically does not require bulb replacement. If issues arise, contact customer support.
6. Troubleshooting
If you experience issues with your electric fireplace insert, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, loose plug, tripped circuit breaker, blown fuse. | Ensure the power cord is securely plugged into a grounded outlet. Check your household circuit breaker and reset if necessary. Check the unit's internal fuse (refer to safety section). |
| No heat output. | Heater function not activated, temperature setting too low, air vents blocked, overheating protection activated. | Activate the heater function via remote or control panel. Increase the temperature setting. Ensure air vents are clear of obstructions. If overheating protection activated, unplug the unit, allow it to cool for 10-15 minutes, and clear any obstructions before plugging back in. |
| Flame effect not working. | Flame effect not activated, internal issue. | Ensure the flame effect is turned on via remote or control panel. If the issue persists, contact customer support. |
| Remote control not working. | Dead batteries, obstruction, remote sensor blocked. | Replace remote control batteries. Ensure there are no obstructions between the remote and the fireplace sensor. |
| Controls are unresponsive or erratic. | Temporary electronic glitch, sensor issue, or specific model limitation. | Unplug the unit for 5 minutes, then plug it back in to reset. Ensure the touch panel is clean and dry. If the issue persists, contact customer support. Note that some models may have simpler controls than others, so verify your model's specific features. |
If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact customer support.
7. Specifications

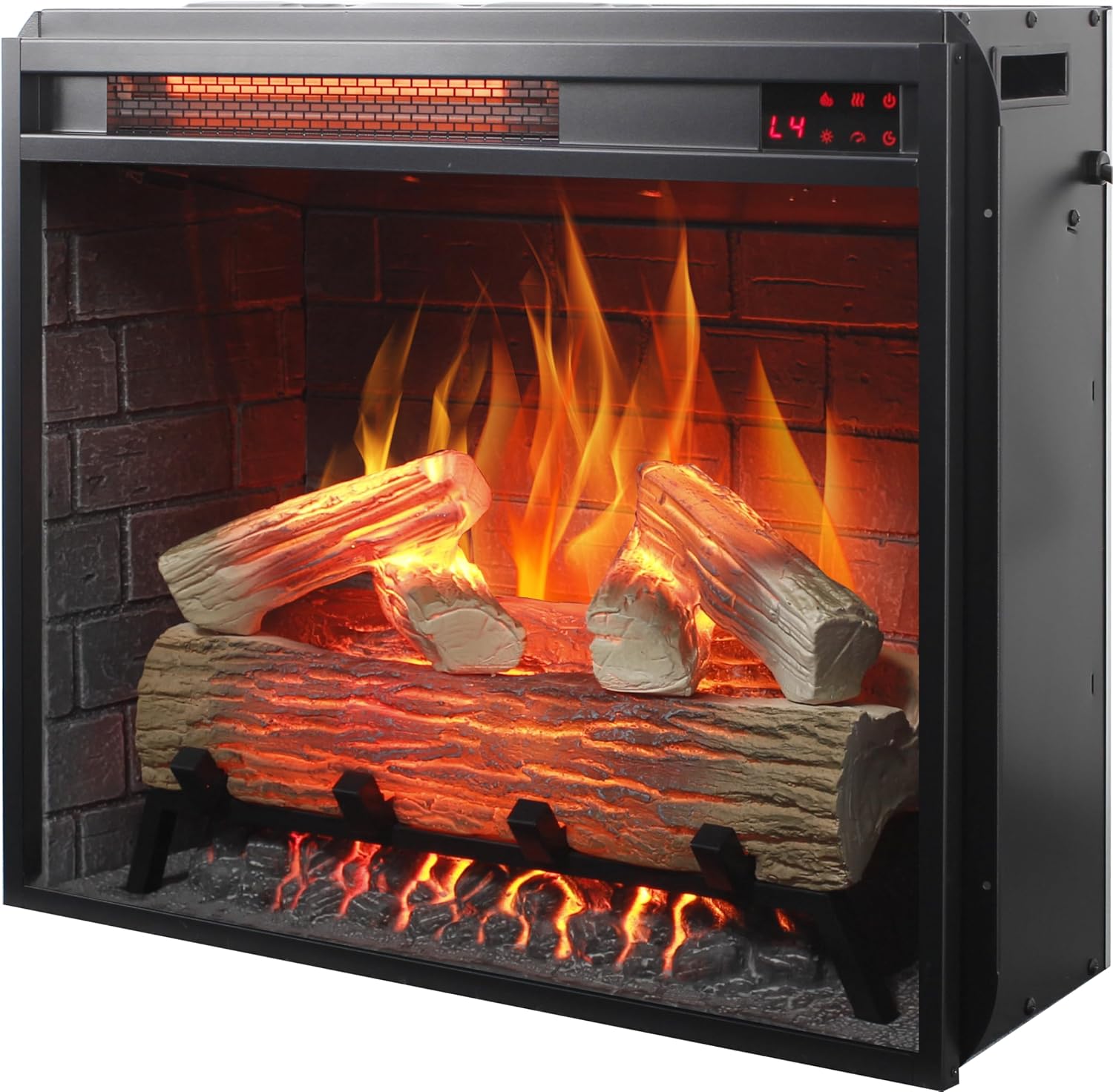

Figure 7.1: The 23-inch electric fireplace insert showcasing its realistic flame effect and log set.
| Feature | Detail |
|---|---|
| Brand | Generic |
| Model Name | DIANBILU1123 |
| Power Source | Electric |
| Product Dimensions (D x W x H) | 8.2" x 23" x 20.2" |
| Material | Metal, Plastic, Tempered Glass |
| Finish Type | Powder Coated |
| Installation Type | Wall Mount, Recessed, Freestanding |
| Heat Output | 1500 Watts (5000 BTUs) |
| Heating Coverage | Up to 400 sq ft |
| Special Features | Adjustable Flame (4 colors, 5 brightness, 3 speeds), Overheating Protection, Timer Function (1-9 hours), Remote Control, Touch Button Panel, Log Set |
| Style | Modern |
| Color | Antique Black |
| Room Type | Living Room, Indoor |
| Ventilation Type | Vent Free |
| Item Weight | 27.8 Pounds |
| UPC | 744365505700 |
8. Warranty and Support
This product is manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For technical assistance, troubleshooting beyond this manual, or inquiries regarding parts and service, please contact the manufacturer or your retailer. Please note the manufacturer's statement regarding "Replacement of fireplaces for furniture purchased by customers between 2000 and 2020" which may indicate specific support for older furniture integration.
