ANEFAVTFB BRD-106 Professional Hair Clipper User Manual

1. Introduction

Thank you for choosing the ANEFAVTFB BRD-106 Professional Hair Clipper. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new hair clipper. Please read these instructions carefully before first use and retain them for future reference.

2. Important Safety Instructions

• Read all instructions before using this appliance.
• Keep the appliance dry. Do not use it near water or in wet conditions.
• Do not immerse the appliance in water or any other liquid.
• Always unplug the appliance from the power outlet immediately after charging.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Use only the charger provided with the appliance.
• Do not operate the appliance with a damaged cord or plug, or if it malfunctions or has been dropped or damaged.
• Keep the cord away from heated surfaces.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

3. Package Contents

Please check the package for the following items:

• BRD-106 Professional Hair Clipper
• Charging Base
• USB Charging Cable
• Guide Combs (5 or more pieces)
• Cleaning Brush
• Blade Oil
• User Manual

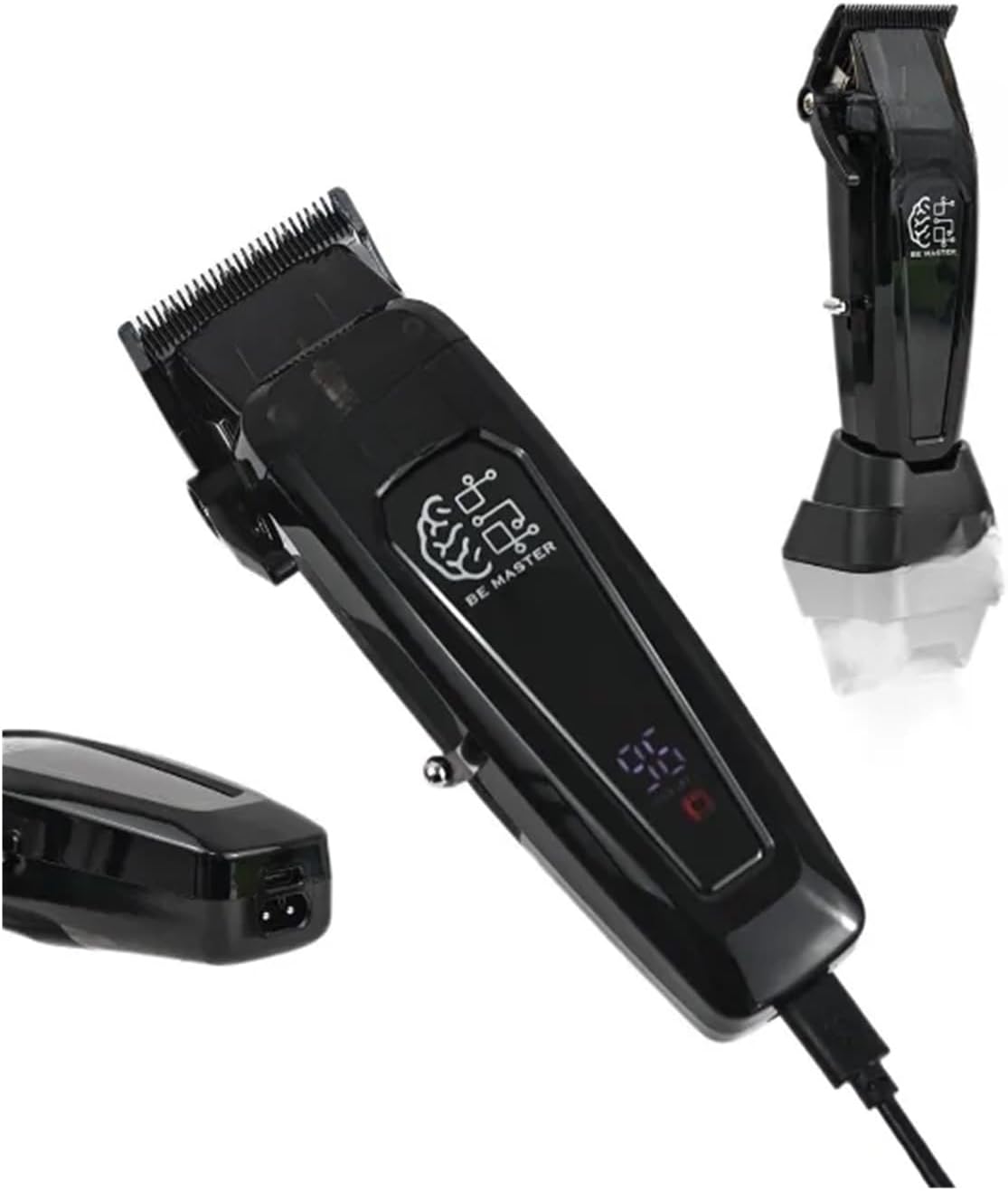

4. Product Overview

The BRD-106 Professional Hair Clipper is designed for efficient and precise hair cutting. It features a high-speed motor, durable DLC blades, and a long-lasting battery.

5. Setup

1. Unpack: Carefully remove all components from the packaging.
2. Initial Charge: Before first use, fully charge the clipper for approximately 2 hours. Refer to the "Charging" section for details.
3. Attach Guide Comb: Select the desired guide comb for your preferred cutting length. Align the comb with the clipper blade and push it firmly until it clicks into place. Ensure it is securely attached before use.
4. Blade Check: Ensure the blades are clean and properly aligned. Apply a small drop of blade oil if necessary.

6. Charging

The BRD-106 clipper operates on both mains power and battery. For optimal performance, ensure the battery is adequately charged.

• Connect the USB charging cable to the charging base.
• Plug the USB cable into a compatible USB power adapter (not included) or a USB port.
• Place the clipper onto the charging base. Ensure the charging contacts on the clipper align with those on the base.
• The digital display on the clipper will indicate the charging status and battery percentage.
• A full charge takes approximately 2 hours and provides up to 180 minutes of continuous use.
• The clipper is compatible with its original base charger, ensuring reliable power storage.

7. Operating Instructions

1. Power On/Off: Press the power button to turn the clipper on or off.
2. Select Length: Attach the desired guide comb for the hair length you wish to achieve. The clipper supports various lengths with its 5 or more guide combs.
3. Cutting Hair: Hold the clipper with the blades pointing upwards. Start cutting from the bottom of the head, moving upwards against the direction of hair growth. Use smooth, even strokes.
4. Detailing: For precise lines and detailing, remove the guide comb and use the bare blade carefully. The minimum cutting length is less than 0.5mm.
5. Ergonomic Grip: The lightweight (350g) and balanced design, along with the ergonomic non-slip grip, ensures stable control and reduces fatigue during extended grooming sessions.

8. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your clipper.

Blade Cleaning

1. Turn Off: Ensure the clipper is turned off and disconnected from the charging base before cleaning.
2. Remove Guide Comb: Detach any attached guide comb.
3. Brush Hair: Use the provided cleaning brush to remove loose hairs from the blades and the clipper body.
4. Blade Removal (Optional): For thorough cleaning, the blade assembly can be carefully removed. Refer to the product overview image showing the internal mechanism.
5. Rinse Blades (if applicable): If the blades are washable, rinse them under running water. Ensure the clipper body remains dry.
6. Dry Blades: Allow blades to air dry completely before reattaching or oiling.

Blade Oiling

After every few uses or after cleaning, apply 1-2 drops of the provided blade oil to the teeth of the blades. Turn the clipper on for a few seconds to distribute the oil evenly. This helps maintain blade sharpness and smooth operation.

DLC Blade Durability

The BRD-106 features DLC (Diamond-Like Carbon) coated blades, which are 3 times harder than stainless steel. These blades are designed to stay sharp for over 12 months of regular use, resisting wear and corrosion for long-lasting precision.

9. Troubleshooting

10. Specifications

11. Warranty Information

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for any warranty claims. For specific warranty terms and conditions, refer to the documentation provided at the time of purchase or contact customer support.

12. Customer Support

If you have any questions, concerns, or require assistance with your ANEFAVTFB BRD-106 Professional Hair Clipper, please contact our customer support team. Refer to your purchase documentation for contact details or visit the official ANEFAVTFB website for support information.
