1. Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Generic Carburetor, model 16100-Z4A0110-00M0. This carburetor is designed as a replacement part for Champion 200921 4000/5000 Generators. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure proper function and safety.
2. Safety Information
Always observe the following safety precautions when working with fuel systems and internal combustion engines:
- Engine Off: Ensure the generator engine is completely off and cooled down before beginning any work. Disconnect the spark plug wire to prevent accidental starting.
- Fuel Handling: Gasoline is highly flammable. Work in a well-ventilated area, away from open flames, sparks, or other ignition sources. Store fuel in approved containers.
- Eye Protection: Wear appropriate eye protection to guard against fuel splashes or debris.
- Gloves: Wear fuel-resistant gloves to protect your hands.
- Ventilation: Ensure adequate ventilation to avoid inhaling fuel vapors.
- Spills: Clean up any fuel spills immediately.
- Professional Assistance: If you are unsure about any step, consult a qualified technician.
3. Package Contents
Verify that all items are present in the package:
- 1x Carburetor Assembly (Model: 16100-Z4A0110-00M0)
- Gaskets and seals (as pictured in product listing)

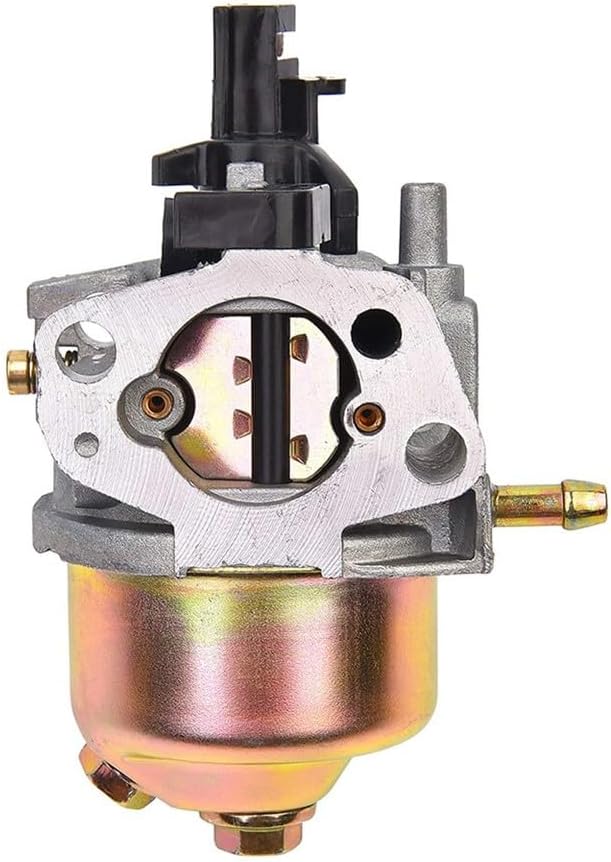

Image 1: Front view of the carburetor assembly, showing the main body and fuel bowl.
4. Installation
This section outlines the general steps for replacing a carburetor. Specific procedures may vary slightly depending on your generator model. Refer to your generator's service manual for detailed instructions.
- Preparation:
- Ensure the generator is off and cooled. Disconnect the spark plug wire.
- Turn off the fuel supply valve.
- Place a suitable container under the carburetor to catch any residual fuel.
- Remove Air Filter Assembly: Carefully remove the air filter housing and air filter element to gain access to the carburetor.
- Disconnect Fuel Line: Disconnect the fuel line from the old carburetor. Be prepared for some fuel leakage.
- Disconnect Linkages: Disconnect the throttle and choke linkages from the old carburetor. Note their positions for reassembly.
- Remove Old Carburetor: Unscrew the mounting bolts or nuts that secure the carburetor to the engine intake manifold. Carefully remove the old carburetor and any old gaskets.
- Clean Mounting Surface: Clean the engine intake manifold mounting surface thoroughly to ensure a good seal with the new gaskets.
- Install New Gaskets: Place new gaskets in their correct positions between the engine, carburetor, and air filter housing.
- Mount New Carburetor: Position the new carburetor (Model 16100-Z4A0110-00M0) onto the mounting studs/bolts. Secure it with the mounting hardware, tightening evenly.
- Reconnect Linkages: Reconnect the throttle and choke linkages to the new carburetor. Ensure they operate smoothly without binding.
- Reconnect Fuel Line: Reconnect the fuel line to the new carburetor. Ensure a secure, leak-free connection.
- Reinstall Air Filter Assembly: Reinstall the air filter element and housing.
- Final Checks:
- Double-check all connections and ensure all hardware is tightened.
- Turn on the fuel supply valve and check for any leaks.
- Reconnect the spark plug wire.
Image 2: Side view of the carburetor, highlighting the fuel inlet and linkage attachment points.

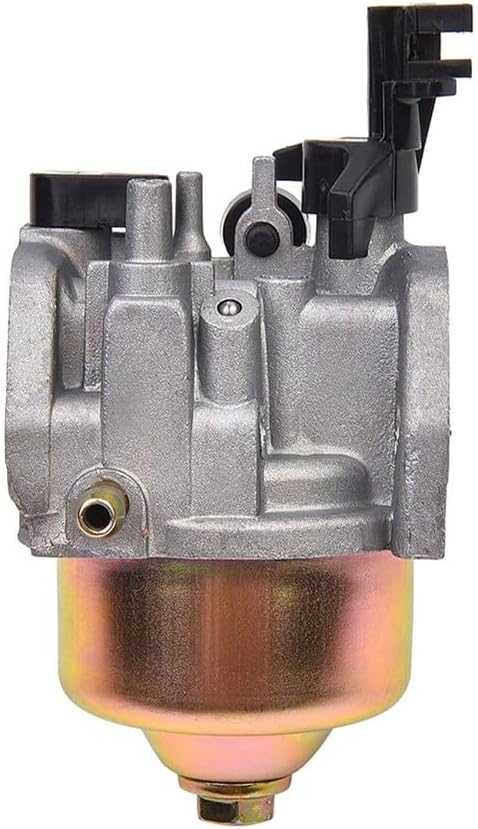

Image 3: Another side view of the carburetor, illustrating the mounting points and general structure.
5. Operation
The carburetor is a critical component of your generator's fuel system, responsible for mixing air and fuel in the correct proportions for combustion. Once properly installed, the carburetor operates automatically as part of the engine system. Refer to your Champion generator's owner's manual for specific starting and operating procedures.
After installation, start the generator and allow it to run for a few minutes. Check for any fuel leaks and ensure the engine runs smoothly without sputtering or excessive smoke. Minor adjustments to the idle speed screw (if present and accessible) may be required for optimal performance, but generally, this replacement carburetor is pre-set.
6. Maintenance
Proper maintenance extends the life of your carburetor and ensures reliable generator operation. Regular maintenance includes:
- Fuel Quality: Always use fresh, clean gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the generator will be stored for extended periods.
- Fuel Filter: Regularly inspect and replace the generator's fuel filter according to the generator manufacturer's recommendations. A clogged fuel filter can restrict fuel flow to the carburetor.
- Air Filter: Keep the air filter clean. A dirty air filter can restrict airflow, leading to a rich fuel mixture and poor engine performance.
- Carburetor Cleaning: If the carburetor becomes clogged due to stale fuel or debris, it may require cleaning. This typically involves disassembling the fuel bowl and jets, cleaning them with carburetor cleaner, and blowing them dry with compressed air. This procedure should only be performed by individuals with mechanical experience.
- Storage: Before long-term storage, drain the fuel from the carburetor bowl or run the engine until it runs out of fuel to prevent gum and varnish buildup.
7. Troubleshooting
If your generator experiences issues after carburetor installation, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel line/filter, incorrect choke position, spark plug issue, carburetor jets clogged. | Check fuel level, inspect fuel line/filter, ensure choke is set correctly, check spark plug, clean carburetor jets. |
| Engine runs rough/sputters | Dirty air filter, stale fuel, carburetor out of adjustment, fuel restriction. | Clean/replace air filter, use fresh fuel, inspect carburetor for debris, check fuel flow. |
| Fuel leaks from carburetor | Loose fuel line connection, damaged gasket, float needle stuck open, cracked fuel bowl. | Tighten connections, replace gaskets, inspect float and needle, replace carburetor if damaged. |
| Engine lacks power | Clogged air filter, restricted exhaust, carburetor running lean/rich. | Clean/replace air filter, check exhaust for blockages, inspect carburetor for proper function. |
If these steps do not resolve the issue, it is recommended to seek assistance from a qualified service technician.
Image 4: Rear view of the carburetor, showing potential adjustment points and overall construction.
8. Specifications
- Model: 16100-Z4A0110-00M0
- Compatibility: Champion 200921 4000/5000 Generator
- Part Type: Carburetor Assembly
- Brand: Generic
- UPC: 776869314885
9. Warranty Information
This product is a replacement part. Please refer to the seller's return policy for information regarding returns or exchanges. Typically, replacement parts carry a limited warranty against manufacturing defects. Keep your proof of purchase for any warranty claims.
10. Customer Support
For further assistance or inquiries regarding this carburetor, please contact the seller or retailer from whom you purchased the product. Provide your purchase details and the product model number (16100-Z4A0110-00M0) for efficient support.
Note: This manual is for informational purposes only. Always prioritize safety and consult a professional if you are unsure about any repair or maintenance procedures.
