1. Introduction
This manual provides essential information for the safe and effective installation, operation, maintenance, and troubleshooting of your new Generic Washer Drain Pump. This replacement part is designed to restore proper drainage functionality to compatible Frigidaire washing machine models, addressing issues such as water retention, cycle interruptions, and related error codes. Please read these instructions thoroughly before proceeding with installation or any maintenance.
2. Safety Information
Always prioritize safety when working with appliances. Failure to follow these safety guidelines may result in personal injury or damage to the appliance.
- Disconnect Power: Always unplug the washing machine from the electrical outlet before attempting any installation, repair, or maintenance.
- Water Shut-off: Turn off the water supply to the washing machine before beginning work.
- Drain Water: Ensure all water is drained from the washer tub and hoses before removing the old pump to prevent spills.
- Wear Protective Gear: Wear appropriate personal protective equipment, such as gloves and safety glasses, to prevent injury.
- Professional Assistance: If you are unsure about any step or lack the necessary tools or experience, it is recommended to seek assistance from a qualified appliance technician.
- Sharp Edges: Be aware of potentially sharp edges or components inside the washing machine.
3. Product Overview
The Generic Washer Drain Pump is a critical component responsible for expelling water from your washing machine during and after wash cycles. This unit includes the pump motor and housing, designed for direct replacement in specified Frigidaire models.

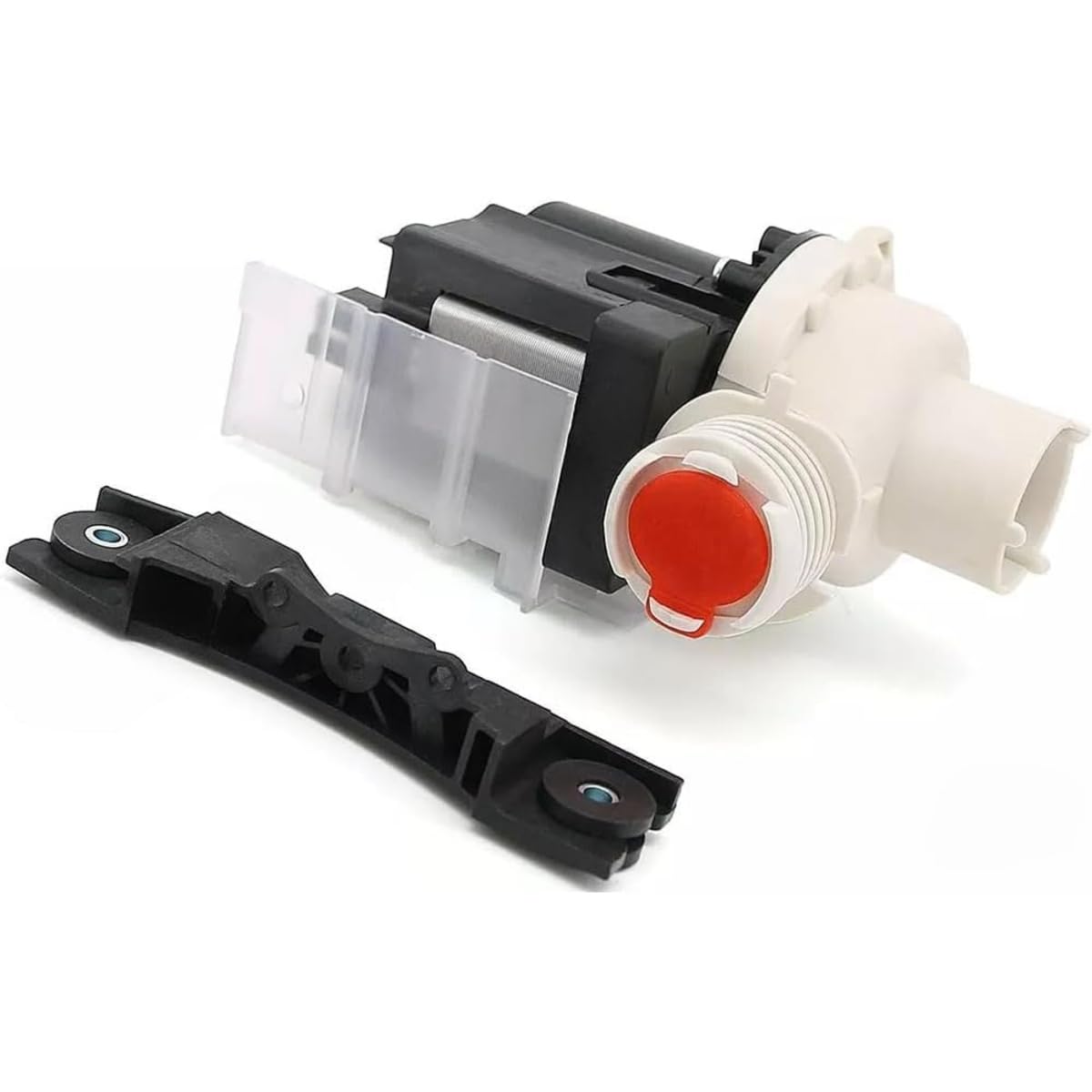

An overhead view of the washer drain pump, showing its main body, electrical connections, and the separate black mounting bracket.
A side view of the drain pump, highlighting the motor housing, the water inlet/outlet, and the detached mounting bracket.
A detailed view focusing on the pump's motor section, showing the electrical terminals and the overall compact design.
This image displays the pump's water outlet port with its threaded connection, alongside the black plastic mounting bracket.
4. Compatibility
This drain pump is compatible with a wide range of Frigidaire washing machine models. To ensure proper fit, please verify your specific washer model number against the comprehensive list provided in the product description. Key compatible models include, but are not limited to:
- FRFW3700LW0
- FTF2140ES0, FTF2140ES1, FTF2140ES2, FTF2140ES3
- FTF2140FE0, FTF2140FE1
- FTF2140FS0, FTF2140FS1, FTF2140FS2
- FTF5000HS0
- FTFB2940FE0
- FTFB4000FS0
- FTFB4000GS0
For a complete list, refer to the product listing where you can use Ctrl+F to search for your model number.
5. Installation Instructions
The following steps outline the general procedure for replacing a washer drain pump. Specific washer designs may vary, so consult your appliance's service manual if available.
5.1. Preparation
- Disconnect Power: Unplug the washing machine from the wall outlet.
- Shut Off Water: Turn off the hot and cold water supply valves to the washer.
- Drain Water: Place a shallow pan or towels under the drain hose and disconnect it from the standpipe or utility sink to drain any residual water.
- Access the Pump: Depending on your washer model, you may need to tilt the washer back, remove the front panel, or remove the back panel to access the drain pump. Refer to your washer's specific service instructions.
5.2. Removal of Old Pump
- Locate Pump: Identify the drain pump, typically located at the bottom front of the washer.
- Disconnect Hoses: Loosen the clamps securing the inlet and outlet hoses to the pump. Have towels ready to catch any remaining water. Carefully detach the hoses.
- Disconnect Wiring: Disconnect the electrical wiring harness from the pump motor. Note the orientation or take a picture for reassembly.
- Remove Mounting: Unscrew or unclip the old pump from its mounting bracket or base. Remove the old pump.
5.3. Installation of New Pump
- Position New Pump: Align the new drain pump with the mounting bracket or base. Secure it with screws or clips as per the original installation.
- Connect Wiring: Reconnect the electrical wiring harness to the new pump motor, ensuring a secure connection.
- Attach Hoses: Reattach the inlet and outlet hoses to the new pump, securing them with the hose clamps. Ensure clamps are tight to prevent leaks.
5.4. Post-Installation
- Reassemble Washer: Reattach any panels or covers that were removed to access the pump.
- Restore Water and Power: Turn on the water supply valves and plug the washing machine back into the electrical outlet.
- Test Operation: Run a short wash cycle (e.g., a rinse and spin cycle) to check for proper drainage and to ensure there are no leaks around the new pump or hose connections.
6. Operation
The washer drain pump operates automatically as part of the washing machine's cycle. It activates during the drain and spin phases to remove water from the wash tub. No manual intervention is required for its normal operation once correctly installed.
7. Maintenance
Regular maintenance of your washing machine can help prolong the life of the drain pump and prevent issues.
- Inspect for Clogs: Periodically check the pump's filter (if accessible on your model) and the drain hoses for lint, debris, or foreign objects that could obstruct drainage.
- Check for Leaks: Occasionally inspect the area around the drain pump and hose connections for any signs of water leaks.
- Avoid Overloading: Do not overload the washing machine, as this can put undue stress on the pump and other components.
8. Troubleshooting
If your washing machine experiences drainage problems after installing the new pump, consult the table below for common issues and potential solutions.
| Issue | Possible Cause | Solution |
|---|---|---|
| Washer not draining | Clogged drain hose or pump filter; Kinked drain hose; Electrical connection issue; Faulty lid switch (on some models) | Check and clear drain hose/filter; Straighten drain hose; Verify electrical connections; Inspect lid switch. |
| Slow drainage | Partial clog in drain hose or pump filter; Restricted drain pipe | Clean drain hose/filter; Check household plumbing for obstructions. |
| Unusual noise during drain cycle | Debris in pump impeller; Pump motor issue | Disconnect power and inspect pump impeller for foreign objects; If noise persists, pump may need further inspection. |
| Water leaks around pump | Loose hose clamps; Damaged hoses; Improperly seated pump | Tighten hose clamps; Inspect hoses for damage and replace if necessary; Ensure pump is securely mounted. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.
9. Specifications
- Brand: Generic
- Model Number: HNTRUNGA221125.341
- Manufacturer: HNGTRUNG
- Included Components: 1 x Washer Drain Pump (as pictured)
10. Warranty and Support
This product comes with a 30-day manufacturer warranty. Please retain your proof of purchase for warranty claims. For technical support or warranty inquiries, please refer to the seller or manufacturer's contact information provided at the point of purchase.
