Inefala 4+128G Android Car Stereo User Manual

1. Product Overview

This manual provides detailed instructions for the installation, operation, and maintenance of your Inefala 4+128G Android Car Stereo. This unit is specifically designed for Dodge Caravan and Chrysler Town & Country models from 2000 to 2007, offering an enhanced in-car entertainment and navigation experience.

Key features include a 10.1-inch Incell touchscreen, Android 15 operating system, 4GB RAM, 128GB ROM, wireless CarPlay and Android Auto, Bluetooth 5.0, GPS navigation, WiFi connectivity, and support for a backup camera.

2. Package Contents

Before installation, please verify that all components are present in the package:

• 1 x Inefala Android Radio Unit (for Dodge Caravan / Chrysler Town & Country)
• 3 x Power Cables
• 1 x CANBUS Decoder
• 1 x Radio Antenna Cable
• 1 x RCA Harness
• 1 x GPS Antenna
• 1 x AHD Backup Camera
• 1 x Rear Camera Input Cable
• 1 x External Microphone
• 2 x USB Cables
• 1 x Installation Tool & Accessories Kit

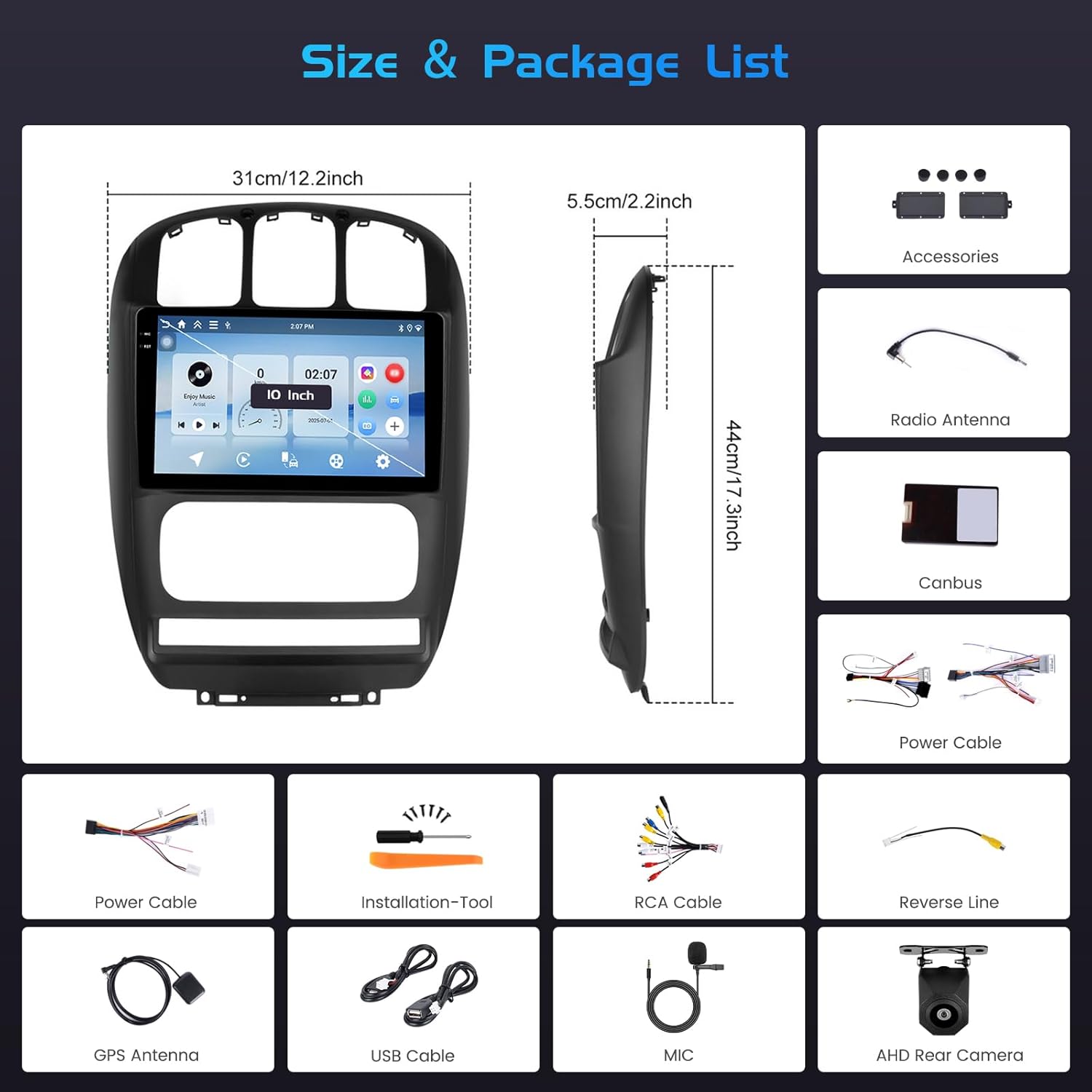

Image: Overview of the Inefala car stereo package contents, including the main head unit, wiring harnesses, antennas, backup camera, and tools.

3. Installation Guide

3.1 Pre-Installation Check

Perform a quick test before full installation:

1. Connect the red and yellow wires of the car stereo together, then connect them to the positive pole of a 12V battery. Connect the black wire to the negative pole of the battery.
2. After approximately 2 seconds, check if the stereo screen lights up. If it does, the car stereo is functioning. If the device does not work after full installation, recheck the installation procedure.

3.2 Wiring Connections

Refer to the following diagrams for proper wiring connections:

Image: Detailed port connections for the car stereo, illustrating where to connect power, RCA, USB, camera, and GPS antenna cables.

Power Cable Connection

• Ensure the power cable port matches your vehicle's harness. If not, do not force connections.
• If the wiring harness is damaged or accessories are missing, contact customer service for assistance.

CANBUS Decoder

The included CANBUS decoder supports most stock features, including the power amplifier and backup camera. If there is no sound, connect the AMP control wire from the original plug to the ACC wire of our power cable.

Match the vehicle model in the stereo settings: Settings > Factory Setup (Password: 1234) > Can Settings.

Backup Camera Wiring

A night vision waterproof AHD backup camera is included. The reversing input must be plugged in even if the camera is not used, otherwise, WiFi and Bluetooth signals may be affected.

Image: Backup camera wiring diagram, detailing connections for power, ground, and the reverse trigger wire.

• Cable 1 and Cable 5: Connect to the positive pole of the car's reversing light cable.
• Cable 2: Connect to the negative pole of the car's reversing light cable.
• Cable 3 and Cable 4: Connect to the reverse trigger wire of the power cable (labeled 'Reverse/Back'). If no need to connect, pull it out.

3.3 Post-Installation Appearance

Image: Comparison of the vehicle dashboard before and after the Inefala car stereo installation, highlighting the integrated look.

4. Operating Instructions

4.1 Incell Touchscreen Display

The 10.1-inch Incell screen features 1280 x 720 ultra-high resolution, improving light transmission and color contrast by approximately 20%. It offers a 178° viewing angle and supports split-screen functionality for multitasking.

Image: Visual representation of Incell touchscreen technology benefits, including enhanced display quality and split-screen mode.

4.2 CarPlay & Android Auto

Enjoy seamless integration with your smartphone via wireless CarPlay and Android Auto. This allows for voice-assisted controls and easy access to your phone's music, navigation, calls, and messages.

• Connection: Connect wirelessly via WiFi hotspot or your phone's original USB cable.
• Compatibility Note: Some Samsung and Huawei phones may not fully support Android Auto or Mirror Link. Ensure your phone supports Google Services and has the "Android Auto" app installed.

Image: Examples of CarPlay and Android Auto interfaces on the car stereo display.

4.3 Mirror Link

Mirror your phone's screen onto the car stereo display using either wireless or wired connections. This feature is compatible with both Android and iOS devices.

Image: Mirror Link feature demonstration, showing phone content mirrored to the car stereo.

4.4 GPS Navigation

The unit supports both online and offline navigation. Real-time road conditions help avoid traffic, and accurate satellite positioning (GPS/BeiDou/Galileo/Glonass) ensures you stay on track.

Image: Combined view of WiFi connectivity for app downloads and GPS navigation with map display.

4.5 WiFi Connectivity

Connect to a WiFi hotspot to access high-speed internet, download apps like YouTube and TikTok, and stream music, enhancing your in-car experience.

4.6 Bluetooth 5.0

Bluetooth 5.0 enables hands-free calling, phone book download, and music playback, significantly reducing driving risks.

Image: FM/RDS radio display and Bluetooth interface for calls and audio streaming.

4.7 FM/RDS Radio

The stable FM/RDS radio supports 54 preset stations, providing channel broadcasts, weather forecasts, and real-time road conditions.

4.8 Steering Wheel Control

The unit supports steering wheel button functions, allowing you to control the audio system safely while driving.

• Without CANBUS box: Activation of steering wheel controls requires key learning in settings.
• With CANBUS box: Connect the 20-pin white port in the power cable to the CANBUS itself, and the remaining 8-pin white port to the corresponding port on the back of the radio. Match the car model in Settings > Factory Setup (Password: 1234) > Can Settings.

Image: Steering wheel control setup interface for custom button mapping.

5. Maintenance

To ensure the longevity and optimal performance of your Inefala car stereo, follow these general maintenance guidelines:

• Cleaning: Use a soft, dry cloth to clean the screen and exterior. Avoid abrasive cleaners or solvents that could damage the display or finish.
• Temperature: Avoid exposing the unit to extreme temperatures. Prolonged exposure to direct sunlight or very cold conditions can affect performance and lifespan.
• Software Updates: Periodically check for software updates from Inefala to ensure you have the latest features and bug fixes.
• Cable Connections: Ensure all cables remain securely connected. Loose connections can lead to intermittent issues.

6. Troubleshooting

If you encounter issues with your car stereo, refer to the following common troubleshooting steps:

• No Power: Double-check the power cable connections. Ensure the red and yellow wires are connected to a 12V positive source and the black wire to ground. Re-perform the pre-installation power test.
• No Sound: Verify that the AMP control wire from the original vehicle plug is connected to the ACC wire of the stereo's power cable, especially if your vehicle has a factory amplifier. Check speaker connections.
• Poor WiFi/Bluetooth Signal: Ensure the backup camera's reversing input is plugged in, even if the camera is not in use, as this can affect signal strength. Check antenna connections.
• Steering Wheel Controls Not Working: If you do not have a CANBUS box, ensure you have performed the key learning procedure in the settings. If you have a CANBUS box, verify all CANBUS connections and ensure the correct car model is selected in Settings > Factory Setup (Password: 1234) > Can Settings.
• CarPlay/Android Auto Issues: Ensure your phone is compatible and has the necessary apps/services (e.g., Google Services for Android Auto). Try connecting via both wireless and wired methods.
• Screen Unresponsive: Try restarting the unit. If the issue persists, contact customer support.

7. Product Specifications

8. Warranty and Support

8.1 Product Warranty

This Inefala product comes with a 1-Year Warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

8.2 Customer Support

For any questions, technical assistance, or support, please contact Inefala Direct customer service. You can reach us through the Amazon platform:

1. Go to the product page on Amazon.
2. Click on the seller name "Inefala Direct".
3. Click "Ask a question" to send us your inquiries. Please provide details and attach relevant pictures or videos to help resolve the problem faster.

Image: Instructions on how to contact Inefala customer support via Amazon.

You can also reach us via email for 24-hour customer support:

Image: Inefala customer service contact information, including email address.
