Mediawave Store Dictrolux Hydro Compact 201 Pressure Washer

1. Introduction

The Mediawave Store Dictrolux Hydro Compact 201 cold water pressure washer is designed for effective cleaning of various outdoor surfaces. With a 1400W motor and 110 bar maximum pressure, it efficiently removes stubborn dirt from terraces, outdoor floors, vehicles, and more. Its compact design and integrated accessories make it suitable for daily use, even in limited spaces. This manual provides essential information for safe and efficient operation, setup, and maintenance of your pressure washer.

2. Safety Information

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions carefully before use.
• Wear appropriate personal protective equipment, including safety glasses and hearing protection.
• Ensure the power supply matches the voltage specified on the product label.
• Do not operate the pressure washer in the rain or near flammable liquids or gases.
• Keep children and pets away from the operating area.
• Never direct the water jet at people, animals, or electrical equipment.
• Always disconnect the power plug from the outlet before performing any maintenance or cleaning.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

• Dictrolux Hydro Compact 201 Pressure Washer Unit
• High-Pressure Spray Gun
• 5-meter High-Pressure Hose
• Adjustable Nozzle
• Garden Hose Connector (3/4")

4. Product Overview

Familiarize yourself with the main components of your pressure washer.

Figure 4.1: This image illustrates the key features of the pressure washer, including its powerful 110 bar pressure, 1400W motor, 402 liters per hour water flow, and the 5-meter high-pressure hose for extended reach.

Figure 4.2: A detailed view of the spray gun, highlighting the adjustable nozzle which allows users to change the water jet intensity for various cleaning tasks.

Figure 4.3: This image provides the physical dimensions of the pressure washer unit (37x22x22 cm) and the spray gun (60x18 cm), along with the 5-meter hose length, aiding in understanding its compact size and storage requirements.

5. Setup

Follow these steps to set up your pressure washer before first use:

1. Connect the High-Pressure Hose: Securely attach one end of the 5-meter high-pressure hose to the outlet on the pressure washer unit and the other end to the inlet on the spray gun. Ensure connections are tight to prevent leaks.
2. Connect the Garden Hose: Attach your garden hose (not included) to the 3/4" standard garden hose connector on the pressure washer unit. Ensure the water supply is turned on and there are no kinks in the hose.
3. Connect to Power: Plug the power cord into a grounded electrical outlet (220-240V, 50/60 Hz). Ensure the power switch on the unit is in the 'OFF' position before plugging in.
4. Purge Air from System: Before turning on the motor, squeeze the trigger on the spray gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges from the nozzle.

6. Operating Instructions

Once set up, your pressure washer is ready for operation.

1. Start the Pressure Washer: Turn the power switch on the unit to the 'ON' position. The motor will start.
2. Adjust the Nozzle: The spray gun features an adjustable nozzle. Rotate the nozzle head to change the spray pattern from a concentrated jet for stubborn dirt to a wider fan spray for general cleaning or rinsing.
3. Begin Cleaning: Hold the spray gun firmly and direct the water jet towards the surface to be cleaned. Maintain a safe distance from the surface to avoid damage, especially on delicate materials.
4. Recommended Applications: This pressure washer is suitable for cleaning terraces, outdoor floors, vehicles (cars, bicycles, motorcycles), shutters, windows, and verandas.
5. Stop Operation: Release the spray gun trigger to stop the water flow. For extended breaks or when finished, turn the power switch to 'OFF' and disconnect the power plug.

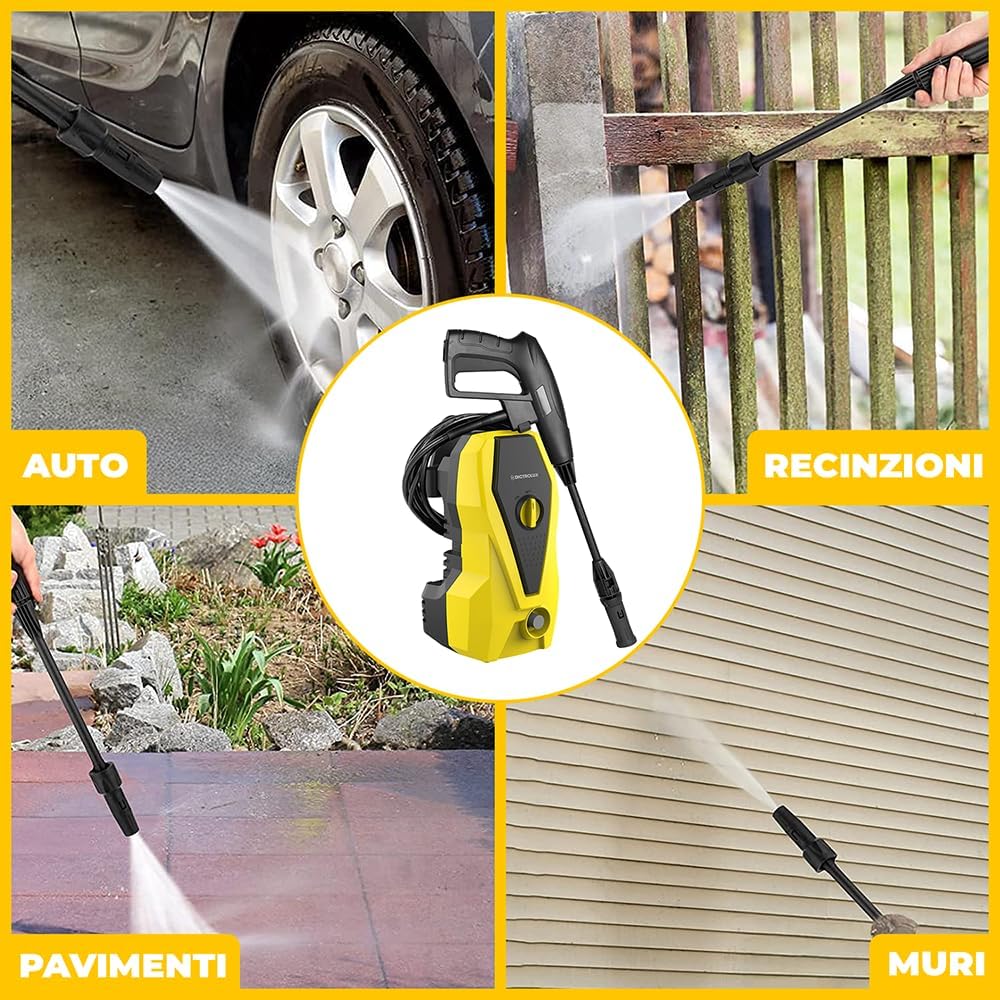

Figure 6.1: This image demonstrates the versatility of the pressure washer, showing its effectiveness in cleaning different surfaces such as vehicles, garden fences, outdoor pavements, and exterior walls.

Figure 6.2: This image shows a user operating the pressure washer in a garden environment, demonstrating its ease of use for outdoor cleaning tasks like paths and driveways.

Figure 6.3: This visual comparison illustrates the powerful cleaning capability of the pressure washer, showing a clear difference between a dirty surface and a clean one after use.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your pressure washer.

• Cleaning the Unit: Wipe the exterior of the pressure washer with a damp cloth. Do not use harsh detergents or solvents.
• Draining Water: After each use, turn off the water supply and run the pressure washer for a few seconds to drain any remaining water from the pump and hoses. This is crucial to prevent freezing damage in cold weather.
• Nozzle Cleaning: If the nozzle becomes clogged, use a small pin or needle to clear any debris from the opening.
• Storage: Store the pressure washer in a dry, frost-free location. Coil the high-pressure hose and power cord neatly using the integrated cable reel. Secure the spray gun in its designated holder.

8. Troubleshooting

Refer to this section for common issues and their solutions.

If problems persist after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please contact Mediawave Store customer service. Keep your purchase receipt as proof of purchase.

Contact information can typically be found on the product packaging or the official Mediawave Store website.
