Lotto Runex R1 Electric Folding Treadmill User Manual

1. Important Safety Instructions

Please read all instructions carefully before using this treadmill. Keep this manual for future reference. Failure to follow these instructions may result in injury or damage to the product.

• Always place the treadmill on a flat, stable surface.
• Ensure adequate clear space (at least 2 meters) behind the treadmill for safe operation.
• Keep children and pets away from the treadmill during operation.
• The maximum user weight for this treadmill is 100 kg. Do not exceed this limit.
• Always attach the safety key clip to your clothing before starting the treadmill. In case of emergency, pulling the safety key will immediately stop the machine.
• Do not operate the treadmill if it has a damaged cord or plug, or if it is not working properly.
• Wear appropriate athletic footwear and clothing during use.
• Consult a physician before starting any exercise program.

2. Package Contents

Carefully unpack the box and ensure all items are present. If any parts are missing or damaged, contact customer support.

• Lotto Runex R1 Electric Treadmill (95% pre-assembled)
• Power Cord
• Safety Key
• User Manual (this document)

3. Setup and Assembly

The Lotto Runex R1 treadmill comes 95% pre-assembled, requiring minimal setup before first use.

3.1 Unfolding the Treadmill

1. Place the treadmill on a flat, stable surface.
2. Gently lift the console and handlebar assembly until it locks into the upright position. Ensure all locking mechanisms are securely engaged.
3. Connect the power cord to the treadmill and then to a grounded electrical outlet.

Image 3.1: The Lotto Runex R1 treadmill fully unfolded and ready for use.

3.2 Folding for Storage

The treadmill is 100% foldable for convenient storage.

1. Ensure the treadmill is turned off and unplugged.
2. Carefully release the locking mechanism for the console/handlebar assembly.
3. Gently lower the console and handlebar assembly until it rests flat against the running deck.
4. Use the integrated transport wheels to move the folded treadmill to your desired storage location.

Image 3.2: The Lotto Runex R1 treadmill folded for compact storage.

4. Operating Instructions

4.1 Console Overview

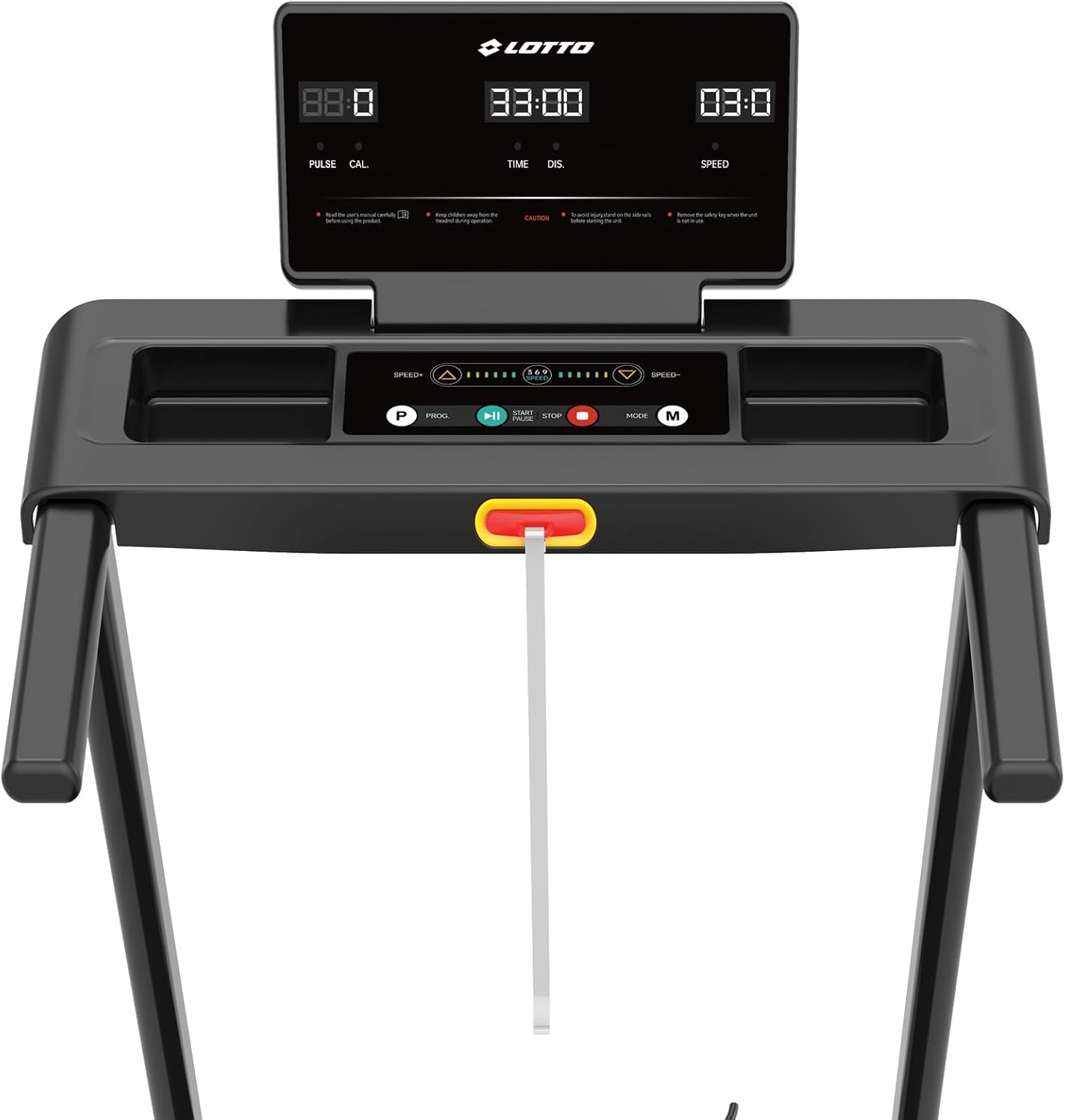

Image 4.1: Close-up view of the Lotto Runex R1 LED console.

The LED console displays key workout metrics and allows control over the treadmill's functions.

• LED Display: Shows Speed, Time, Distance, Calories burned, and Heart Rate (Pulse).
• Speed Buttons: Adjust speed from 1 to 10 km/h.
• Start/Stop Button: Initiates or pauses/stops the workout.
• Program (P) Button: Selects from 12 preset workout programs.
• Mode (M) Button: Cycles through display modes or sets target values.
• Pulse Sensors: Integrated into the handlebars to measure heart rate.
• Tablet/Smartphone Holder: Conveniently located for your device.

4.2 Starting a Workout

1. Ensure the treadmill is plugged in and the safety key is properly attached to the console and your clothing.
2. Step onto the side rails of the treadmill.
3. Press the START button. The treadmill will begin at a low speed.
4. Gradually increase the speed using the speed adjustment buttons to your desired pace (1-10 km/h).
5. To stop, press the STOP button or pull the safety key.

4.3 Manual Incline Adjustment

The Runex R1 features 2 levels of manual incline to increase workout intensity.

1. Important: Adjust the incline only when the treadmill is stopped and unplugged.
2. Locate the incline adjustment pins at the rear of the treadmill.
3. Lift the rear of the treadmill slightly and adjust the pins to the desired incline level. Ensure both sides are set equally.
4. Lower the treadmill gently and ensure it is stable before resuming use.

4.4 Preset Programs

The treadmill includes 12 preset programs designed for varied workouts.

1. From standby mode, press the PROG (P) button to cycle through the available programs (P1-P12).
2. Once you select a program, press START to begin. The treadmill will automatically adjust speed according to the program profile.

4.5 Bluetooth Connectivity and App Compatibility

Connect your treadmill via Bluetooth to compatible fitness apps for enhanced workout experiences.

1. Download the FitShow, Kinomap, or Zwift app on your smartphone or tablet.
2. Enable Bluetooth on your device.
3. Open the chosen app and follow its instructions to search for and connect to your Lotto Runex R1 treadmill.
4. Once connected, you can control the treadmill and track your workouts through the app.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your treadmill.

• Cleaning: Wipe down the treadmill after each use with a damp cloth to remove sweat and dust. Do not use abrasive cleaners.
• Lubrication: The running belt requires periodic lubrication to reduce friction. Refer to the specific instructions provided with your lubricant (usually every 3-6 months depending on usage).
• Belt Tension and Alignment: Check the running belt regularly for proper tension and alignment. Adjust if necessary according to the instructions in a separate maintenance guide (if provided) or contact customer support.
• Power Cord: Inspect the power cord for any damage before each use.

6. Troubleshooting

If you encounter issues with your treadmill, refer to the following common solutions:

If the problem persists after attempting these solutions, please contact customer support for assistance.

7. Product Specifications

8. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact the retailer where you purchased the Lotto Runex R1 treadmill.

For technical support, spare parts, or any other inquiries, please contact the manufacturer or authorized service center. Contact details can typically be found on the product packaging or the brand's official website.
