knoworld 47" Fluted Vanity Desk with Mirror & Lights Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your knoworld 47" Fluted Vanity Desk with Mirror & Lights. Please read all instructions carefully before assembly and use to ensure safe and proper operation.

WARNING: This product is heavy and requires assembly. Use caution when moving or assembling to avoid injury.

Parts List

Before beginning assembly, ensure all parts are present and undamaged. Refer to the diagram below for identification.

Figure 1: Exploded view of all components and hardware.

The image above shows an exploded view of the vanity desk, detailing all individual components and hardware required for assembly. Each part is numbered for easy identification against the included hardware list.

Setup and Assembly

Follow these steps for proper assembly. It is recommended to have two people for assembly due to the size and weight of the components.

Assembly Video Guide

Video 1: Step-by-step assembly instructions for the knoworld 47" Fluted Vanity Desk.

This video provides a visual guide for assembling your vanity desk. Please pause and replay sections as needed to ensure correct assembly.

Step-by-Step Written Instructions

1. Prepare the Mirror Frame: Attach the side and bottom wooden pieces to the main mirror frame using screws (D). Ensure all connections are secure.
2. Install Mirror Backing: Secure the mirror backing to the assembled frame using screws (A) and (C).
3. Assemble Side Panels: Attach the drawer slides (CL/CR) to the side panels (8, 9, 10) using screws (M). Ensure correct orientation for left and right sides.
4. Construct Side Cabinets: Connect the side panels (7, 8, 9, 10) and support beams (11, 12) to form the two side cabinet structures using screws (B).
5. Assemble Center Section: Attach the center shelf (14) and back panel (13) to the center support structure using screws (D).
6. Join Main Sections: Carefully place the mirror assembly onto the main desk structure. Secure it using screws (B).
7. Assemble Drawers: For each drawer, attach the front panel (16), side panels (17, 18), and back panel (19) to the bottom panel (20) using screws (D). Attach the drawer slides (DL/DR) to the drawer sides using screws (M). Install the handle (F) to the front panel using screws (M).
8. Install Charging Station: Insert the charging station (G) into the designated slot on the side of the desk and secure it with screws (M).
9. Connect LED Lights: Connect the LED light wires (H) from the mirror to the main power source. Ensure all connections are firm.
10. Install Hair Dryer Holder: Attach the hair dryer holder (Q) to the side of the desk using screws (M).
11. Place Glass Top: Carefully place the tempered glass top (6) into the designated slots on the desk surface.
12. Insert Drawers: Slide all assembled drawers into their respective tracks.

Operating Instructions

LED Mirror Lights

Figure 2: Illuminated LED mirror lights.

The vanity mirror features 14 detachable Hollywood-style LED bulbs with adjustable settings.

• Power On/Off: Touch the power button on the mirror surface to turn the lights on or off.
• Color Temperature Adjustment: Briefly touch the 'M' button to cycle through 3 color temperatures: Warm Yellow, Warm White, and Cold White.
• Brightness Adjustment: Press and hold the power button to adjust the brightness level. Release when the desired brightness is achieved.

Figure 3: Illustration of adjustable lighting modes and brightness.

This image demonstrates the three available lighting modes and the functionality of the adjustable brightness feature, allowing users to customize their lighting environment.

Charging Station

Figure 4: Close-up of the built-in charging station.

The vanity desk includes a built-in charging station with 2 AC outlets (125V/12A), 1 USB port (5V/3A), and 1 USB-C port (5V/3A). Simply plug your devices into the appropriate ports for charging.

Hair Dryer Holder

The integrated hair dryer holder (Q) provides a convenient storage solution for your hair dryer, keeping it easily accessible and reducing clutter on the desk surface.

Drawers and Storage

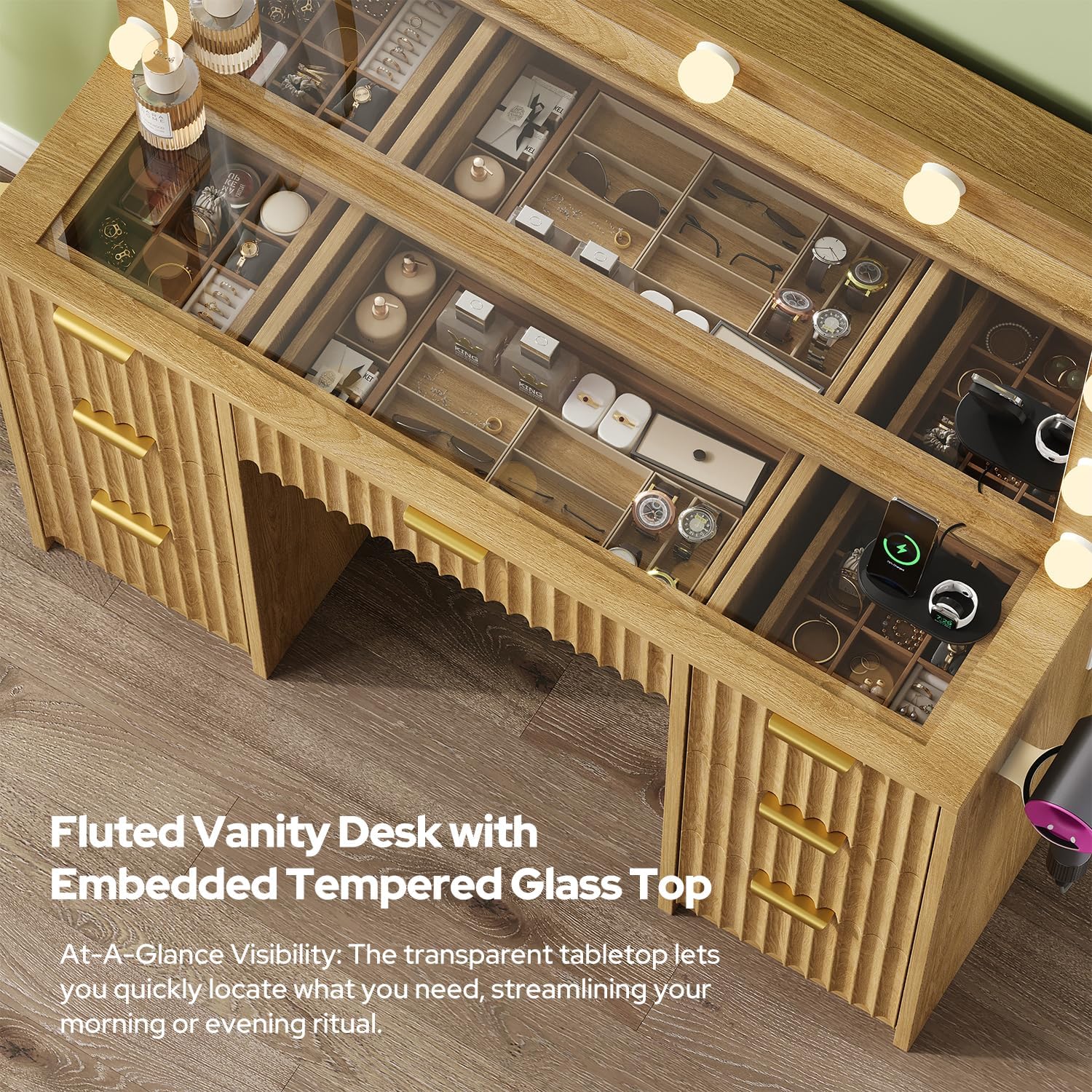

Figure 5: Open drawers showcasing storage space.

The vanity desk features 7 drawers for organized storage of makeup, skincare, and accessories. The tempered glass top allows for instant visibility of items stored in the top drawers.

Maintenance

• Cleaning the Wood Surface: Wipe wood surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Cleaning the Glass Top: Use a glass cleaner and a soft, lint-free cloth to clean the tempered glass top.
• LED Lights: The LED bulbs are detachable. If a bulb needs replacement, gently twist it counter-clockwise to remove and replace with a compatible bulb.
• Drawer Slides: Periodically check drawer slides for smooth operation. If they become stiff, a small amount of silicone lubricant can be applied.
• Electrical Components: Ensure the charging station and light connections remain dry and free from dust. Do not attempt to repair electrical components yourself.

Troubleshooting

Specifications

Warranty and Support

For any assistance, questions, or concerns regarding your knoworld vanity desk, please contact our US-based support team through your Amazon order page. Our team is ready to help with any issues you may encounter.

Please refer to your purchase documentation for specific warranty details.
