1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Generic 70624578 Furnace Exhaust Inducer Motor. Please read these instructions carefully before proceeding with any installation or service.
The inducer motor is a critical component designed to expel exhaust gases from your furnace. In modern high-efficiency furnaces, heat exchangers are highly restrictive, necessitating the inducer to actively pull flue gases through the system. This motor is typically the first component to activate when the furnace initiates a heating cycle.

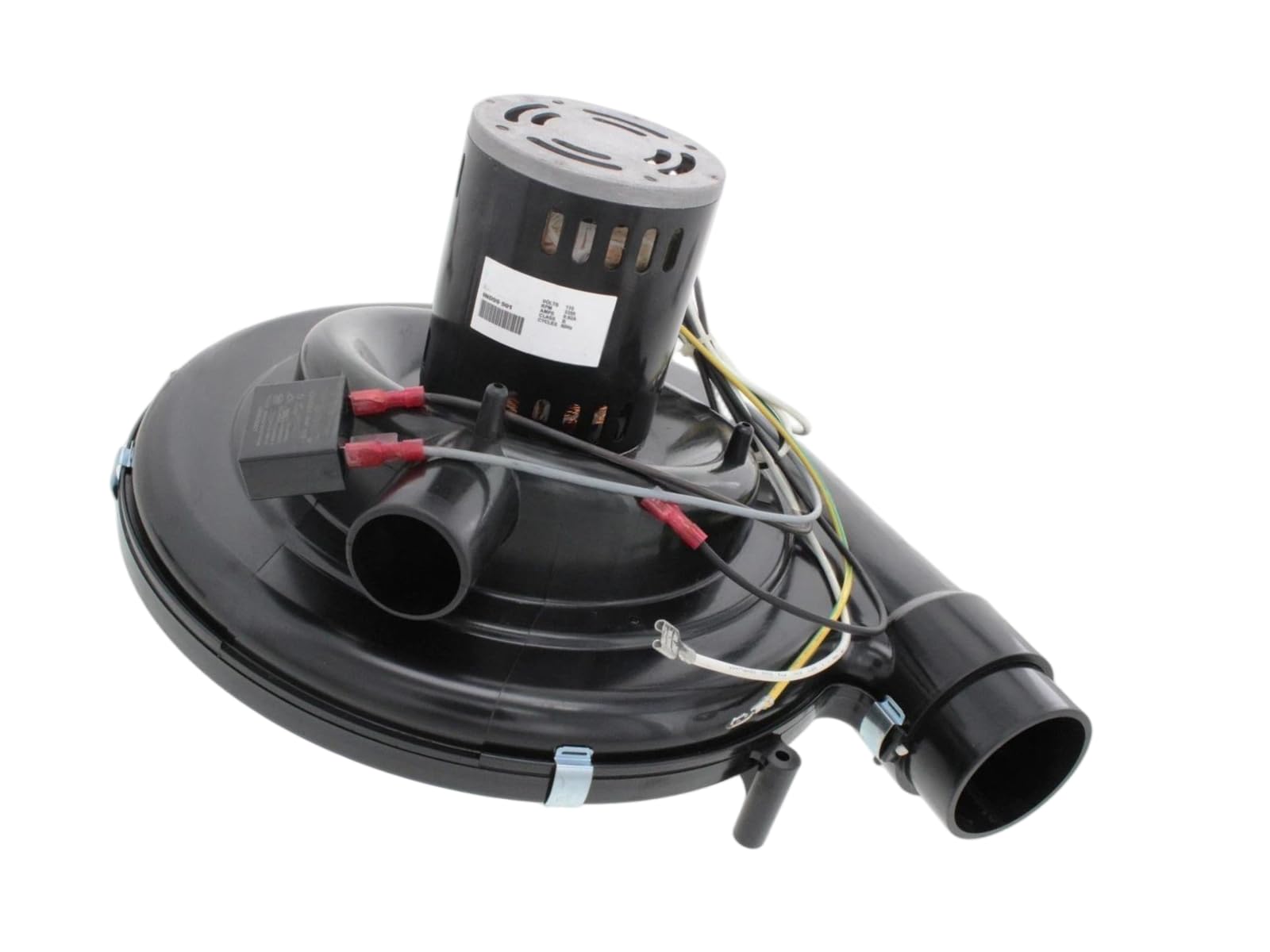

Image 1.1: The Generic 70624578 Furnace Exhaust Inducer Motor.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Consult a qualified installer, service agency, or the gas supplier for assistance.
- Always disconnect electrical power to the furnace before attempting any installation, maintenance, or service.
- Wear appropriate personal protective equipment (PPE), including gloves and eye protection, during installation and service.
- Ensure all wiring connections are secure and comply with local electrical codes.
- Do not operate the furnace if any part of the exhaust system is damaged or obstructed.
- This motor operates at 115 Volts. Exercise extreme caution when handling electrical components.
3. What's in the Box
Your package should contain the following item:
- 1 x 70624578 Furnace Exhaust Inducer Motor
4. Compatibility
The 70624578 Furnace Exhaust Inducer Motor is engineered for seamless integration with existing systems. It is compatible with a wide range of furnace models. Please verify your furnace model number against the following partial list of compatible units:
- NUGK075KG05, NUGK125DK06, NUGK040CF01, NUGK050LF01, NUGK075AG01, NULK050LF01, NUGK100DH
- 867.769434, 867169434, NUG0750G07, NIGK125DK01, N1GK125DK01, NUGK050MF05
- NUGK050AF01, NUGK050AF02, NUGK050CF01, NUGK050CF02, NUGK080AG01, NUGK080AG02
- NUGK080CG01, NUGK080CG02, NUGK105AG01, NUGK105AG02, NUGK105AH01, NUGK105AH02
- NUGK105CG01, NUGK105CG02, NULK050AF01, NULK050AF02, NULK080AG01, NULK080AG02
- NULK105AG01, NULK105AG02, NULK105AH01, NULK105AH02, NULK125AH01, NUGK105AG01
- NDGK125DK04, 867.769410, 867.769411, 867.769412, 867.769413, 867.769420
- ... (and many more models listed in the product description)
If your existing furnace inducer blower has a brown-colored inducer housing, an additional Fitting Kit Part Number 1150984 may be required to adapt the new motor to the existing flue opening. This kit is sold separately.
5. Setup and Installation
- Disconnect Power: Before beginning any work, turn off the electrical power to the furnace at the main breaker or fuse box. Verify power is off using a voltage tester.
- Access Inducer Motor: Locate the existing inducer motor on your furnace. Depending on your furnace model, you may need to remove access panels.
- Disconnect Wiring and Hoses: Carefully disconnect all electrical wiring and any pressure switch hoses attached to the old inducer motor. Note their positions for reinstallation.
- Remove Old Motor: Unbolt and remove the old inducer motor from its mounting. Be prepared for potential condensate or debris.
- Inspect and Prepare: Inspect the mounting surface and flue opening for cleanliness. If replacing an older brown-housing inducer, ensure you have the necessary Fitting Kit Part Number 1150984.
- Install New Motor: Mount the new 70624578 Inducer Motor in place, securing it with the appropriate bolts. Ensure a tight seal if a gasket is present.
- Reconnect Wiring and Hoses: Reconnect all electrical wiring and pressure switch hoses to their correct terminals on the new motor. Double-check all connections for security.
- Restore Power and Test: Replace any access panels. Restore electrical power to the furnace. Initiate a call for heat to test the new inducer motor's operation. Observe for proper function, exhaust venting, and absence of unusual noises or odors.
Image 5.1: General diagram illustrating the installation process of a furnace inducer motor.
6. Operating Principles
The 70624578 Furnace Exhaust Inducer Motor plays a crucial role in the combustion process of your furnace. When the thermostat calls for heat, the inducer motor is typically the first component to activate. Its primary function is to create a negative pressure within the furnace's heat exchanger, pulling in fresh air for combustion and simultaneously drawing out the byproducts of combustion (flue gases) through the exhaust vent.
This process ensures that combustion gases are safely expelled from your home and that the furnace operates efficiently. The motor's enhanced energy efficiency reduces power consumption while maintaining consistent torque and output performance, contributing to the overall efficiency of your heating system.
7. Maintenance
The 70624578 Inducer Motor features a simplified maintenance design, allowing for quick access to critical components and minimizing operational downtime. Regular maintenance of your furnace, including the inducer motor, is essential for optimal performance and longevity.
- Annual Inspection: Have a qualified HVAC technician inspect the inducer motor annually as part of your furnace's routine maintenance.
- Check for Obstructions: Periodically check the exhaust vent and the inducer motor's intake for any obstructions (e.g., debris, bird nests) that could impede airflow.
- Listen for Unusual Noises: Pay attention to any new or unusual noises coming from the inducer motor, which could indicate a bearing issue or other problem.
- Cleanliness: Ensure the area around the motor is kept clean and free of dust and debris.
8. Troubleshooting
If you experience issues with your furnace's inducer motor, consider the following basic troubleshooting steps. For complex issues, always consult a qualified HVAC technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power, faulty wiring, pressure switch issue, motor failure | Check furnace power supply. Verify wiring connections. Inspect pressure switch hoses for blockages or cracks. Consult technician for motor replacement. |
| Unusual noises (grinding, squealing) | Worn bearings, foreign object in blower wheel | Disconnect power and inspect blower wheel for obstructions. If noise persists, motor bearings may be failing; professional replacement is recommended. |
| No exhaust or weak draft | Obstructed vent, motor not spinning correctly, pressure switch fault | Check exhaust vent for blockages. Verify motor is spinning freely. Ensure pressure switch hoses are clear. |
9. Specifications
| Attribute | Detail |
|---|---|
| Brand | Generic |
| Model Name | 70624578 Furnace Exhaust Inducer Motor |
| Model Number | 70624578 |
| Voltage | 115 Volts |
| Included Components | 70624578 Furnace Exhaust Inducer Motor |
10. Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact the seller directly. Ensure you have your purchase details and product model number (70624578) available when seeking assistance.
