LAOPAO Automatic Liquid Soap Dispenser

Introduction

Thank you for choosing the LAOPAO Automatic Liquid Soap Dispenser. This device is designed for hygienic and convenient dispensing of liquid soaps and detergents. It features a high-sensitivity infrared sensor for touchless operation, adjustable dispense volumes, and a rechargeable battery. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Product Overview

The LAOPAO Automatic Liquid Soap Dispenser is a modern, touchless solution for your kitchen or bathroom. Its compact design and champagne color complement various decors. The dispenser is compatible with a wide range of liquid soaps and detergents, offering flexibility for different uses.

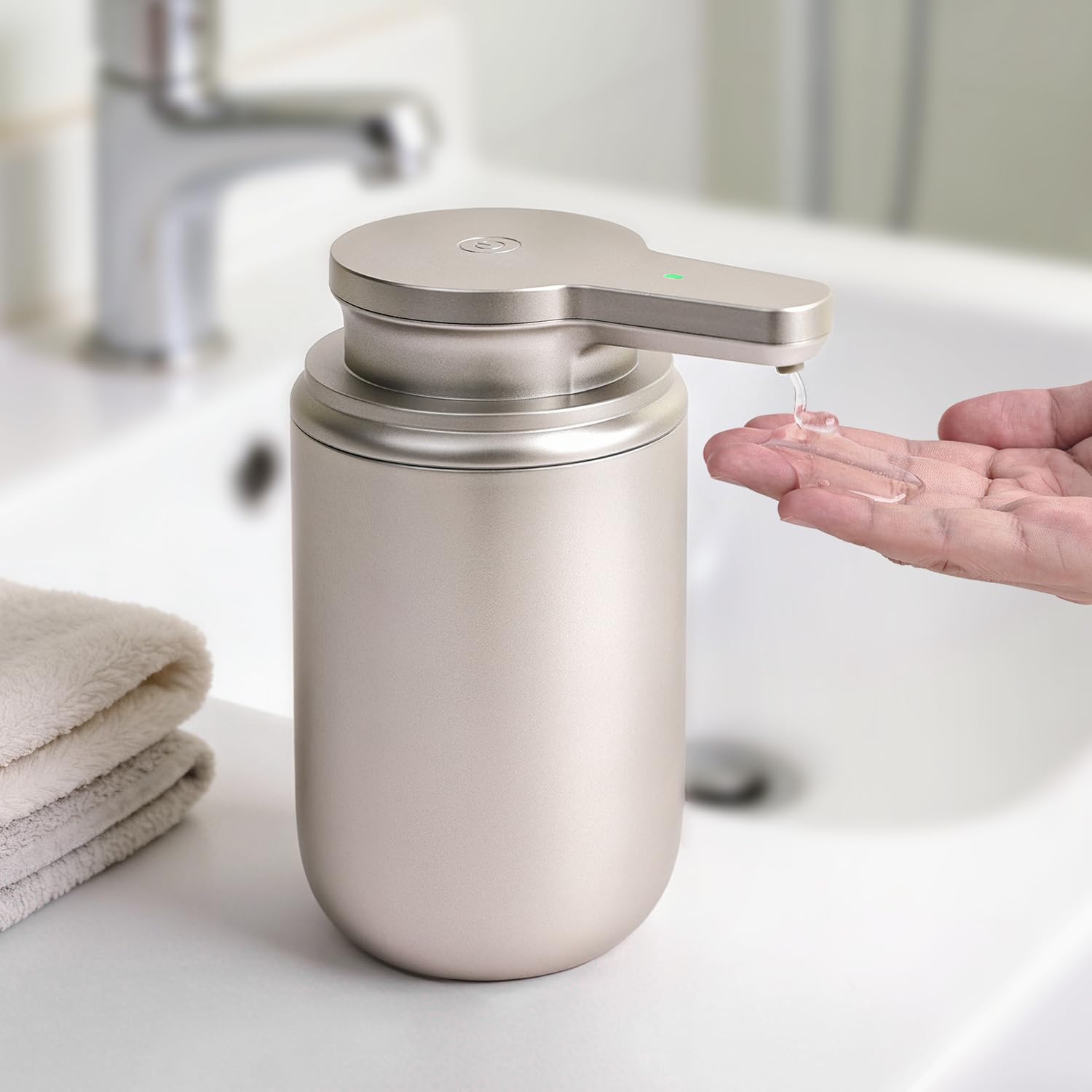

Image: Front view of the LAOPAO Automatic Liquid Soap Dispenser, showcasing its sleek design and nozzle.

Setup

1. Filling the Dispenser

1. Gently twist and lift the top cap of the dispenser to access the reservoir.
2. Pour your desired liquid soap, dish soap, shampoo, body soap, or gel-type alcohol disinfectant directly into the reservoir. Ensure the liquid level does not exceed the MAX fill line (250ml).
3. Securely replace the top cap, ensuring it is properly aligned and sealed.

Image: A hand pouring liquid soap into the dispenser's reservoir. The wide opening facilitates easy refilling.

2. Initial Charging

Before first use, fully charge the dispenser. The built-in 1500mAh battery provides approximately 3 months of use on a single charge.

1. Locate the Type-C charging port on the side of the dispenser, protected by a waterproof plug.
2. Open the waterproof plug and connect the provided Type-C charging cable to a suitable USB power source.
3. During charging, the indicator light will blink red. Once fully charged, the indicator light will turn white. If the battery is low, the indicator will blink red.
4. After charging, ensure the waterproof plug is securely closed to maintain IPX5 water resistance.

Image: The dispenser connected to a Type-C charging cable, illustrating the charging process.

3. Powering On/Off

Press and hold the power switch on the top of the dispenser to turn it on or off.

Operating Instructions

1. Automatic Dispensing

The dispenser features a high-sensitivity infrared sensor. Simply place your hand or a sponge under the nozzle, and the sensor will detect it, dispensing liquid soap in approximately 0.25 seconds. This touchless operation promotes hygiene and reduces the risk of cross-contamination.

Image: Liquid soap being dispensed automatically into a hand placed under the nozzle.

2. Adjusting Dispense Volume

The dispenser offers two adjustable dispense volume levels to prevent overuse and suit different needs (e.g., handwashing or dishwashing).

• While the dispenser is on, briefly touch the power switch to toggle between the two volume settings.
• The indicator light will show green for the smaller dispense volume (0.6g) and white for the larger dispense volume (1g).

Image: Visual representation of the two dispense volume settings, indicated by different light colors and corresponding liquid amounts.

3. Liquid Compatibility

This dispenser is designed for liquid-type soaps and detergents. It can directly use liquid soap or high-concentration detergents without dilution. Note: This model is not suitable for foam-type soaps.

Maintenance

1. Internal Cleaning Function

The dispenser includes an internal cleaning function to prevent clogging and maintain performance.

1. With the power on, double-click the power switch.
2. The indicator light will blink blue, and the dispenser will continuously dispense liquid for 20 seconds to clean the internal pump and nozzle.
3. To stop the cleaning cycle prematurely, click the power switch again.

Image: The dispenser performing its automatic cleaning function, dispensing water onto a plate.

2. External Cleaning

The dispenser has an IPX5 waterproof rating, allowing for easy external cleaning.

• You can rinse the entire unit under running water.
• Ensure the Type-C charging port's waterproof plug is securely closed before rinsing to prevent water ingress.
• Wipe the exterior with a soft, damp cloth. Avoid abrasive cleaners or solvents.

Image: The dispenser next to a running faucet, illustrating its waterproof capability.

Safety Precautions

• When moving or lifting the dispenser, always hold the entire bottle firmly. Do not lift it solely by the pump head to prevent accidental drops and damage.
• The entire unit is constructed from ABS material. It is not made of metal.
• Do not immerse the dispenser in water for extended periods, despite its IPX5 rating.
• Keep out of reach of children.

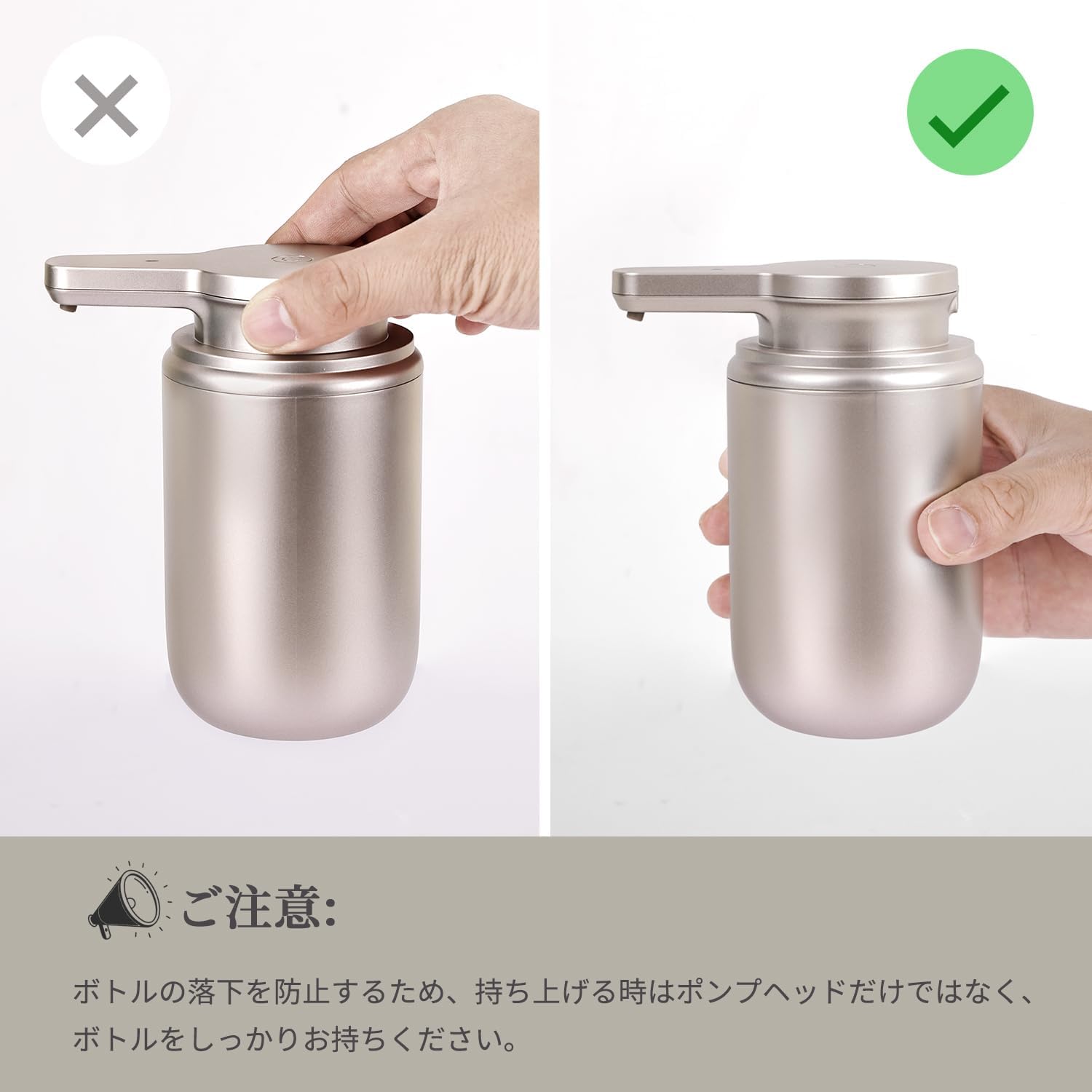

Image: A visual guide showing the correct way to hold the dispenser by the bottle, and an incorrect way by the pump head.

Troubleshooting

Specifications

Image: Diagram showing the dimensions (length, width, height) and weight of the dispenser.

Product Videos

Warranty and Support

For warranty information and customer support, please refer to the product packaging or contact the retailer where you purchased the LAOPAO Automatic Liquid Soap Dispenser. Keep your purchase receipt as proof of purchase for any warranty claims.
