ALSO GO Adjustable Weight Bench User Manual

1. Introduction

This manual provides comprehensive instructions for the ALSO GO Adjustable Weight Bench, Model SG0041-VX. This versatile fitness equipment is designed for full-body strength training, combining a weight bench, Roman Chair, Preacher Curl station, and Leg Extension. Please read this manual thoroughly before assembly and use to ensure safe and effective operation.

Image 1.1: The ALSO GO Adjustable Weight Bench, demonstrating its multi-functional design and foldable storage capability.

2. Safety Information

Adherence to these safety guidelines is crucial to prevent injury and ensure proper use of the equipment.

• Consult a Physician: Before starting any exercise program, consult with a healthcare professional to ensure it is appropriate for your physical condition.
• Inspect Equipment: Always inspect the bench for loose parts, damage, or wear before each use. Do not use if any components are compromised.
• Proper Form: Use correct exercise form to maximize effectiveness and minimize injury risk. If unsure, seek guidance from a certified fitness instructor.
• Weight Limit: Do not exceed the maximum weight capacity of 770 lbs (349 kg), including user weight and any additional weights.
• Stable Surface: Place the bench on a flat, stable, non-slip surface. Ensure adequate clear space around the equipment.
• Children and Pets: Keep children and pets away from the equipment during use and storage.
• Secure Adjustments: Ensure all adjustment pins and locking mechanisms are fully engaged and secure before beginning any exercise.
• Hydration: Stay hydrated during workouts.

Image 2.1: Illustration of the bench's sturdy alloy steel frame and 770 lbs weight capacity, emphasizing structural integrity.

3. Package Contents

Upon unpacking, verify that all components are present and undamaged:

• Main Bench Frame (pre-assembled)
• Backrest Pad
• Seat Pad
• Preacher Curl Pad
• Leg Extension Attachment
• Adjustment Pins/Knobs
• Resistance Bands (if included with your model)

4. Setup and Assembly

The ALSO GO Adjustable Weight Bench is largely pre-assembled for convenience. Follow these steps to prepare it for use:

1. Unfold the Bench: Carefully unfold the main frame of the bench. Ensure all hinges and joints lock into place securely.
2. Attach Pads: Secure the backrest and seat pads to the main frame using the provided hardware (if not already attached).
3. Install Preacher Curl Pad: Insert the preacher curl pad into its designated slot and secure it with the appropriate adjustment pin.
4. Install Leg Extension: Attach the leg extension unit to the front of the bench frame and secure it with the adjustment pin.
5. Final Check: Before first use, double-check all pins, bolts, and connections to ensure they are tight and secure.

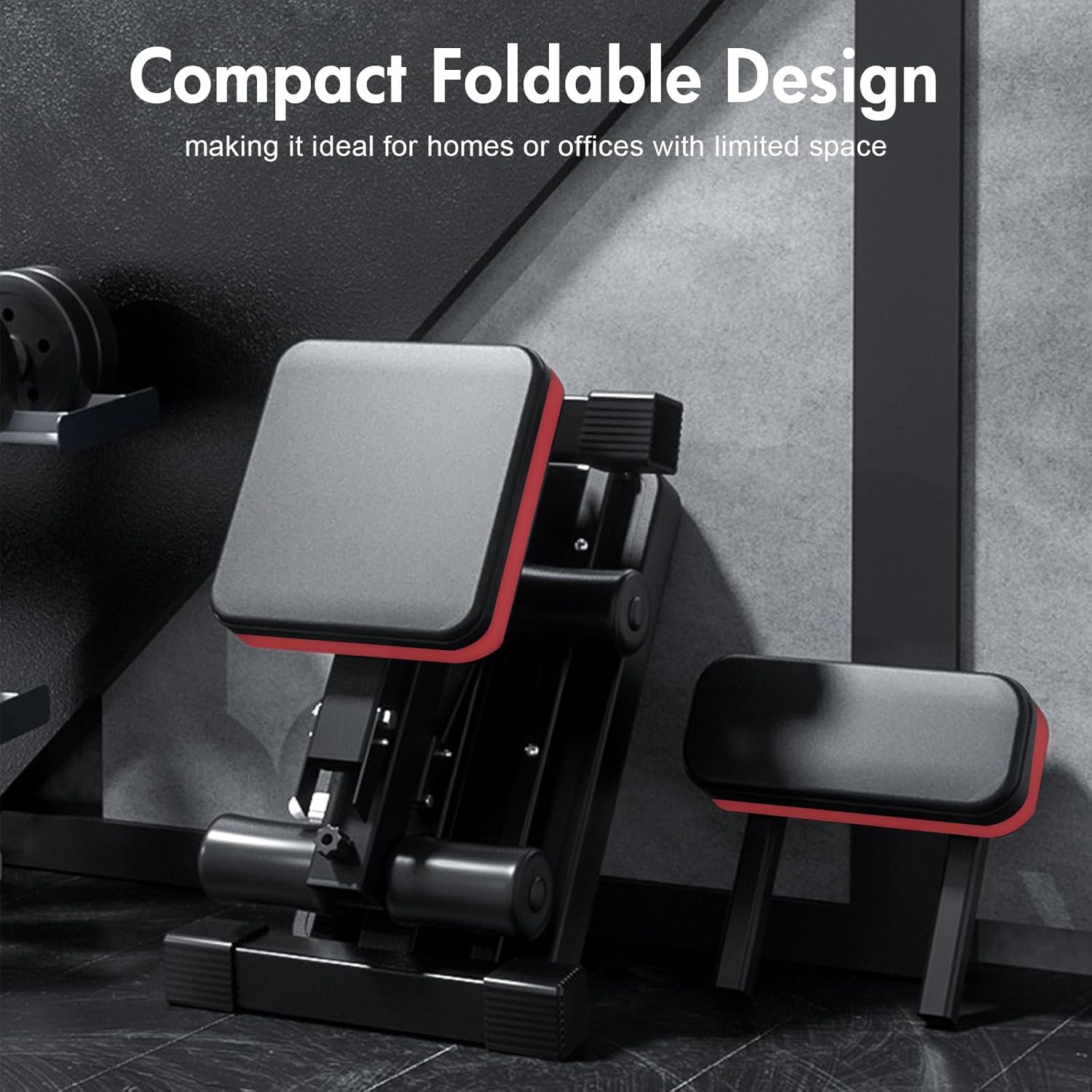

Image 4.1: The bench demonstrating its compact foldable design for easy setup and storage.

Image 4.2: Detail of fixed pins and the firm foot base, essential for securing adjustments during setup and use.

5. Operating Instructions

The ALSO GO Adjustable Weight Bench offers multiple configurations for a variety of exercises. Always ensure adjustments are securely locked before use.

5.1. Adjusting the Backrest

The backrest features 7 adjustable positions, allowing for incline, flat, and decline exercises. To adjust:

1. Locate the adjustment mechanism at the base of the backrest.
2. Pull the adjustment pin or lever to release the backrest.
3. Move the backrest to the desired angle (positions 1-7).
4. Release the pin/lever, ensuring it fully engages in the chosen position. Gently push down on the backrest to confirm it is locked.

Image 5.1: Visual guide to the 7-level backrest adjustment, enabling various exercise angles.

5.2. Adjusting the Preacher Curl Pad

The preacher curl pad can be adjusted to 3 different angles to accommodate users of various heights and exercise preferences.

1. Locate the adjustment pin on the preacher curl pad support.
2. Pull the pin to release the pad.
3. Adjust the pad to one of the 3 available angles.
4. Release the pin, ensuring it clicks into place.

Image 5.2: Illustration of the 3-level adjustment for the preacher curl pad, optimizing arm workouts.

5.3. Adjusting the Leg Extension

The leg extension attachment is adjustable to suit different leg lengths and exercise ranges. Adjust the height or position of the leg rollers as needed, securing with the appropriate pin or knob.

5.4. Extended Headrest

The bench features an extended ergonomic headrest designed to provide additional support and comfort, accommodating users of different heights during various exercises.

Image 5.3: The extended ergonomic headrest providing support for users of varying heights.

5.5. Exercise Examples

This bench supports a wide range of exercises targeting various muscle groups:

• Chest: Dumbbell Press (Incline, Flat, Decline), Flyes
• Shoulders: Dumbbell Shoulder Press, Lateral Raises
• Back: Dumbbell Rows, Hyperextensions (using Roman Chair function)
• Arms: Preacher Curls, Triceps Extensions
• Legs: Leg Extensions, Hamstring Curls (using leg extension attachment)
• Core: Sit-ups, Ab Crunches

Image 5.4: Examples of diverse exercises possible with the multi-functional adjustable weight bench.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your weight bench.

• Cleaning: Wipe down the pads and frame with a damp cloth after each use to remove sweat and dirt. Use mild soap if necessary, then wipe with a clean, dry cloth. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and adjustment pins for tightness. Tighten any loose fasteners. Inspect padding for tears or excessive wear.
• Storage: When not in use, fold the bench to save space. Store it in a dry, cool place away from direct sunlight and extreme temperatures.

Image 6.1: High-density foam padding layers, designed for comfort and durability, requiring regular cleaning.

7. Troubleshooting

If you encounter issues with your ALSO GO Adjustable Weight Bench, refer to these common solutions:

• Bench Instability:
  • Ensure the bench is placed on a completely flat and level surface.
  • Check that all assembly bolts and adjustment pins are fully tightened and engaged.
• Difficulty Adjusting:
  • Verify that adjustment pins are fully pulled out before attempting to change positions.
  • Ensure there is no obstruction preventing the components from moving freely.
• Squeaking Noises:
  • Inspect all pivot points and connections. A small amount of silicone-based lubricant may be applied to moving parts if necessary, avoiding contact with padding.
  • Ensure all bolts are tightened to the correct specification.

8. Specifications

Image 8.1: Key dimensions of the ALSO GO Adjustable Weight Bench.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact ALSO GO customer service through the retailer where the product was purchased or visit the official ALSO GO website. Please have your model number (SG0041-VX) and purchase date available when contacting support.

Manufacturer: ALSO GO
