Generic Plasma Torch Head Cutting Body Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of the Generic Plasma Torch Head Cutting Body. It is designed for compatibility with a range of plasma cutters, ensuring stable performance and precise cuts. Please read this manual thoroughly before installation and operation.

Compatibility: This plasma torch head is compatible with:

• Northern Tool 275/375 Plasma Cutters
• Klutch 275i/375i, P400DV, P300i Plasma Cutters
• Chicago Electric / Harbor Freight #95136, 97994, 91814, 62204
• Summit SUM-MG-907N1168, SUM-MG-907N0110 Plasma Cutters
• HTP MICROCUT 300, 301, 380, 400, 625-45
• Longevity Force 40D
• Razorweld TRF-45-6-CC1 Plasma Cutting Torch
• Vipercut 30
• Eastwood Versa Cut 20
• Plasma cutters equipped with Trifmet S45, S25, and S35 torches.

2. Safety Information

WARNING: Plasma cutting involves high voltage, intense heat, and UV radiation. Failure to follow safety precautions can result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including welding helmet with proper shade, flame-resistant clothing, gloves, and safety glasses.
• Ensure adequate ventilation to avoid inhaling fumes.
• Never operate the plasma cutter in wet conditions or near flammable materials.
• Disconnect power to the plasma cutter before performing any installation, maintenance, or troubleshooting.
• Keep children and unauthorized personnel away from the work area.
• Inspect the torch head and cables for damage before each use. Do not use if damaged.

3. Package Contents

The Plasma Torch Head Kit includes the following components:

• 1 x Plasma Torch Head Cutting Body (assembled)
• 1 x Wrench/Accessory Tool (for nozzle/electrode replacement)

Image 3.1: Plasma Torch Head with wrench and accessories.

This image displays the complete plasma torch head assembly along with the small wrench and other accessories provided in a clear plastic bag, ready for use or maintenance.

4. Setup and Installation

Before installing the new plasma torch head, ensure your plasma cutter is turned off and disconnected from the power source.

1. Prepare the Plasma Cutter: Disconnect the old torch head from your plasma cutter, if applicable. Refer to your plasma cutter's manual for specific instructions on torch removal.
2. Inspect the New Torch Head: Carefully unpackage the new Generic Plasma Torch Head. Inspect it for any visible damage during shipping.
3. Connect the Torch Head: Align the connector of the new torch head with the corresponding port on your plasma cutter. Securely attach the torch head, ensuring a tight and stable connection. The design ensures a precision fit for optimal air flow and sealing.
4. Verify Connections: Double-check all connections to ensure they are secure and free from obstructions.

Image 4.1: Disassembled Plasma Torch Head.

This image illustrates the plasma torch head disassembled, showing the two halves of the red casing and the internal components, including the copper wiring and the torch body itself. This view helps in understanding the internal structure for proper assembly or maintenance.

5. Operating Instructions

Once the plasma torch head is securely installed, you can proceed with operation according to your plasma cutter's specific instructions. This torch head is designed for stable performance and precise cuts.

1. Power On: Connect your plasma cutter to the power source and turn it on.
2. Set Parameters: Adjust the amperage and air pressure settings on your plasma cutter according to the material thickness and type you are cutting. Refer to your plasma cutter's manual for recommended settings.
3. Initiate Arc: Position the torch head over the workpiece. Press the trigger to initiate the pilot arc and begin cutting. Maintain a consistent standoff distance for optimal cut quality.
4. Cut Material: Guide the torch smoothly along the desired cut line. The robust construction and precision fit design contribute to consistent arc stability and clean edges.
5. Power Off: After cutting, release the trigger, turn off the plasma cutter, and disconnect it from the power source.

Image 5.1: Assembled Plasma Torch Head.

This image shows the fully assembled plasma torch head, featuring its ergonomic red handle and the metal cutting tip with a standoff guide. This is how the torch head appears when ready for operation.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your plasma torch head. Always disconnect power before performing maintenance.

1. Electrode and Nozzle Inspection: Regularly inspect the electrode and nozzle for wear. Replace them when they show signs of pitting, excessive wear, or damage to maintain cut quality.
2. Cleaning: Keep the torch head clean from slag and debris. Use a soft brush or cloth. Avoid using abrasive materials that could damage components.
3. Cable Inspection: Check the torch cable for any cuts, abrasions, or signs of heat damage. Replace the torch head if the cable is compromised.
4. Air Flow: Ensure the air passages within the torch head are clear to maintain proper air flow for efficient cutting.

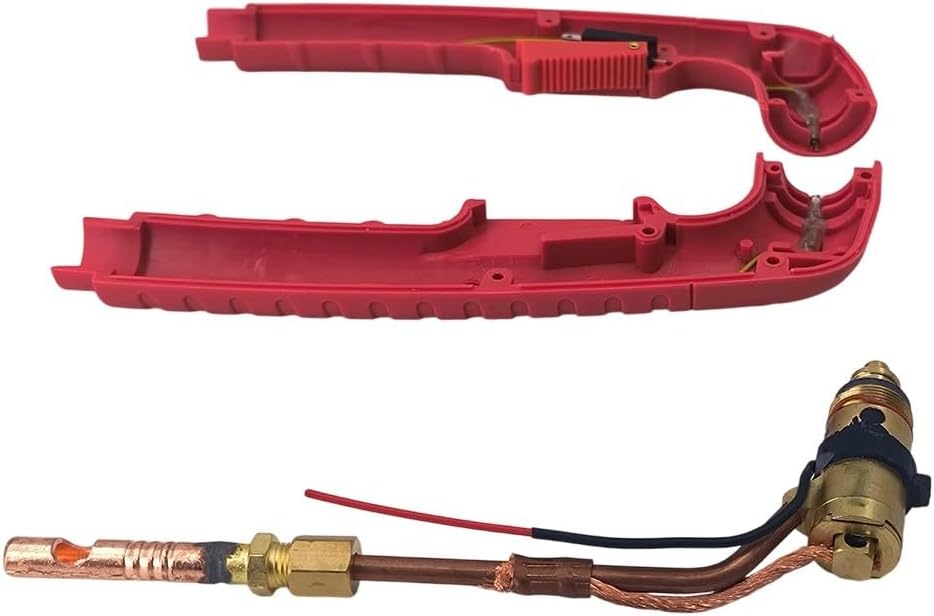

Image 6.1: Internal Components for Maintenance.

This image provides a detailed view of the internal components of the plasma torch head, including the copper tubing, wiring, and the main brass body. This perspective is useful for understanding how the torch functions and for identifying parts during maintenance or repair.

7. Troubleshooting

If you encounter issues with your plasma torch head, consider the following common problems and solutions:

• No Arc:
  • Check power supply to the plasma cutter.
  • Ensure torch trigger is fully depressed.
  • Inspect electrode and nozzle for wear; replace if necessary.
  • Verify all torch connections are secure.
• Poor Cut Quality / Rough Edges:
  • Replace worn electrode and nozzle.
  • Adjust air pressure and amperage settings on the plasma cutter.
  • Ensure proper standoff distance from the workpiece.
  • Check for clean air supply to the plasma cutter.
• Short Consumable Life:
  • Ensure correct amperage and air pressure settings for the material.
  • Avoid dragging the torch tip on the workpiece excessively.
  • Check for proper grounding of the workpiece.

For issues not resolved by these steps, consult your plasma cutter's specific manual or contact a qualified technician.

8. Specifications

9. Warranty and Support

This Generic Plasma Torch Head Cutting Body is manufactured to stringent quality control standards. For specific warranty information, please refer to the retailer or manufacturer from whom the product was purchased.

For technical support or inquiries regarding compatibility and replacement parts, please contact your product supplier or refer to the support resources provided by your plasma cutter's manufacturer.
