MALOL Swivel Rocking Recliner Glider Chair

1. Safety Information

Please read and understand all safety information before assembling or using this product. Retain this manual for future reference.

• Maximum Weight Recommendation: This chair has a maximum weight capacity of 300 pounds (136 kg). Do not exceed this limit to prevent injury or damage to the chair.
• Allergens: While the chair is designed with durable materials, it may contain materials that could cause allergic reactions in sensitive individuals. If you or someone using the chair has allergies, please take appropriate precautions.
• Children and Pets: Keep children and pets away from the chair during assembly. Ensure they do not play with the chair's mechanisms or packaging materials.
• Stable Surface: Always place the chair on a flat, stable, and level surface to prevent tipping.
• Moving Parts: Be aware of moving parts during operation (rocking, swiveling, reclining) to avoid pinching or injury. Keep hands and feet clear of the mechanism.

2. Product Overview

The MALOL Swivel Rocking Recliner Glider Chair is designed for comfort and versatility, featuring multiple functions for relaxation. This chair combines a smooth gliding motion with a convenient reclining feature, offering 360° swivel, 30° rocking, and a reclining range from 90° to 150°.

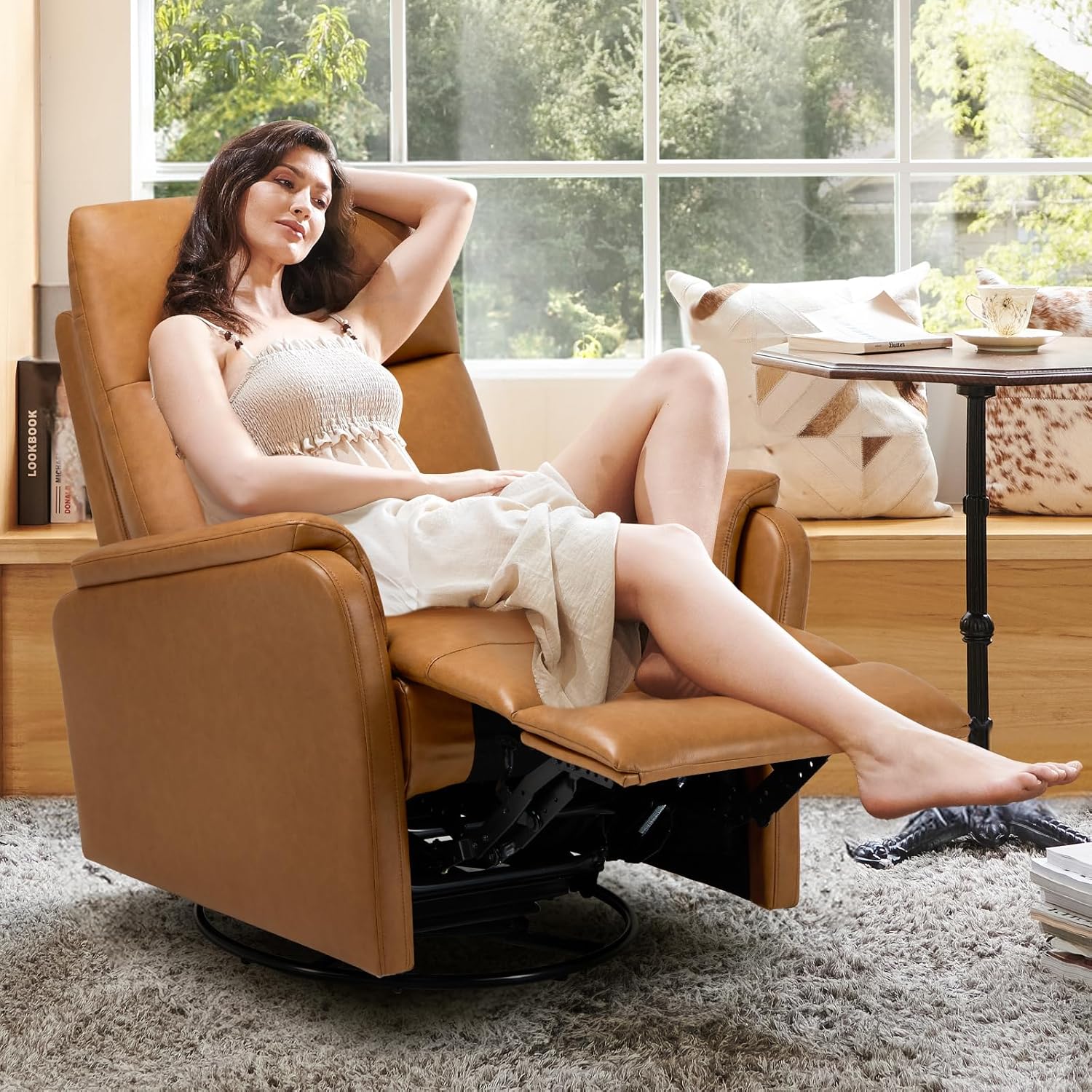

Image 2.1: The MALOL Swivel Rocking Recliner Glider Chair, showcasing its camel PU leather upholstery and partially extended footrest.

Key Features:

• Multi-functional Design: Combines swivel, rocking, and reclining capabilities.
• Adjustable Recline: Backrest reclines from 90° to 150° with an integrated footrest.
• Premium Comfort: High-density foam cushioning, overstuffed armrests, headrest, and ergonomic backrest.
• Durable Construction: Sturdy frame and wear-resistant, waterproof PU leather upholstery.
• Space-Saving: Compact dimensions suitable for various room sizes.

Product Dimensions:

Refer to the diagram below for detailed measurements of the chair in its upright and reclined positions.

Image 2.2: Detailed product dimensions including height, width, depth, and seat measurements. The chair measures approximately 30.12" W x 35.43"-53.15" D x 36.22"-40.35" H.

3. Setup and Assembly

This product requires assembly. Please ensure all components are present before beginning. The chair is shipped in two separate boxes, which may arrive at different times. Please wait for both boxes before starting assembly.

Image 3.1: The chair components are delivered in two separate boxes. Please ensure both boxes have arrived before proceeding with assembly.

Detailed assembly instructions are included within the product packaging. Follow the step-by-step guide provided to ensure correct and safe assembly. It is recommended to have two people for assembly.

Before You Begin:

• Unpack all components and verify against the parts list in the included assembly guide.
• Clear a spacious area for assembly.
• Keep all small parts out of reach of children.

4. Operating Instructions

The MALOL Swivel Rocking Recliner Glider Chair offers multiple modes of operation for your comfort.

4.1 Swivel Function

The chair features a 360° swivel base, allowing you to rotate freely without moving the entire chair. Simply apply gentle pressure with your feet to turn the chair in any direction.

Image 4.1: The stable metal base allows for smooth 360° swivel motion.

4.2 Rocking Function

The chair provides a gentle rocking motion of approximately 30°. To engage the rocking function, simply lean back and forth. Ensure the chair is in its upright, non-reclined position for optimal rocking.

4.3 Reclining Function

The chair's backrest can recline from 90° to 150°, and the footrest extends simultaneously. To recline:

1. Locate the pull ring on the inside of the armrest.
2. Tug the pull ring firmly to release the backrest and extend the footrest.
3. Lean back to achieve your desired recline angle. The chair supports multiple angles up to approximately 150°.
4. To return to the upright position, gently push the footrest down with your legs while leaning forward. The backrest will follow.

Image 4.2: The pull ring located on the inner side of the armrest activates the reclining mechanism and extends the footrest.

Image 4.3: The chair offers various reclining positions, suitable for reading, watching television, or napping.

5. Maintenance

Proper care and maintenance will extend the life and appearance of your MALOL recliner chair.

• Cleaning: The PU leather upholstery is resistant to scratches, stains, peeling, and cracking. For general cleaning, wipe the surface with a clean, damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the material.
• Spills: Blot spills immediately with a clean, dry cloth. Do not rub, as this can spread the stain.
• Mechanism Care: Periodically check all bolts and screws to ensure they are tight. If the reclining or swivel mechanism feels stiff, a small amount of silicone-based lubricant can be applied to moving parts, avoiding contact with upholstery.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause the PU leather to fade or dry out over time.

6. Troubleshooting

If you encounter any issues with your chair, refer to the following common troubleshooting steps:

• Reclining Mechanism Not Working:
  • Ensure the pull ring is fully engaged. Sometimes a firm tug is required.
  • Check for any obstructions beneath the chair or around the footrest mechanism that might be preventing movement.
  • Verify that all assembly bolts related to the mechanism are securely tightened. Refer to the assembly instructions.
  • If the issue persists, contact customer support for further assistance.
• Chair Feels Unstable or Wobbly:
  • Ensure the chair is placed on a flat, even surface.
  • Check and tighten all assembly bolts and screws, especially those connecting the base and seat.
• Squeaking Noises:
  • Apply a small amount of silicone lubricant to the moving parts of the swivel or reclining mechanism.
  • Ensure all bolts are tightened, as loose connections can cause noise.

7. Warranty and Support

For information regarding the product warranty, please refer to the documentation included with your purchase or contact the retailer where the chair was acquired. Warranty terms and conditions may vary.

If you require further assistance, have questions about assembly, operation, or encounter any issues not covered in this manual, please contact MALOL customer support through the contact information provided with your purchase or on the official MALOL website.
