fhsbxcvb BN59-01268D TV Remote Control User Manual

Introduction

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your fhsbxcvb BN59-01268D TV Remote Control. This remote is designed as a direct replacement for compatible Samsung TV models, including BN59-01268C and BN59-01303A, offering seamless control without the need for programming or pairing.

Setup

Battery Installation

The BN59-01268D remote control requires two AAA batteries (not included) for operation. Please follow these steps to install the batteries:

1. Locate the battery compartment on the back of the remote control.
2. Press down on the tab and slide the battery cover downwards to open it.
3. Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Slide the battery cover back into place until it clicks securely.

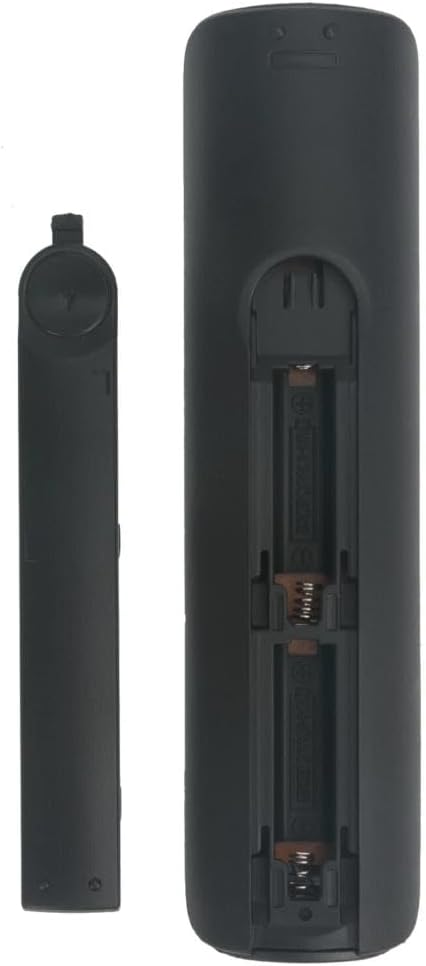

Figure 1: Battery compartment on the back of the remote control.

Initial Use

This remote control is designed for immediate use with compatible Samsung TVs. No programming or pairing is required. Once batteries are installed, point the remote at your TV and begin operation.

Operating Instructions

The BN59-01268D remote control provides access to all essential TV functions. Familiarize yourself with the button layout for optimal use.

Figure 2: Front view of the BN59-01268D remote control with button layout.

Key Button Functions

• Power Button (Red): Turns the TV on or off.
• Source: Selects input sources (HDMI, AV, etc.).
• Number Pad (0-9): Directly enters channel numbers.
• VOL (+/-): Adjusts the volume level.
• CH (Up/Down): Changes TV channels.
• MUTE: Mutes or unmutes the TV audio.
• SETTINGS: Accesses the TV's settings menu.
• GUIDE: Displays the electronic program guide.
• INFO: Shows information about the current program.
• Directional Pad (Up/Down/Left/Right) & Enter: Navigates menus and confirms selections.
• RETURN: Returns to the previous screen or menu.
• EXIT: Exits the current menu or application.
• Colored Buttons (A, B, C, D): Provide access to specific functions depending on the TV model or application.
• Playback Controls (Play, Pause, Stop, Fast Forward, Rewind): Controls media playback.

Maintenance

Cleaning

To clean the remote control, gently wipe it with a soft, dry cloth. Do not use liquid cleaners, sprays, or abrasive materials, as these can damage the remote's surface or internal components.

Battery Replacement

Replace the batteries when the remote's response becomes sluggish or it stops functioning. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries or different types of batteries.

Storage

When not in use for extended periods, remove the batteries to prevent leakage, which can damage the remote control. Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

• Remote not responding:
  • Ensure fresh batteries are correctly installed.
  • Check for any obstructions between the remote and the TV's infrared sensor.
  • Verify that the remote is pointed directly at the TV.
• Limited operating range:
  • Replace the batteries with new ones.
  • Ensure there are no strong light sources or electronic devices interfering with the infrared signal.
• Certain functions not working:
  • Confirm your TV model is compatible with the BN59-01268D remote. While broadly compatible, some specific TV features may vary.
  • Refer to your TV's user manual for specific function details.

Specifications

Warranty Information

This product comes with a 30-day warranty from the date of purchase. Please retain your proof of purchase for any warranty claims.

Support Information

For further assistance or inquiries not covered in this manual, please refer to the manufacturer's website or contact their customer support. Ensure you have your product model number (BN59-01268D) available when seeking support.
