Brushless DC Controller Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Brushless DC Controller. This controller is designed for use with 36V/48V motors in electric scooters, specifically compatible with the LIVIAE M7 model. Please read this manual thoroughly before installation and use to ensure safe and efficient performance.

Important Safety Notice: It is illegal to ride electric scooters on public roads, pavements, or cycle paths in many regions. This product is intended only for use on private land with the owner's permission and in compliance with all local regulations.

2. Product Overview

The Brushless DC Controller is a key component for managing the power delivery to your electric scooter's motor, ensuring stable and efficient operation. It features a compact design and durable construction.

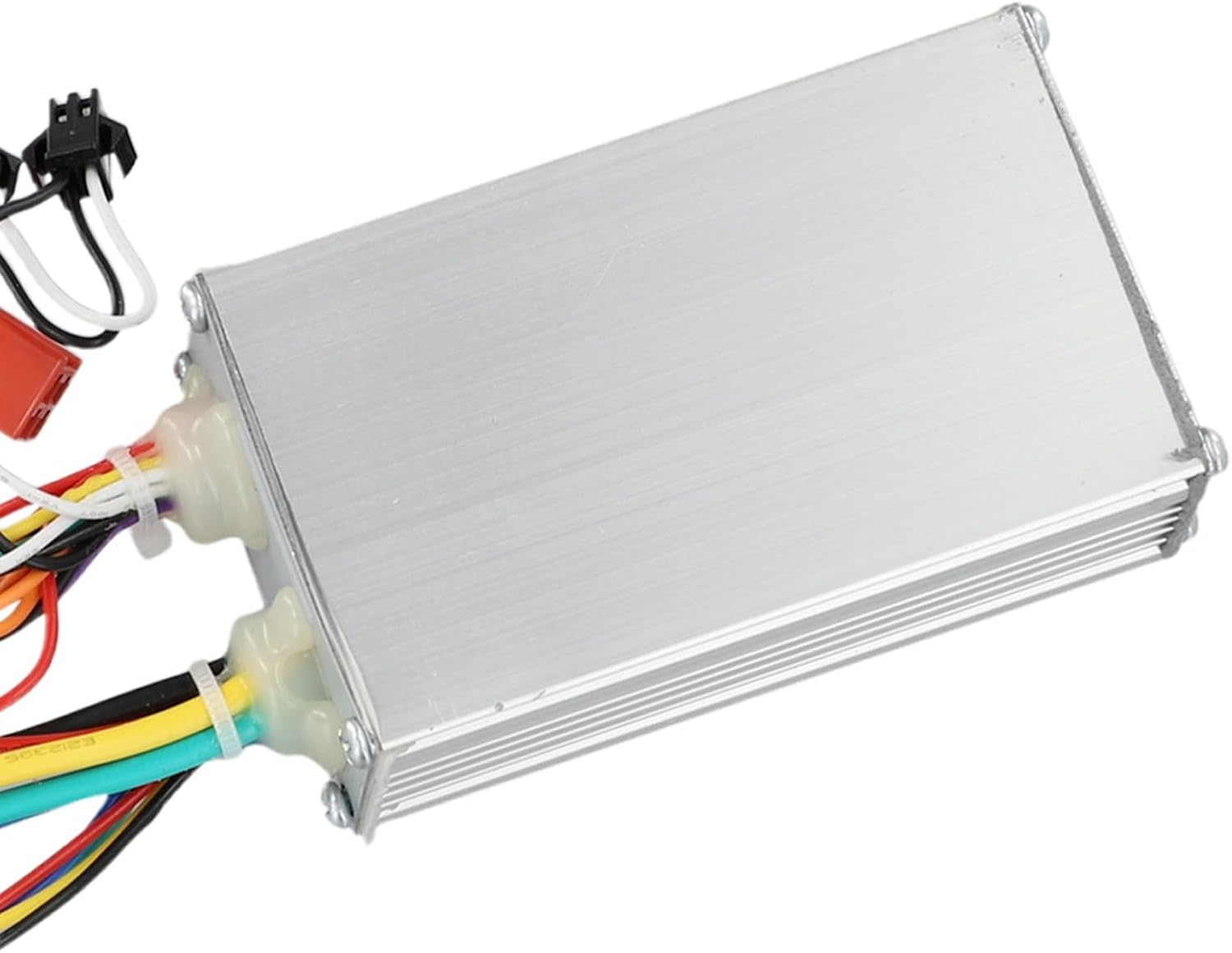

Figure 2.1: Front view of the Brushless DC Controller with all wiring harnesses.

Key Features:

• Intelligent Control: Designed for electric scooters, providing intelligent control for a smooth and efficient riding experience.
• Voltage Compatibility: Seamlessly works with 36V/48V motors.
• Power Output: Delivers 350W of power for dynamic performance.
• Durable Construction: Crafted from plastic and metal for reliability and longevity.
• Compact Design: Measures approximately 9x5.5x3 cm and weighs about 190g, facilitating easy installation.

Figure 2.2: Dimensions of the Brushless DC Controller (9cm x 5.5cm x 3cm).

3. Setup and Installation

Proper installation is crucial for the controller's functionality and safety. If you are unsure about any steps, consult a qualified technician.

1. Safety First: Ensure the electric scooter's power is completely off and the battery is disconnected before beginning installation.
2. Identify Components: Familiarize yourself with the various connectors on the controller. These typically include power input, motor phase wires, hall sensor wires, throttle input, brake signals, and display connections. Refer to Figure 3.1 for a visual guide to the controller's label and wiring.
3. Mounting: Securely mount the controller in a protected area of the scooter, away from direct moisture and excessive heat. Ensure adequate ventilation.
4. Wiring Connections:
   • Connect the main power wires (red for positive, black for negative) to the battery.
   • Connect the three motor phase wires (typically green, blue, yellow) to the corresponding motor wires.
   • Connect the Hall sensor wires (usually a five-wire connector) to the motor's Hall sensor port.
   • Connect the throttle, brake levers, and any display or light connections according to your scooter's wiring diagram.
   • Ensure all connections are firm and insulated to prevent short circuits.
5. Initial Test: After all connections are made, re-connect the battery. Perform a low-speed test in a safe, open area to verify proper motor function, throttle response, and brake operation.

Figure 3.1: Controller label displaying specifications such as Voltage, Current Limiting, Undervoltage, Angle, Model, Function, and Date.

4. Operating Instructions

Once installed, the controller operates automatically based on throttle input and other sensor data from your electric scooter.

• Power On: Turn on your electric scooter's main power switch. The controller will initialize.
• Throttle Control: Gently apply the throttle to accelerate. The controller will regulate power to the motor based on your input.
• Braking: Activating the brake levers will signal the controller to cut power to the motor, ensuring safe deceleration.
• Monitoring: Pay attention to any display indicators on your scooter for battery level, speed, and error codes.

Figure 4.1: The controller shown in context with an electric scooter, illustrating its typical application.

5. Maintenance

The Brushless DC Controller is designed for durability, but regular checks can extend its lifespan and ensure optimal performance.

• Keep Clean: Periodically clean the exterior of the controller to prevent dust and debris buildup, which can affect heat dissipation.
• Inspect Wiring: Regularly check all wiring connections for signs of wear, corrosion, or looseness. Secure any loose connections and replace damaged wires.
• Avoid Moisture: While the housing offers some protection, avoid exposing the controller to heavy rain or submersion in water.
• Temperature Management: Ensure the controller is not operating in excessively hot environments without adequate airflow. Overheating can damage internal components.

6. Troubleshooting

If you encounter issues with your electric scooter's motor performance, consider the following troubleshooting steps:

If problems persist after attempting these solutions, contact customer support or a qualified technician.

7. Specifications

8. Warranty and Support

Specific warranty information for this Generic product is not provided in the available documentation. Please refer to your point of purchase for details regarding warranty coverage and return policies.

For technical support or inquiries, please contact the seller or manufacturer directly through the platform where the product was purchased.
