1. Introduction and Overview
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your AGT INDUSTRIAL MX20R Mini Excavator. The MX20R is a 1.2-ton tracked crawler mini excavator designed for precision work in various environments. It features a 23 HP Rato gasoline engine, pilot controls, and a hydraulic thumb for enhanced versatility.
Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

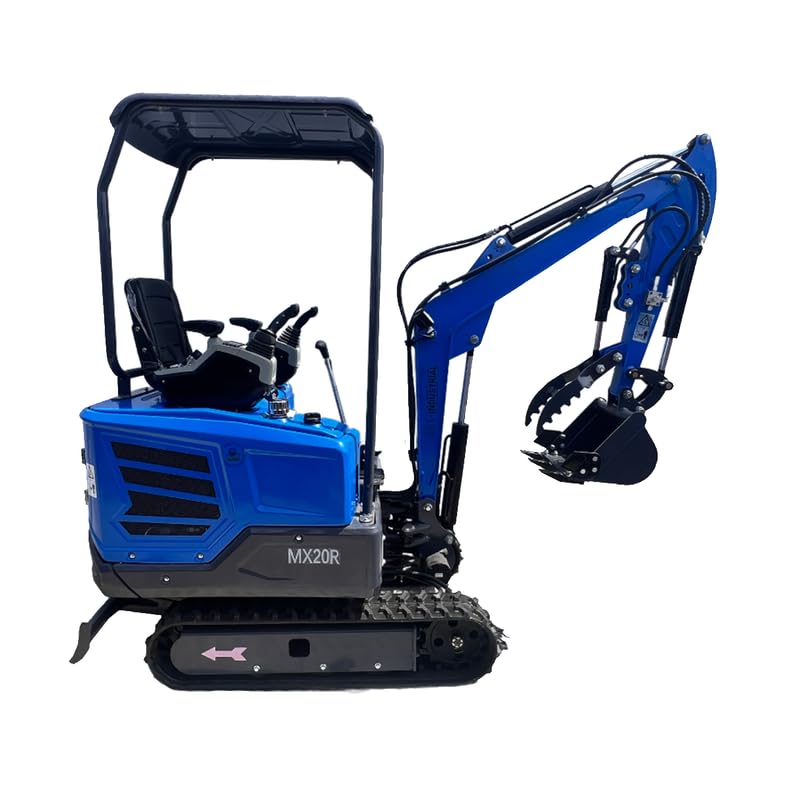

Figure 1.1: AGT INDUSTRIAL MX20R Mini Excavator. This image shows the full excavator from a side angle, highlighting the boom, arm, bucket, and hydraulic thumb attachment.
2. Safety Information
Operating heavy machinery like the MX20R Mini Excavator requires strict adherence to safety protocols. Failure to follow these guidelines can result in serious injury or death.
- Read the Entire Manual: Understand all operating procedures and safety warnings before starting the machine.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including a hard hat, safety glasses, hearing protection, safety boots, and gloves.
- Site Inspection: Before operation, inspect the work area for hazards such as uneven terrain, underground utilities, overhead power lines, and unstable structures.
- Unauthorized Personnel: Keep all unauthorized personnel, especially children, away from the operating area.
- Machine Stability: Operate on stable, level ground. Be aware of the machine's center of gravity and avoid sudden movements on slopes.
- Engine Exhaust: Ensure adequate ventilation when operating the engine, as exhaust fumes contain carbon monoxide.
- Hydraulic Pressure: Hydraulic systems operate under high pressure. Never attempt to repair pressurized lines.
- Emergency Stop: Familiarize yourself with the location and operation of the emergency stop button.
3. Product Components and Features
The AGT INDUSTRIAL MX20R Mini Excavator is equipped with several key components designed for efficient digging and material handling.
- Engine: 23 HP Rato gasoline engine provides reliable power.
- Pilot Controls: Ergonomic joystick controls for precise and smooth operation of the boom, arm, bucket, and swing functions.
- Hydraulic Thumb: An integrated hydraulic thumb allows for grasping and moving various materials, enhancing the machine's versatility.
- Tracks: Durable rubber tracks provide excellent traction and maneuverability on diverse terrains.
- Blade: Front-mounted dozer blade for backfilling, grading, and stabilizing the machine.
- Operator Station: Designed for operator comfort and visibility, with essential gauges and controls easily accessible.
Figure 3.1: Excavator Arm and Boom Assembly. This image shows a detailed side view of the excavator's arm and boom, highlighting the hydraulic cylinders and pivot points.
Figure 3.2: Hydraulic Thumb and Bucket. A close-up view of the excavator's bucket and the integrated hydraulic thumb, demonstrating its grasping capability.
4. Setup and Pre-Operation Checks
Before each operation, perform the following checks to ensure the machine is in safe working condition.
- Fluid Levels: Check engine oil, hydraulic fluid, and coolant levels. Top up if necessary using recommended fluids.
- Fuel: Ensure the fuel tank contains sufficient gasoline for the planned operation. Use fresh, clean fuel.
- Track Condition: Inspect tracks for damage, proper tension, and debris. Adjust tension if tracks are too loose or too tight.
- Hydraulic Hoses and Cylinders: Check all hydraulic hoses for leaks, cracks, or damage. Inspect cylinders for leaks or scoring.
- Controls: Verify that all control levers and pedals move freely and return to their neutral positions.
- Safety Devices: Ensure all safety decals are legible and safety guards are in place and functional.
- Attachments: Confirm that the bucket and hydraulic thumb are securely attached and in good condition.
5. Operating Instructions
Familiarize yourself with the controls before attempting to operate the excavator.
5.1. Starting the Engine
- Ensure the parking brake is engaged and all controls are in neutral.
- Turn the ignition key to the 'ON' position.
- If equipped, engage the choke for cold starts.
- Turn the ignition key to the 'START' position and release once the engine starts. Do not crank for more than 10 seconds.
- Allow the engine to warm up for a few minutes before operating.
5.2. Basic Controls (Pilot Control)
The MX20R utilizes pilot controls, typically two joysticks for boom, arm, bucket, and swing, and foot pedals for track movement.
- Left Joystick: Controls swing (left/right) and arm (in/out).
- Right Joystick: Controls boom (up/down) and bucket (curl/dump).
- Foot Pedals: Control forward and reverse movement of the tracks.
- Hydraulic Thumb Control: Typically a separate lever or button, consult your specific machine's control layout.
- Dozer Blade Control: Lever to raise and lower the front blade.
5.3. Movement and Excavation
- Tracking: Use the foot pedals to move the excavator. Coordinate both pedals for straight movement.
- Digging: Use a combination of boom, arm, and bucket movements to dig. Start by lowering the boom, extending the arm, and curling the bucket.
- Dumping: Swing the upper structure to the desired dump location, raise the boom, and dump the bucket.
- Using the Hydraulic Thumb: Engage the thumb to grasp objects in conjunction with the bucket.
5.4. Shutting Down
- Park the excavator on level ground.
- Lower all attachments to the ground.
- Allow the engine to idle for a few minutes to cool down.
- Turn the ignition key to the 'OFF' position.
- Remove the key to prevent unauthorized use.
6. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your MX20R Mini Excavator.
6.1. Daily Checks
- Inspect for leaks (oil, fuel, hydraulic fluid).
- Check all fluid levels.
- Inspect tracks and undercarriage for damage or debris.
- Clean debris from the engine compartment and radiator.
6.2. Weekly / 50-Hour Maintenance
- Lubricate all grease points on the boom, arm, bucket, and swing bearing.
- Check battery terminals for corrosion and ensure connections are tight.
- Inspect air filter; clean or replace if necessary.
- Check track tension and adjust as needed.
6.3. Monthly / 250-Hour Maintenance
- Change engine oil and oil filter.
- Replace fuel filter.
- Inspect hydraulic fluid and filter; replace if contaminated or at recommended intervals.
- Check fan belt tension.
Figure 6.1: Rear View of MX20R. This image shows the rear of the excavator, including the engine compartment access panel and the dozer blade in a lowered position, relevant for maintenance checks.
7. Troubleshooting
This section outlines common issues and potential solutions. For problems not listed or if solutions do not resolve the issue, contact AGT INDUSTRIAL support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, dead battery, faulty ignition, clogged fuel filter | Check fuel level, charge/replace battery, inspect ignition system, replace fuel filter. |
| Loss of hydraulic power | Low hydraulic fluid, clogged hydraulic filter, faulty pump | Check hydraulic fluid level, replace hydraulic filter, contact service for pump inspection. |
| Overheating engine | Low coolant, clogged radiator, faulty thermostat, excessive load | Check coolant level, clean radiator fins, inspect thermostat, reduce load. |
| Tracks not moving | Track motor issue, hydraulic pressure loss, debris in tracks | Inspect tracks for obstructions, check hydraulic system, contact service. |
8. Specifications
Detailed technical specifications for the AGT INDUSTRIAL MX20R Mini Excavator.
| Specification | Value |
|---|---|
| Model | AGT-MX20R |
| Operating Weight | 1.2 tons (approx. 2400 lbs / 1088 kg) |
| Engine | Rato Gasoline Engine |
| Net Horsepower (HP) | 23 HP |
| Product Dimensions (L x W x H) | 110.31 x 37.87 x 87.09 inches (280.2 x 96.2 x 221.2 cm) |
| Max Digging Depth | 2,257 mm (89 in) |
| Max Digging Height | 2,890 mm (114 in) |
| Max Dumping Height | 1,958 mm (77 in) |
| Max Reach at Ground | 3,305 mm (130 in) |
| Blade Width | 1000 mm (39.5 in) |
| Blade Height | 180 mm (7 in) |
| Blade Max Lifting Height | 288 mm (11 in) |
| Blade Max Drop Depth | 146 mm (5.5 in) |
9. Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact AGT INDUSTRIAL directly. Refer to your purchase documentation for specific warranty terms and conditions.
