KEIKI King Size Lift Up Storage Platform Bed Frame User Manual

1. Introduction and Safety Information

Thank you for choosing the KEIKI King Size Lift Up Storage Platform Bed Frame. This manual provides essential instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and proper use of your new bed frame.

Important Safety Instructions:

• Read all instructions carefully before assembly and use.
• Keep all small parts and packaging materials away from children.
• Assembly should be performed by two adults to prevent injury.
• Ensure all connections are secure before use. Periodically check and re-tighten fasteners.
• Do not exceed the maximum weight capacity of 500 lbs (227 kg).
• Keep hands and fingers clear of the hydraulic lift mechanism when operating the storage feature.
• Do not allow children to play on or around the hydraulic lift mechanism.

2. Product Overview

The KEIKI King Size Lift Up Storage Platform Bed Frame is designed for comfort and practicality, featuring an integrated headboard and a hydraulic lift system for under-bed storage. The frame is upholstered in soft beige chenille fabric.

Key Features:

• Hydraulic Storage Platform: Provides easy access to a spacious storage compartment beneath the mattress.
• Integrated Upholstered Headboard: Offers comfortable back support with plush chenille padding.
• Durable Construction: Features a solid metal frame with sturdy wood slats for stability and support.
• Chenille Fabric: Smooth, plush surface for a sophisticated look and comfortable touch.
• No Box Spring Required: Designed to support a mattress directly on the slats.

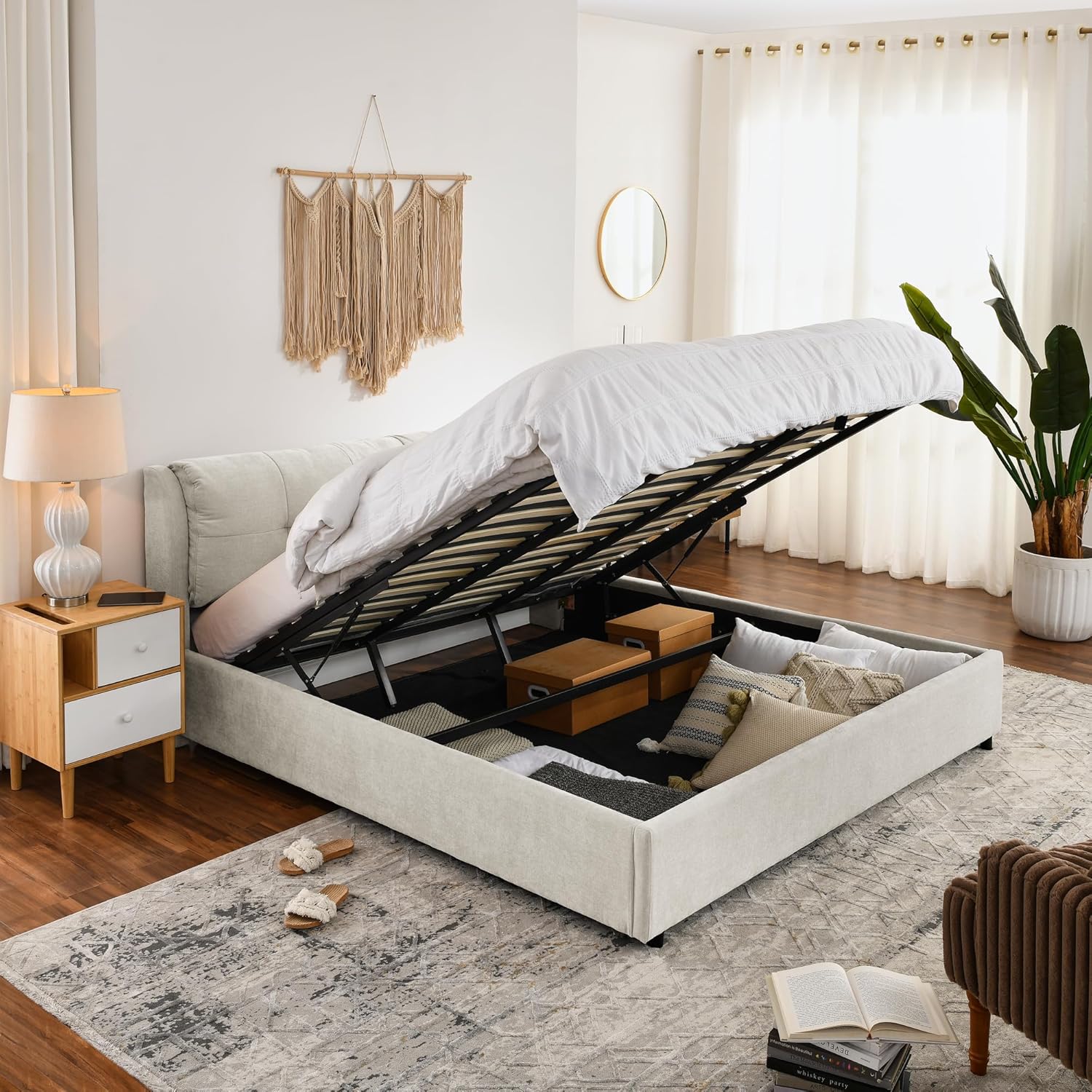

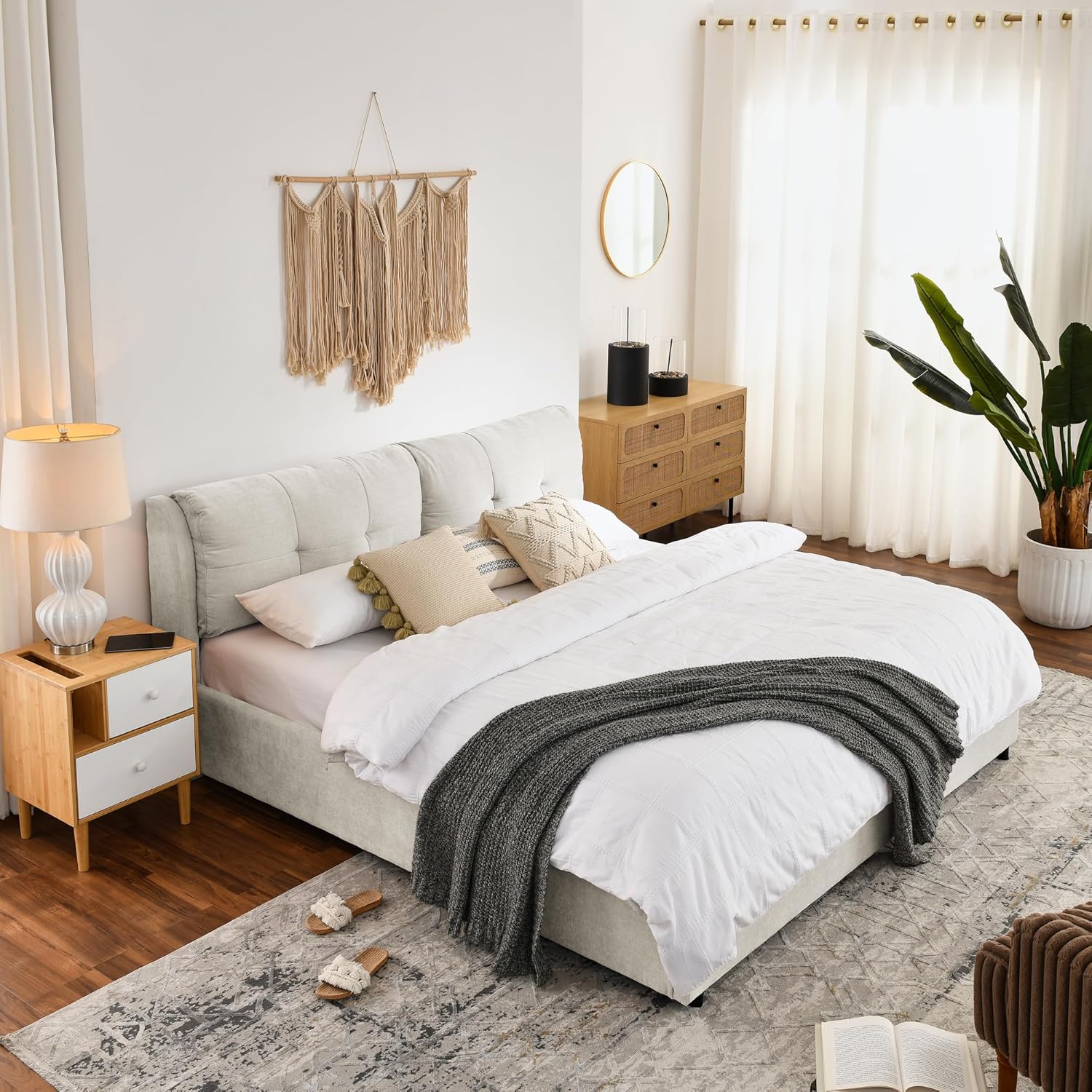

Product Images:

3. Setup and Assembly

The KEIKI King Size Bed Frame is designed for easy assembly. It is recommended that two adults perform the assembly. All necessary hardware and detailed instructions are included in the packaging. A power drill with a hex key attachment can speed up the assembly process.

General Assembly Steps:

1. Unpack all components and verify against the parts list provided in your package.
2. Assemble the headboard and footboard sections according to the specific instructions.
3. Attach the side rails to the headboard and footboard, ensuring all bolts are securely tightened.
4. Install the center support beam and legs.
5. Place the wooden slats onto the frame and secure them as instructed.
6. Install the hydraulic lift mechanism and mattress platform, following the detailed steps to ensure correct alignment and function.
7. Ensure all connections are firm and stable before placing your mattress on the frame.

Assembly Video:

4. Operating the Hydraulic Storage

The bed frame features a hydraulic lift system for convenient access to under-bed storage.

Instructions for Use:

1. To open the storage compartment, grasp the handle or edge of the mattress platform firmly.
2. Gently lift the platform upwards. The hydraulic mechanism will assist in raising and holding the platform in an open position.
3. To close, pull the platform downwards with a controlled motion until it rests securely on the bed frame.

Important Considerations:

• Ensure the mattress is properly seated on the platform before lifting or closing.
• Do not overload the storage compartment. Distribute weight evenly.
• When filling the storage space, be aware that the head of the bed needs to tilt down slightly for the hydraulic lift to operate correctly. Avoid placing items that obstruct this movement.

5. Maintenance and Care

Proper care will extend the life and appearance of your KEIKI bed frame.

Upholstery Care (Chenille Fabric):

• Regularly vacuum the chenille fabric using a soft brush attachment to remove dust and debris.
• For spills, blot immediately with a clean, dry cloth. Do not rub, as this can spread the stain.
• For tougher stains, use a mild fabric cleaner specifically designed for upholstery. Test on an inconspicuous area first.
• Avoid direct sunlight to prevent fading.

Frame and Slats Care:

• Periodically check all bolts and fasteners to ensure they remain tight. Re-tighten as necessary.
• Wipe the metal and wood components with a damp cloth. Avoid harsh chemicals.
• Ensure the area under the bed is kept clean and free of obstructions.

6. Troubleshooting

If you encounter issues with your bed frame, refer to the following common solutions:

Issue: Hydraulic lift mechanism is difficult to open or close.

• Solution: Ensure the mattress is correctly positioned on the platform. Check for any obstructions in the storage compartment that might be preventing smooth operation. Verify that the hydraulic pistons are securely attached and not damaged.

Issue: Bed frame makes noise (squeaking, creaking).

• Solution: Tighten all bolts and fasteners on the frame, headboard, and slats. Ensure the slats are properly seated in their holders. Check that the center support legs are firmly on the floor.

Issue: Headboard feels loose.

• Solution: Re-tighten the bolts connecting the headboard to the side rails. Ensure the headboard is flush against the wall if applicable.

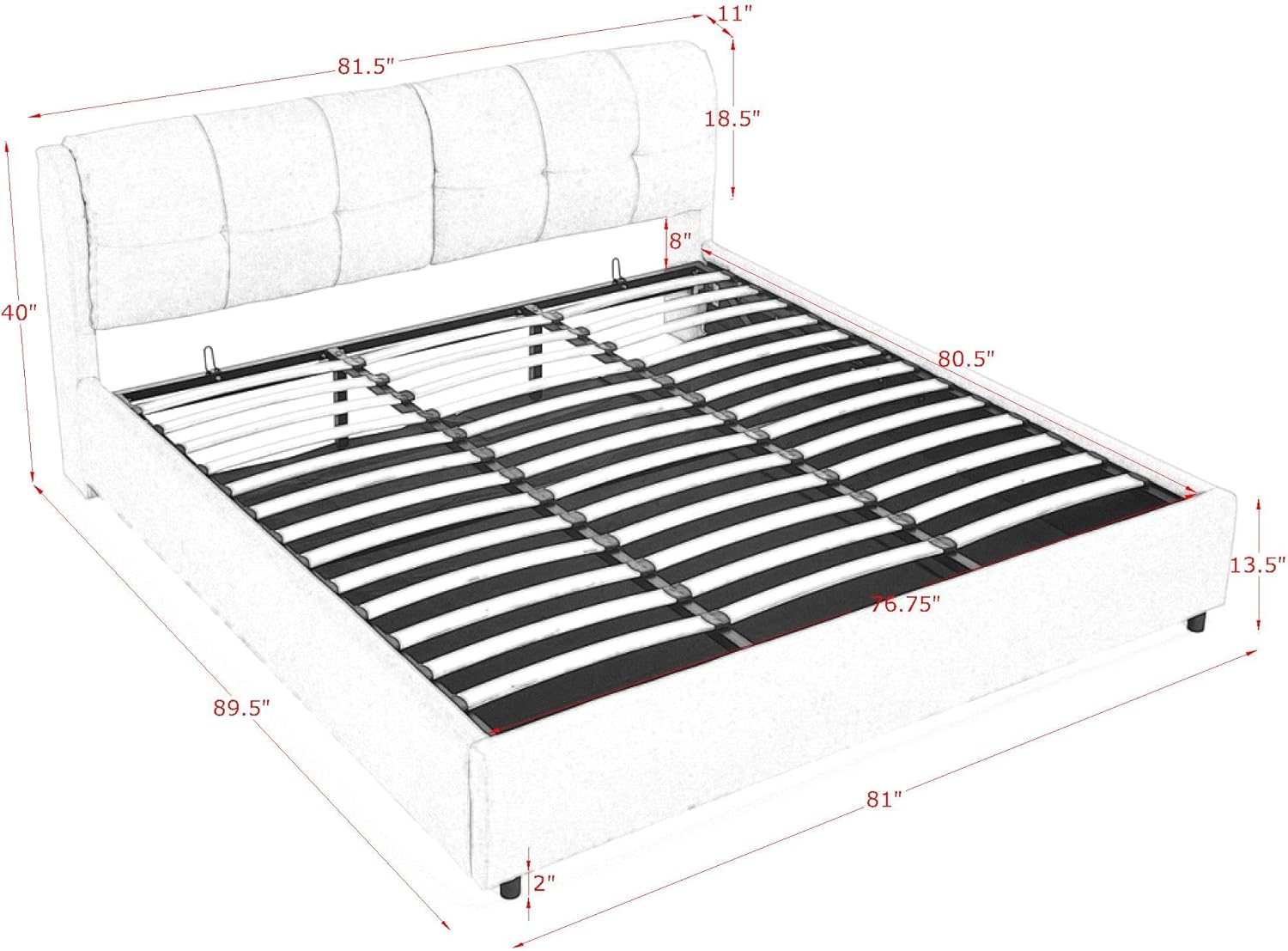

7. Specifications

8. Warranty and Support

For warranty information or if you require further assistance with your KEIKI King Size Lift Up Storage Platform Bed Frame, please refer to the warranty card included with your purchase or contact KEIKI customer support directly. Contact details can typically be found on the product packaging or the brand's official website.
