COMFEE' Portable Washing Machine 1.0 Cu.Ft (IEC) Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your COMFEE' Portable Washing Machine, model CF10EWR01W. This compact, fully automatic washing machine is designed for small households, apartments, RVs, or dormitories, offering convenience and effective laundry care.

Key features include a 1.0 cubic foot capacity, multiple washing programs, adjustable water levels, a durable stainless steel inner tub, and an LED display. Its portable design with wheels allows for easy relocation.

The COMFEE' portable washing machine is designed for convenient use in various living spaces.

2. Safety Information

Before operating the washing machine, please read all safety instructions carefully to prevent injury or damage. Keep this manual for future reference.

• Ensure the washing machine is placed on a stable, level surface to prevent vibration and noise.
• Connect the drain hose properly to avoid water leakage. It must be positioned over the edge of a wash basin, in a standpipe, or in a laundry tub.
• Do not operate the machine with a damaged power cord or plug.
• Keep children and pets away from the appliance during operation.
• Do not wash items that are soiled with flammable substances.
• Always unplug the machine before cleaning or performing any maintenance.

For detailed safety guidelines, refer to the official Safety Information PDF document: Safety Information (PDF)

3. Product Overview

The COMFEE' Portable Washing Machine is equipped with features designed for efficient and convenient laundry.

Components and Features:

• Control Panel with LED Display: For program selection and monitoring cycle status.
• Transparent Lid: Allows you to view the washing process.
• Stainless Steel Inner Tub: Durable and rust-resistant for long-lasting use.
• Lint Filter: Collects lint during washing cycles.
• Water Inlet and Drain Pump: For efficient water management.
• Wheels and Handles: Facilitate easy movement and relocation.
• Auto Unbalance Detection (AUD): Automatically corrects load unbalance to prevent leaks and ensure stable operation.
• Powerful Motor: Provides stable power with up to 700 RPM spin speed for effective water extraction.

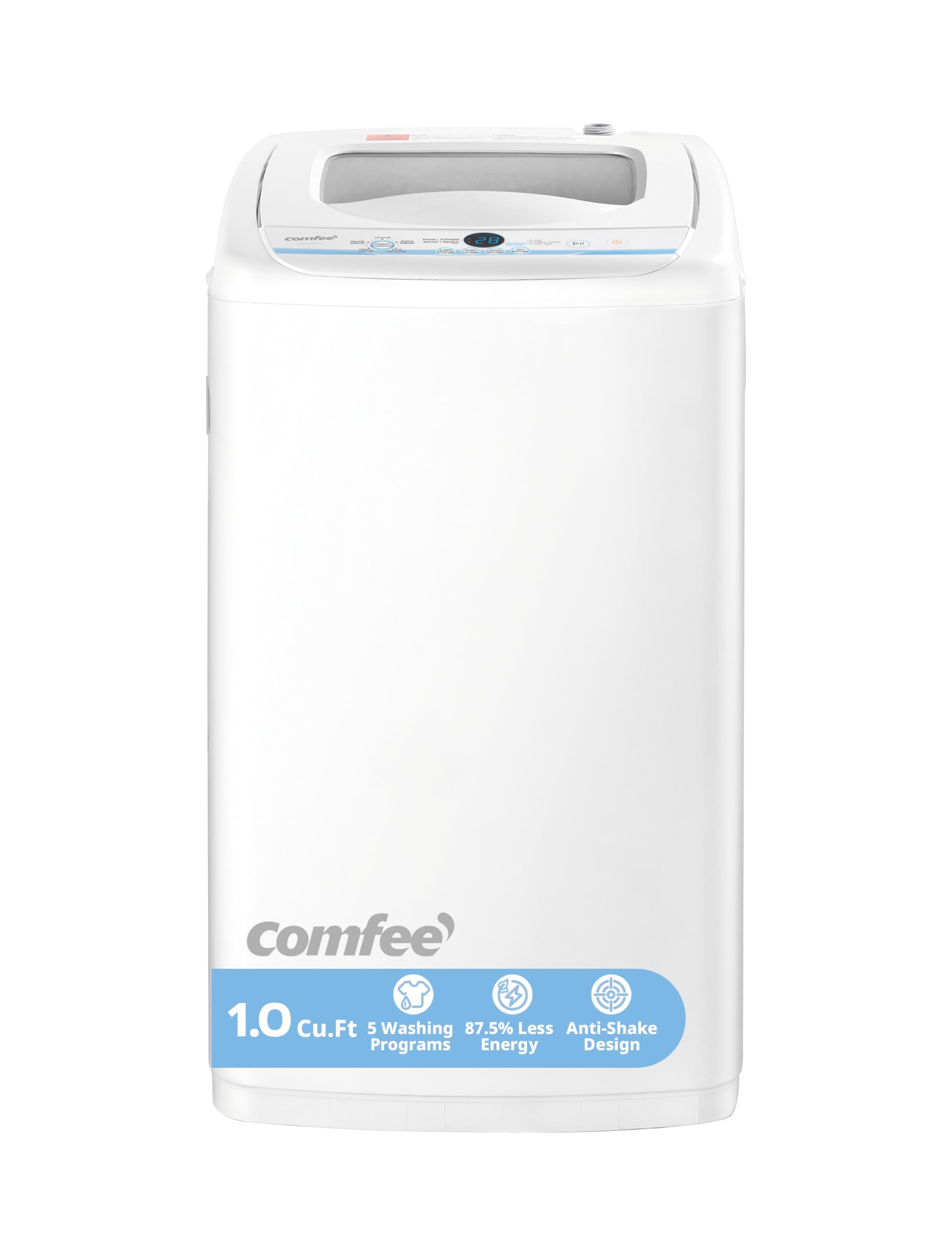

Front view of the COMFEE' Portable Washing Machine.

Side view of the washing machine, highlighting its compact design.

Detailed view of various features including the side handle, slow-close lid, and stainless steel drum.

4. Setup

Follow these steps to set up your washing machine for first use.

Included Components:

• Bottom Cover
• Owner's Manual
• Quick Connection Adaptor
• Water Intake Cap
• Water Supply Hoses (x2)

Tools Needed:

• Pliers
• Phillips Screwdriver
• Level

Installation Steps:

1. Unpacking: Carefully remove the washing machine from its packaging.
2. Install Bottom Cover: Attach the bottom cover to the base of the machine using the provided screws. This helps reduce noise during operation.
3. Leveling: Use a level to ensure the machine is perfectly balanced. Adjust the leveling feet as needed.
4. Water Supply Connection: Connect the water supply hoses to the designated inlets on the back of the machine and to your water faucet. Use the quick connection adaptor if necessary. Ensure connections are tight to prevent leaks.
5. Drain Hose Connection: Securely connect the drain hose. The drain hose must be positioned correctly to ensure proper drainage and prevent water leakage. Options include:
   • Over the edge of a wash basin.
   • Into a standpipe.
   • Into a laundry tub.

   Improper drain hose connection can lead to the washer not filling correctly or water leakage.

6. Power Connection: Plug the power cord into a grounded electrical outlet.

Visual guide for the four main installation steps, including bottom cover, hose connection, faucet adapter, and leveling feet.

5. Operating Instructions

Your COMFEE' washing machine offers various programs and settings for optimal laundry care.

Control Panel:

The intuitive control panel allows you to select programs, adjust settings, and monitor the wash cycle. The LED display shows the remaining time and current status.

The easy-to-use control panel with LED display.

Washing Programs:

Choose from 5 pre-set programs to suit different fabric types and soil levels:

• Heavy: For heavily soiled, durable items.
• Soft: For delicate garments requiring gentle care.
• Normal: Standard cycle for everyday laundry.
• Rapid: A quick 15-minute wash for lightly soiled items or last-minute needs.
• Soak: Pre-soaks clothes to help loosen tough stains before the main wash.

Illustration of the five available wash programs.

Adjustable Water Levels:

Select from 3 water levels (Small, Medium, Large) to match your load size, optimizing water usage and protecting clothes.

Visual representation of the three adjustable water levels.

Customizing Your Wash:

You can customize your washing program by selecting the desired load size, wash time, rinse time, and spin time. Refer to the control panel for specific button functions.

Reloading Feature:

The machine allows you to pause a cycle and add forgotten clothes. Press the 'Pause' button, wait for the machine to stop, add items, then press 'Start' to resume.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your washing machine.

Cleaning the Lint Filter:

The lint filter should be cleaned regularly to maintain washing efficiency. Locate the filter inside the tub, remove it, clean off accumulated lint, and reinsert it securely.

Cleaning the Inner Tub:

The stainless steel inner tub features an Auto Tub Clean System. Periodically run a tub clean cycle to prevent residue buildup and maintain hygiene.

General Care:

• Wipe down the exterior of the machine with a soft, damp cloth.
• After each wash, leave the lid slightly ajar to allow the tub to air dry and prevent odors.
• Check hoses for any signs of wear or leaks periodically.

7. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, consult the full owner's manual or contact customer support.

Auto Unbalance Detection (AUD):

The machine is equipped with AUD, which automatically detects and attempts to correct unbalanced loads during the spin cycle. If the unbalance cannot be corrected, the machine will alert you (e.g., via an error code or sound) and may pause the cycle. Redistribute the laundry evenly in the tub and restart the cycle.

The anti-shake design with Auto Unbalance Detection (AUD) helps prevent leaks and ensures stable operation.

Common Issues and Solutions:

• Water Leakage: Ensure all hose connections are tight and the drain hose is properly secured in a drain or sink.
• Machine Not Starting: Check if the power cord is securely plugged in and the lid is fully closed.
• Excessive Vibration/Noise: Verify the machine is level and the load is balanced. Redistribute clothes if necessary.
• Clothes Not Clean: Ensure you are using the correct wash program and water level for the load size and soil level. Clean the lint filter.

8. Specifications

Detailed technical specifications for the COMFEE' Portable Washing Machine model CF10EWR01W.

The compact footprint of the washing machine, illustrating its dimensions.

The washing machine is designed for high energy efficiency, saving up to 87.5% energy.

9. Warranty and Support

Your COMFEE' Portable Washing Machine is covered by a 1-year warranty from the date of purchase.

For returns, refunds, or replacements, the product is eligible within 30 days of receipt. Please refer to your purchase documentation for specific return procedures.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact COMFEE' customer support. Contact information can typically be found in the full owner's manual or on the official COMFEE' website.
