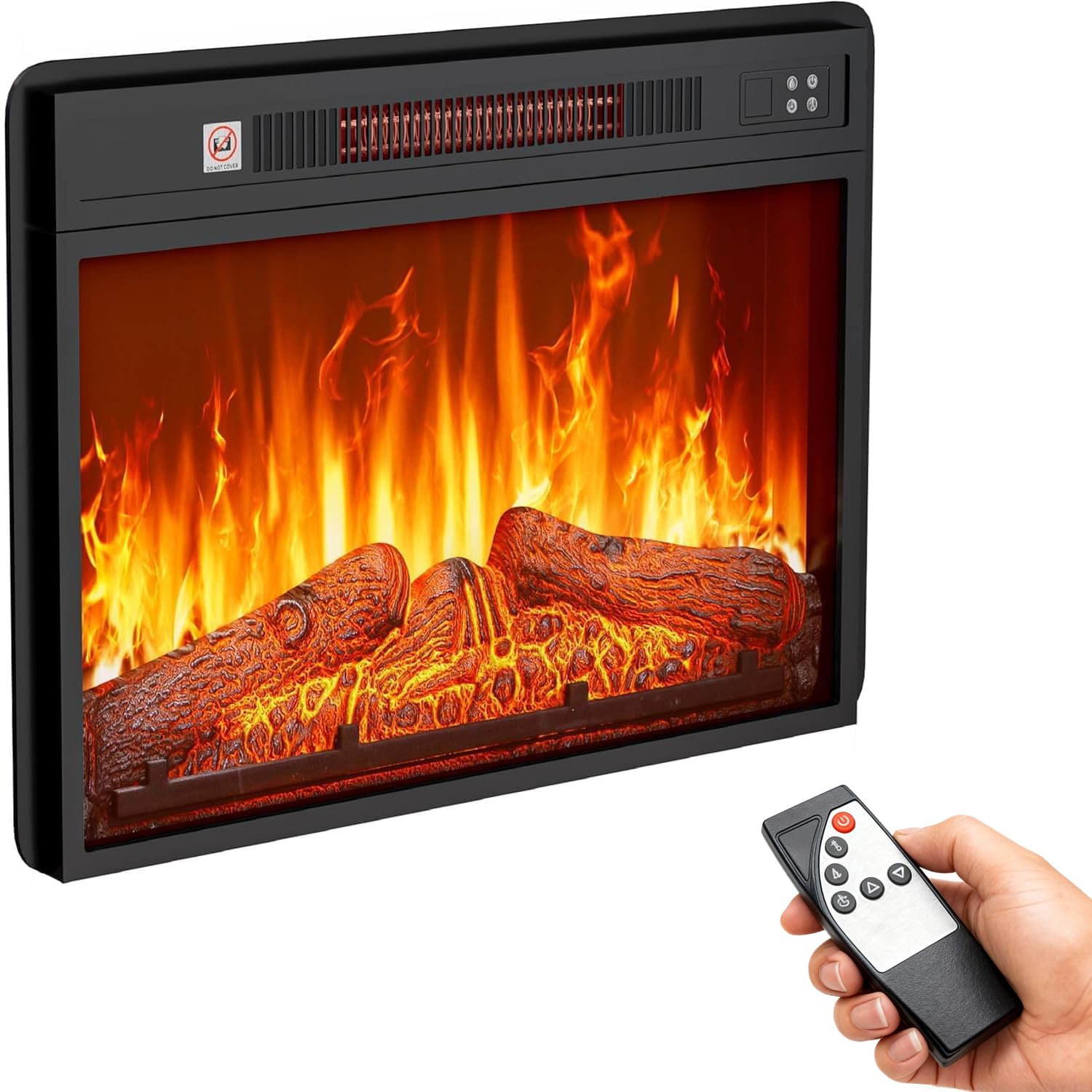

YITAHOME 24" Electric Fireplace Insert Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your YITAHOME 24" Electric Fireplace Insert. Please read all instructions carefully before use and retain this manual for future reference.

Safety Information

• Overheat Protection: The electric fireplace is equipped with a thermostat limiter that automatically shuts off the unit in case of overheating. This ensures safety and prevents damage.
• Ventilation: Do not block the air vents. Ensure proper clearance around the unit for adequate airflow.
• Foreign Objects: Do not insert foreign objects into the air vents or any openings of the fireplace.
• Placement: Ensure the fireplace is installed in a suitable location, away from flammable materials and in accordance with local building codes.
• Power Supply: Connect the unit to a properly grounded outlet. Do not overload electrical circuits.

Package Contents

Please check that all components are present and undamaged:

• YITAHOME 24" Electric Fireplace Insert
• Remote Control
• Instruction Manual
• Mounting Hardware (if applicable for installation type)

Installation Tips

The YITAHOME 24" Electric Fireplace Insert is designed for easy installation into TV cabinets, fireplace walls, or other suitable spaces. Ensure the chosen location provides adequate clearance for ventilation and access to a power outlet.

Refer to the detailed dimensions below to ensure proper fit:

For built-in installations, ensure the opening matches the fireplace dimensions precisely to allow for a flush and secure fit.

Operating Instructions

Remote Control Functions

The fireplace can be controlled using the included remote. Ensure the remote has working batteries.

Temperature Adjustment

The temperature can be adjusted from 62°F to 82°F (17°C to 27°C) to suit your comfort level. Use the temperature control buttons on the remote or the unit's control panel to set your desired heat output. The fireplace provides 5000 BTUs of heat, capable of warming areas up to 400 sq ft.

Flame Brightness

The fireplace features three levels of flame brightness. Adjust the brightness to create the desired ambiance in your room. The flame effect can be operated independently of the heating function.

Timer Control

Utilize the built-in timer function to set the fireplace to operate for a duration between 0.5 to 6 hours. This allows for convenient automatic shut-off.

Maintenance

To ensure the longevity and optimal performance of your electric fireplace, follow these maintenance guidelines:

• Cleaning: Ensure the unit is unplugged and cool before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or sprays.
• Air Vents: Regularly check and clean the air vents to prevent dust buildup, which can impede airflow and affect heating efficiency.
• Storage: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe location.

Troubleshooting

If you encounter any issues with your YITAHOME Electric Fireplace Insert, refer to the following common troubleshooting steps:

• No Power: Check if the power cord is securely plugged into a working electrical outlet. Verify that the circuit breaker has not tripped.
• No Heat: Ensure the heating function is activated and the temperature setting is above the current room temperature. Check for any obstructions in the air vents. The overheat protection may have activated; allow the unit to cool down before restarting.
• Remote Not Working: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace's receiver.
• Unusual Noises/Smells: If you notice unusual noises or a burning smell, immediately unplug the unit and contact customer support.

Specifications

Warranty and Support

This YITAHOME Electric Fireplace Insert comes with a Limited Warranty. For detailed warranty information, claims, or technical support, please refer to the warranty card included in your package or visit the official YITAHOME website. Please have your model number (MAYIHAAbvS) and purchase date available when contacting support.
