Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your COFaR Metal Armoire Wardrobe Closet. This unit is designed to offer versatile storage solutions for various rooms, featuring a durable metal construction and customizable interior. Please read these instructions carefully before beginning assembly or use to ensure proper setup and safe operation.
Image: Full view of the COFaR Metal Armoire Wardrobe Closet in Peacock Blue, showcasing its farmhouse design and gold handles.
Safety Information
Adhering to these safety guidelines will help prevent injury and damage to the product:
- Always ensure the cabinet is level and stable before use. Use the adjustable feet to compensate for uneven floors.
- Keep the doors closed when not in use to prevent accidental opening or injury.
- Do not overload the shelves or hanging rod. The maximum weight capacity for the entire unit is 120 pounds. Distribute weight evenly.
- Secure the cabinet to a wall using the included anti-tipping hardware. This is crucial for stability, especially in households with children or pets.
- Keep small parts away from children during assembly to avoid choking hazards.
Package Contents
Before beginning assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
- Cabinet Panels (Side panels, Top panel, Bottom panel, Back panels, Doors)
- Removable Hanging Rod
- Adjustable Shelves (2)
- Gold Handles (2)
- Adjustable Feet (4)
- Magnetic Door Catches
- Installation Hardware Kit (screws, bolts, anti-tipping kit)
- User Manual (this document)
Image: Illustration of product packaging and an estimated 30-minute assembly time.
Setup and Assembly
The COFaR Metal Armoire Wardrobe Closet is designed for straightforward assembly. Follow these steps carefully:
- Preparation: Unpack all components and lay them out on a clean, soft surface (e.g., a blanket or carpet) to prevent scratches. Identify each part using the included parts list.
- Attach Adjustable Feet: Securely attach the four adjustable feet to the bottom panel of the cabinet using the provided hardware.
- Assemble Frame: Connect the side panels, top panel, and bottom panel to form the main frame of the cabinet. Ensure all screws are tightened firmly but do not overtighten.
- Install Back Panels: Slide or attach the back panels into their designated grooves or positions.
- Attach Doors: Mount the doors to the cabinet frame using the hinges and hardware. Ensure the doors swing freely and align correctly.
- Install Handles: Attach the gold handles to the exterior of the doors.
- Insert Magnetic Catches: Install the magnetic door catches on the interior of the cabinet frame and doors to ensure secure closure.
- Configure Interior: Install the removable hanging rod and adjustable shelves according to your storage needs. The shelves can be placed at various heights using the pre-drilled holes.
- Leveling: Once assembled, place the cabinet in its desired location. Adjust the height of each foot individually to ensure the cabinet is perfectly level and stable on the floor.
- Secure to Wall: For enhanced safety and stability, especially in homes with children or pets, use the provided anti-tipping hardware to secure the top of the cabinet to a wall stud.
Image: Diagram illustrating two interior configuration options for the wardrobe, showing adjustable shelves and a removable hanging rod.
Operating Instructions
The COFaR Metal Armoire is designed for flexible and efficient storage.
Adjustable Shelves
The two included shelves can be repositioned to accommodate items of various heights. To adjust a shelf, first remove all items from it. Lift the shelf slightly and pull it out. Reinsert the shelf into the desired slots on the side panels, ensuring it is securely seated and level before placing items back on it.
Removable Hanging Rod
The hanging rod can be installed at the top or middle section of the cabinet, allowing for hanging clothes, coats, or other items. If you require more vertical space for shelves or larger items, the rod can be easily removed.
Magnetic Doors
The doors are equipped with magnetic catches to ensure they close securely and remain shut, keeping your belongings dust-free and neatly out of sight. Gently push the doors to close them until the magnets engage.

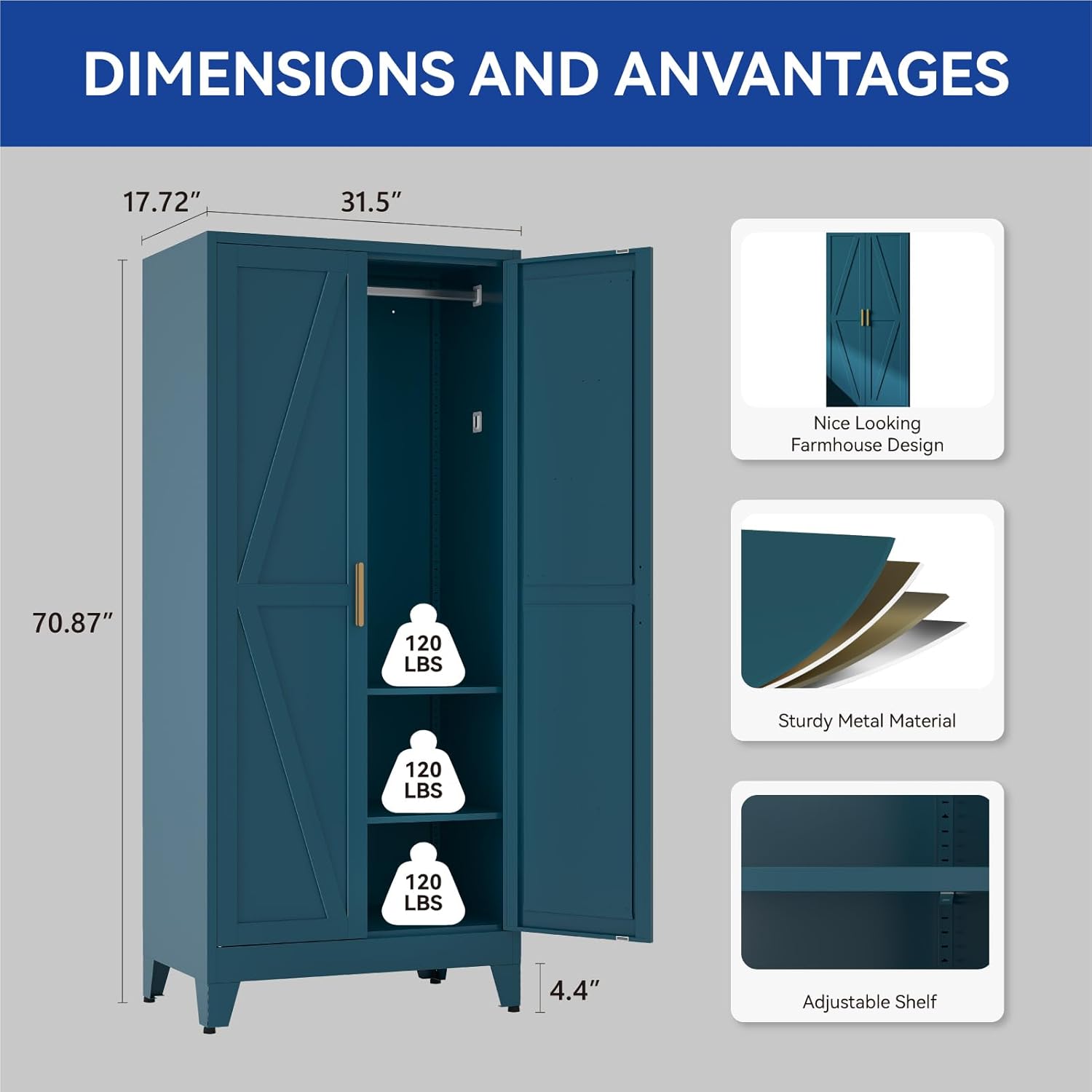

Image: Diagram illustrating the dimensions of the armoire and highlighting features such as the sturdy metal material and adjustable shelves.
Image: Interior view of two COFaR armoires side-by-side in a bedroom, showcasing clothes hanging and folded on shelves.
Maintenance
Proper care will extend the life and appearance of your COFaR Metal Armoire:
- Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild soap solution and immediately dry with a clean cloth. Avoid abrasive cleaners, harsh chemicals, or solvents, as these can damage the powder-coated finish.
- Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Retighten any loose hardware to maintain structural integrity.
- Leveling: Recheck the adjustable feet periodically to ensure the cabinet remains level, especially if it has been moved or if the floor settles.
- Door Alignment: If doors become misaligned, check the leveling of the cabinet and the tightness of the hinge screws. Adjust as necessary.
Troubleshooting
Here are solutions to common issues you might encounter:
- Cabinet is Wobbly:
Solution: Ensure the cabinet is placed on a flat, even surface. Adjust the individual adjustable feet until the cabinet is stable and does not rock. Verify that all assembly screws are fully tightened. - Doors Do Not Align or Close Properly:
Solution: First, ensure the cabinet is perfectly level by adjusting the feet. Check that the door hinges are securely fastened to both the door and the cabinet frame. If necessary, slightly loosen hinge screws, adjust the door position, and then retighten. Ensure no items inside the cabinet are obstructing the door's path. - Shelves Sagging:
Solution: This indicates overloading. Reduce the weight on the shelf. Ensure the shelf is correctly seated in all four support slots. - Missing Parts:
Solution: Refer to the 'Package Contents' section and the parts list in your installation kit. If parts are missing, contact COFaR customer support for replacements.
Specifications
| Feature | Detail |
|---|---|
| Brand | COFaR |
| Model Number | KFY_MZ11 |
| Material | Alloy Steel |
| Color | Peacock Blue |
| Product Dimensions (D x W x H) | 17.72" x 31.5" x 70.87" |
| Item Weight | 74 Pounds |
| Maximum Weight Capacity | 120 Pounds |
| Number of Shelves | 2 (Adjustable) |
| Number of Doors | 2 |
| Key Features | Adjustable Feet, Adjustable Shelves, Anti-Tipping, Removable Hanging Rod, Magnetic Doors |
| Assembly Required | Yes |
Warranty Information
For information regarding product warranty, please refer to your purchase documentation or contact COFaR customer support directly. Standard warranties typically cover manufacturing defects for a limited period from the date of purchase. Keep your proof of purchase for any warranty claims.
Customer Support
Should you require further assistance, have questions about assembly, or need to report missing or damaged parts, please contact COFaR customer service. You can find more information and contact details on the official COFaR store page:
