1. Introduction
This instruction manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of the Generic Hydraulic Pump. This pump is designed for use with Komatsu Bulldozer models D60S-8, D60S-6, D60PL-6, D60P-6, and D60A-6. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of the product.
2. Safety Information
Working with hydraulic systems and heavy machinery requires strict adherence to safety protocols. Failure to follow these instructions can result in serious injury, death, or equipment damage.
- Professional Installation Recommended: Installation should only be performed by qualified personnel with experience in hydraulic systems and heavy equipment.
- Depressurize System: Always ensure the hydraulic system is fully depressurized before attempting any installation, maintenance, or repair.
- Use Proper Tools: Use only appropriate tools for installation and maintenance.
- Wear Personal Protective Equipment (PPE): Always wear safety glasses, gloves, and other necessary PPE.
- Check for Leaks: After installation, carefully check all connections for leaks before operating the machine.
- Fluid Handling: Hydraulic fluid can be hazardous. Handle with care and dispose of properly.
3. Package Contents
Verify that all items listed below are present and undamaged upon opening the package.
- Hydraulic Pump (1 unit)
4. Product Overview
The Generic Hydraulic Pump is engineered for stable characteristics and high reliability, ensuring optimal performance in demanding Komatsu Bulldozer applications. It is a direct replacement for part numbers 705-30-31203 and 705-30-31200.

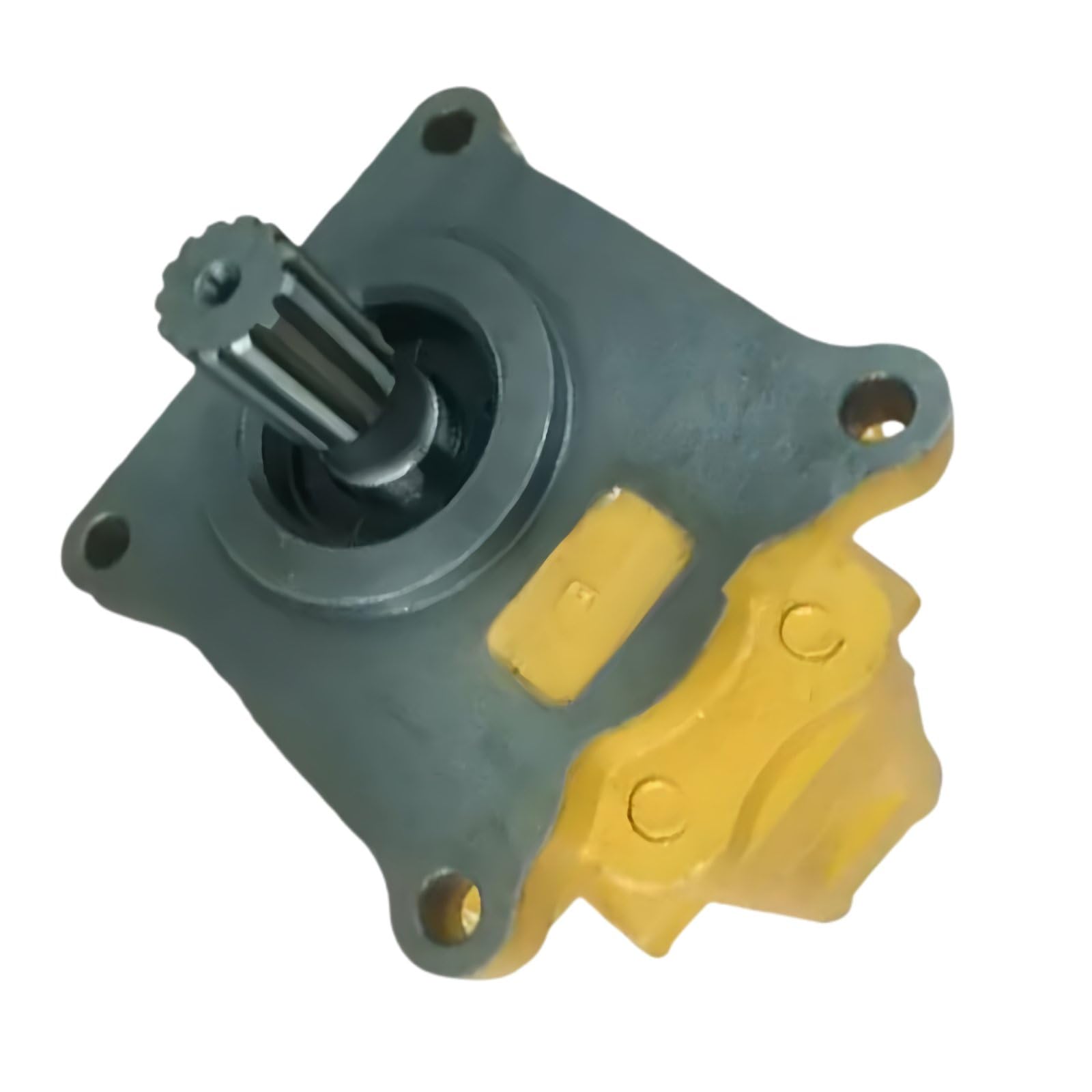

Figure 4.1: Front-side view of the hydraulic pump, showing its robust yellow casing and the splined drive shaft.
Figure 4.2: Side view of the hydraulic pump, highlighting the main body and connection points.
Figure 4.3: Alternate side view of the hydraulic pump, providing a comprehensive look at its exterior.

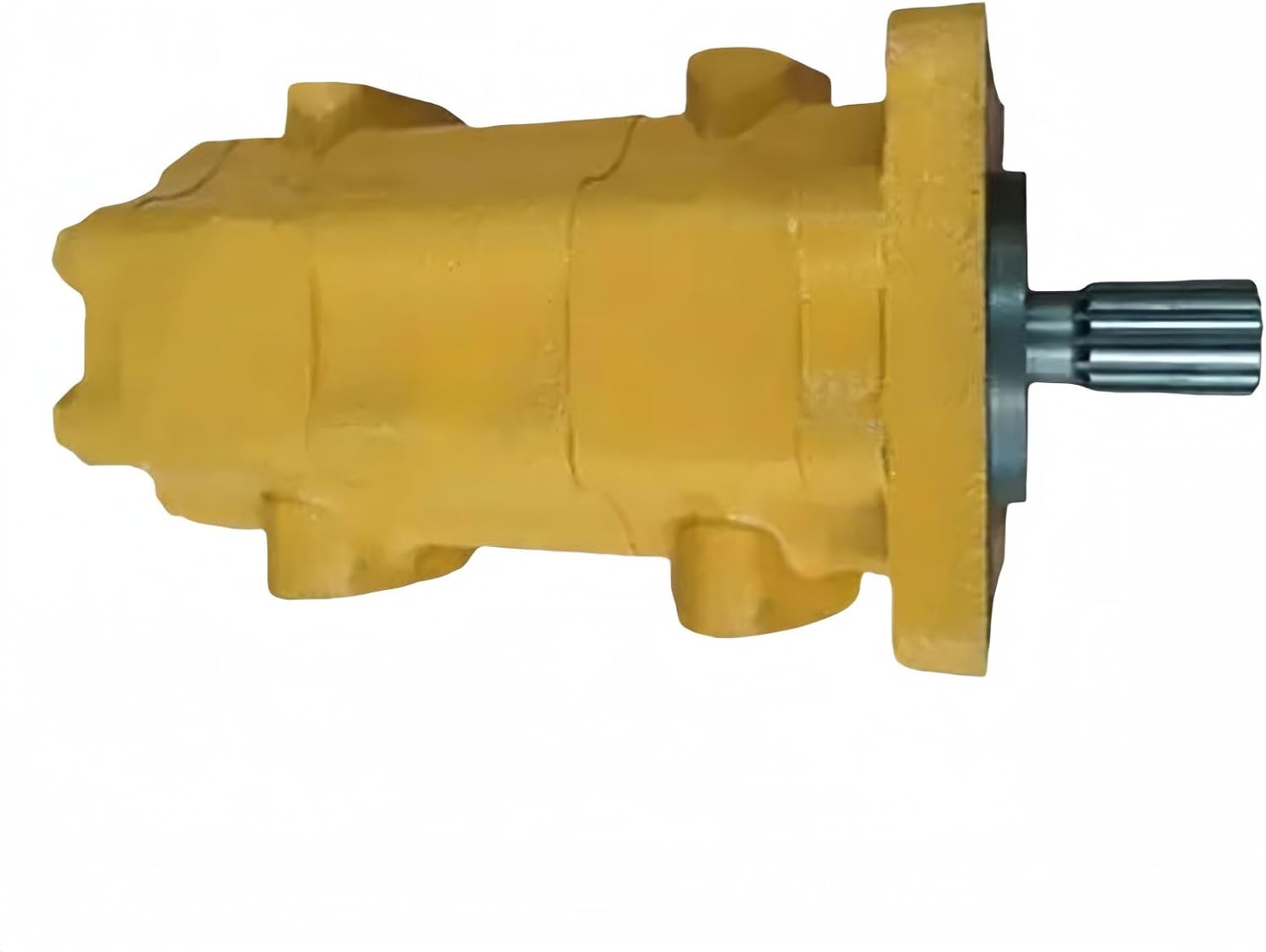

Figure 4.4: Top view of the hydraulic pump, illustrating the mounting flange and the drive shaft connection.
Figure 4.5: Bottom view of the hydraulic pump, detailing the mounting bolt pattern and the splined shaft.
5. Setup and Installation
Proper installation is critical for the performance and longevity of the hydraulic pump. Refer to the Komatsu Bulldozer's official service manual for specific procedures related to your machine model.
- Preparation: Ensure the bulldozer is parked on a level surface, the engine is off, and the hydraulic system is completely depressurized. Disconnect the battery.
- Drain Hydraulic Fluid: If necessary, drain the hydraulic fluid from the system according to the bulldozer's service manual.
- Remove Old Pump: Carefully disconnect all hydraulic lines and mounting bolts from the old pump. Cap all open lines to prevent contamination.
- Inspect Mounting Area: Clean the mounting surface on the bulldozer and inspect for any damage or debris.
- Install New Pump: Position the new hydraulic pump, ensuring proper alignment with the drive shaft. Secure it with the appropriate mounting bolts, tightening them to the manufacturer's specified torque.
- Connect Hydraulic Lines: Reconnect all hydraulic lines to the new pump. Ensure all connections are clean and properly sealed to prevent leaks.
- Refill Hydraulic System: Refill the hydraulic reservoir with the correct type and amount of hydraulic fluid as specified by Komatsu.
- Bleed Air: Follow the bulldozer's service manual instructions to bleed air from the hydraulic system.
- Initial Start-up: Start the engine and operate the hydraulic system at low RPMs, checking for proper function, unusual noises, and leaks. Gradually increase RPMs and test all hydraulic functions.
Tip: Always check the old part number or the model of the applicable machine before purchasing and installing to ensure compatibility.
6. Operating Instructions
Once the hydraulic pump is correctly installed and the system is bled, operate the Komatsu Bulldozer according to its original operating manual. Pay attention to the following general guidelines:
- Monitor System Pressure: Regularly monitor hydraulic system pressure gauges to ensure they are within the specified operating range.
- Check Fluid Levels: Before each operation, check the hydraulic fluid level and top up if necessary.
- Listen for Unusual Noises: Any new or unusual noises from the pump or hydraulic system should be investigated immediately.
- Avoid Overloading: Do not exceed the bulldozer's rated hydraulic capacity, as this can stress the pump and other components.
7. Maintenance
Regular maintenance extends the life of your hydraulic pump and ensures reliable operation of your Komatsu Bulldozer.
- Hydraulic Fluid: Change hydraulic fluid at recommended intervals using the specified type and viscosity. Contaminated fluid is a leading cause of pump failure.
- Hydraulic Filters: Replace hydraulic filters regularly. Clogged filters can restrict flow and damage the pump.
- Inspect Hoses and Connections: Periodically inspect all hydraulic hoses, lines, and connections for wear, damage, or leaks. Replace any compromised components.
- Check Mounting Bolts: Ensure all pump mounting bolts remain tight.
- Cleanliness: Keep the area around the pump clean to prevent dirt and debris from entering the hydraulic system.
8. Troubleshooting
This section outlines common issues and potential solutions. For complex problems, consult a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hydraulic pressure | Low fluid level, air in system, clogged filter, faulty relief valve, pump failure | Check fluid level, bleed air, replace filter, inspect relief valve, inspect pump |
| Low hydraulic pressure | Worn pump, internal leaks, incorrect relief valve setting, restricted suction line | Inspect pump, check for leaks, adjust relief valve, clear suction line |
| Excessive noise from pump | Air in system, cavitation, worn bearings, misalignment, low fluid level | Bleed air, check suction line, inspect bearings, check alignment, check fluid level |
| Overheating hydraulic fluid | Low fluid level, clogged cooler, incorrect fluid type, excessive system load | Check fluid level, clean cooler, use correct fluid, reduce load |
9. Specifications
Key specifications for the Generic Hydraulic Pump (Model 705-30-31203).
- Product Name: Hydraulic Pump
- Product Numbers: 705-30-31203, 7053031203, 705-30-31200, 7053031200
- Application: Komatsu Bulldozer D60S-8, D60S-6, D60PL-6, D60P-6, D60A-6
- Manufacturer: Generic
- Item Weight: Approximately 1 pound
- Package Dimensions: Approximately 1 x 1 x 1 inches
- Exterior Finish: Polished
10. Warranty Information
This Hydraulic Pump comes with a 90-day warranty from the date of purchase. During this period, we offer free repair, return, or exchange service for any manufacturing defects or malfunctions under normal operating conditions. This warranty does not cover damage caused by improper installation, misuse, neglect, accident, or unauthorized modifications.
11. Customer Support
If you have any questions regarding the installation, operation, maintenance, or troubleshooting of your Hydraulic Pump, please do not hesitate to contact us. We are committed to providing prompt assistance and will reply within 24 hours to help solve any issues you may encounter.
Please have your product model number (705-30-31203 or 705-30-31200) and purchase details ready when contacting support.
