Marcree 2-3 Gun Safe Instruction Manual

Important Safety Information

Please read all instructions carefully before operating your Marcree 2-3 Gun Safe. Failure to follow these instructions may result in injury or damage to the product.

• Do not move the safe once loaded. The safe's weight and stability may cause injury if moved improperly.
• Be aware that the alarm mode may disturb others or attract attention.
• Always keep emergency keys and passcodes in a secure location, away from unauthorized individuals and children.
• Ensure the safe is securely mounted to a wall or floor to prevent tipping and unauthorized removal.

Product Overview

The Marcree 2-3 Gun Safe is designed to provide secure storage for firearms and valuables. It features multiple access methods and robust construction for enhanced security.

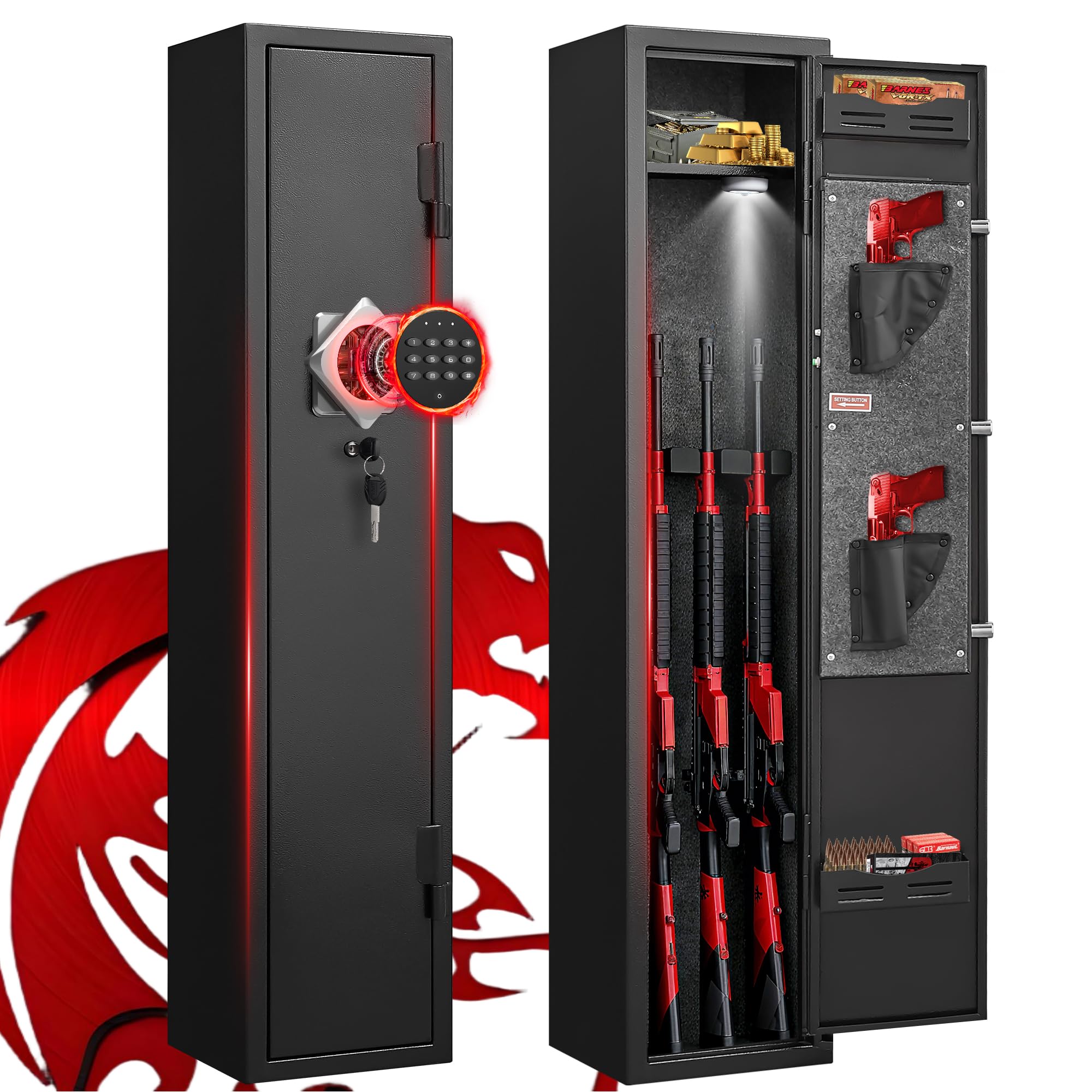

Image: Marcree 2-3 Gun Safe in a home environment.

Key Features

• Three Access Methods: Digital keypad, backup physical keys, and an emergency battery box for power failure.
• Silent & Alarm Modes: Choose silent mode for discreet access or alarm mode for a loud alert upon tampering.
• No Assembly Required: The safe arrives ready for immediate use.
• Durable Construction: Made from 100% metal with a 60mm thick door and 4x20mm solid anti-pry bolts.
• Removable Storage Shelf: Customize interior space for various items.
• Pistol Pouches: Convenient storage for handguns on the inside of the door.
• Internal LED Light: Illuminates the interior for easy visibility in low-light conditions.
• Mounting Capability: Includes bolts for securing the safe to a floor or wall.

Image: Detailed view of the safe's interior features.

Included Components

• Marcree 2-3 Gun Safe Unit
• 4 x Bolts for mounting
• 2 x Emergency Keys
• 1 x Emergency Battery Box
• 1 x Instruction Manual

Image: Dimensions and included accessories.

Setup Instructions

Unpacking

Carefully remove the safe from its packaging. Inspect for any damage. It is recommended to keep all packaging materials for 30 days in case of return or warranty claims.

Battery Installation

Locate the battery compartment on the inside of the safe door. Install 4 AA alkaline batteries (not included) according to the polarity markings.

Setting Your PIN Code

Follow these steps to set your personal PIN code for the digital keypad:

1. Open the gun safe door.
2. Press the red "SETTING BUTTON" located on the inside of the door (usually near the battery compartment).
3. When the keypad lights up, enter your new 3-8 digit PIN code.
4. Press '#' to confirm. A beep and light off confirms your PIN is set.

Image: Visual guide for setting the PIN code.

Mounting the Safe

To prevent the safe from tipping over or being stolen, it is highly recommended to secure it to a wall or floor using the provided bolts.

1. Choose a suitable location, ensuring there are no electrical wires or plumbing behind the mounting surface.
2. Mark the desired drilling points using the pre-drilled holes on the back or bottom of the safe as a template.
3. Drill pilot holes into the wall or floor.
4. Align the safe with the drilled holes and insert the provided bolts.
5. Tighten the bolts securely.

Image: Guide for securing the safe to a wall.

Operating Instructions

Opening with PIN Code

1. Touch the keypad to activate it.
2. Enter your programmed PIN code.
3. Press '#' to confirm.
4. Turn the handle to open the door within a few seconds.

Opening with Emergency Key

In case of forgotten PIN or battery failure, use the emergency key.

1. Locate the keyhole cover (usually a small, removable plate) on the front of the safe.
2. Remove the cover.
3. Insert the emergency key and turn it to unlock.
4. Turn the handle to open the door.

Using the Emergency Battery Box

If the internal batteries are dead and you don't have the emergency key readily available, you can use the external emergency battery box.

1. Insert 4 AA batteries into the emergency battery box.
2. Plug the emergency battery box cable into the external power port on the keypad (USB-C or similar).
3. The keypad will power on, allowing you to enter your PIN code.
4. Enter your PIN code and open the safe. Replace the internal batteries immediately.

Silent & Alarm Modes

The safe features both silent and alarm modes for versatile security.

• Silent Mode: For discreet access, hold down the '#' key until the sound turns off. The keypad will still function, but without audible feedback.
• Alarm Mode: If an incorrect PIN is entered 3 consecutive times, a loud alarm (70dB) will sound. The alarm will also activate if the safe is tampered with or shaken (vibration sensor). To deactivate the alarm, enter the correct PIN code.

Image: Alarm system activation during a forced entry attempt.

Adjusting Interior Racks and Shelves

The safe's interior is customizable. The rifle racks can be adjusted to accommodate different firearm lengths. The removable shelf can be positioned at various heights or removed entirely.

Maintenance

• Battery Replacement: Replace the internal AA batteries every 6-12 months, or immediately if the low battery indicator appears.
• Cleaning: Wipe the exterior with a soft, damp cloth. Avoid abrasive cleaners.
• Lock Mechanism: Periodically check the locking bolts and hinges for smooth operation. Do not lubricate the lock mechanism unless specifically instructed by the manufacturer.
• Key Storage: Store emergency keys in a secure location outside the safe.

Troubleshooting

Keypad Not Responding

• Check if the internal batteries are dead. Replace them or use the emergency battery box.
• Ensure the battery compartment is closed properly.

Cannot Open with PIN Code

• Verify you are entering the correct PIN code.
• Ensure the batteries are not dead.
• Try using the emergency key or emergency battery box.

Alarm Sounds Unexpectedly

• An incorrect PIN may have been entered multiple times. Enter the correct PIN to disarm.
• The safe may have been shaken or tampered with.
• Check for loose items inside the safe that might cause vibrations.

Door Does Not Close Properly

• Ensure no items are obstructing the door or locking bolts.
• Check if the safe is on a level surface.

Specifications

Storage Capacity

Designed to hold 2-3 rifles and pistols, with adjustable racks and door pouches.

Image: All-steel construction and anti-pry bolts.

Warranty and Customer Support

Marcree provides reliable US-based customer support. For any questions or technical assistance, please contact us. We aim to provide a detailed response within 24 hours.

Please refer to your purchase documentation for specific warranty details.

Image: Customer support and security features.
