EASYWORC S9301 Frameless Pivot Shower Door Instruction Manual
Model: S9301-2672-NI-EW
1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your EASYWORC S9301 Frameless Pivot Shower Door. This door is designed for openings from 24" to 26" wide and 72" high, featuring 1/4" (6mm) SGCC tempered glass with an explosion-proof film and nano-coating for enhanced safety and easy cleaning. Its frameless design and pivot system offer a modern aesthetic and smooth operation.
2. Safety Information
- Always wear safety glasses during installation.
- Handle glass panels with extreme care. Tempered glass, while strong, can shatter into small pieces if struck at the edges.
- Ensure the installation surface (walls, floor) is structurally sound and level.
- Use appropriate tools and follow all steps precisely.
- Do not overtighten screws, as this can damage components or glass.
- Keep children and pets away from the installation area.
- The glass is certified by CPSC, ANSI, and SGCC for safety.
- The explosion-proof film helps contain glass fragments in case of breakage.
Image: Comparison of glass breakage. Regular glass shatters into large, sharp pieces. Tempered glass breaks into small, blunt fragments. EASYWORC's anti-explosion film holds tempered glass fragments together, enhancing safety.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer support.
- Glass Panel (1/4" (6mm) Tempered Glass with Nano Coating and Explosion-Proof Film)
- Aluminum Alloy Frame Profiles
- Pivot Hinges and Hardware
- Magnetic Seal Strip
- Door Handles (Interior mini-handle, Exterior 304 Stainless Steel Towel Bar)
- Installation Screws and Anchors
- Sealing Strips/Gaskets
- Instruction Manual
4. Setup and Installation
Careful measurement and preparation are crucial for a successful installation. Refer to the detailed video guide for visual assistance.
4.1 Pre-Installation Checks
- Measure your shower opening to ensure it falls within the 24" to 26" width range.
- Ensure walls are plumb and level.
- Gather all necessary tools (drill, level, tape measure, screwdriver, caulk gun, silicone sealant).
4.2 Reversible Installation
The shower door is designed for reversible installation, allowing it to open from either the left or right side to suit your bathroom layout.
Image: Illustration of the shower door configured for opening from the right and opening from the left, demonstrating its reversible design.
4.3 Width Adjustment
The door features a width adjustment mechanism on both sides, allowing for a maximum adjustment of 1 inch on each side to accommodate slight variations in your shower opening.
Image: Detailed view of the adjustable wall jambs, showing how the shower door width can be adjusted by up to 1 inch on both the left and right sides.
4.4 Installation Video Guide
For a comprehensive visual guide, please watch the official installation video:
Video: Official installation guide for the EASYWORC Pivot Shower Door (Model S9301). This video demonstrates the step-by-step process for mounting the frame, installing the glass panel, and attaching hardware.
Follow the instructions provided in the video and the included printed manual for detailed steps on assembling the frame, mounting it to the wall, installing the glass panel, and attaching the handles and seals.
5. Operation
5.1 Pivot System
The EASYWORC S9301 features a smart pivot system that allows the door to open smoothly up to 90 degrees outwards. When opening, the door slightly lifts, and when closing, it lowers to create a secure, leak-proof seal.
Image: Illustration of the smart pivot mechanism. The door lifts slightly when opening for silent, effortless movement and lowers when closing to create a perfect, leak-proof seal.
5.2 Magnetic Seal Strip
The angled magnetic seal strip ensures superior water-tightness and a whisper-quiet closing action. This design provides perfect alignment and a seamless modern look while preventing water leakage.
Image: Close-up view of the angled magnetic seal strip, highlighting its design for superior water-tightness, perfect alignment, quiet closing, and a seamless modern appearance.
5.3 Handles
The door includes an interior mini-handle for convenient access from inside the shower and an exterior 304 stainless steel towel bar, which also serves as a handle.

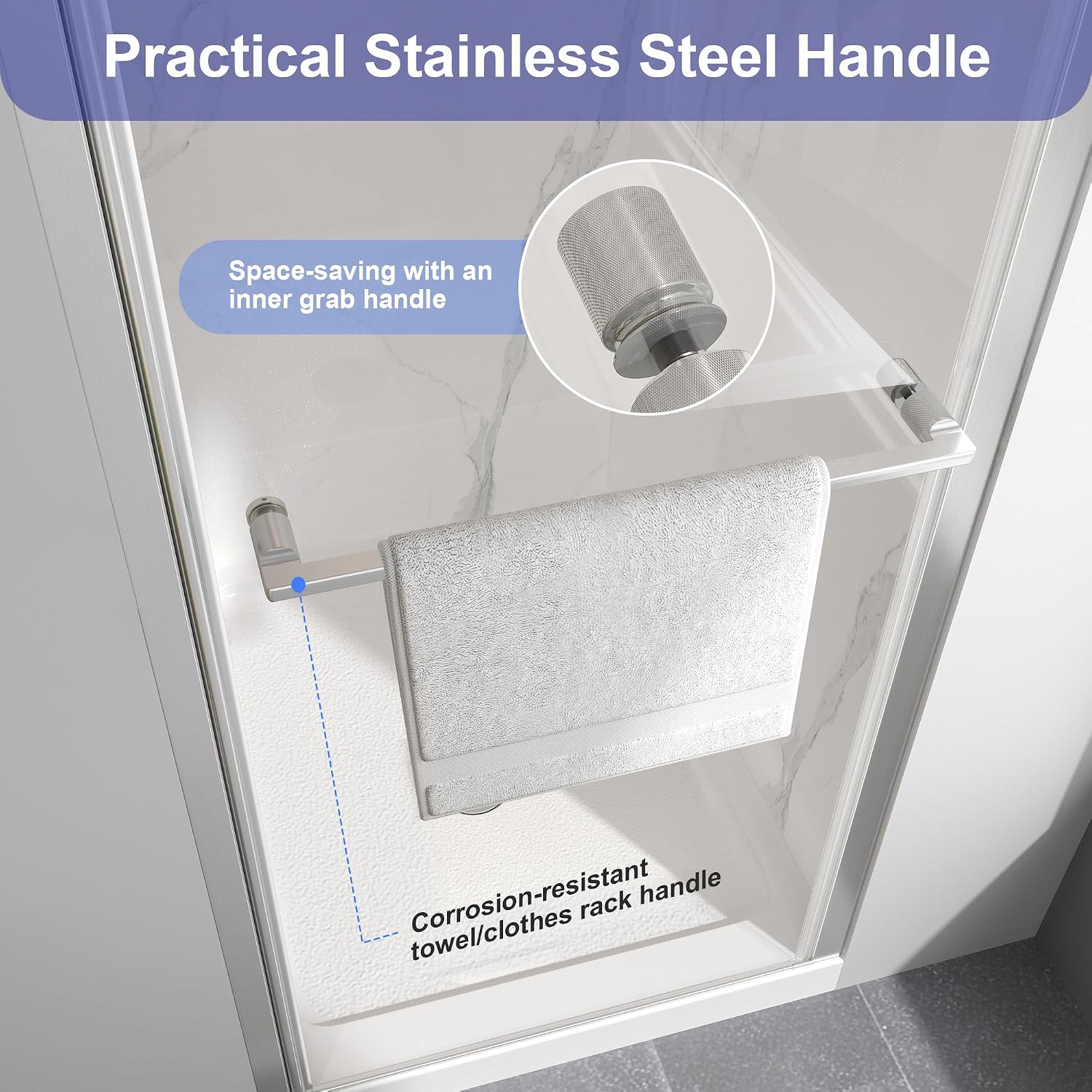

Image: View of the shower door handles, featuring a space-saving inner grab handle and a corrosion-resistant 304 stainless steel towel bar on the exterior.
6. Maintenance
6.1 Glass Cleaning
The 1/4" (6mm) tempered glass features an interior nano-coating, which effectively resists water spots, soap scum, and limescale buildup, making cleaning easier.
Image: Illustration demonstrating the benefits of the premium nano coating. Water beads off the coated glass, preventing stains, scum, and limescale buildup, making it easy to clean.
To clean, simply wipe down the glass with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could damage the nano-coating or glass surface.
6.2 Frame and Hardware Care
The aluminum alloy frame and stainless steel hardware are built to resist rust and moisture. Clean these components with a soft, damp cloth. Do not use abrasive cleaners or steel wool, which can scratch the finish.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not close properly or seal tightly. | Misalignment of the door or magnetic strip; debris in pivot mechanism. | Check wall plumbness and adjust door alignment using the width adjustment feature. Clean pivot mechanism. Ensure magnetic strip is clean and intact. |
| Water leaks from the bottom or sides of the door. | Improper sealing; damaged seal strip; incorrect installation. | Verify all sealing strips are correctly installed and undamaged. Apply silicone sealant where necessary as per installation instructions. Check door alignment. |
| Door is difficult to open or close. | Pivot mechanism obstruction; dirty or damaged hinges. | Inspect the pivot mechanism for any obstructions. Clean and lubricate hinges if necessary. |
If you encounter issues not listed here or require further assistance, please contact EASYWORC customer support.
8. Specifications
- Brand: EASYWORC
- Model Number: S9301-2672-NI-EW
- Product Dimensions: 24"-26" W x 72" H
- Walk-in Width: 19 5/8" - 21 5/8"
- Glass Thickness: 1/4" (6mm)
- Glass Type: SGCC Tempered Glass with Explosion-Proof Film & Nano Coating
- Frame Material: Premium Aluminum Alloy
- Hardware Material: 304 Stainless Steel (Towel Bar)
- Color: Brushed Nickel Clear Glass
- Style: Modern, Frameless Pivot
- Certifications: CPSC, ANSI, SGCC
Image: Product dimension diagram, indicating the shower door width (A: 24"-26"), height (B: 72"), walk-in width (C: 19 5/8"-21 5/8"), and glass thickness (D: 1/4").
9. Warranty and Support
EASYWORC products are backed by a commitment to quality. For warranty information or any support needs, please contact our customer service team.
- Customer Service Hotline: 1-888-998-5388 (Monday-Friday, 9 AM - 5 PM PST)
- Online Customer Care: 7/24 availability for inquiries.
For quick assistance, especially regarding installation or product issues, please have your order details ready. Providing photos or a clear description of the issue can help us resolve your request efficiently, often within 24 hours for replacements of damaged or missing parts.
