Introduction
Thank you for choosing the PeakPursuit 60-Inch Electric Fireplace. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new electric fireplace. Please read all instructions carefully before installation and use, and retain this manual for future reference.
Image: The PeakPursuit 60-inch electric fireplace, showcasing its sleek design and realistic flame effects.
Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This fireplace is equipped with several safety features:
- Dual Overheat Protection: Automatically shuts off the heater if it reaches an unsafe temperature.
- Auto Shut-off Function: Further enhances safety by preventing overheating.
- Child Lock Feature: Prevents unintended operation by children or pets.
- Tempered Glass: High-quality tempered glass is designed to withstand higher temperatures and reduce the risk of breakage.
Image: Visual representation of the fireplace's enhanced safety features, including overheat protection and tempered glass.
Setup and Installation
Your PeakPursuit electric fireplace offers versatile installation options: recessed, wall-mounted, or integrated into a cabinet. Ensure the chosen location is suitable and provides adequate clearance.
What's Included
Before beginning installation, verify that all components are present:

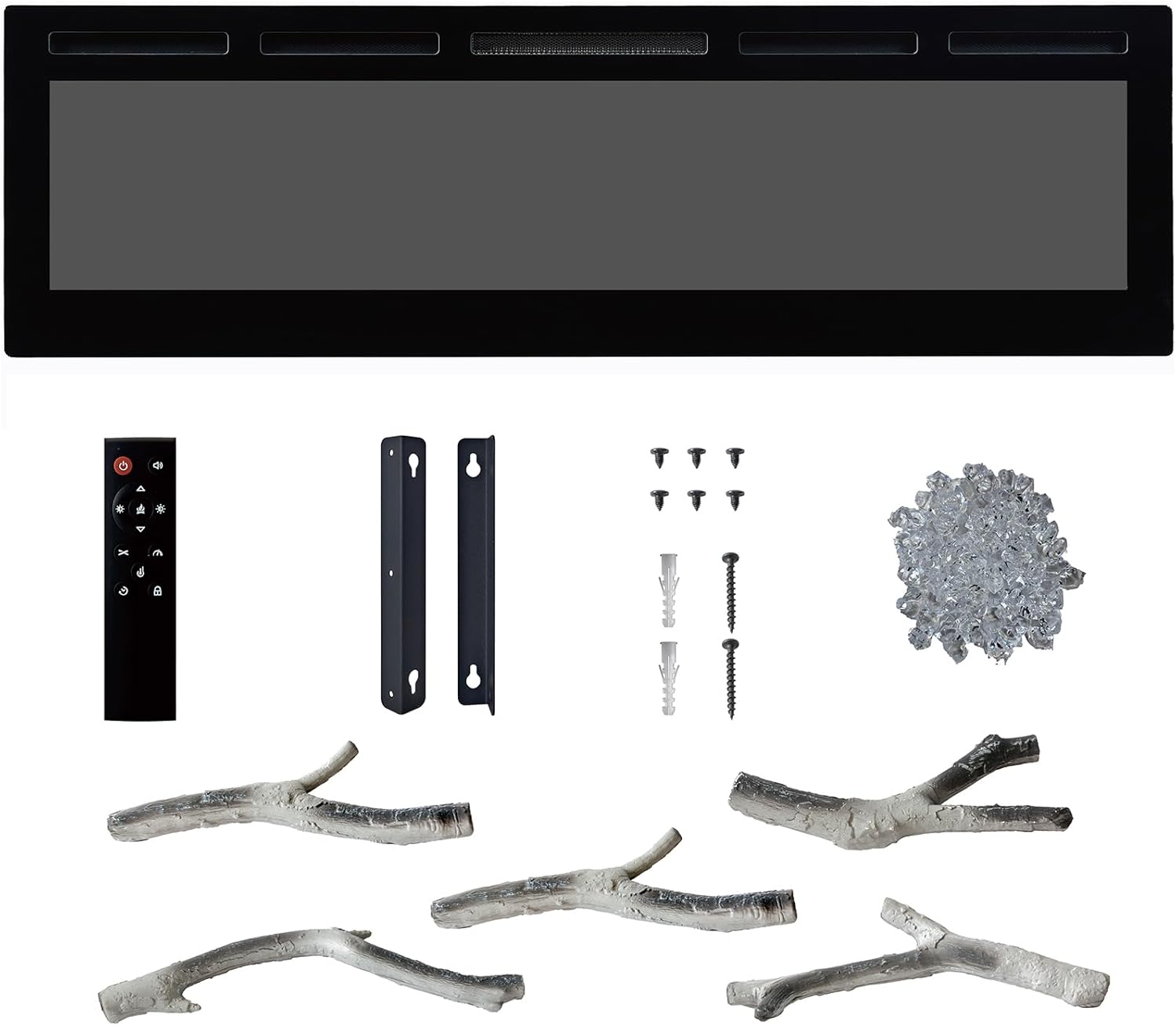

Image: All components included with the fireplace: the main unit, remote control, mounting hardware, acrylic crystals, and decorative birch logs.
Installation Methods
Choose between recessed or wall-mounted installation based on your preference and wall structure.
Image: Examples of wall-mounted and recessed installation options for the electric fireplace.
Detailed Installation Steps
Refer to the diagram below for specific dimensions and a step-by-step guide.

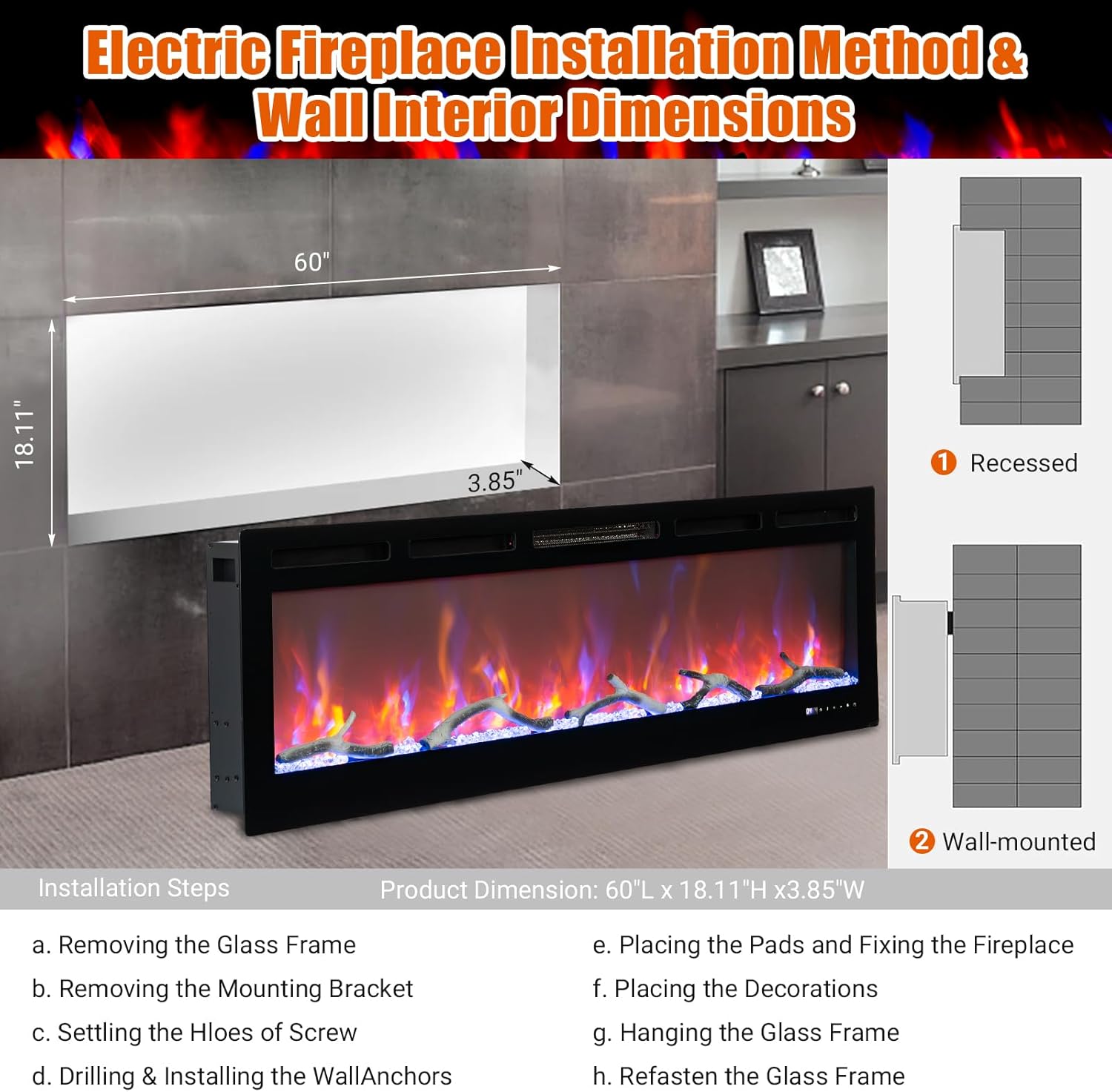

Image: A detailed diagram illustrating the dimensions (60"L x 18.11"H x 3.85"W) and installation steps for both recessed and wall-mounted configurations.
- Remove the glass frame.
- Remove the mounting bracket.
- Settle the screws.
- Drill and install the wall anchors.
- Place the pads and fix the fireplace.
- Place the decorative media (crystals or logs).
- Hang the glass frame.
- Refasten the glass frame.
Operating Instructions
Your fireplace can be controlled via the touch panel, remote control, or a smart app with voice control integration.
Control Panel and Remote
The touch panel on the fireplace and the included remote control allow access to all functions.

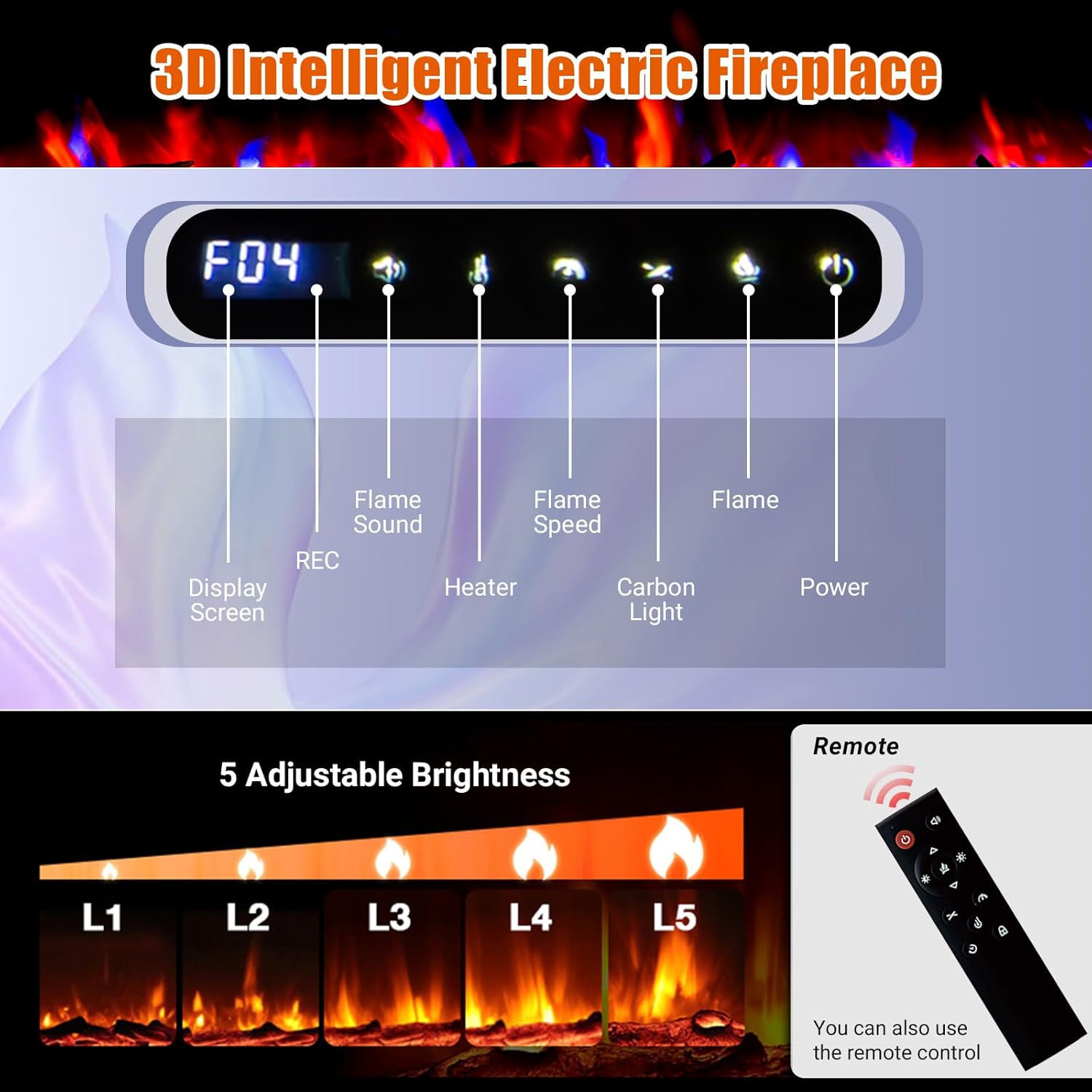

Image: The fireplace's touch control panel indicating functions like display screen, flame sound, heater, carbon light, flame speed, flame, and power. The remote control and five adjustable flame brightness levels (L1-L5) are also shown.
Heating Functions
The fireplace offers two heat settings (750W/1500W) and 9 temperature settings (60°F–99°F) to warm areas up to 400 sq. ft. Temperature can be displayed in Fahrenheit or Celsius.
Image: Illustration of the fireplace's heating capabilities, showing 750W and 1500W heat settings and coverage for up to 400 square feet.
Flame and Ember Settings
Customize your ambiance with 12 flame colors, 13 bed light effects, 5 brightness settings, and 5 speed settings. An automatic flame mode is also available.
Image: A visual guide to the 12 available flame colors, the sparkling crystal ember bed option, and the three adjustable flame sound levels (High, Medium, Low).
Image: A comprehensive grid showcasing the 12 distinct flame colors that can be selected for the fireplace.
Image: Demonstrations of the five adjustable brightness levels for both the carbon log rock effect and the crystal stone effect ember beds.
Flame Sounds
Enhance the realism with three flame sound levels: high, medium, and low. Adjust the sound to create your desired atmosphere.
Timer Function
Set the operational duration with a timer ranging from 0.5 to 12 hours.
Smart Control with App and Voice
Beyond the remote and touch panel, control your fireplace seamlessly using a smart app, compatible with Alexa and Google Home for voice commands.

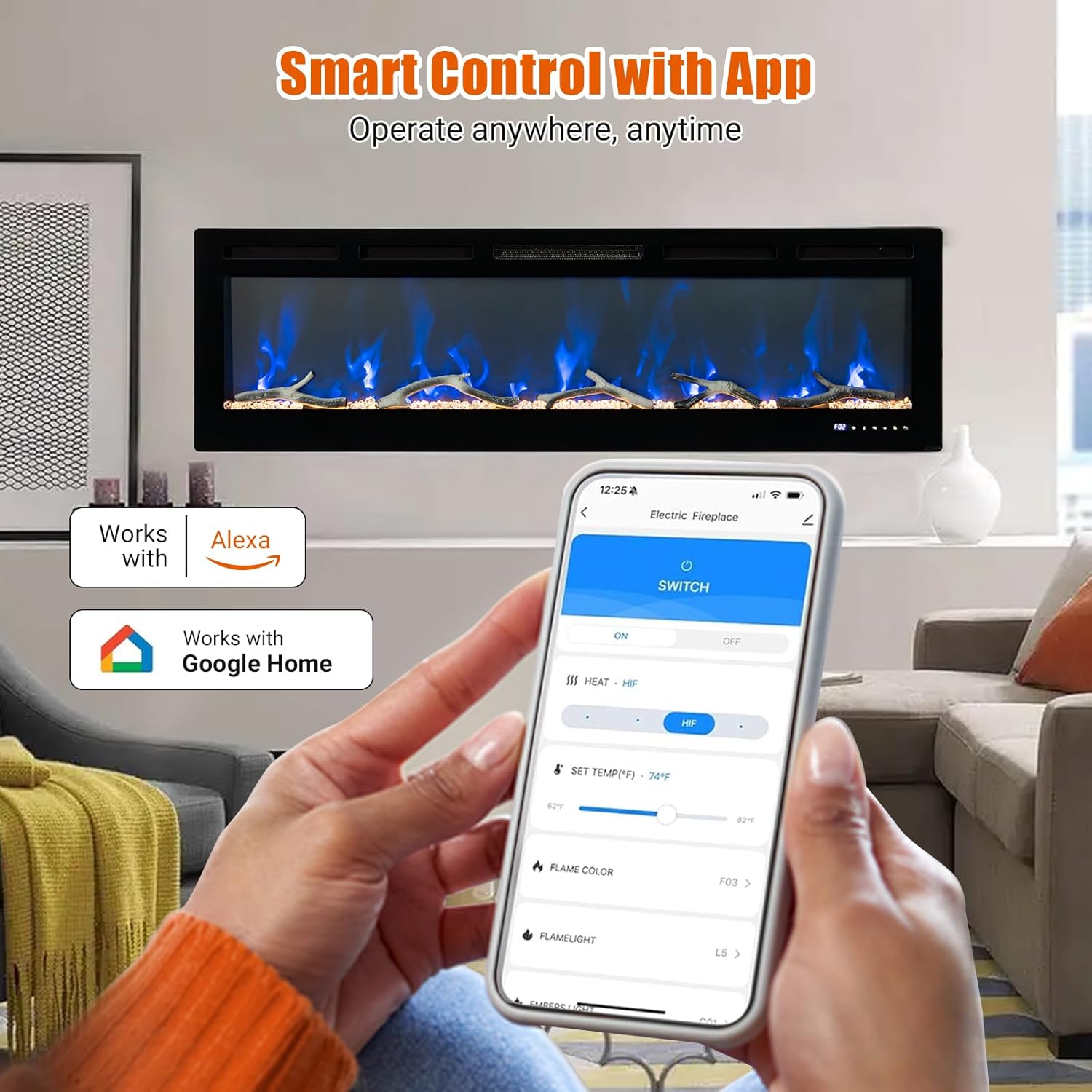

Image: A smartphone displaying the dedicated app for controlling the fireplace, highlighting its compatibility with Alexa and Google Home for smart home integration.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric fireplace.
- Cleaning: Ensure the fireplace is turned off and unplugged before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or sprays.
- Glass Panel: Clean the tempered glass panel with a soft cloth and a non-abrasive glass cleaner.
- Air Vents: Periodically check and clean the air intake and exhaust vents to ensure proper airflow and prevent overheating. Use a vacuum cleaner with a brush attachment to remove dust.
- Storage: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe, protected location.
Troubleshooting
If you encounter issues with your fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on. | No power supply; power cord not fully plugged in; main power switch off. | Check power outlet and ensure cord is securely plugged in. Verify the main power switch is in the 'ON' position. |
| No heat output. | Heater function is off; temperature setting is too low; overheat protection activated. | Ensure heater function is enabled. Increase the temperature setting. If overheat protection activated, turn off the unit, unplug, wait 15-20 minutes, then plug back in. Clear any obstructions from vents. |
| Flames are not visible or dim. | Flame effect is off; brightness setting is too low. | Activate the flame effect. Increase the flame brightness setting using the control panel or remote. |
| Remote control not working. | Batteries are dead or incorrectly inserted; remote sensor is obstructed. | Replace batteries with new ones, ensuring correct polarity. Remove any obstructions between the remote and the fireplace sensor. |
| Unusual noise from the unit. | Dust accumulation in fan; loose components. | Turn off and unplug the unit. Carefully clean fan and vents. If noise persists, contact customer support. |
Specifications
| Brand | PeakPursuit |
| Model Name | 3bJBE6N9b9A6CRRnpKY3bwCTNOS5B |
| Power Source | Corded Electric |
| Product Dimensions (D x W x H) | 62.6"D x 8.07"W x 21.85"H |
| Material | Tempered Glass |
| Installation Type | Wall Mount, Recessed |
| Heat Output | 750W / 1500W |
| Special Feature | Adjustable Flame, Smart App & Voice Control, Timer, Touch Screen |
| Color | Black |
| Heating Coverage | Up to 400 sq ft |
| Included Components | Remote Control, Mounting Hardware, Decorative Media (Crystals, Logs) |
| Item Weight | 62.2 Pounds |
| UPC | 199913228554 |
Warranty Information
This PeakPursuit electric fireplace comes with a Limited Warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact PeakPursuit customer support. Contact information can typically be found on the product packaging, the official PeakPursuit website, or your purchase documentation.
