eHoodax EBX10 Fat Tire Mobility Scooter User Manual

1. Introduction to the eHoodax EBX10 Mobility Scooter

This manual provides essential instructions for the safe operation, maintenance, and setup of your eHoodax EBX10 Fat Tire Mobility Scooter. The EBX10 is designed for personal mobility, featuring a robust 4000W motor and 18-inch fat tires for stability across various terrains. It is equipped with a 60V25Ah removable lithium battery, offering a balance of power and range. Please read this manual thoroughly before operating the scooter to ensure your safety and prolong the product's lifespan.

Key Features:

• Powerful Motor: 4000W aluminum wheel motor for speeds up to 40 MPH.
• Extended Range Battery: 60V25Ah removable lithium battery providing 25-35 miles of cruising range.
• Fat Tires: 18-inch ultra-wide fat tires for enhanced grip and stability on diverse surfaces.
• Advanced Suspension: Front long-distance hydraulic shock absorption and rear high-end spring shock absorption for a comfortable ride.
• Visibility & Information: High-brightness LED headlight and a high-definition dial display for speed, battery level, and distance.
• Robust Construction: Frame constructed from iron and plastic for durability.

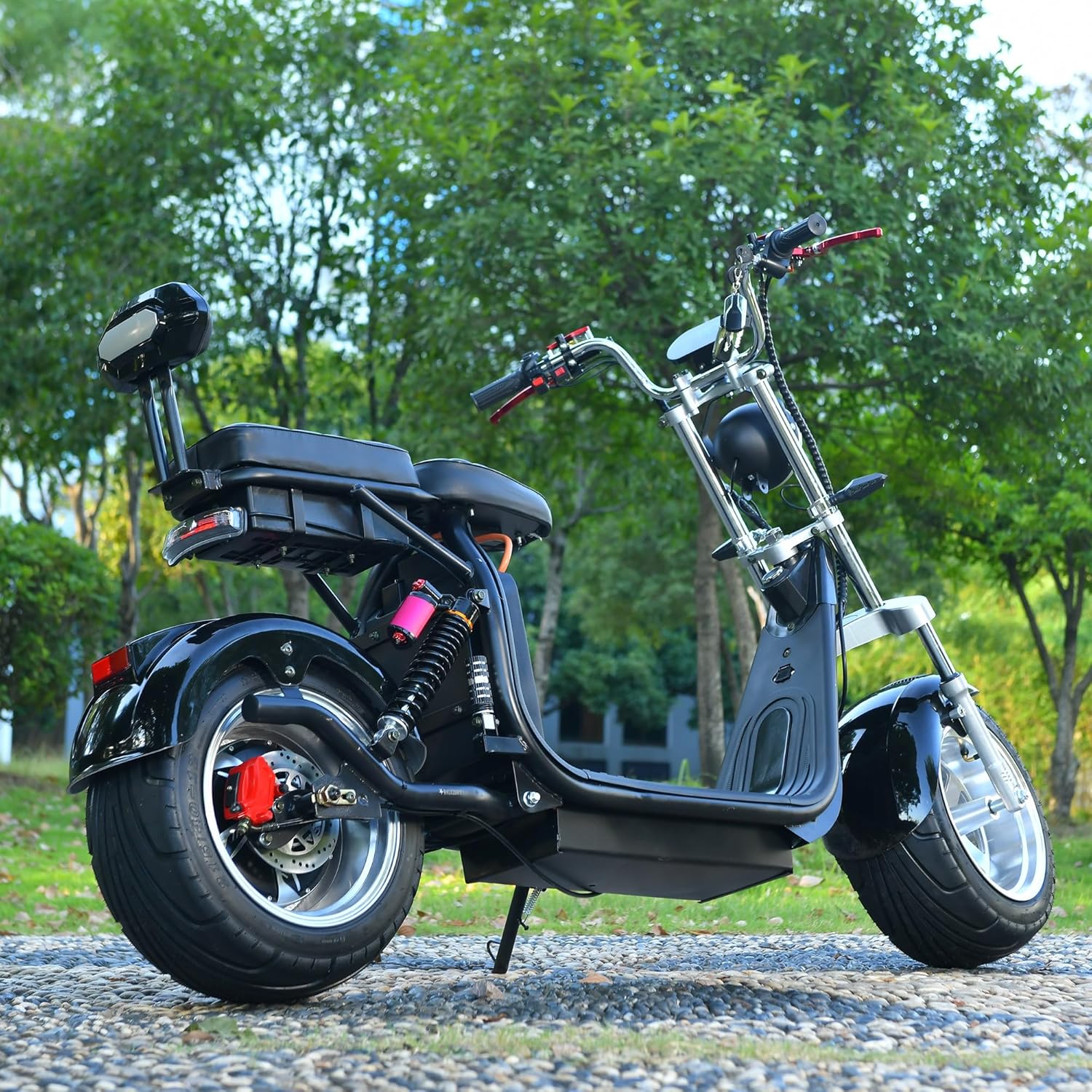

Figure 1: The eHoodax EBX10 Fat Tire Mobility Scooter, showcasing its robust design and wide tires.

2. Safety Information

Your safety is paramount. Please adhere to all safety guidelines to prevent injury or damage.

General Safety Precautions:

• Always wear a helmet and appropriate safety gear when operating the scooter.
• Familiarize yourself with local laws and regulations regarding electric mobility scooters before riding.
• Do not exceed the maximum load capacity of 440 lbs (200 kg).
• Ensure the battery is fully charged and securely installed before each ride.
• Perform a pre-ride inspection, including brakes, tires, and lights.
• Avoid riding in adverse weather conditions, such as heavy rain or snow.
• Do not operate the scooter under the influence of alcohol or drugs.
• Keep both hands on the handlebars while riding.
• Maintain a safe distance from other vehicles and pedestrians.
• Children should not operate this scooter without adult supervision.

Battery Safety:

• Use only the charger provided by the manufacturer.
• Do not expose the battery to extreme temperatures or direct sunlight.
• Avoid puncturing or damaging the battery pack.
• Charge the battery in a well-ventilated area, away from flammable materials.
• If the battery shows signs of damage or overheating, discontinue use immediately and contact support.

3. Setup Guide

Follow these steps to prepare your eHoodax EBX10 for its first use.

3.1 Unpacking and Initial Inspection

1. Carefully remove all components from the packaging.
2. Check for any visible damage during transit. Report any damage to your retailer immediately.
3. Ensure all parts listed in the packing list are present.

3.2 Battery Installation and Initial Charge

• Locate the battery compartment, typically under the seat or floorboard.
• Insert the 60V25Ah removable lithium battery, ensuring it clicks securely into place.
• Connect the charger to the scooter's charging port and then to a standard power outlet.
• Allow the battery to charge for 6-8 hours for the first charge, or until the charger indicator light signals a full charge.
• Important: Do not overcharge the battery. Disconnect the charger once charging is complete.

Figure 2: Side view of the scooter, showing the location of the battery compartment.

3.3 Pre-Ride Checks

• Tire Pressure: Check the pressure of the 18-inch fat tires. Refer to the tire sidewall for recommended PSI.
• Brakes: Test both front and rear brakes to ensure they engage smoothly and effectively.
• Handlebars and Seat: Ensure all bolts and fasteners are tight and secure. Adjust the seat to a comfortable riding position if adjustable.
• Lights: Verify that the LED headlight and taillights are functioning correctly.

4. Operating Instructions

Learn how to safely operate your eHoodax EBX10 scooter.

4.1 Starting the Scooter

1. Insert the key into the ignition and turn it to the "ON" position.
2. The high-definition dial display will illuminate, showing battery level, speed, and other parameters.
3. Ensure the kickstand is fully retracted before attempting to move.

Figure 3: Close-up of the handlebars, showing the ignition, display, and control levers.

4.2 Riding the Scooter

• Throttle Control: Gently twist the right-hand grip (throttle) towards you to accelerate. Apply throttle gradually to avoid sudden movements.
• Braking: Use the brake levers on both handlebars to slow down or stop. The left lever typically controls the rear brake, and the right lever controls the front brake. Apply both brakes smoothly for optimal stopping power.
• Steering: Steer by gently turning the handlebars in the desired direction. The wide tires provide stable handling.
• Lights: Use the switch on the handlebars to turn the LED headlight on or off, especially when riding in low-light conditions.
• Speed Modes: If your scooter has multiple speed modes, use the corresponding button on the display or handlebars to switch between them.

Figure 4: Detailed view of the right handlebar controls, including the throttle and brake lever.

4.3 Parking and Turning Off

1. Bring the scooter to a complete stop using the brakes.
2. Engage the kickstand to support the scooter.
3. Turn the ignition key to the "OFF" position and remove the key.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your eHoodax EBX10 scooter.

5.1 Battery Care

• Charge the battery regularly, even if the scooter is not in frequent use, to maintain battery health.
• Store the battery in a cool, dry place when not in use.
• Avoid completely draining the battery before recharging.
• If storing for an extended period, charge the battery to approximately 50-60% and check it monthly.

5.2 Tire Maintenance

• Regularly check tire pressure and inflate to the recommended PSI.
• Inspect tires for wear, cuts, or punctures. Replace worn tires promptly.

5.3 Brake System

• Periodically check brake pads for wear and replace them as needed.
• Ensure brake levers operate smoothly and return to their original position.
• Inspect brake cables or hydraulic lines for damage or leaks.

5.4 General Cleaning and Inspection

• Clean the scooter with a damp cloth. Avoid using high-pressure washers directly on electrical components.
• Regularly check all nuts, bolts, and fasteners for tightness.
• Inspect the frame for any signs of damage or cracks.

Figure 5: Rear view of the scooter, highlighting the suspension system and rear wheel for maintenance checks.

6. Troubleshooting

This section addresses common issues you might encounter with your eHoodax EBX10 scooter.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support.

7. Specifications

Detailed technical specifications for the eHoodax EBX10 Fat Tire Mobility Scooter.

8. Warranty and Customer Support

For warranty information, please refer to the documentation provided with your purchase or contact the retailer directly.

If you require technical assistance, have questions about operation, or need to report a defect, please contact eHoodax customer support or your authorized dealer. Please have your model number (EBX10) and purchase date available when contacting support.
