1. Product Overview
The EasQjK 4-Stroke Scooter Variator Holder Blocking Tool is designed to securely hold the variator in place during maintenance tasks such as removal or installation of the variator nut. This tool prevents the variator from rotating, allowing for safe and efficient servicing of your scooter's transmission system.
It is constructed from durable materials to ensure stable support and prevent deformation during use. The design is specifically tailored for four-stroke engines, ensuring proper fit and preventing slippage or misalignment.
Compatibility: This tool is suitable for a variety of 500i four-stroke scooter models, including:
- LT 500i 4T E3 (2013-2014)
- RL 500i 4T E3 (2007-2013)
- 500i 4T E2 (2003-2005)
- Ne500i 4T E3 (2006-2008, 2009-2011)
- NSP 500i 4T E3 (2006-2007)
Image 1.1: The EasQjK Variator Holder Blocking Tool, showing its main body and components.
2. Safety Information
Always prioritize safety when performing maintenance on your scooter. Failure to follow safety guidelines can result in injury or damage to the vehicle.
- Read the Scooter's Service Manual: Before using this tool, consult your scooter's official service manual for specific variator removal and installation procedures and torque specifications.
- Wear Personal Protective Equipment (PPE): Always wear safety glasses and gloves to protect against potential hazards.
- Ensure Stability: Park the scooter on a stable, level surface using its center stand. Consider using additional stands for extra stability.
- Engine Off and Cool: Ensure the engine is turned off and has cooled down completely before beginning any work.
- Disconnect Battery: For electrical safety, it is recommended to disconnect the battery's negative terminal before starting work.
- Use Correct Tools: Use this variator holder tool only for its intended purpose. Do not use it as a pry bar or for other unintended applications.
- Keep Work Area Clean: A clean and organized workspace reduces the risk of accidents.
3. Package Contents
Verify that all components are present and undamaged upon opening the package.
- 1x Variator Holder Blocking Tool (main body)
- 2x Long Hex Bolts
- 2x Cylindrical Spacers
- 2x Washers

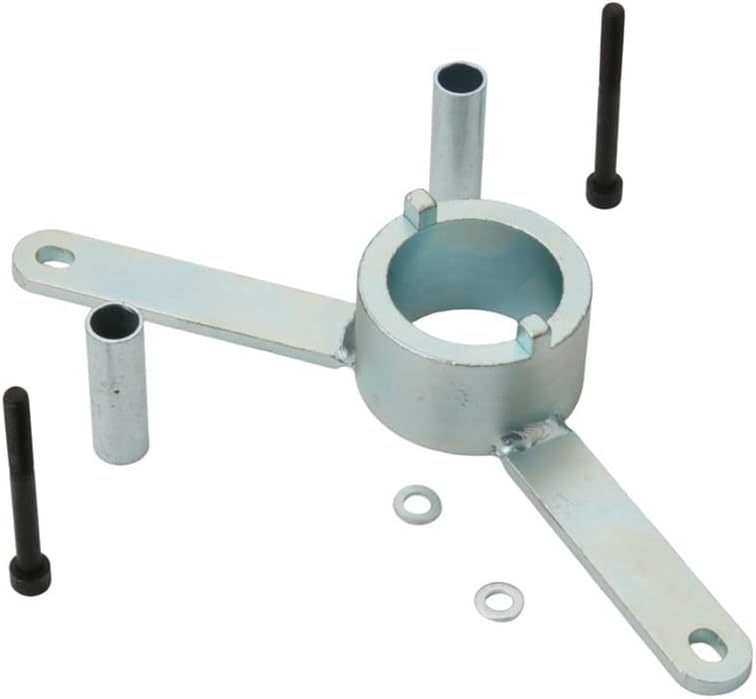

Image 3.1: All components of the variator holder tool laid out, including the main tool, bolts, spacers, and washers.
4. Setup
The variator holder tool may require minor assembly before its first use.
- Identify Components: Separate the main variator holder body, the two long hex bolts, the two cylindrical spacers, and the two washers.
- Insert Spacers: Place one cylindrical spacer over each of the long hex bolts.
- Attach Bolts: Insert the bolts (with spacers) through the designated holes on the variator holder tool. The spacers should sit between the tool and the variator face when in use, or simply be positioned on the bolts for storage. For actual use, the bolts will pass through the variator face into the crankshaft.
- Secure Washers: If the bolts are to be temporarily secured to the tool for storage or pre-assembly, place a washer under the head of each bolt. For actual use, the washers are typically used under the variator nut, not with this tool directly. This tool uses the bolts to engage the variator.
Image 4.1: The variator holder tool with bolts and spacers assembled, ready for use.
5. Operating Instructions
Follow these steps to safely and effectively use the variator holder blocking tool for variator maintenance.
- Prepare the Scooter: Ensure the scooter is stable and the engine is off and cool. Remove any necessary body panels or covers to access the variator assembly.
- Locate the Variator: The variator is typically located on the left side of the engine, behind the transmission cover.
- Position the Tool: Align the two prongs of the variator holder tool with the corresponding holes or slots on the variator face. The central ring of the tool should fit over the variator's central shaft.
- Secure the Tool: Insert the two long hex bolts (with spacers, if applicable, depending on variator design) through the holes on the variator holder tool and into the crankshaft or other designated securing points on the variator. Tighten these bolts by hand to ensure the tool is firmly seated and prevents the variator from rotating. Do not overtighten these bolts, as they are only for holding the variator, not for applying torque to the crankshaft.
- Remove/Install Variator Nut: With the variator securely held by the tool, use an appropriate socket wrench to loosen (for removal) or tighten (for installation) the variator retaining nut. Refer to your scooter's service manual for the correct torque specifications for tightening the variator nut.
- Remove the Tool: Once the variator nut is serviced, loosen and remove the two hex bolts securing the variator holder tool. Carefully remove the tool from the variator assembly.
- Reassemble: Reinstall any removed covers or body panels.
Image 5.1: An example of the variator holder tool positioned on a variator, demonstrating how it secures the component for maintenance.
6. Maintenance
Proper care will extend the life of your EasQjK Variator Holder Blocking Tool.
- Cleaning: After each use, wipe the tool clean with a dry cloth to remove any grease, oil, or debris.
- Storage: Store the tool in a dry environment to prevent rust. Keep all components (bolts, spacers, washers) together to avoid loss.
- Inspection: Periodically inspect the tool for any signs of damage, bending, or wear. If the tool appears compromised, discontinue use and replace it.
7. Troubleshooting
If you encounter issues while using the variator holder tool, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not fit variator | Incorrect model compatibility or variator type. | Verify your scooter model against the tool's compatibility list. Ensure it is a 4-stroke variator. |
| Variator still rotates with tool attached | Tool not properly seated or bolts not tightened sufficiently. | Ensure the prongs are fully engaged in the variator holes/slots. Hand-tighten the securing bolts firmly. |
| Difficulty loosening/tightening variator nut | Nut is seized or incorrect wrench size is used. | Apply penetrating oil if seized. Use the correct size socket and a breaker bar if necessary. Ensure the tool is holding the variator securely. |
8. Specifications
- Model Number: EasQjK77521
- Brand: EasQjK
- Manufacturer: EasQjK77521
- Item Weight: 1.76 ounces (approximately 50 grams)
- Product Dimensions: 0.39 x 0.39 x 0.39 inches (approximately 1 x 1 x 1 cm) - Note: These dimensions appear to be placeholder values and may not reflect the actual tool size.
- Exterior Finish: Brushed
- Compatibility: 4-Stroke 500i E2/E3 Scooter Models (LT, RL, Ne, NSP series)
9. Warranty and Support
For warranty information, please refer to the purchase documentation or contact the seller directly. Specific warranty terms and conditions may vary.
For technical support or inquiries regarding the use of this tool, please contact the manufacturer or your point of purchase.
